SDS1000DL+ Series Digital Storage Oscilloscopes

  • 50 MHz bandwidth models
  • Real-time sampling rate up to 500 MSa/s, Equivalent-time sampling rate up to 50 GSa/s
  • Memory Depth up to 32 kpts
  • Trigger types: Edge, Pulse, Video, Slope, Alternate
  • Waveform math functions:+, -, *, /, FFT
  • 6 digit frequency counter

Product Overview

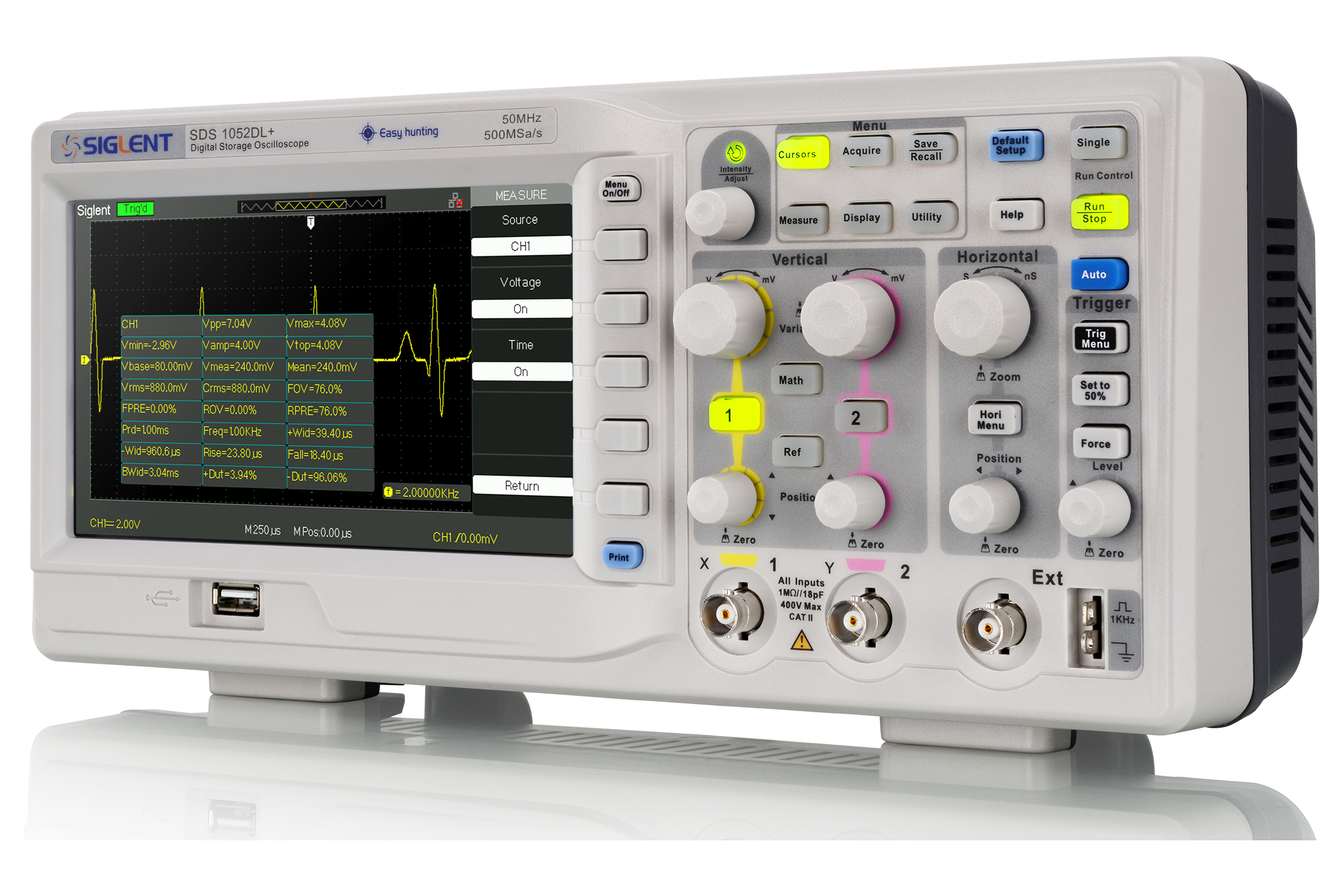

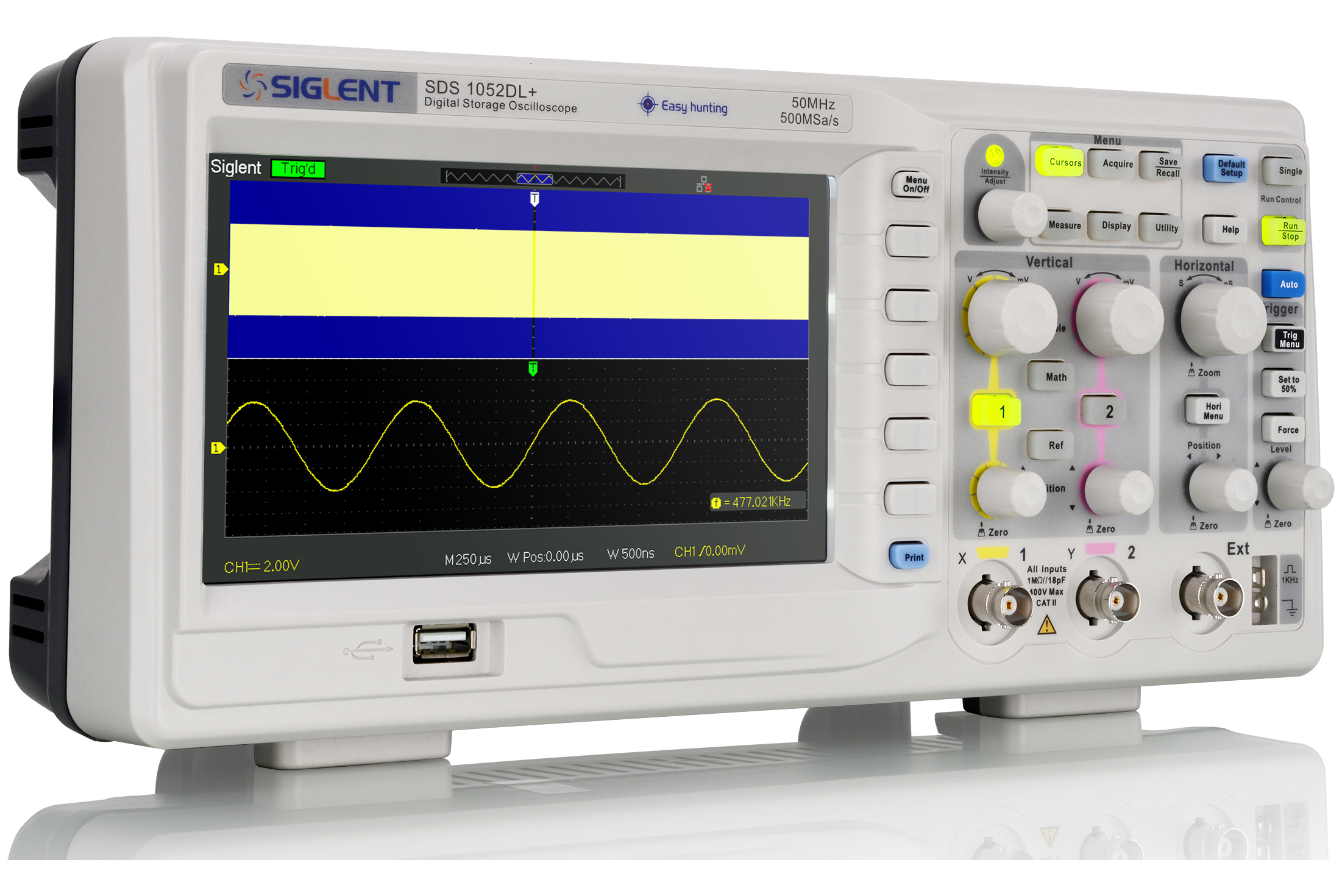

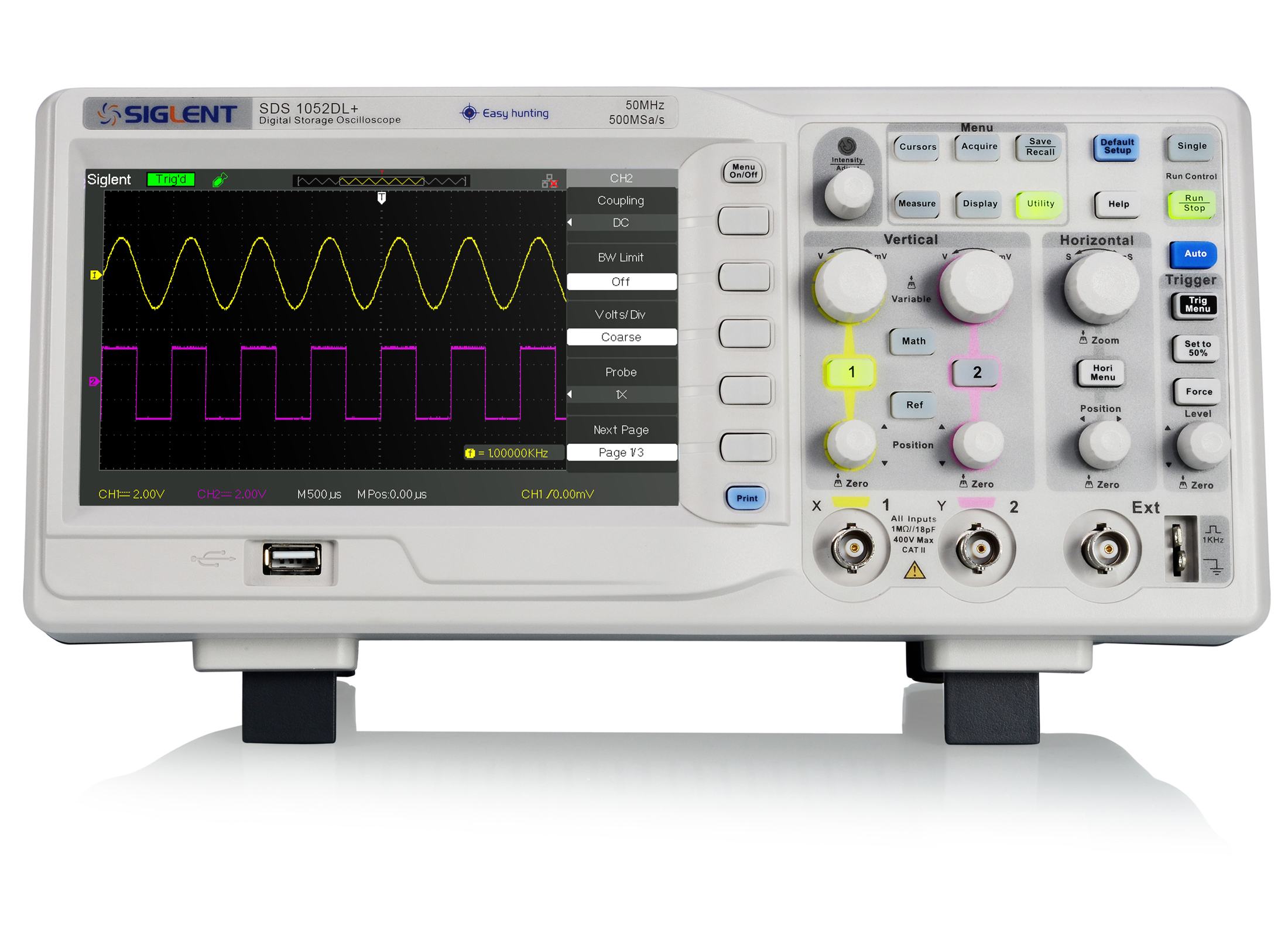

The SIGLENT SDS1000DL+ series is a dual-channel 50 MHz model. It includes a 30 kpts memory depth that helps to ensure accurate waveform resolution and to capture long signal lengths. With its 7-inch TFT-LCD (800*480) screen, there is adequate screen space to help better see and analyze waveform details. Along with a 500 MSa/s sampling rate, the SDS1000DL+ supports 32 parameters measurements and common mathematical operations to speed up complex / repetitive measurements.

Bandwidth Channels Real time
sampling rate
Capture rate Memory depth Price
SDS1052DL+ 50 MHz 2+EXT 500 MSa/ - 32 kpts €259 Buy Now

Key Features

  • Supports multi-language display and embedded help
  • Screensaver from 1 minute to 5 hours
  • Digital filter and waveform recorder function
  • Shortcut storage function key
  • 7-inch TFT-LCD display with 800 * 480 resolution
  • Multiple interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11), Pass / Fail

Need more information? Call us now +49 821 666 0 111 0

Product Characteristics

Memory Depth up to 32 kpts View more

Memory Depth up to 32 kpts

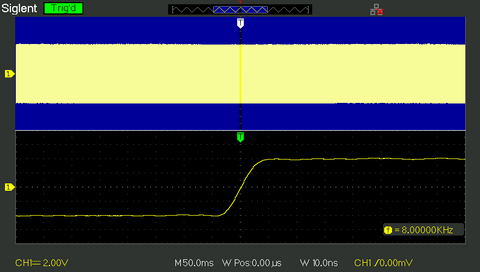

Long Memory (32 kpts) mode allows you to use a high sample rate over a longer time duration so that you can capture more of the signal, and quickly zoom to focus on the area of interest.

32 auto measurements/5 displayed View more

32 auto measurements/5 displayed

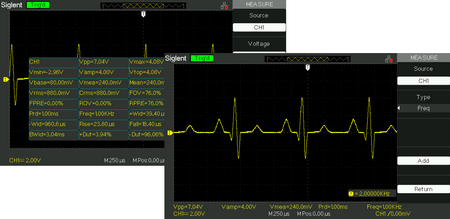

The SDS1000DL+ supports voltage, time and delay measurement types, with a total of 32 different parameters. The user is able to select five measurements to display on the screen. All measurement parameters can also be displayed simultaneously.

Zoom Function View more

Zoom Function

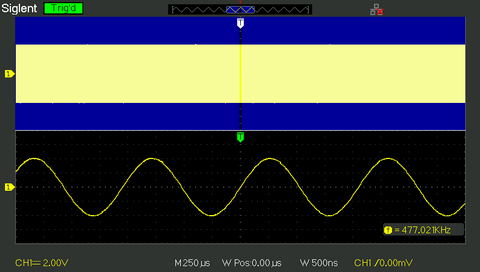

Zoom can extend a partial segment of the waveform, giving the user not only an overview of the whole signal but also a detailed view of the zoomed-in segment. The Zoom feature is a convenient way to locate and isolate signal details.

Pass/Fail Function View more

Pass/Fail Function

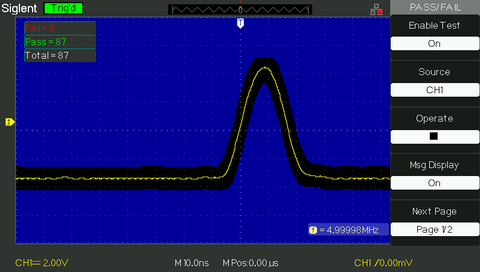

With easy to generate user-defined test templates, the SDS1000DL+ compares the current measured trace to the template mask trace making it suitable for long-term signal monitoring or automated production line testing.

Math Function View more

Math Function

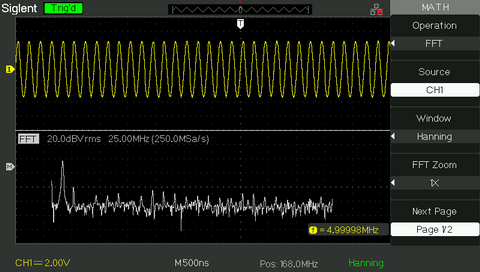

SDS1000DL+ provides 5 kinds of math operations: +, -, *, /, and FFT mode which includes two viewing modes: a split display or overlapping signals/full screen.

Digital Recorder View more

Digital Recorder

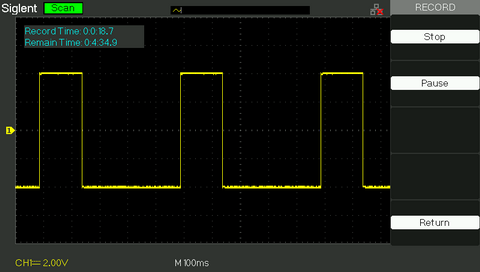

The digital recorder is able to record data in real-time and without any dead time. The SDS1000DL+ has 7 M of memory for the recorder and supports a USB disk.

Embedded Online Help View more

Embedded Online Help

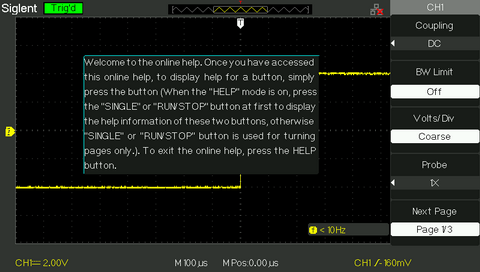

Supports multi-language display and embedded online help, familiarizes the user with all the functions of in a short time.

Abundant interfaces View more

Abundant interfaces

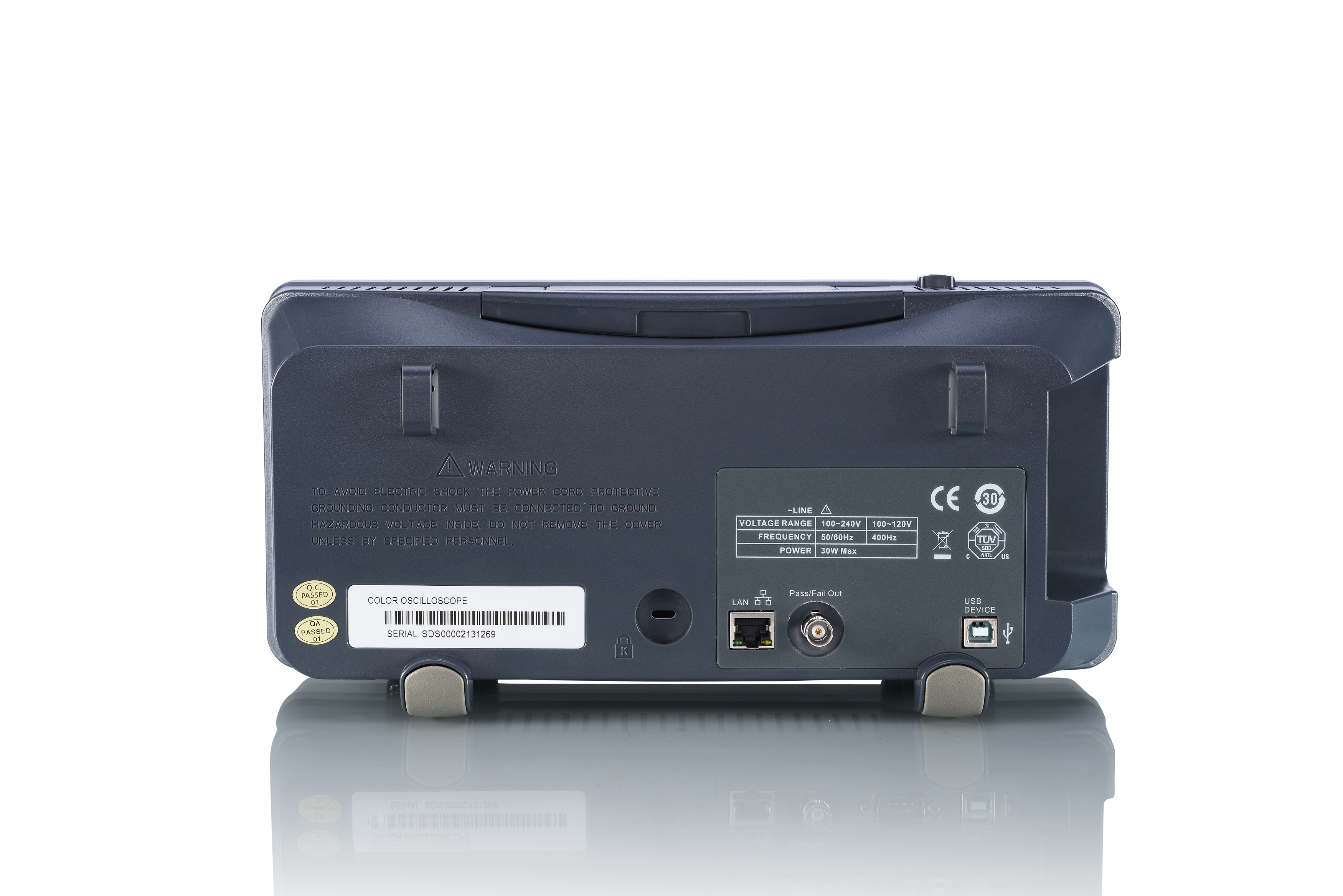

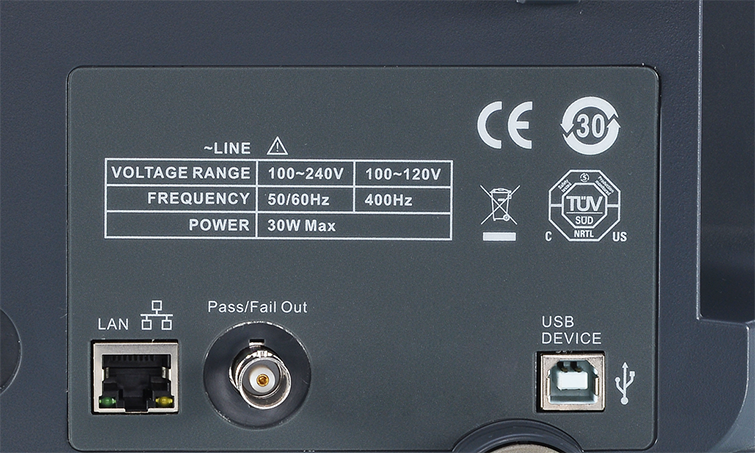

The SDS1000DL+ supports USB Host, USB Device (USBTMC), LAN (VXI-11), and Pass/Fail
