SSG3000X Series of Signal Generators

Frequency up to 2.1 GHz/3.2 GHz
Maximum level up to +20 dBm (typ.)
Level output from -110 dBm to +13 dBm
Level accuracy ≤0.7 dB (typ.)
Standard AM & FM & PM & pulse modulation
Pulse train Generator (option)

Product Overview

SIGLENT’S SSG3000X series of signal generators have a frequency range of 9 kHz to 2.1 GHz/3.2 GHz. They provide normal analog modulation such as AM, FM, and PM. They also provide pulse modulation and pulse train generator. In addition, when used with baseband generator such as SDG6000X, They can generate IQ modulated signals. With their high accuracy and pure outputs, the SSG3000X series is the right choice for R&D, education, and manufacturing.

Frequency Range Amplitude Resolution Phase Noise External I/Q Modulation Price
SSG3021X 9 kHz~2.1 GHz 0.01 dB -110 dBc/Hz @1 GHz ,offset 20 kHz (typ.) NO €1,999 Buy Now
SSG3032X 9 kHz~3.2 GHz 0.01 dB -110 dBc/Hz @1 GHz ,offset 20 kHz (typ.) NO €3,499 Buy Now
SSG3021X-IQE 9 kHz~2.1 GHz 0.01 dB -110 dBc/Hz @1 GHz ,offset 20 kHz (typ.) YES €4,299 Buy Now
SSG3032X-IQE 9 kHz~3.2 GHz 0.01 dB -110 dBc/Hz @1 GHz ,offset 20 kHz (typ.) YES €5,699 Buy Now

Key Features

  • Frequency up to 2.1 GHz/3.2 GHz
  • 0.01 Hz frequency setting resolution
  • Level output from -110 dBm to +13 dBm
  • Maximum level up to +20 dBm (typ.)
  • Phase Noise : -110 dBc/ Hz @ 1 GHz , 20 kHz offset (typ.)
  • Level accuracy ≤0.7 dB (typ.)
  • Provides AM, FM, &PM analog modulation with internal, external or Int+Ext source
  • Pulse modulation, on/off ratio ≥70 dBc
  • Pulse train Generator (option)
  • External IQ modulation with SDG6000X as the baseband IQ signal
  • USB-power meter measurement kit
  • 5 inch TFT capacitive touch screen, Mouse and keyboard supported
  • Web Browser Remote Control on PC and mobile Terminals
  • Standard interface include USB Host, USB Device (USB TMC), LAN (VXI-11, Socket, Telnet). Optional interface: GPIB

Need more information? Call us now +49 821 666 0 111 0

Product Characteristics

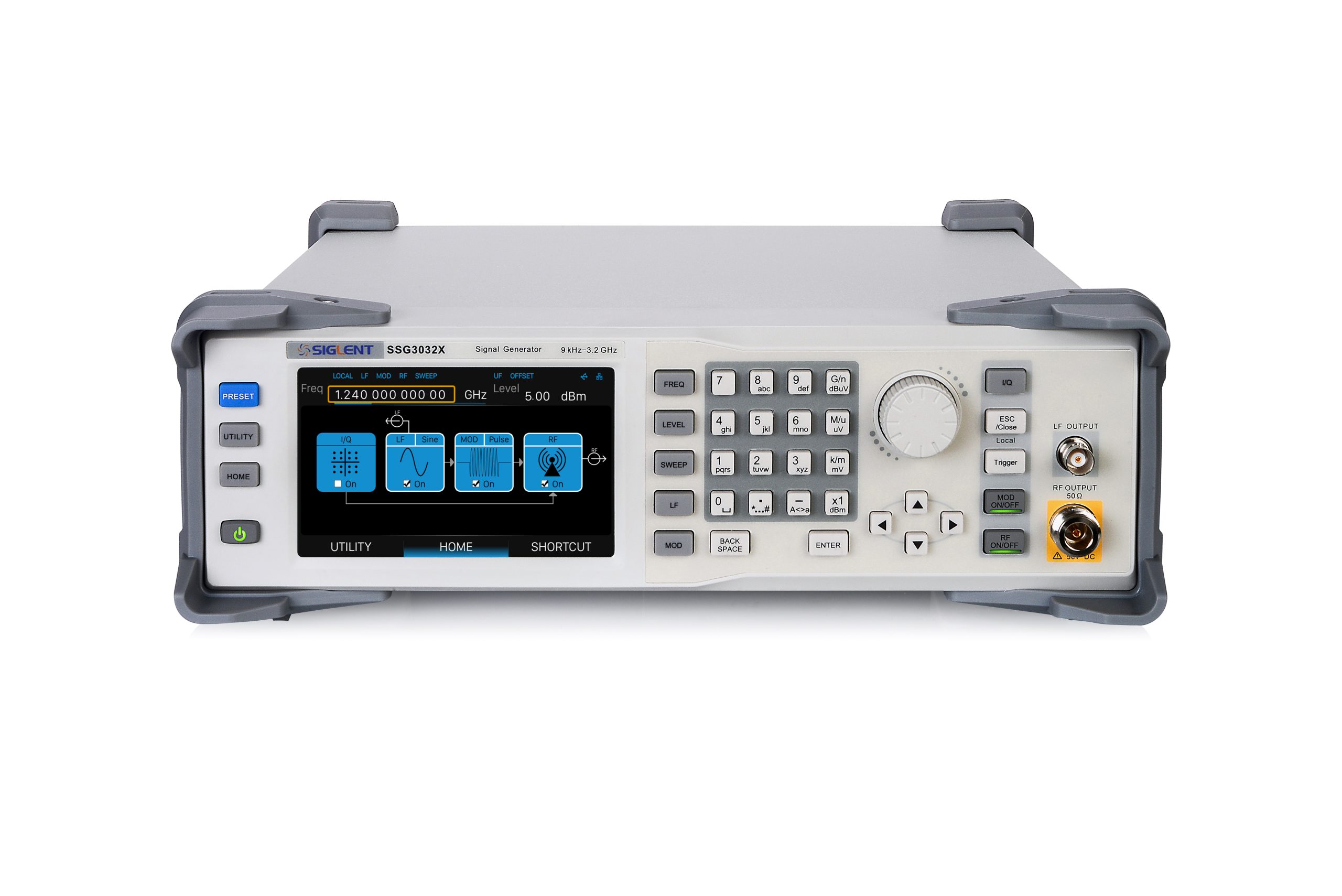

5 inch touch screen, keyboard and mouse support View more

5 inch touch screen, keyboard and mouse support

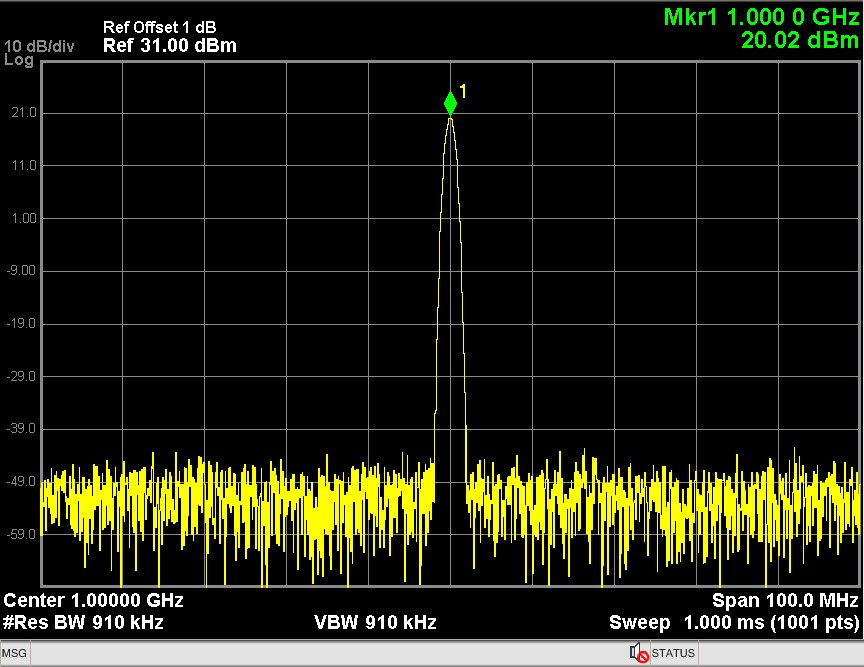

Maximum output level up to +20 dBm View more

Maximum output level up to +20 dBm

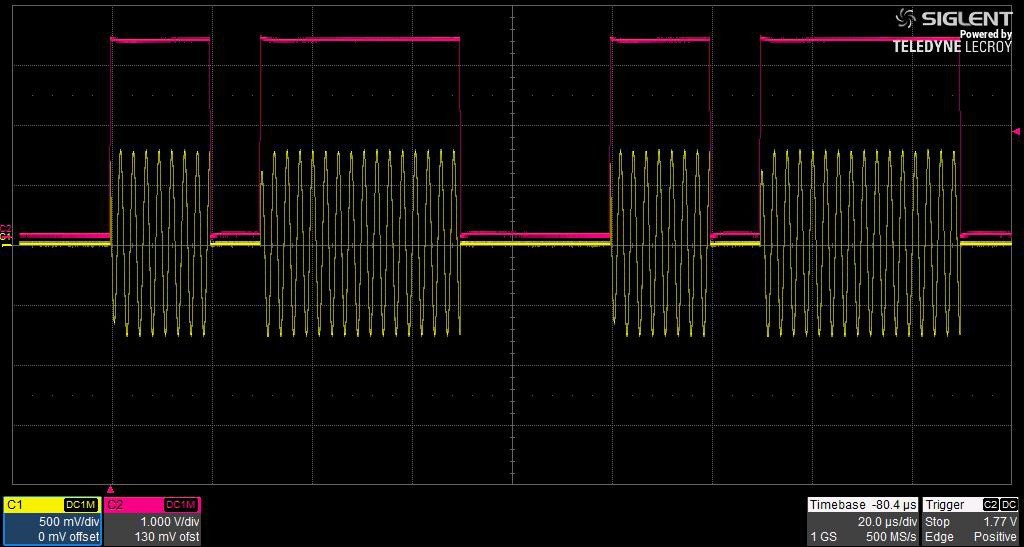

Double pulse modulation View more

Double pulse modulation

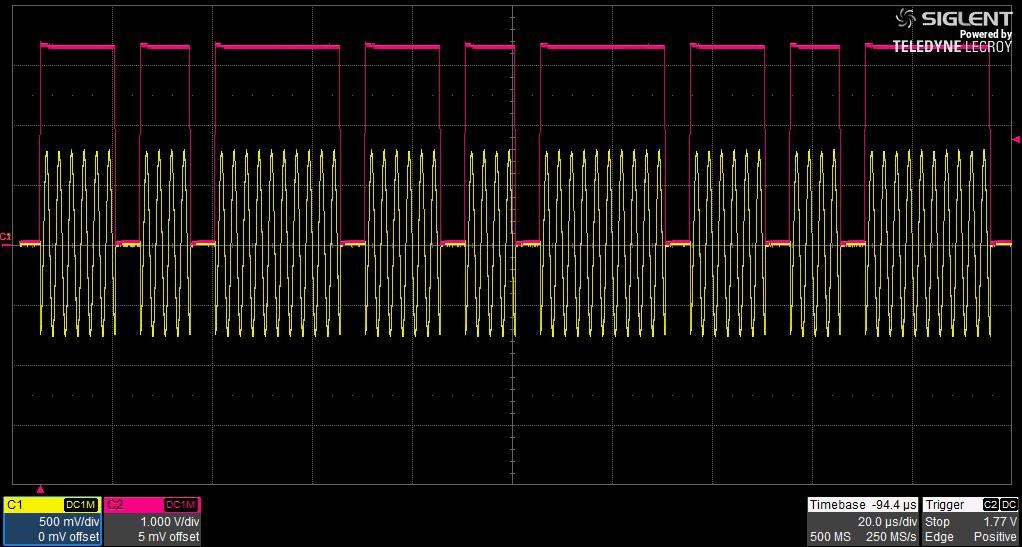

Pulse train generator View more

Pulse train generator

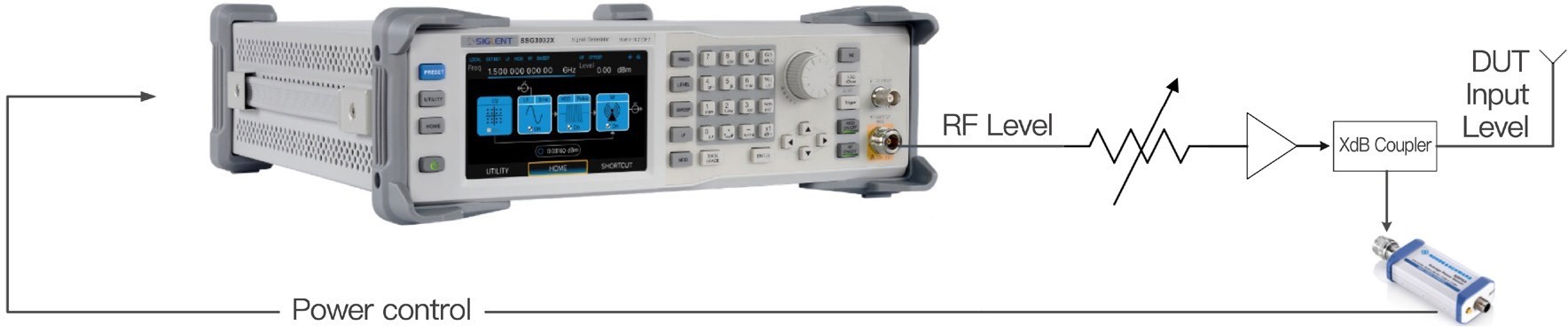

Example for auto level control View more

Example for auto level control

Power output display using USB power View more

Power output display using USB power

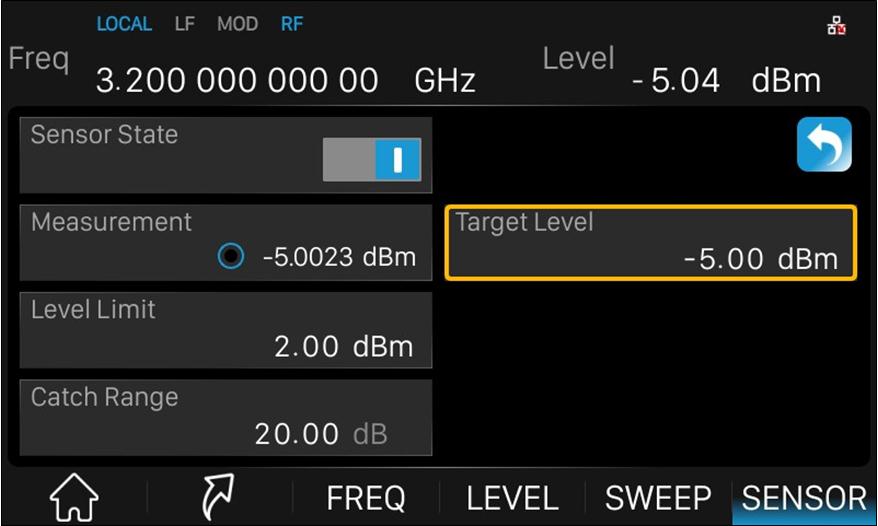

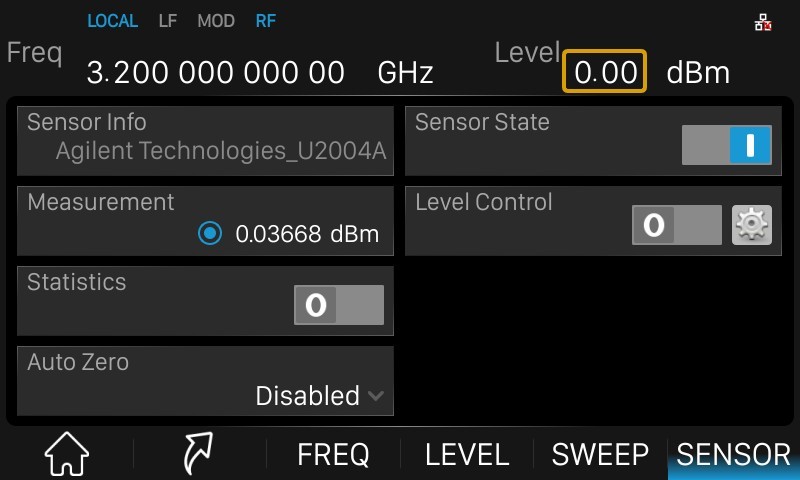

Power output control using USB power sensor View more

Power output control using USB power sensor

External IQ modulation using the SDG6000X as the baseband source View more

External IQ modulation using the SDG6000X as the baseband source

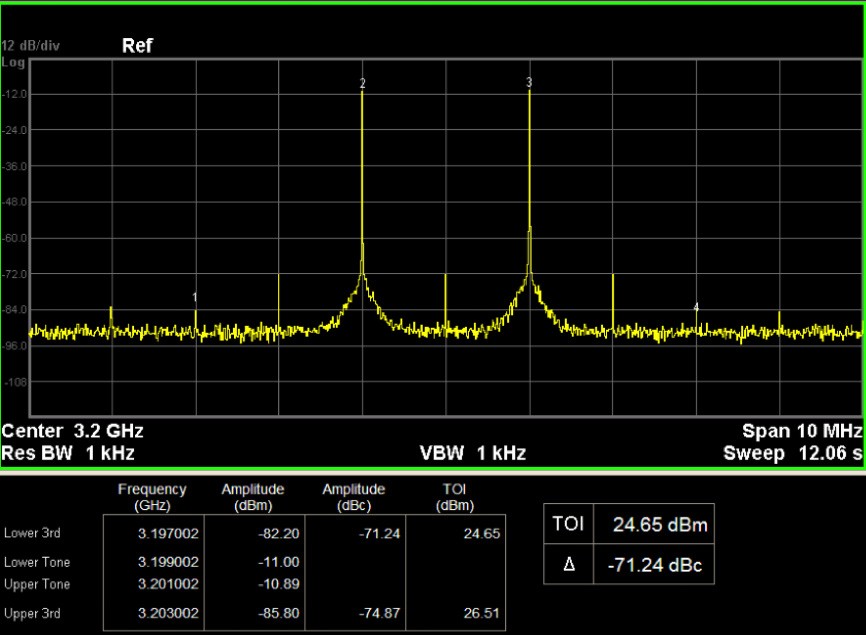

Provides double-tone signal with IQ modulation, easily do TOI testing View more

Provides double-tone signal with IQ modulation, easily do TOI testing
