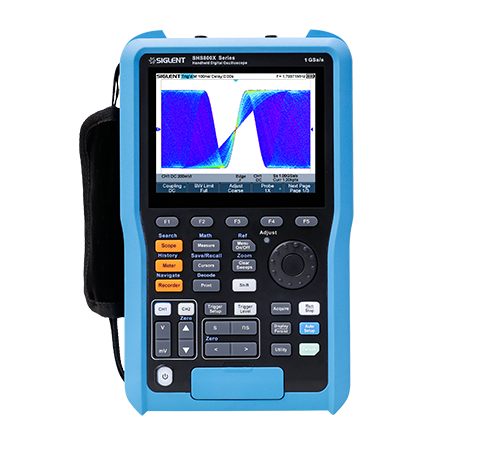

SHS800X Series Handheld Oscilloscope

  • Integrated oscilloscope, serial trigger and decoder, spectrum analysis, data logger and multimeter functions into a convenient and portable design
  • 100 MHz or 200 MHz bandwidth models
  • Sampling rate of 1 GSa/s (single-channel),  500 MSa/s (two-channels)
  • Record length up to 12 Mpts
  • Waveform recording up to 22 hours
  • IP Rating: IP51

Product Overview

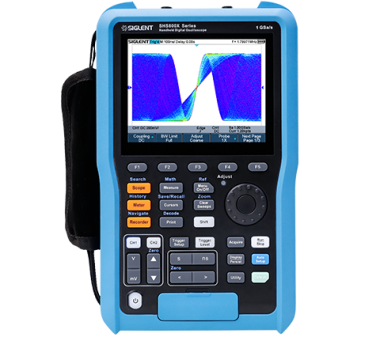

The SHS800X series has two non-isolated scope channels and one isolated multimeter channel, including 200 MHz and 100 MHz model.A single ADC with 1 GSa/s maximum sample rate, and a single memory module with 12 Mpts memory depth. When two channels are enabled, each channel has sample rate of 500 MSa/s and a standard record length of 6 Mpts. When only a single channel is actived, the maximum sample rate is 1 GSa/s and the maximum record length is 12 Mpts. For ease-of-use, the most commonly used functions can be accessed with its user-friendly front panel design.



Bandwidth Channels Real Time
Sampling Rate
Multimeter Isolation Level Memory Depth Price
SHS810X 100 MHz 2 1 GSa/s Voltage, current, resistance and other eight common functions - 12 Mpts €689 Buy Now
SHS820X 200 MHz 2 1 GSa/s Voltage, current, resistance and other eight common functions - 12 Mpts €899 Buy Now

Key Features

  • Intelligent trigger: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout), Pattern
  • 6000 counts Digital Multimeter, Support DCV, ACV, DCI, ACI, Resistance, Diode, Capacitance, Continuity test.
  • 1 Mpts FFT. Support Peaks and Markers
  • 5.6-inch TFT-LCD display with 640 * 480 resolution
  • UL2054 certified lithium battery pack, 6900 mAh capacity, external charger

Need more information? Call us now +49 821 666 0 111 0

Product Characteristics

Five in one View more

Five in one

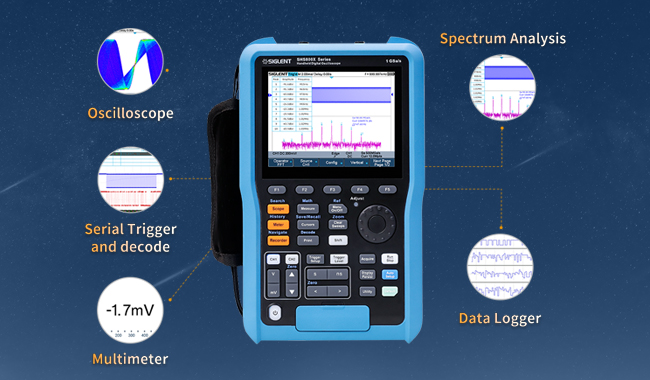

1. 2 CH Oscilloscope

  1. True RMS Multi-meter
  2. Recorder

Sample Logger

Measurement Logger

  1. Serial Trigger and decode
  2. FFT spectrum analysis

Portable and Easy to Use View more

Portable and Easy to Use

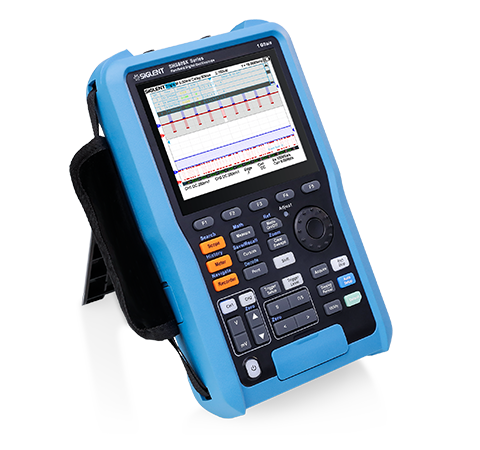

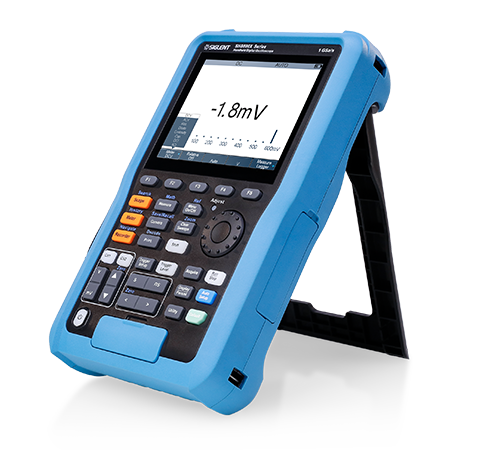

The front panel size smaller than A4 paper reduces the size of the instrument, the rear panel support frame supports vertical placement, and the side nylon handles are convenient for handheld operation. The standard shoulder bag can hold the fuselage and probe and other accessories at the same time, which is easy to carry when going out.

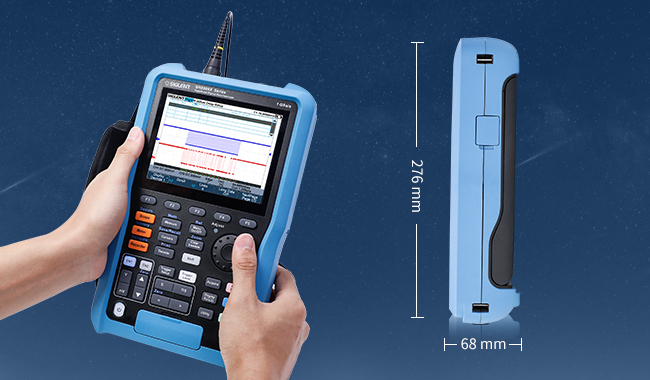

Note: Dimensions: 276 mm * 168 mm * 68 mm; Mass: 1.75 kg

Higher protection level, longer battery life View more

Higher protection level, longer battery life

Rechargeable 6900 mA high-capacity lithium battery

UL certified

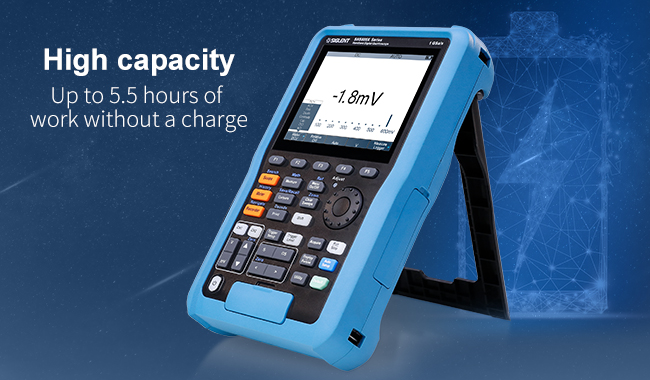

Up to 5.5 hours of work without a charge, greatly improving safety and battery life

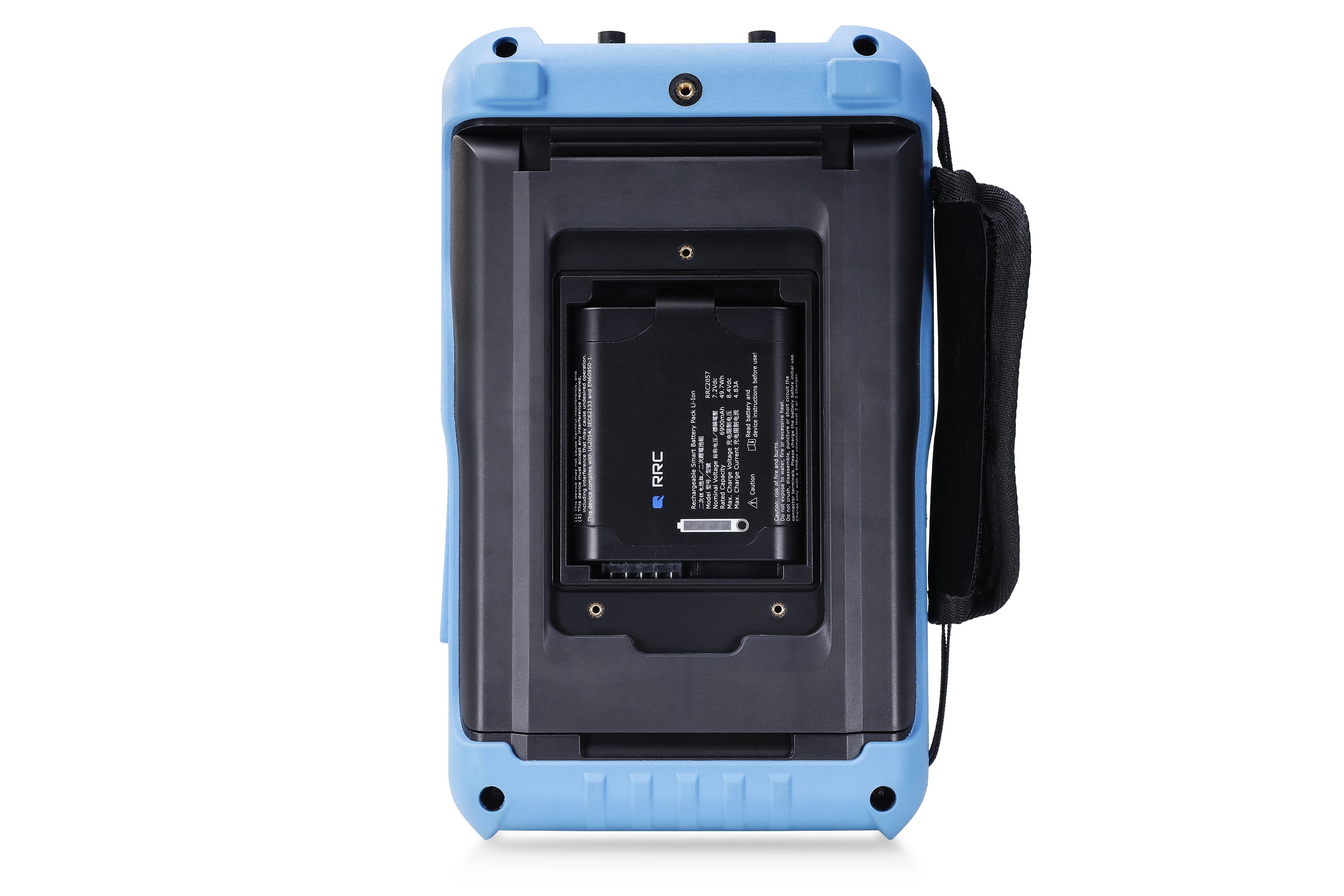

he battery can be charged in the cabin or removed and charged with an external charger.

The included carrying case has ample room for the instrument, probes and other accessories. Perfect for field work and carrying on business trips.

IP Rating: IP51 View more

IP Rating: IP51

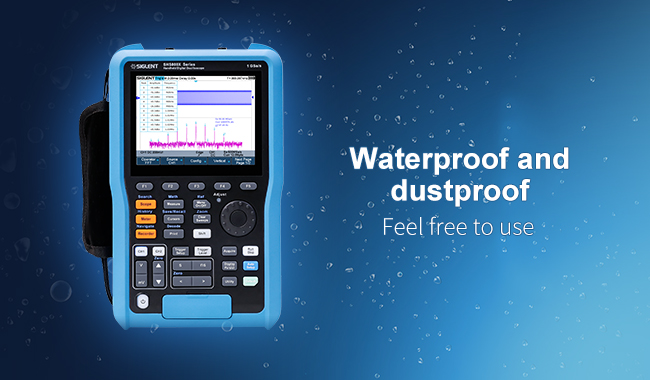

The handheld oscilloscopes feature a sealed IP51 dust and drip-proof housing and has been tested to IEC60529 to guarantee the ruggedness that is needed to survive harsh environments. A rubberized surface with large keys also makes it easy to use in difficult environments.
