SDG800 Series Function/Arbitrary Waveform Generators

  • Advanced DDS technology, 125 MSa/s sampling rate, 14-bit vertical resolution
  • Single channel output, 5 standard waveforms, 46 built-in arbitrary waveforms (including DC)
  • Complete modulation functions: AM, DSB-AM, FM, PM, FSK, ASK, PWM, linear/logarithmic sweep, and burst

Product Overview

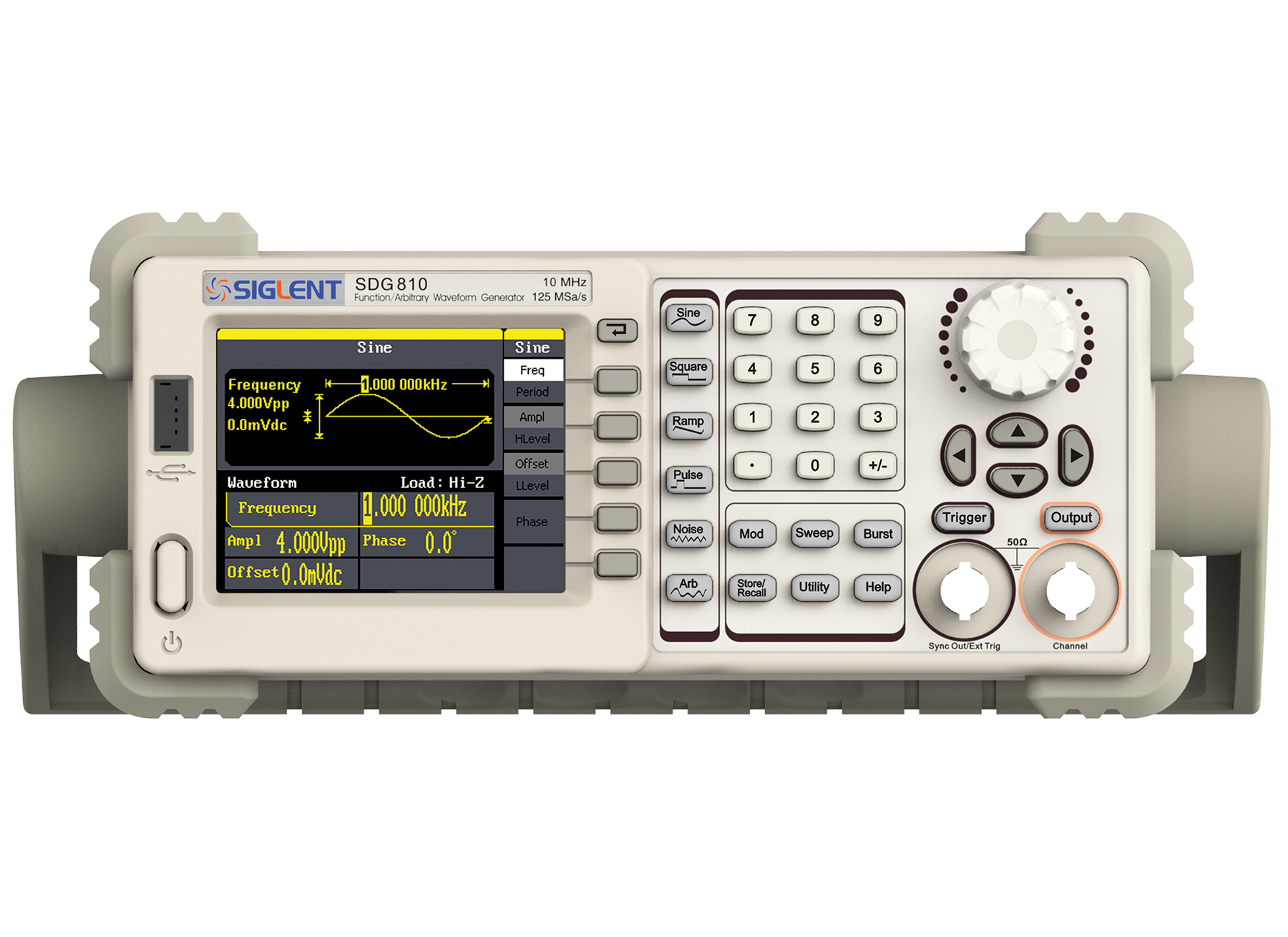

The SDG800 series function/arbitrary waveform generator family outputs waveform functions up to up to 5 MHz (pulse), 10 MHz (square), 30 MHz (sine) and has a sampling rate of 125 MSa/s. They are powered with SIGLENT’s EasyPulse technology which produces low jitter, fast rising/falling edges without being affected by frequency, even at low duty cycle settings, allowing the user a wide range of pulse widths and transition times. This results in a much more versatile generator than other similar DDS designs.

Max Output Frequency Max Sampling Rate Vertical Resolution Waveform Length Channels Price
SDG830 30 MHz 125 MSa/s 14-bit 16 kpts 1 €199 Buy Now
SDG810 10 MHz 125 MSa/s 14-bit 16 kpts 1 €169 Buy Now
SDG805 5 MHz 125 MSa/s 14-bit 16 kpts 1 €199 Discontinued

Key Features

  • Innovative EasyPulse technology, can output pulses with low jitter and quick rising/falling edges
  • Standard interfaces: USB Device, USB Host, supports U-Disk storage
  • 10 nonvolatile storage spaces for user’s arbitrary waveforms
  • Can be seamlessly connected to SIGLENT Digital Storage Oscilloscope
  • Includes EasyWave, the powerful arbitrary waveform editing software

Need more information? Call us now +49 821 666 0 111 0

Product Characteristics

Comparison of edge under 1KHz pulse signal View more

Comparison of edge under 1KHz pulse signal

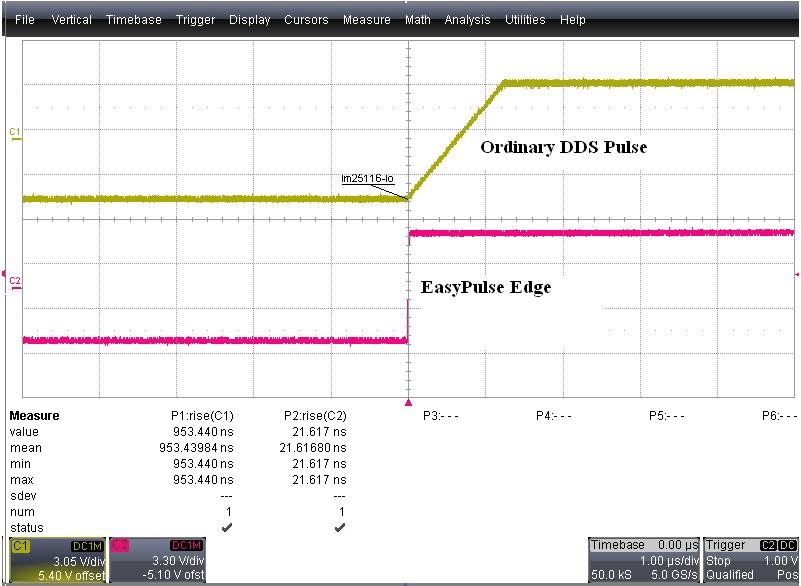

As shown in the figure, under 1KHz frequency, EasyPulse can keep quick rising/falling edge (20ns) while the edge of ordinary DDS is very slow.

Comparison of edge adjusting range under 1KHz pulse signal View more

Comparison of edge adjusting range under 1KHz pulse signal

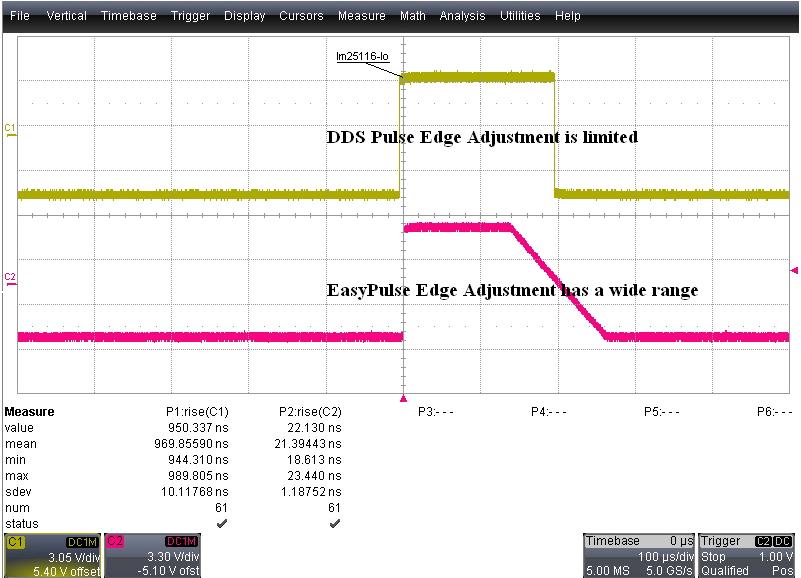

EasyPulse edge adjustment has a wide range, while ordinary DDS pulse edge adjustment is limited.

Built-in 46 kinds of arbitrary waveforms (including DC) View more

Built-in 46 kinds of arbitrary waveforms (including DC)

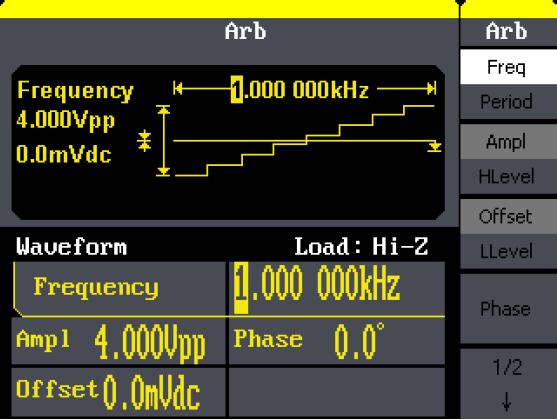

SDG800 Series can output 5 kinds of standard waveforms and 46 kinds of commonly used waveforms, including common waveforms, mathematical functions, application functions, window functions and trigonometric functions.

Multiple modulation function View more

Multiple modulation function

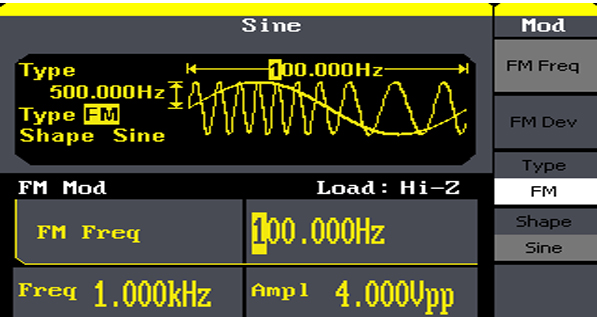

SDG800 Series support multiple modulation function: AM, DSB – AM, FM, PM, FSK, ASK, PWM, linear/logarithmic sweep and burst.

Supports PC editing software EasyWave View more

Supports PC editing software EasyWave

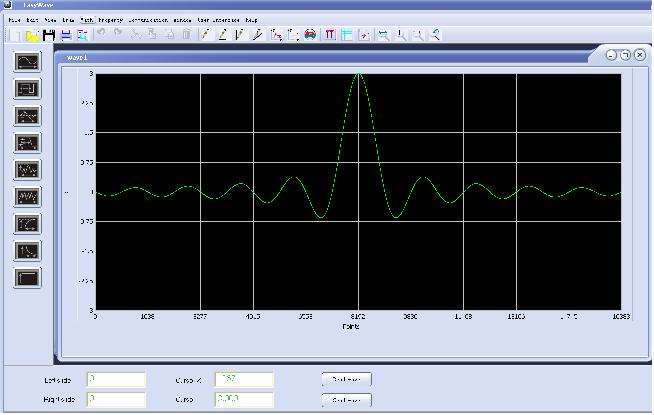

Siglent’s SDG800 Series of generators support powerful PC editing software, EasyWave, which can output arbitrary waveforms with 14bit vertical resolution and 16 Kpts wave length. EasyWave provides 9 standard waveforms: Sine, Square, Ramp, Pulse, ExRise, ExpFall, Sinc, Noise and DC, which meet all engineers’ basic needs. In addition, it provides a variety of drawing modes including manual drawing, straightline drawing (including horizontal straightline, vertical straightline, point-to-point straightline), coordinate drawing and equation drawing, making it easy to generate complex waveforms. Multiple Document Interface management allows for simultaneous multiple-waveform editing. The SDG800 Series provides 10 nonvolatile storage spaces for arbitrary waveforms, and you can also edit and store more waveforms through the EasyWave software.
