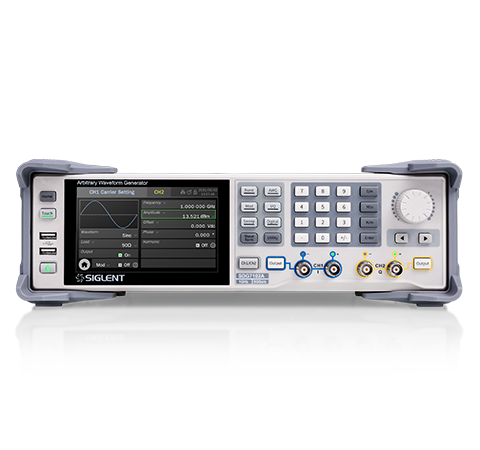

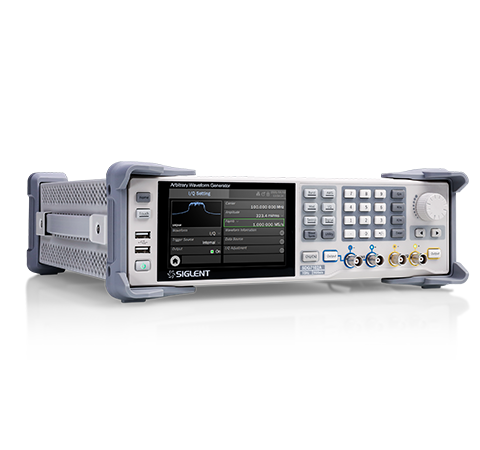

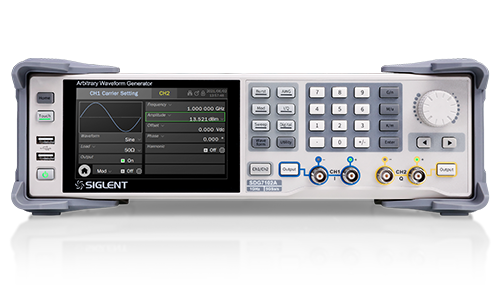

SDG7000A Arbitrary Waveform Generator

  • Dual-channel differential/single-ended output16-bit LVDS/LVTTL digital bus outputs (optional)
  • High-performance sampling system with 5 GSa/s sample rate and 14 -bit vertical resolution
  • 1 GHz maximum bandwidth
  • Generates arbitrary waveform with sample rates of 0.01 Sa/s ~ 2.5 GSa/s
  • Memory depth of 512 Mpts
  • Segmented editing /playback functions
  • Generates vector signals with up to 500 MS/s symbol rate.

Product Overview

SIGLENT’s SDG7000A is a family of dual-channel Arbitrary Waveform Generators that feature up to 1 GHz bandwidth, a maximum sample rate of 5 GSa/s, and 14-bit vertical resolution. It can generate arbitrary waveforms point by point with a maximum 2.5 GSa/s sample rate and vector signals with a maximum of 500 MSa/s. It also has the ability to generate a variety of signals such as continuous wave, Pulse, Noise, PRBS patterns, and a 16-bit digital bus. It supports the generation of complex signals such as modulation, sweeping, bursting, and dual-channel copying/coupling/tracking and superposition. The outputs are user selectable for differential or single-ended connections and support a maximum output range of ± 24 V. The instrument can ensure a large amplitude under high-frequency which eliminates an external power amplifier in some applications and addresses a wider range of requirements.

Max Output Frequency Max Sampling Rate Vertical Resolution Waveform Length Channels Price
SDG7102A 1 GHz 5G Sa/s 14-bit 512Mpts 2 Differential/Single-ended €12,800 Buy Now
SDG7052A 500MHz 5G Sa/s 14-bit 512Mpts 2 Differential/Single-ended €9,730 Buy Now
SDG7032A 350MHz 5G Sa/s 14-bit 512Mpts 2 Differential/Single-ended €7,920 Buy Now

Key Features

  • Generates low jitter pulses with 1 ns minimum pulse
    width and 500 ps minimum edge
  • Up to 1 GHz bandwidth and White Gaussian Noise with adjustable bandwidth
  • PRBS up to 312.5 Mbps
  • LVTTL and LVDS Digital bus options for digital signal sourcing  up to 1 Gbps
  • Includes popular analog/digital modulation types, sweeping and bursting functions
  • Enhanced dual-channel operation functions: inter-channel tracking, coupling, and copying
  • Dual-channel superposition function
  • Mutual modulation between channels
  • The 24 Vpp analog output is superimposed with ± 12 Vdc offset to provide a maximum output range of ± 24 V (48 V)
  • High precision Frequency Counter
  • 5-inch capacitive touch screen with a resolution of 800×480
  • External mouse and keyboard operation
  • WebServer to control the instruments remotely without downloading software

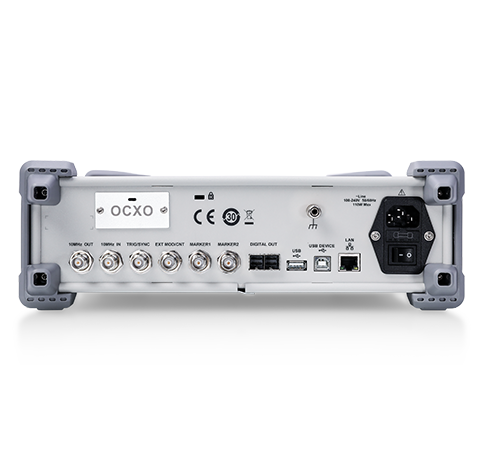

  • Includes 10 MHz In, 10 MHz Out, Trigger In/Out, and Marker sync connections
  • Full SCPI command manual for easy integration into test systems

Need more information? Call us now +49 821 666 0 111 0

Product Characteristics

Simplify signal creation and accelerate test View more

Simplify signal creation and accelerate test

  • SDG7000A and SigIQPro signal generation software integrate simulation, design and test to easily meet the needs of users at all stages of design, R&D, and production.
  • SigIQPro is a flexible PC-based signal generation software that takes signal generation to a whole new level, supporting Bluetooth, IoT, Custom OFDM, Custom IQ, and in the future, 5G NR, LTE and WLAN, and more.
  • SigIQPro is specially developed for easy generation of protocol and modulated signals, with a user interface that supports intuitive operation and provides relevant documentation that makes it easy to create standards-compliant waveforms for a wide range of applications.
  • TRY BEFORE YOU BUY! SigIQPro provides 30 free trials of each feature for unrestricted use of the functions with your existing compatible signal generators.
  • Click to view more SigIQPro signal generation software configuration, pricing, and device details.

Multi-functional Waveform Generator View more

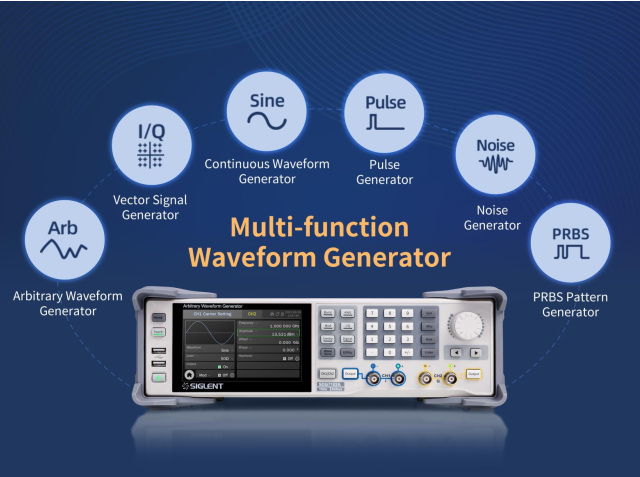

Multi-functional Waveform Generator

The SDG7000A series integrates multiple waveform generator functions from DC to continuous waves up to 1 GHz, which can replace RF signal generators in some applications. It adopts Siglent’s TrueArb point-by-point arbitrary waveform generation technology, which enables user-adjustable output sample rates from 0.01 Sa/s to 2.5 GSa/s with excellent jitter performance and the generation of I/Q vector signals with a maximum settable bandwidth greater than 500 MHz. Using the benefits of Siglent’s EasyPulse architecture, a low jitter pulse with a minimum pulse width of 1 ns can be generated. The SDG7000A also features a Gaussian noise output with adjustable bandwidth, Pseudo-random code generation, an optional 16 channels of digital signal output for synthesizing digital communications, and much more.

Wide Range Amplitude Output View more

Wide Range Amplitude Output

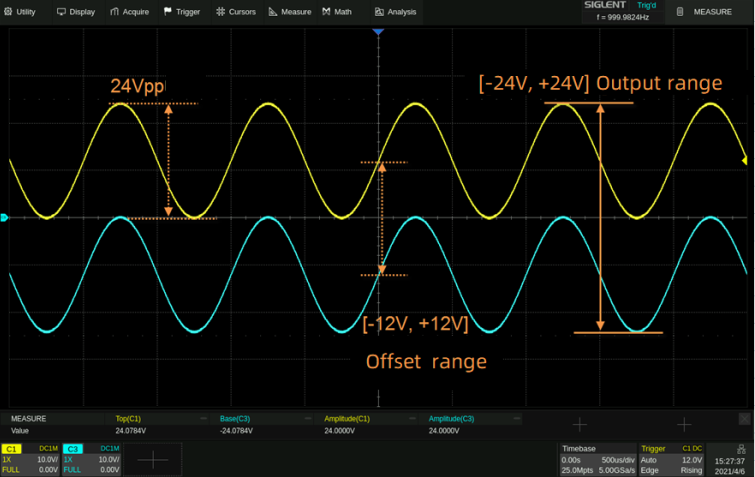

24 Vpp analog output superimposed with ± 12 Vdc offset, providing a maximum output range of ± 24 V (48 V).

Excellent Arbitrary Waveform Generation View more

Excellent Arbitrary Waveform Generation

AFG mode uses traditional DDS technology to generate arbitrary waveforms

AWG mode uses SIGLENTs innovative TrueArb technology which provides an adjustable sample rate from 0.01 Sa/s~ 2.5 GSa/s and jitter less than 20 ps.

The flexible platform also provides zero-order hold, linear, and sinc interpolation methods for increased flexibility when creating complex waveforms.

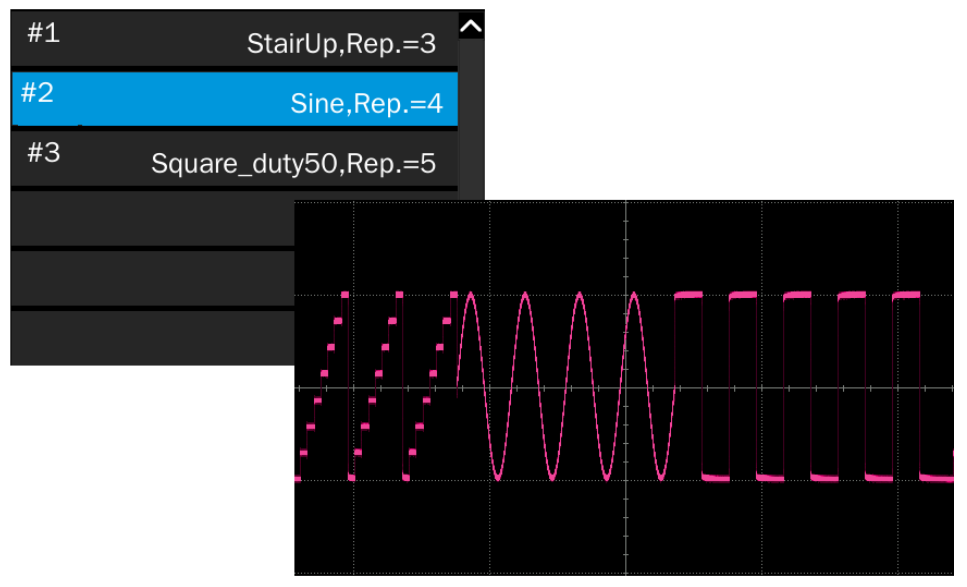

Sequence editing and playback The SDG7000A supports up to 1024 arbitrary wave segments, each of which can be set with a maximum of 65535 repetitions. When switching between segments, the output seamlessly moves from the last point of the previous segment to the first point of the next segment without generating an idle level. It is suitable for applications with high requirements for waveform switching.

Low jitter View more

Low jitter

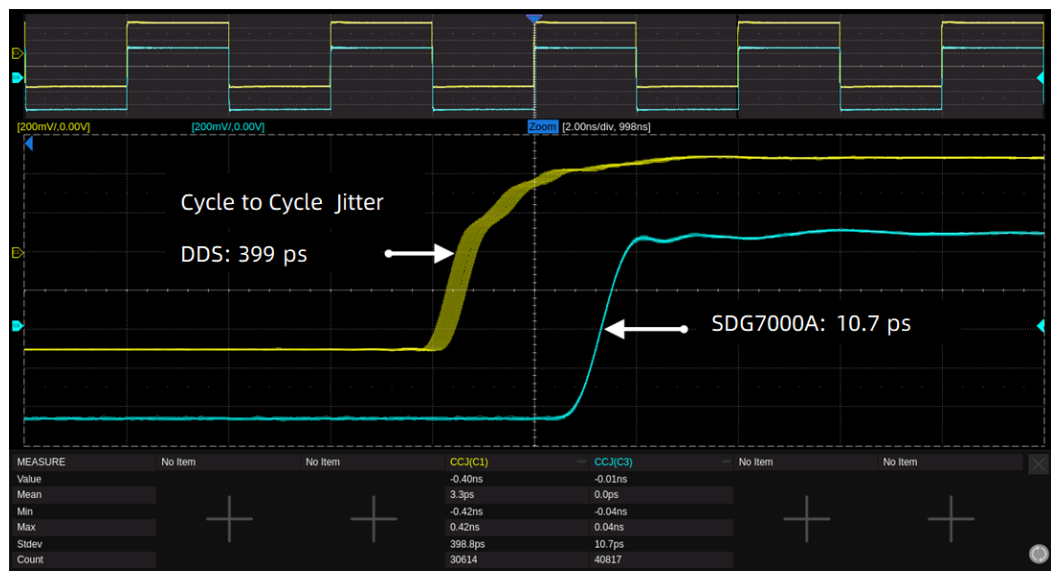

Low jitter When a Square/Pulse waveform is generated by traditional DDS, there can be additional jitter if the sample rate is not an integer-related multiple of the output frequency. EasyPulse technology successfully overcomes this weakness in DDS designs and helps to produce low jitter Square/Pulse waveforms.

High speed View more

High speed

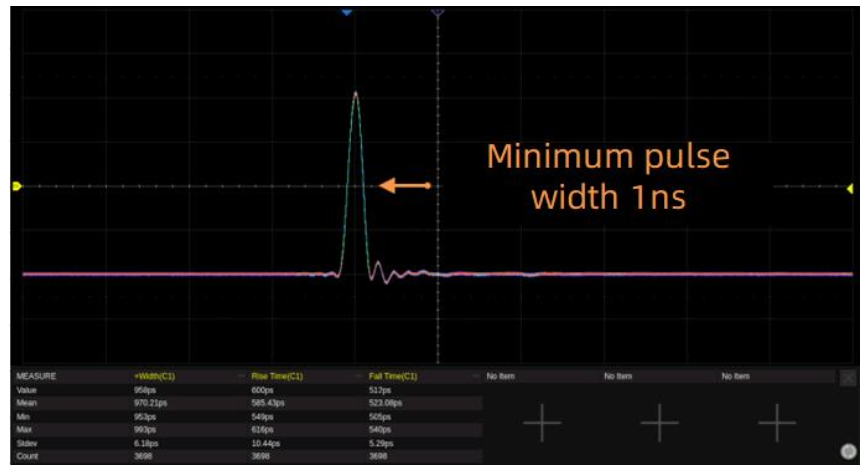

High speed The minimum 1 ns pulse width, can be generated at any frequency. The pulse width can be finely adjusted in steps of 10 ps.

Flexible edge View more

Flexible edge

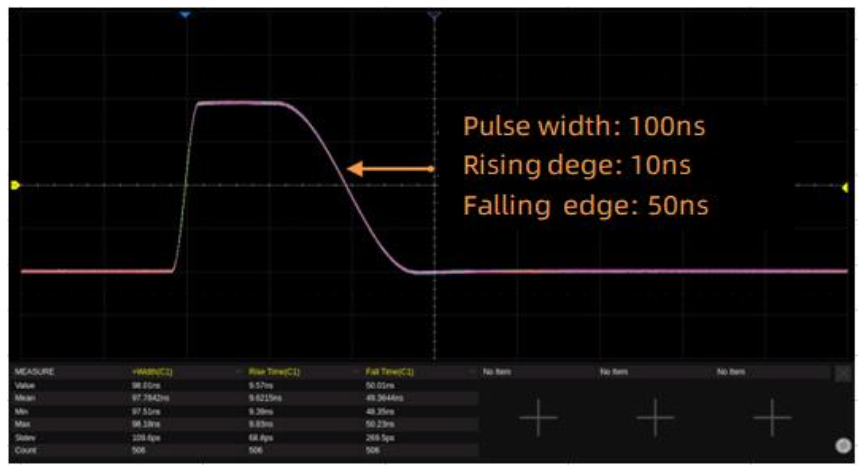

Flexible edge Adjustable fine step resolution to 100 ps. The minimum edge is 500 ps and can be generated at any frequency. The rising/ falling edge can be set respectively and can be used to generate asymmetrical pulse shapes.
