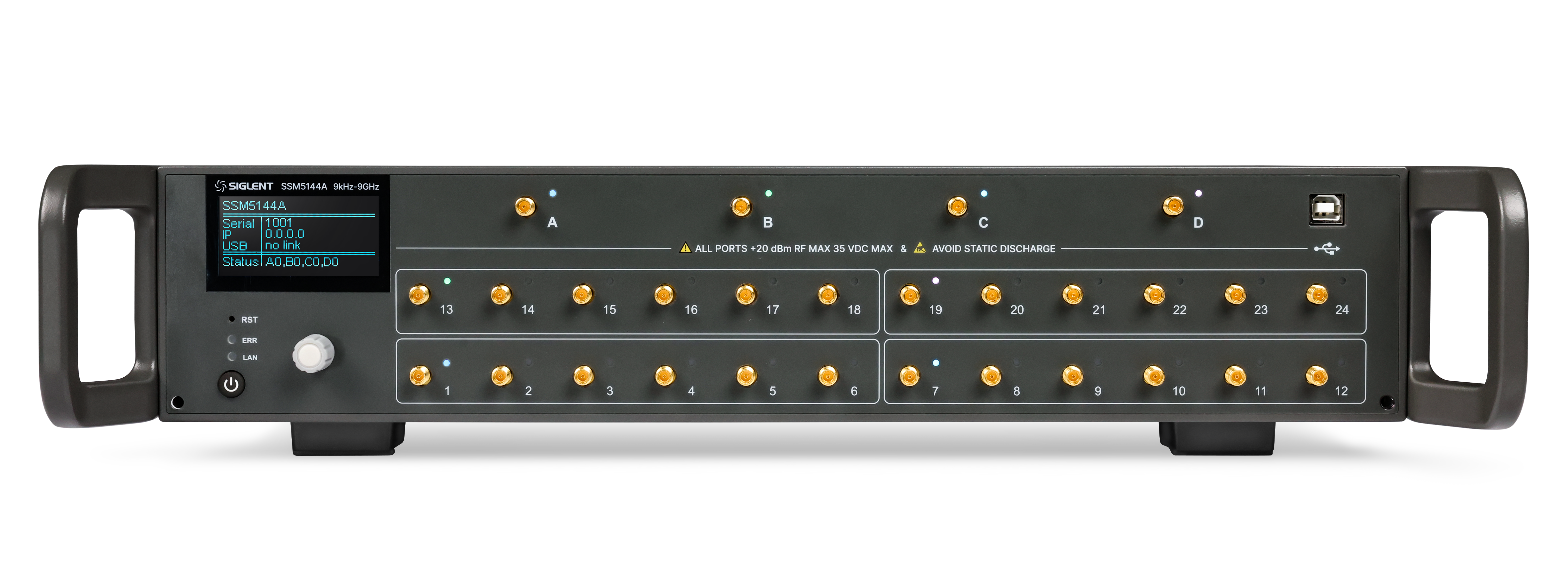

SSM5000A Switch Matrix
- Maximum frequency: 9 GHz/ 26.5 GHz
- Maximum number of input ports: 4
- Maximum number of output ports: 24
- RF connector: 3.5mm female
- Support a simplified multi-port calibration algorithm
- Interface: LAN, USB Device, Direct Control (in), Direct Control (out)
Product Overview
SSM5000A series switch matrix can expand the number of test ports of network analyzer, signal source, spectrum analyzer and other equipment. And the series are with up to 4 input ports and up to 24 output ports, supporting USB, LAN, Direct Control communication modes. The Direct Control interface on the switch matrix can further expand the number of test ports and support a simplified multi-port calibration algorithm, which can greatly improve the efficiency of calibration. In addition to SIGLENT instruments, it also supports other mainstream instruments. It is suitable for 19-inch standard chassis and can be widely used in multi-port test environments such as antennas and 5G component modules.
| Frequency Range | Inputs | Outputs | Maximum Input DC Voltage |
Maximum Input Power | Price | ||
|---|---|---|---|---|---|---|---|
| SSM5122A | 9 kHz-9 GHz | 2 | 12 | 35V | 20dBm | € 7,212 | Buy Now |
| SSM5124A | 9 kHz-9 GHz | 2 | 24 | 35V | 20dBm | € 14,526 | Buy Now |
| SSM5142A | 9 kHz-9 GHz | 4 | 12 | 35V | 20dBm | € 7,943 | Buy Now |
| SSM5144A | 9 kHz-9 GHz | 4 | 24 | 35V | 20dBm | € 15,441 | Buy Now |
| SSM5321A | 100 kHz-26.5 GHz | 2 | 6 | 35V | 20dBm | € 9,041 | Buy Now |
| SSM5342A | 100 kHz-26.5 GHz | 4 | 12 | 35V | 20dBm | € 11,785 | Buy Now |
Key Features
- Maximum frequency: 9 GHz/ 26.5 GHz
- Maximum number of input ports: 4
- Maximum number of output ports: 24
- RF connector: 3.5mm female
- Screen size: 2.4-inch
- Maximum input power: 20 dBm
- Characteristic impedance: 50 Ω
- Maximum input DC voltage: 35 V
- Size: W×H×D=88.5×425×417.6mm
- Support a simplified multi-port calibration algorithm
- Interface: LAN, USB Device, Direct Control (in), Direct Control (out)
Product Characteristics
Easily Meet Multi-port Test Requirements View more
Easily Meet Multi-port Test Requirements

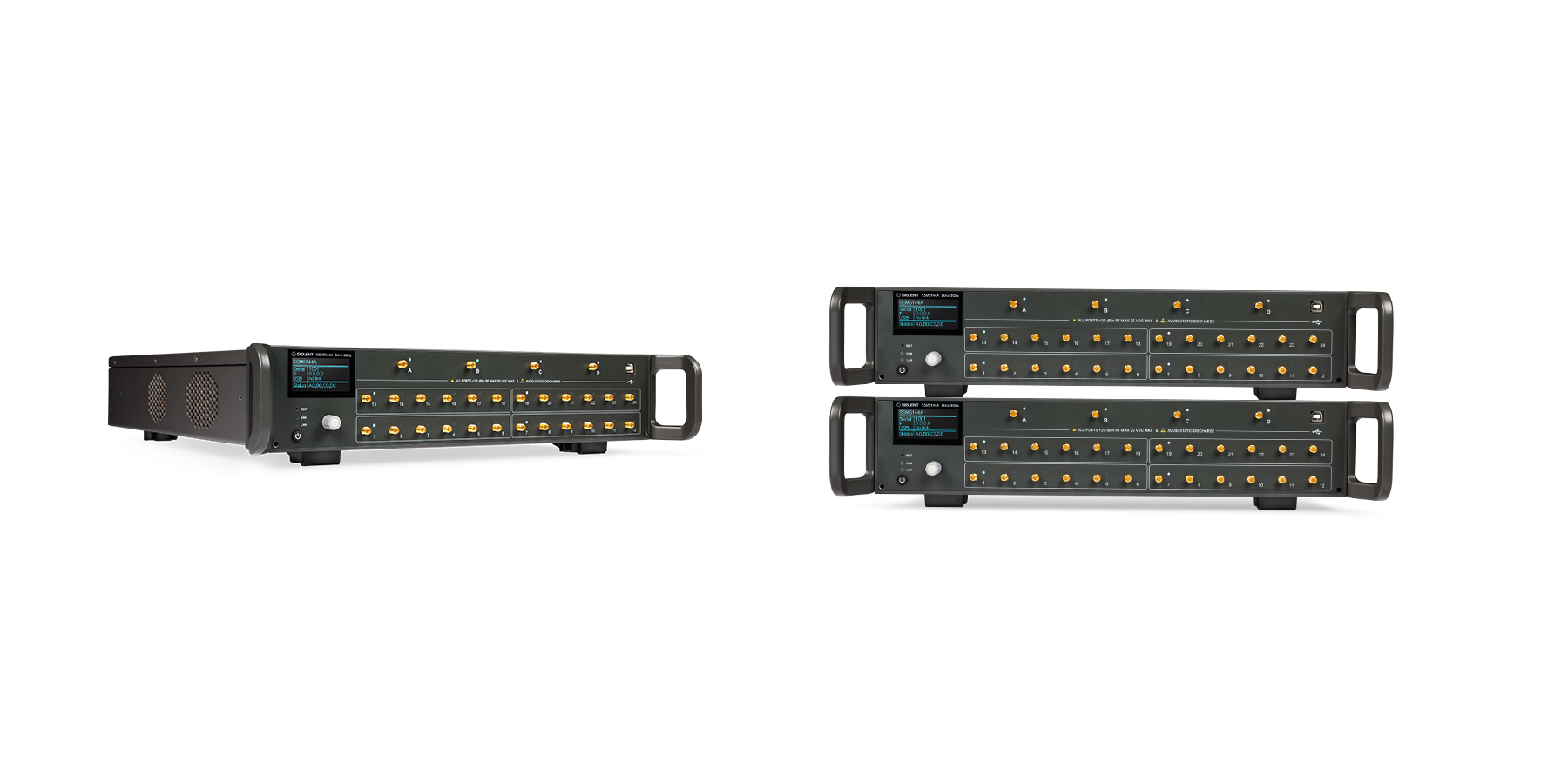

SSM5000A series switch matrix can expand the number of test ports of network analyzer, signal source, spectrum analyzer and other equipment. And the series are with up to 4 input ports and up to 24 output ports, supporting USB, LAN, Direct Control communication modes. In addition to SIGLENT instruments, it also supports other mainstream instruments. It is suitable for 19-inch standard chassis and can be widely used in multi-port test environments such as antennas and 5G component modules.
Network Analyzer Test Port Extension View more
Network Analyzer Test Port Extension

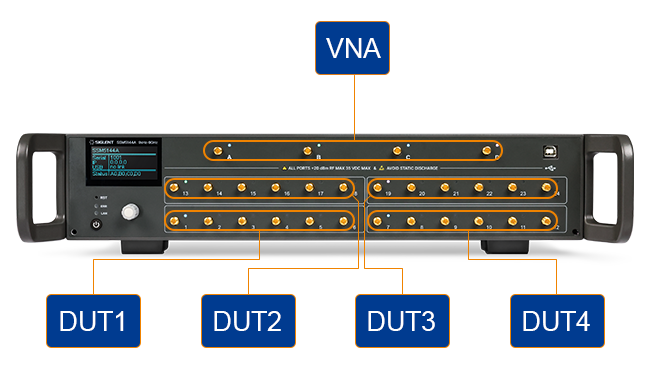

The switch matrix is used to expand the test ports of network analyzer and measure S parameters of multiple devices, according to the specific test requirements, the matrix switch can be extended into 24 single ports, 12 full 2 ports, 8 full 3 ports, 6 full 4 ports, 4 full 6 ports, 3 full 8 ports, 2 full 12 ports, 1 full 24 ports, etc. The figure below shows scaling to 4 full 6 ports. DUT1 , DUT2 , DUT3 and DUT4 devices can be tested by software, greatly improving the test efficiency.
Signal Generator and SA Test Port Extension View more
Signal Generator and SA Test Port Extension

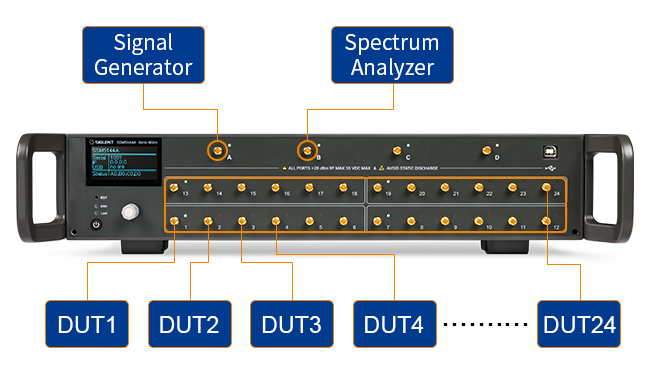

Using a switch matrix with a signal source and spectrum analyzer, the signal source and spectrum analyzer are extended to 24 ports, which can be used to test the transmission and reception of multiple DUTs. When testing the emission index, the software switches to 24 ports in turn, then the expansion of the signal source is completed; when testing the receiving index, the software can also switch to 24 ports in turn to complete the expansion of the spectrum analyzer. The matrix switch can greatly reduce the number of signal source and spectrum analyzer, save cost and improve test efficiency.
