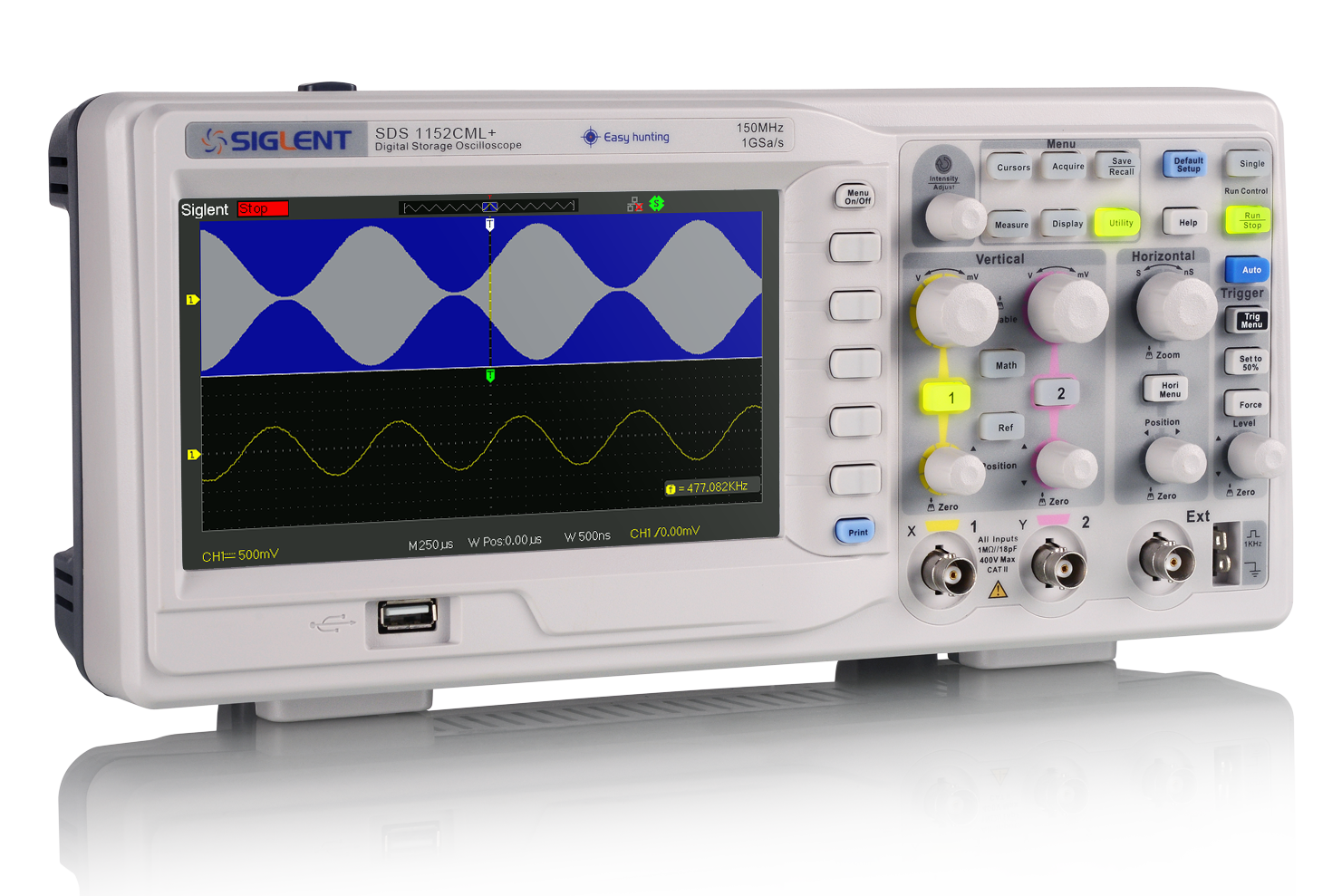

SDS1000CML+ Series Digital Storage Oscilloscopes

  • 70, 100, 150 MHz bandwidth models
  • Real-time sampling rate up to 1 GSa/s, Equivalent-time sampling rate up to 50 GSa/s
  • Memory Depth up to 2 Mpts
  • Trigger types: Edge, Pulse, Video, Slope, Alternate
  • Waveform math functions:+, -, *, /, and FFT
  • 6 digit frequency counter

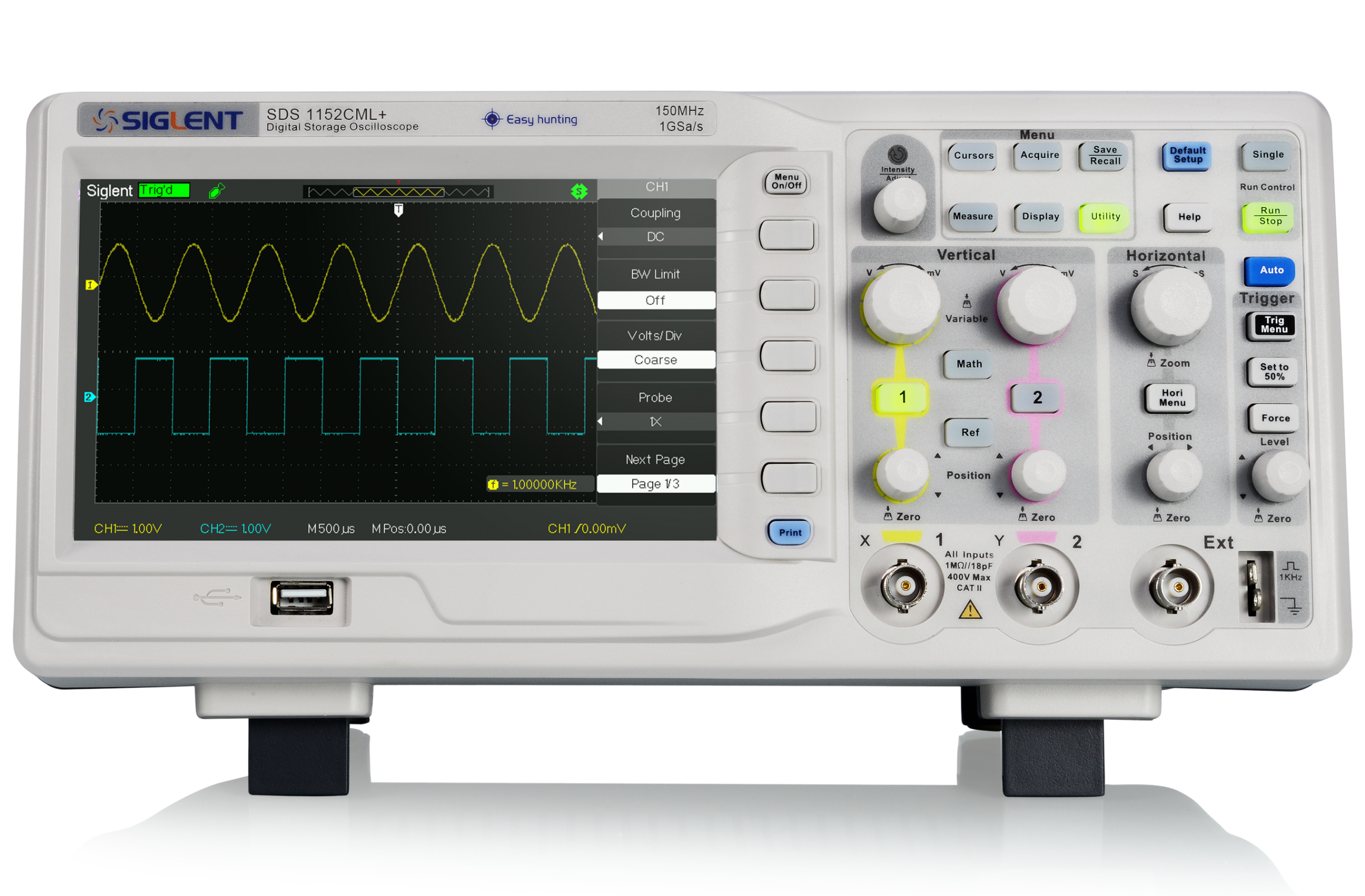

Product Overview

SDS1000CML+ series is a dual-channel universal digital oscilloscope, available in 70, 100, and 150 MHz bandwidth models. It includes a 2 Mpt memory depth that helps to ensure accurate waveform resolution and to capture longer signal lengths. With its 7-inch TFT-LCD (800*480) screen, there is adequate screen space to help better see and analyze waveform details. Along with a 1 GSa/s sampling rate, the SDS1000CML+ supports 32 parameters measurements and common mathematical operations to speed up complex / repetitive measurements.

Bandwidth Channels Real time
sampling rate
Capture rate Memory depth Price
SDS1152CML+ 150 MHz 2+EXT 1 GSa/s - 2 Mpts €389 Buy Now
SDS1102CML+ 100 MHz 2+EXT 1 GSa/s - 2 Mpts €279 Buy Now
SDS1072CML+ 70 MHz 2+EXT 1 GSa/s - 2 Mpts €279 Buy Now

Key Features

  • Supports multi-language display and embedded help
  • Screensaver from 1 minute to 5 hours
  • Digital filter and waveform recorder function
  • Shortcut storage function key
  • 7-inch TFT-LCD display with 800 * 480 resolution
  • Multiple interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11), Pass / Fail

Need more information? Call us now 877-515-5551

Product Characteristics

Normal Memory (40 Kpts) View more

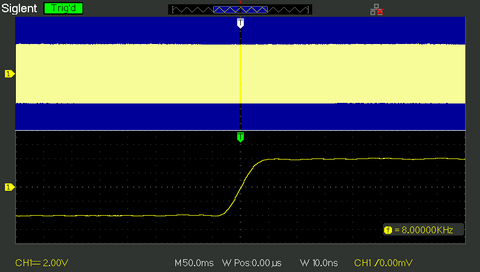

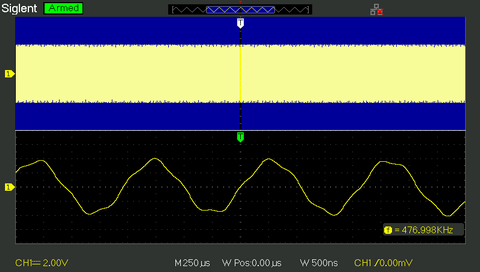

Normal Memory (40 Kpts)

Long Memory (2 Mpts) View more

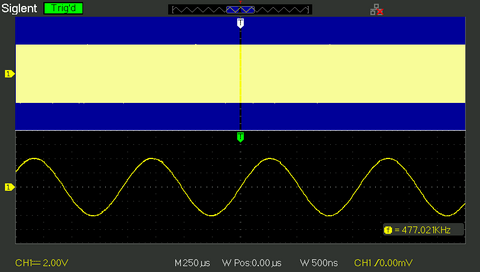

Long Memory (2 Mpts)

32 parameters auto measurements and 5 parameters display View more

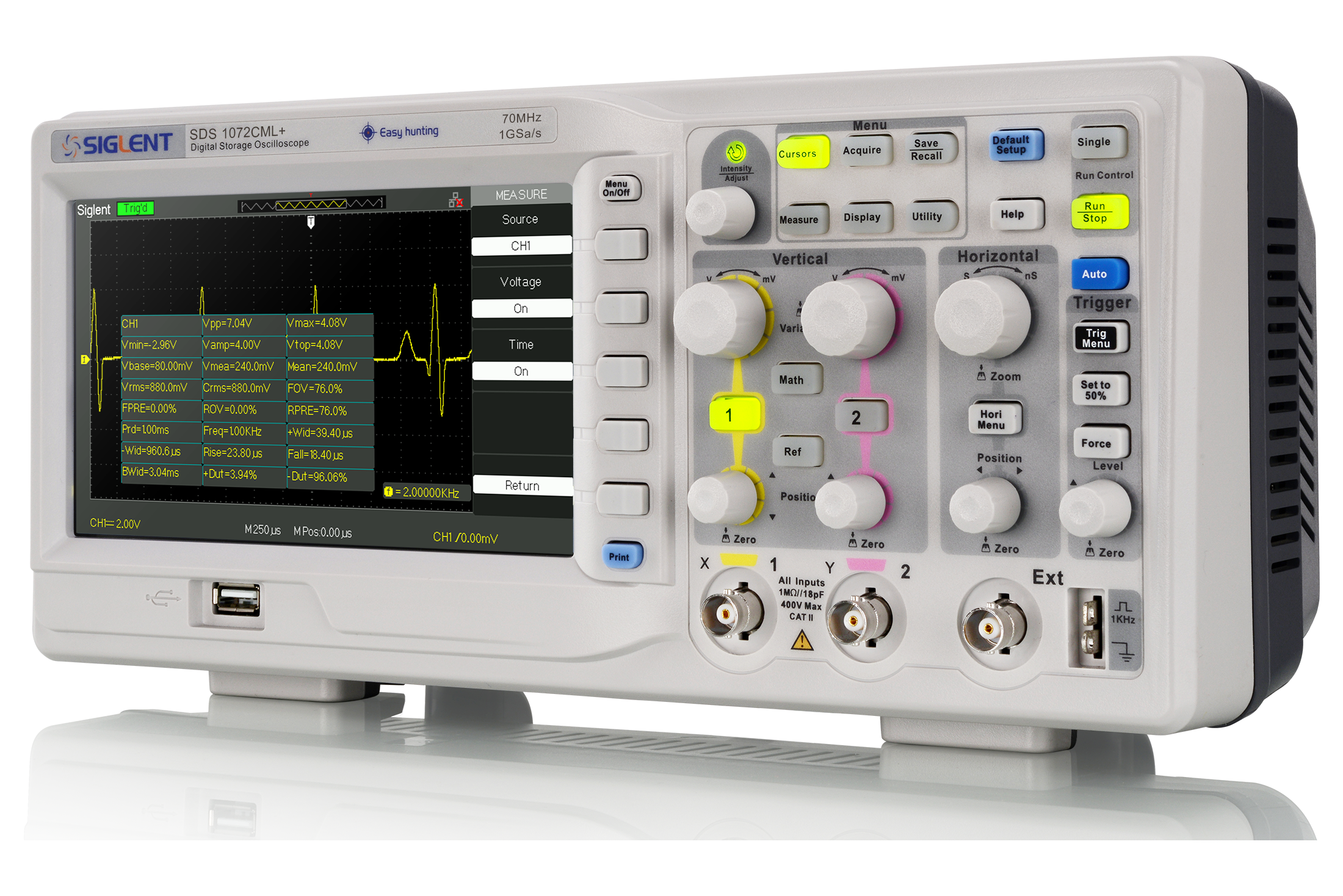

32 parameters auto measurements and 5 parameters display

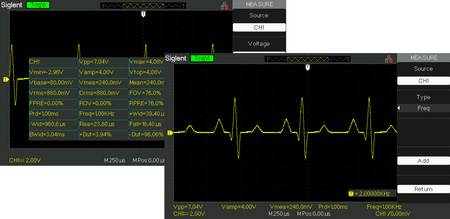

The SDS1000CML+ support voltage, time and delay measurement types, with a total of 32 different parameters. The user is able to select five measurements to display on the screen. All measurement parameters can also be displayed simultaneously.

Zoom Function View more

Zoom Function

Zoom can extend a partial segment of the waveform, giving the user not only an overview of the whole signal but also a detailed view of he zoomed-in segment. The Zoom feature is a convenient way to locatea specific segment of a signal while zooming in to see the details.

Pass/Fail Function View more

Pass/Fail Function

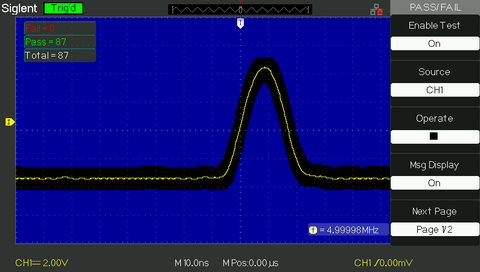

With easy to generate user-defined test templates, the SDS1000CML+ compares the current measured trace to the template mask trace making it suitable for long-term signal monitoring or automated production line testing.

Math Function View more

Math Function

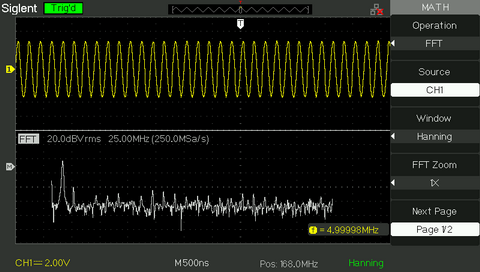

SDS1000CML+ provides 5 kinds of math operation: +, -, *, /, FFT, supporting channel waveform and FFT waveform in either split display windows or both signals appearing on the full screen.

Digital Recorder View more

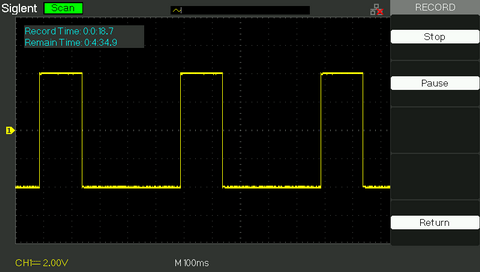

Digital Recorder

The digital recorder is able to record data in real-time and without any dead time. SDS1000CML+ supply 7 M of memory for the recorder and support a USB disk.

Digital Recorder Replay View more

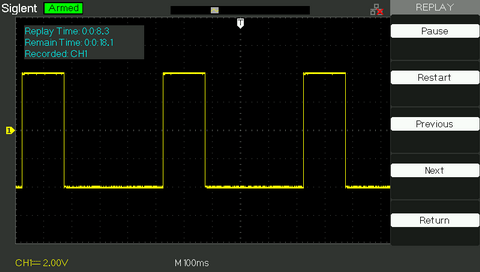

Digital Recorder Replay

Replaying the data for user to observe and analyze.

Embedded Online Help View more

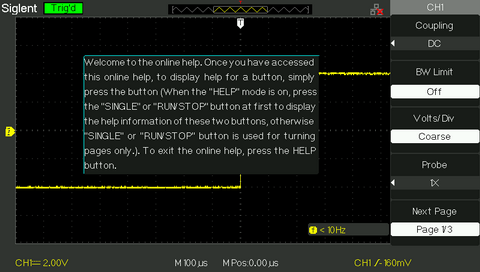

Embedded Online Help

Supports Multi-language display and embedded online help, familiarizes the user with all the functions of in a short time.

Abundant interfaces View more

Abundant interfaces

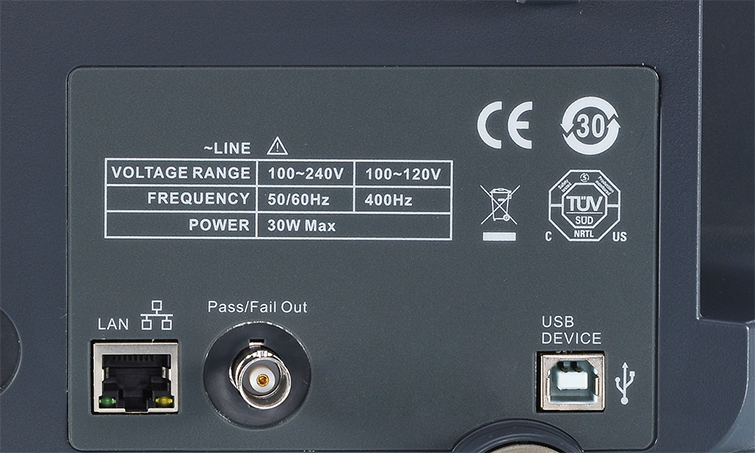

SDS1000CML+ support USB Host, USB Device (USBTMC), LAN (VXI-11), Pass/Fail

Support and Resources

Application Notes

Using EasyScope X to retrieve Average Waveform Data

Download PDF Waveform averaging can be a useful method to decrease noise in a particular signal. The SIGLENT SDS series of oscilloscopes can easily collect average waveform data using EasyScope X software. NOTE: At this time, average waveform data is not able to be saved in CSV format via the front panel USB connection to … Continued
