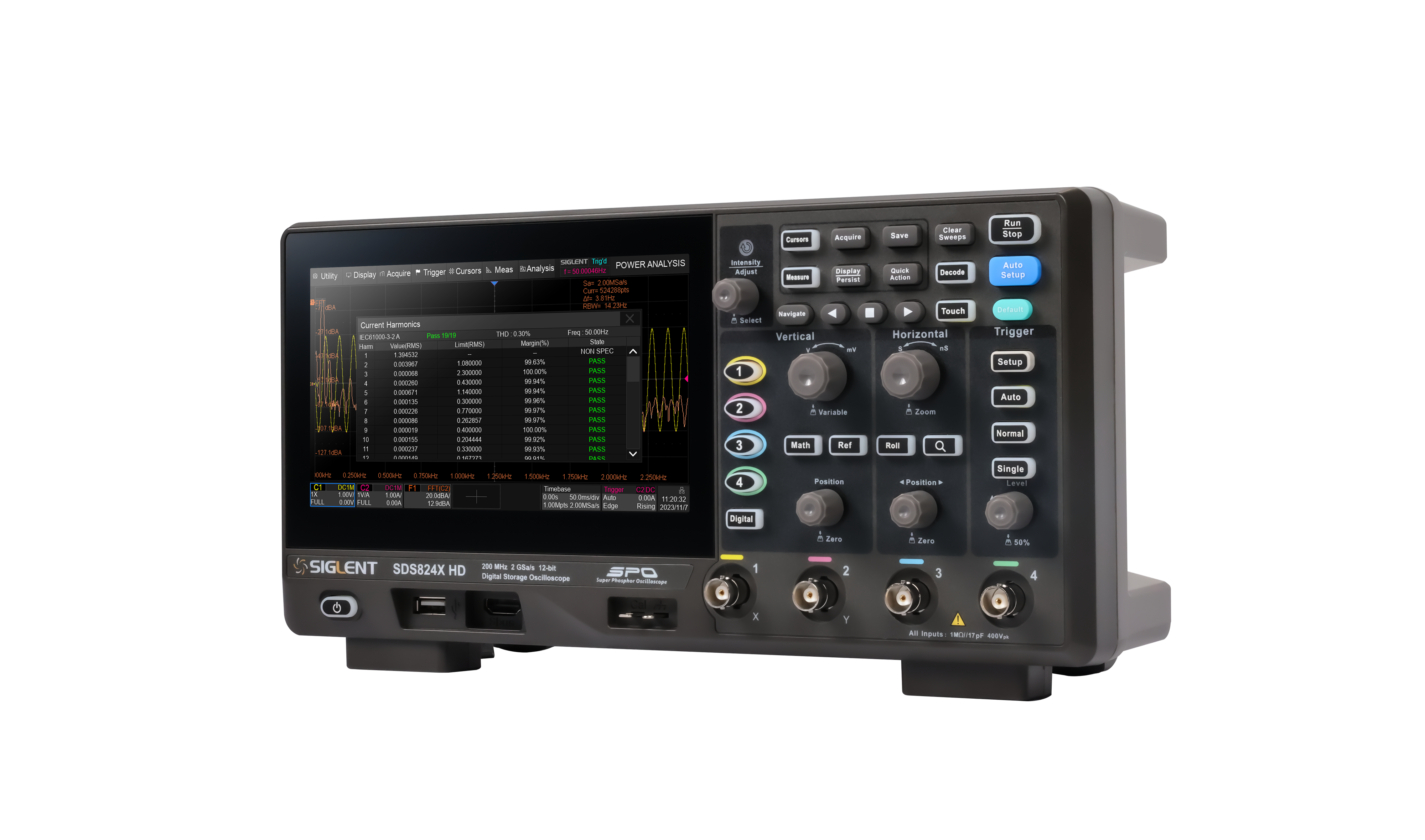

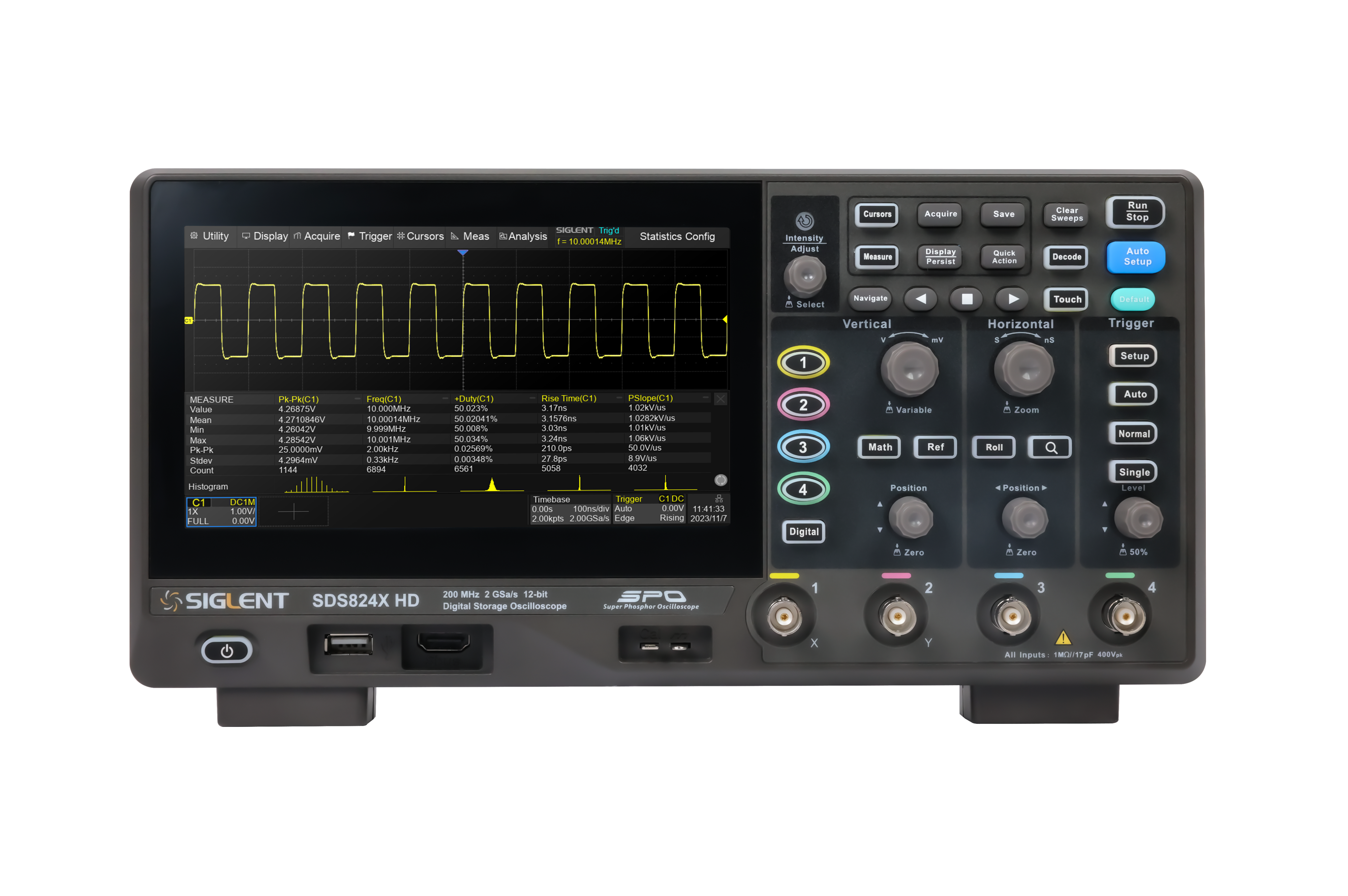

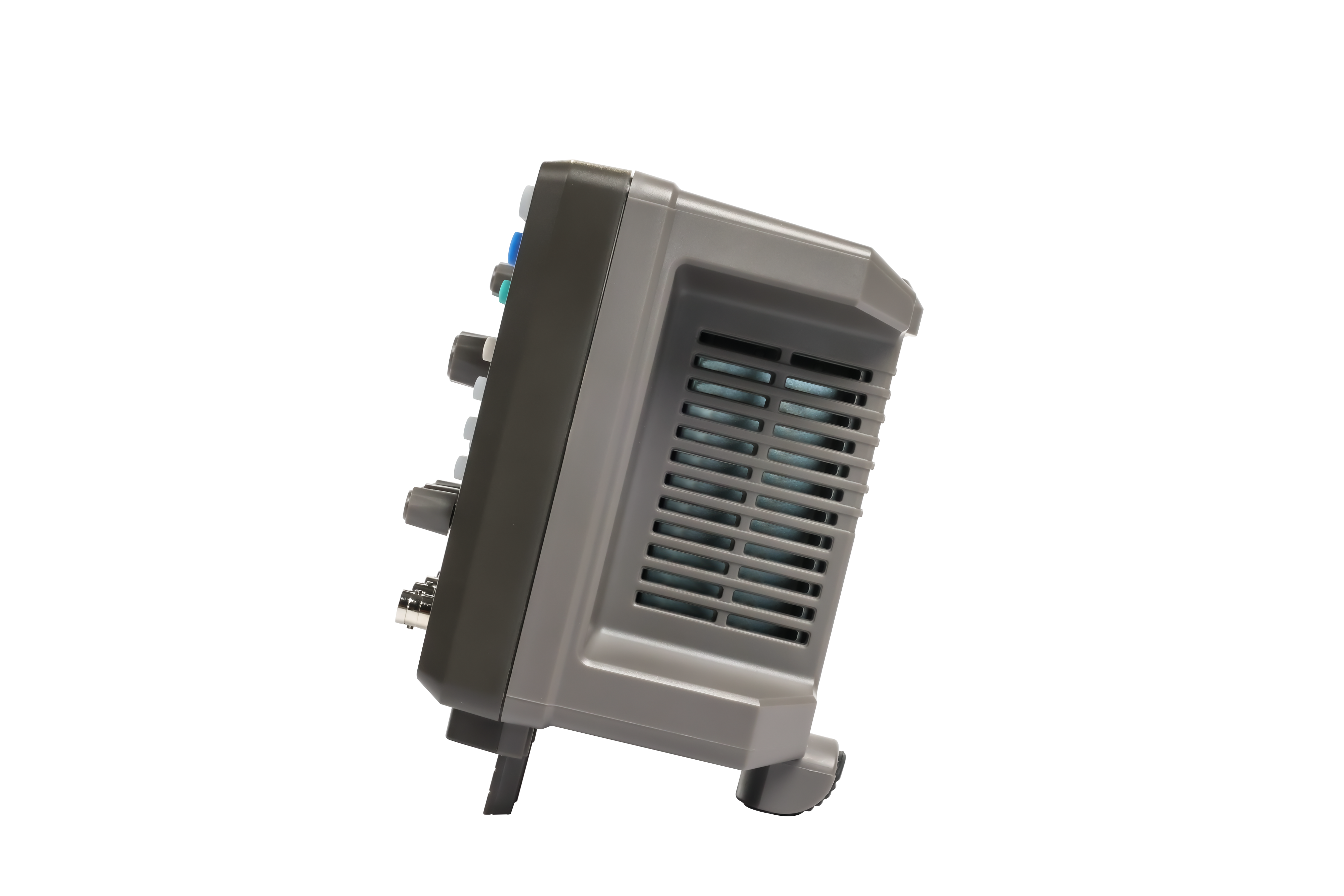

SDS800X HD Digital Storage Oscilloscope
- 70 MHz, 100 MHz, 200 MHz bandwidth models
- 12-bit high resolution
- Real-time sampling rate up to 2 GSa/s
- Memory depth up to 50/100 Mpts
- Waveform capture rate up to 500,000 wfm/s (Sequence mode)
- 7-inch touch screen, support for external mouse and keyboard
Product Overview
SIGLENT’s SDS800X HD series high resolution digital storage oscilloscopes are based on 2 GSa/s, 12-bit Analog-Digital Converters and front ends with excellent noise floor performance. They are available in bandwidths of 200 MHz, 100 MHz and 70MHz, have maximum record length of 100 Mpts, and display 2/4 analog channels + 16 digital channels mixed signal analysis ability.
The SDS800X HD series employs Siglent’s SPO technology with a maximum waveform capture rate of up to 120,000 wfm/ s (normal mode, up to 500,000 wfm/s in Sequence mode), 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, Power Analysis and allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, options for a 25 MHz arbitrary waveform generator, as well as serial decoding are also features of the SDS800X HD.
The 7″ display capacitive touch screen supports multi-touch gestures, with the addition of user-friendly UI design, can greatly improve the operation efficiency. It also supports mouse control, and remote web control over LAN.
| Bandwidth | Channels | Real time sampling rate |
Capture rate | Memory depth | Price | ||
| SDS802X HD | 70 MHz | 2 | 2 GSa/s | 500,000 wfm/s | 50 Mpts/ch | €359 | Buy Now |
| SDS804X HD | 70 MHz | 4 | 2 GSa/s | 500,000 wfm/s | 50 Mpts/ch | €409 | Buy Now |
| SDS812X HD | 100 MHz | 2 | 2 GSa/s | 500,000 wfm/s | 50 Mpts/ch | €409 | Buy Now |
| SDS814X HD | 100 MHz | 4 | 2 GSa/s | 500,000 wfm/s | 50 Mpts/ch | €499 | Buy Now |
| SDS822X HD | 200 MHz | 2 | 2 GSa/s | 500,000 wfm/s | 100 Mpts/ch | €539 | Buy Now |
| SDS824X HD | 200 MHz | 4 | 2 GSa/s | 500,000 wfm/s | 100 Mpts/ch | €699 | Buy Now |
Key Features
- 12-bit High Resolution
- 12-bit Analog-Digital Convertors with sample rate up to 2 GSa/s
- Front ends with 70 μVrms noise floor @ 200 MHz bandwidth
- 2/4 analog channels, up to 200 MHz bandwidth
- SPO technology
- Waveform capture rate up to 120,000 wfm/s (normal mode), and 500,000 wfm/s (sequence mode)
- Supports 256-level intensity grading and color temperature display modes
- Up to 100 Mpts record length
- Digital trigger system
- Intelligent trigger: Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video (HDTV supported) , Qualified, Nth edge, Delay, Setup/Hold time.
- Serial bus triggering and decoder, supports protocols I2C, SPI, UART, CAN, LIN
- Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
- History waveform record (History) function, the maximum recorded waveform length is 80,000 frames
- Automatic measurements on 50+ parameters, supports statistics with histogram, track, trend, Gating measurement, and measurements on Math, History and Ref
- 4 Math traces (2 Mpts FFT, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor
- Abundant data analysis functions such as Search, Navigate, Counter, Bode plot and Power Analysis
- High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks
- 16 digital channels (optional)
- 25 MHz waveform generator(optional)
- 7″ TFT-LCD display with 1024 * 600 resolution; Capacitive touch screen supports multi-touch gestures

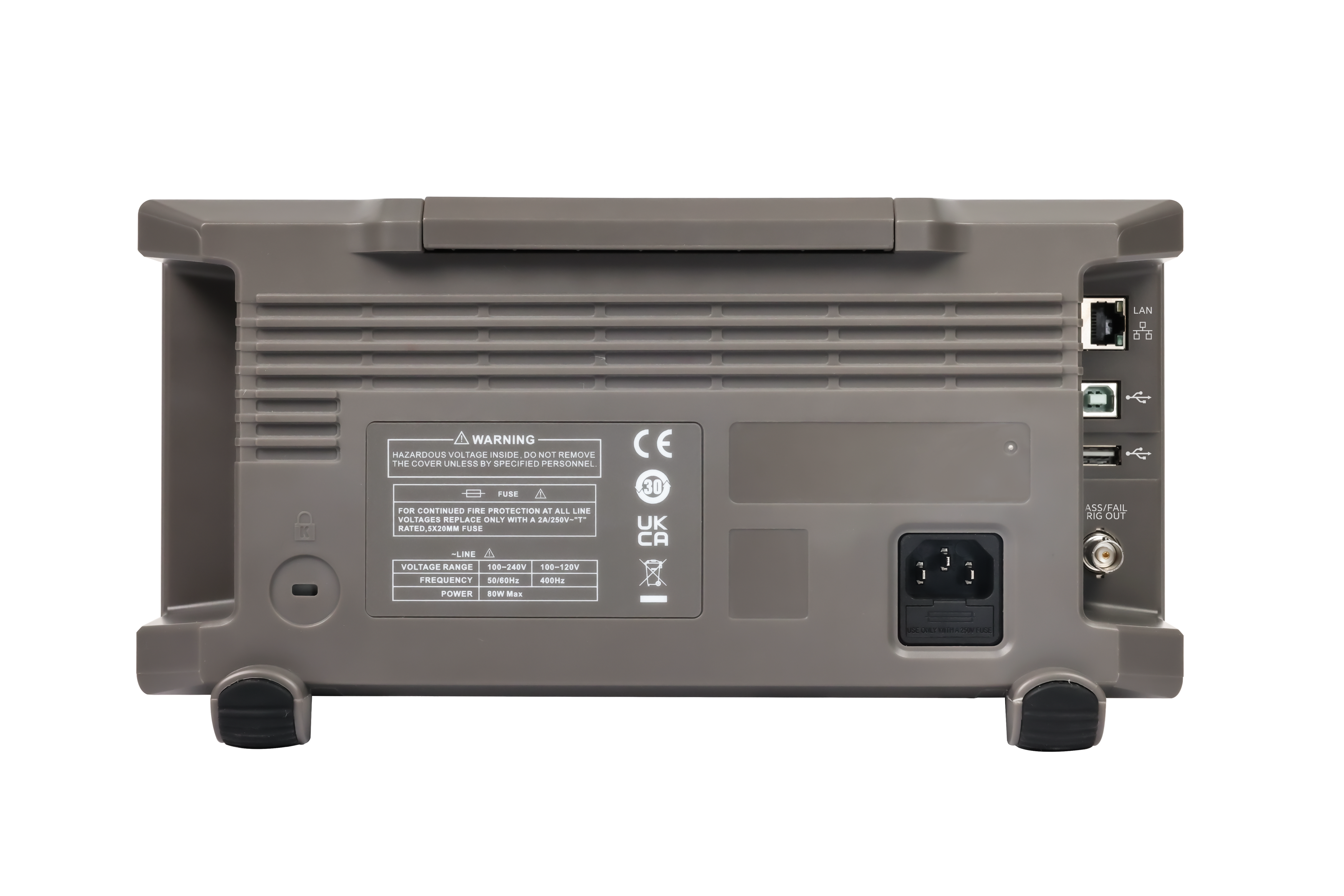

- Interfaces include: USB Hosts, USB Device (USBTMC), LAN (VXI-11/Telnet/Socket), Pass/Fail, Trigger Out
- Built-in web server supports remote control over the LAN port using a web browser. Supports SCPI remote control commands. Supports external mouse and keyboard. Supports NTP.
Product Characteristics
12-bit High Resolution View more

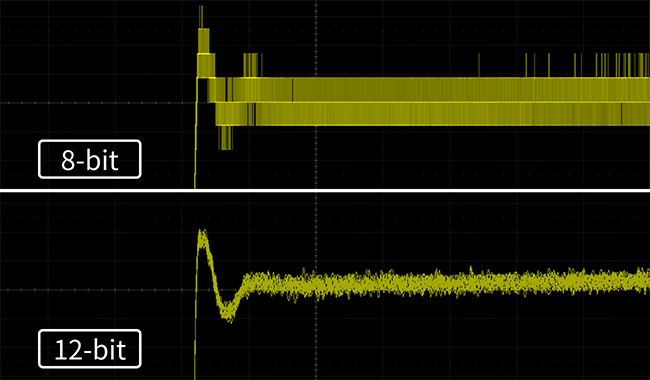

12-bit High Resolution
High-resolution oscilloscopes have excellent signal detection and display capabilities, which help analyze the details and characteristics of signals, and provide a great advantage in applications such as high-precision power supply testing, power supply ripple measurement, equipment performance optimization, and engine control unit testing.
Long Memory Depth View more

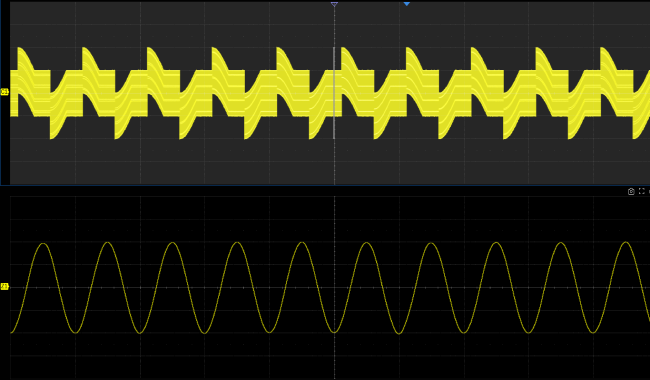

Long Memory Depth
With a maximum memory depth of up to 100 Mpts, SDS800X HD is suitable for observing and analyzing long-duration signals, low-frequency signals, and transient phenomena. With a large memory depth, the oscilloscope is able to process more data, and the accuracy and stability of the calculation results are also higher.
Multiple Triggering and Decoding View more
Multiple Triggering and Decoding

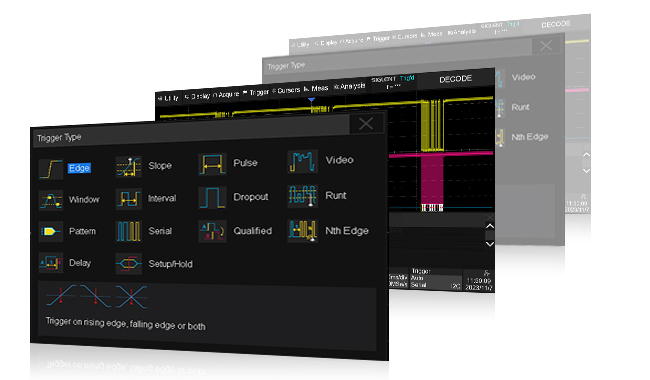

SDS800X HD has a variety of triggering types, including edge, slope, delay, set/hold, and a variety of bus triggers (serial triggers). It supports triggering and decoding of I2C, SPI, UART protocols in the embedded industry and CAN, LIN protocols in the automotive industry, and can accurately capture and intuitively display the protocol information of the bus in a table or in other ways, so that it can be stably tested.
Powerful Math Functions View more
Powerful Math Functions

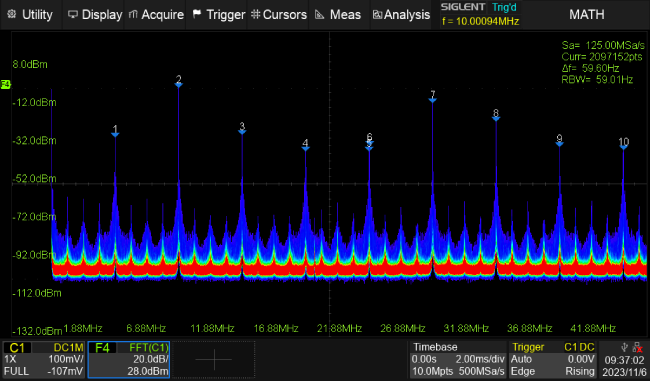

Built-in FFT function, the maximum number of operation points is 2Mpts, 4 independent Math waveforms, and supports user-defined operation expressions. With superior spectral resolution, it can more accurately analyze the frequency components and energy distribution of signals, easily transforming into a spectrum analyzer. FFT supports a variety of window functions, ordinary, average, maximum value hold mode, support for peak detection, automatic detection of stray frequencies and marking the formation of a list of displays.
Efficient Power Analysis View more

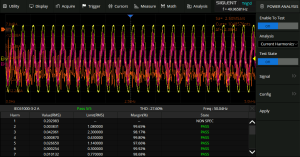

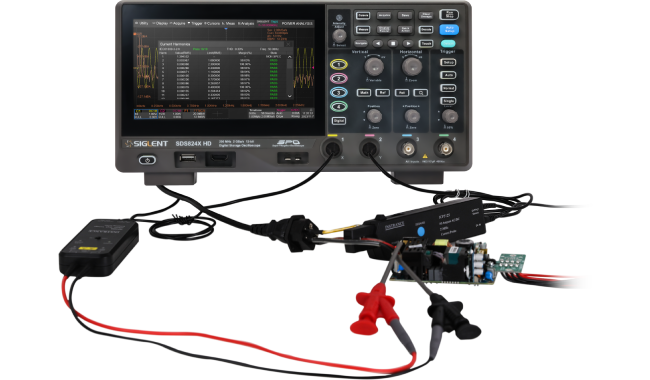

Efficient Power Analysis
Power analysis with Siglent’s voltage probe (DPB5000 series) and current probe (CP6000 series) can quickly and accurately analyze 12 parameters such as power quality, current harmonics, inrush current, transient response, etc., which helps engineers eliminate cumbersome manual configurations and complex formulae calculations. It is extremely suitable for observing abnormal harmonics, analyzing harmonics, evaluating equipment stability, judging electromagnetic interference and other tests.
Excellent Loop Response Testing View more
Excellent Loop Response Testing

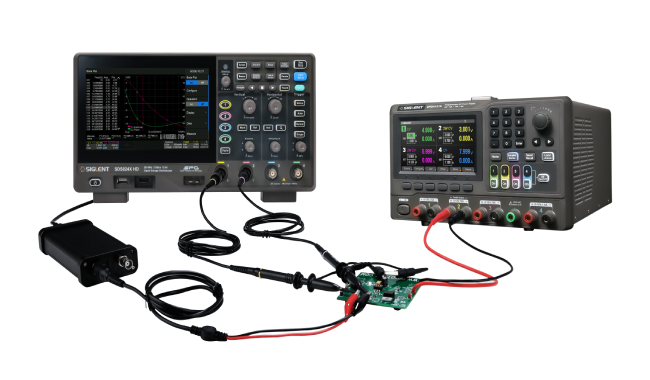

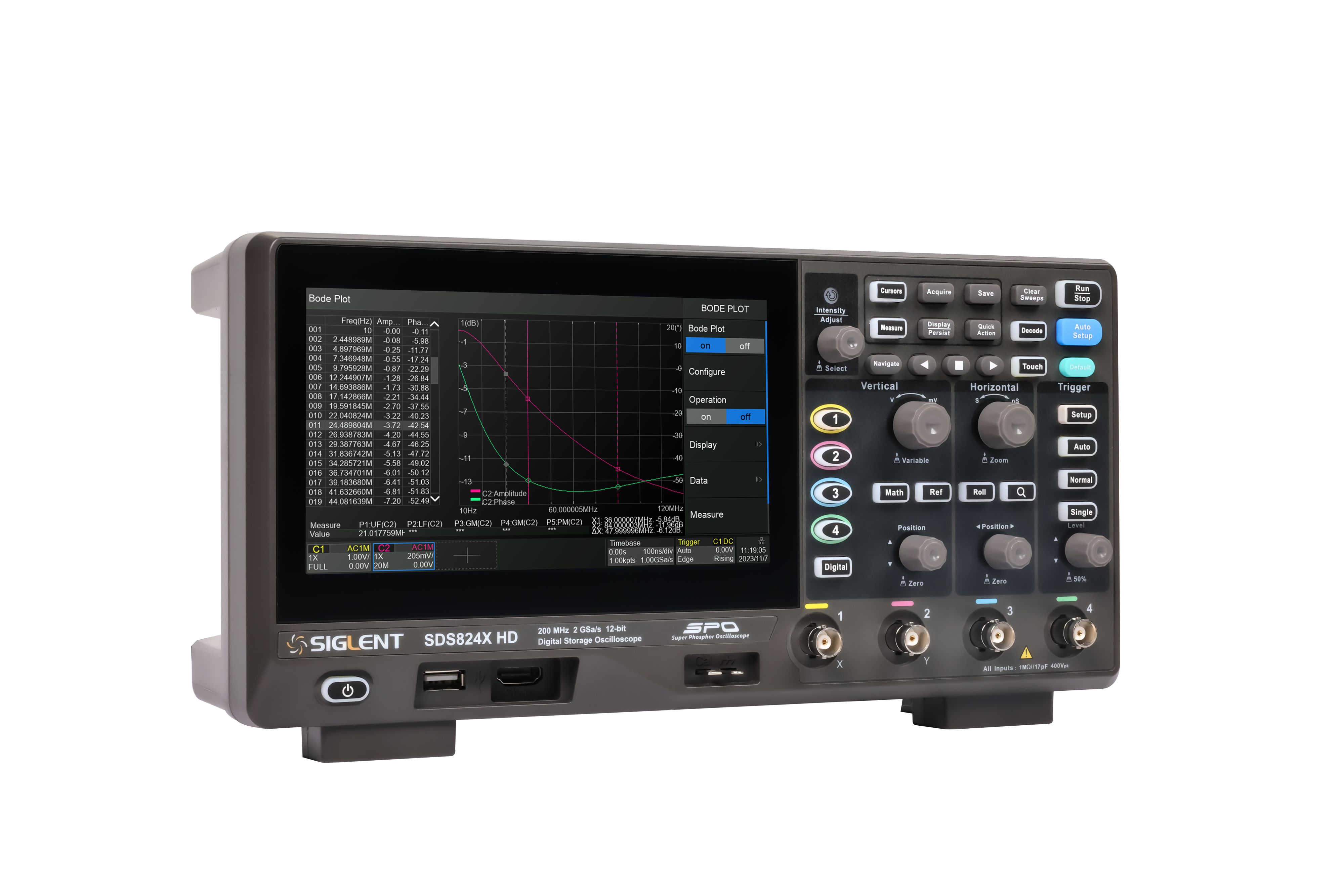

SDS800X HD comes standard with Bode plot, and with Siglent’s Isolated Signal Generator option (SAG1021I) or Siglent’s Arbitrary Waveform Generator, it can perform loop response testing, provide the frequency response curve of the DUT, and easily obtain the gain and phase values at each frequency point. Meanwhile, with the help of data list, cursor measurement, and automatic measurement functions, you can analyze the Bode Plot curve in detail, judge the system stability and so on.
16-channel digital logic signal analysis View more

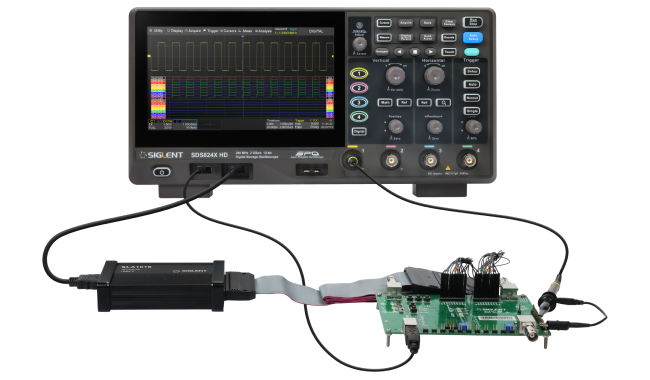

16-channel digital logic signal analysis
SDS800X HD can be used with Siglent’s 16-channel logic analyzer probe option (SLA1016) to add 16 digital channels to the instrument without affecting other test functions, realizing mixed-signal acquisition and analysis, and quickly solving analog-digital mixed-signal design and analysis problems.
Standard Accessories
Optional Accessories
SLA1016
Mixed Signal hardware option for 4 channel X-E Scopes and for SDS800X HD and SDS1000X HD Scopes In order to activate the MSO functionality a corresponding option license xxxx-16LA is required.
