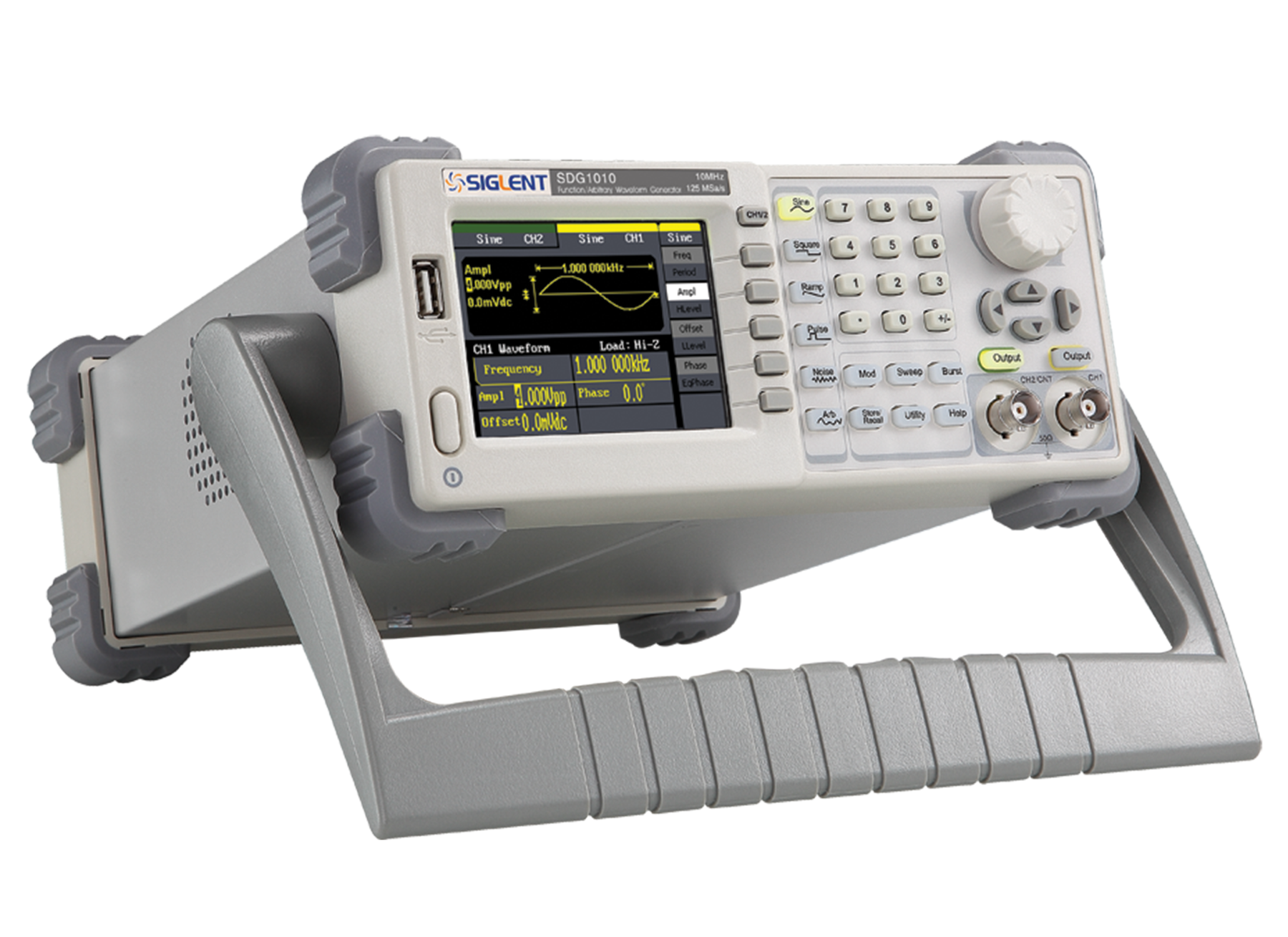

SDG1000 Series Function/Arbitrary Waveform Generators

  • DDS technology, dual outputs, and adjustable phase
  • Output frequencies up to 50 MHz
  • 125 MSa/s sample rate, 14-bit vertical resolution, 16 kpts memory
  • Outputs 5 types of standard waveforms, 48 internally stored waveforms

Product Overview

The SDG1000 series of high-performance function/arbitrary waveform generators use direct digital synthesis (DDS) technology and can generate accurate, stable, clean and low distortion output signals. It provides fast rising and falling edge square waves up to 25 MHz. The SDG1000 series provides a user-friendly graphical interface that can help you complete tasks faster and greatly improve your work efficiency. It has dual-channel output and each channel can output waveforms up to 50MHz (Sine Wave).

Max Output Frequency Max Sampling Rate Vertical Resolution Waveform Length Channels Price
SDG1050 50 MHz 125 MSa/s 14-bit 16 kpts 2 €419 Discontinued
SDG1025 25 MHz 125 MSa/s 14-bit 16 kpts 2 €319 Discontinued
SDG1010 10 MHz 125 MSa/s 14-bit 16 kpts 2 €279 Discontinued

Key Features

  • Includes built-in high precision, 200 MHz frequency counter
  • Multiple modulation functions, sweep-frequency function, pulse train function
  • Standard PC connections: USB Device, USB Host, U-Disk storage and software, GPIB (optional)
  • Seamlessly connects to the SDS series digital oscilloscopes
  • Remote computer control

Need more information? Call us now +49 821 666 0 111 0

Product Characteristics

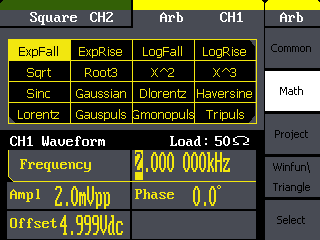

46 types of built-in arbitrary waveforms View more

46 types of built-in arbitrary waveforms

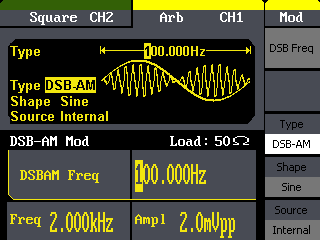

Powerful modulation types (AM, DSB-AM, FM, PM, ASK, FSK, PWM) View more

Powerful modulation types (AM, DSB-AM, FM, PM, ASK, FSK, PWM)

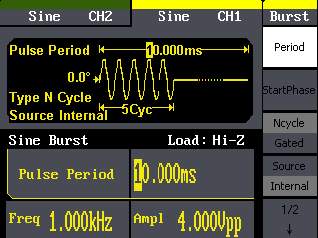

Burst View more

Burst

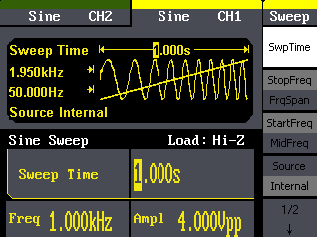

Sweep View more

Sweep
