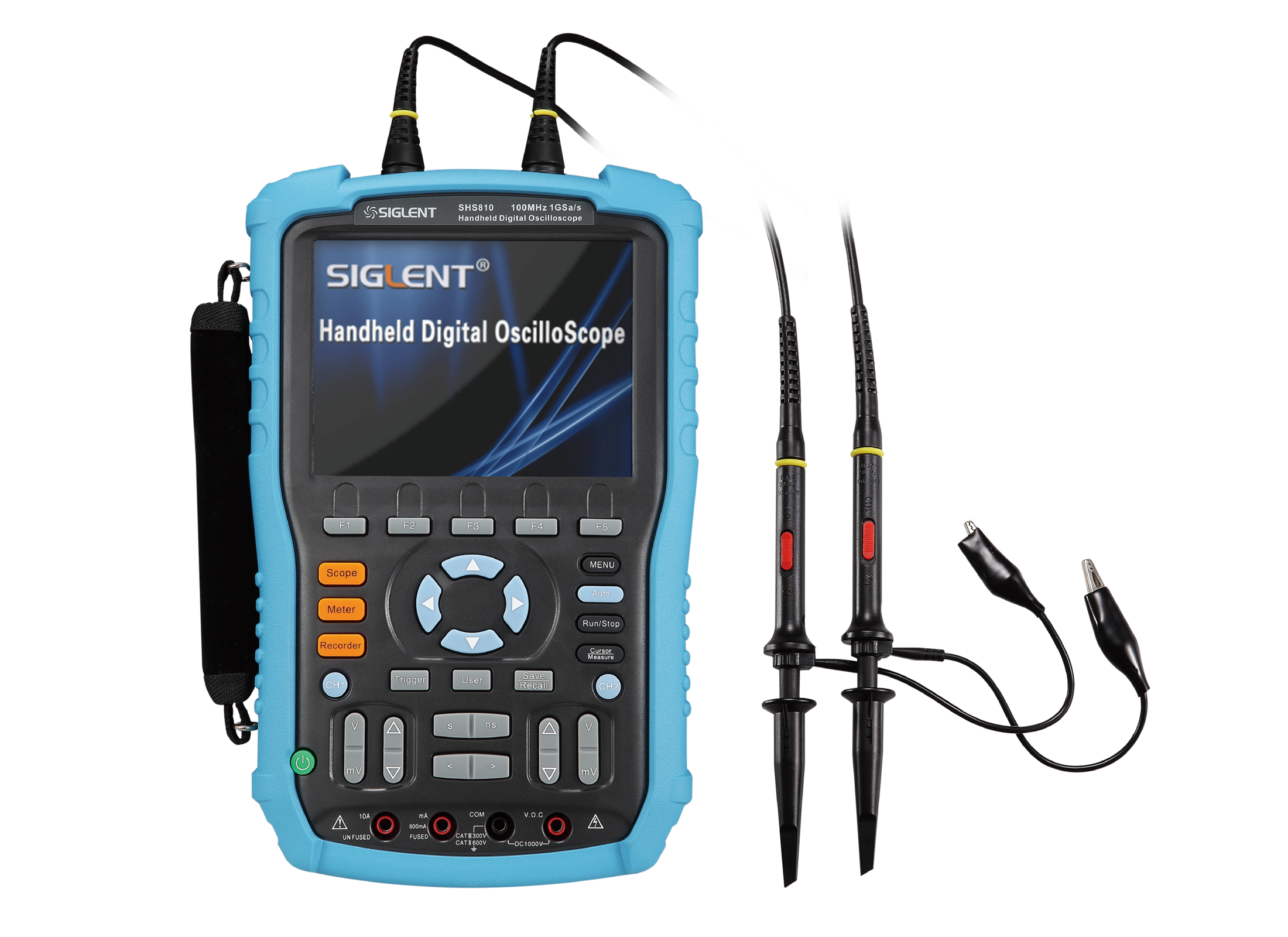

SHS800 Series Handheld Digital Oscilloscopes

High-performance oscilloscope

  • Bandwidths: 60, 100, 150, and 200 MHz; Memory depth: to 2 Mpts
  • Real-time sampling rate: 1 GSa/s; Equivalent sampling rate: 50 GSa/s
  • Includes integrated 3 1/2 digit multimeter

Data recorder function

  • 7 Mpt internal storage, up to 18 hours of recording time
  • USB port, up to 3000 hours recording time
  • Record, replay and zoom functions supported

Product Overview

The SHS800-series handheld oscilloscopes provide the user with an oscilloscope, multimeter, and recorder (including trends and waveform recorder) functions all in one package. It inherits the SHS1000 series stable performance and high performance along with the flexibility to use on a workbench or in the field.

Bandwidth Channels Real Time
Sampling Rate
Multimeter Isolation Level Memory Depth Price
SHS820 200 MHz 2 500 MSa/s voltage, current, resistance, etc, 8 regular functions None 32 kpts €549 Buy Now
SHS815 150 MHz 2 1 GSa/s voltage, current, resistance, etc, 8 regular functions None 2 Mpts €519 Buy Now
SHS810 100 MHz 2 1 GSa/s voltage, current, resistance, etc, 8 regular functions None 2 Mpts €479 Buy Now
SHS806 60 MHz 2 1 GSa/s voltage, current, resistance, etc, 8 regular functions None 2 Mpts €399 Buy Now

Key Features

High precision multimeter

  • 6000 count display
  • Accurate measurement of DCV, ACV, DCI, ACI
  • Accurate measurement of Resistance, Diode, Capacitance, Continuity

Trend plot

  • 32 measurement trend plot analyzer
  • Scope: 800 k points capacity, more than 24 hours recording time
  • Meter: 1.2 M points capacity 9320 hours recording time at 0.05 Sa/s

Need more information? Call us now 877-515-5551

Product Characteristics

High performance oscilloscope View more

High performance oscilloscope

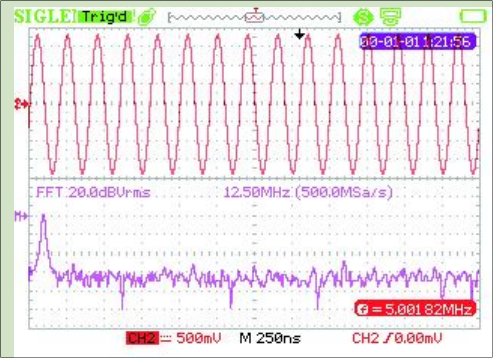

Channel math functions include add, subtract, multiply, divide, FFT.

Digital filter functions: LP, HP, BP, BR

Data recorder View more

Data recorder

Scope Trend Plot:

Meter Trend Plot:

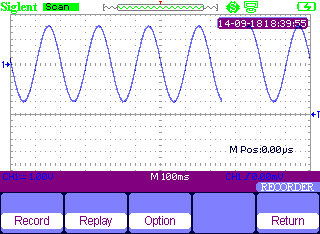

Scope Recorder

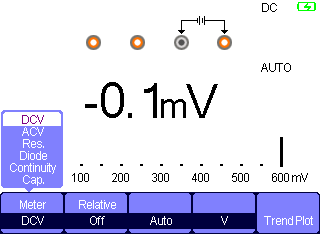

Digital multimeter View more

Digital multimeter

3 1/2 digit display.

Measures DCV, ACD, DCI, ACI, Resistance, Diode Test, Capacitance, Continuity

Trend plot View more

Trend plot

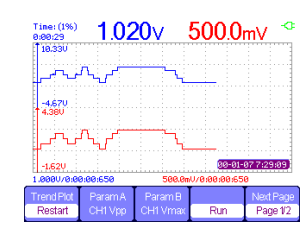

Scope TrendPlot

Meter TendPlot

Scope Recorder
