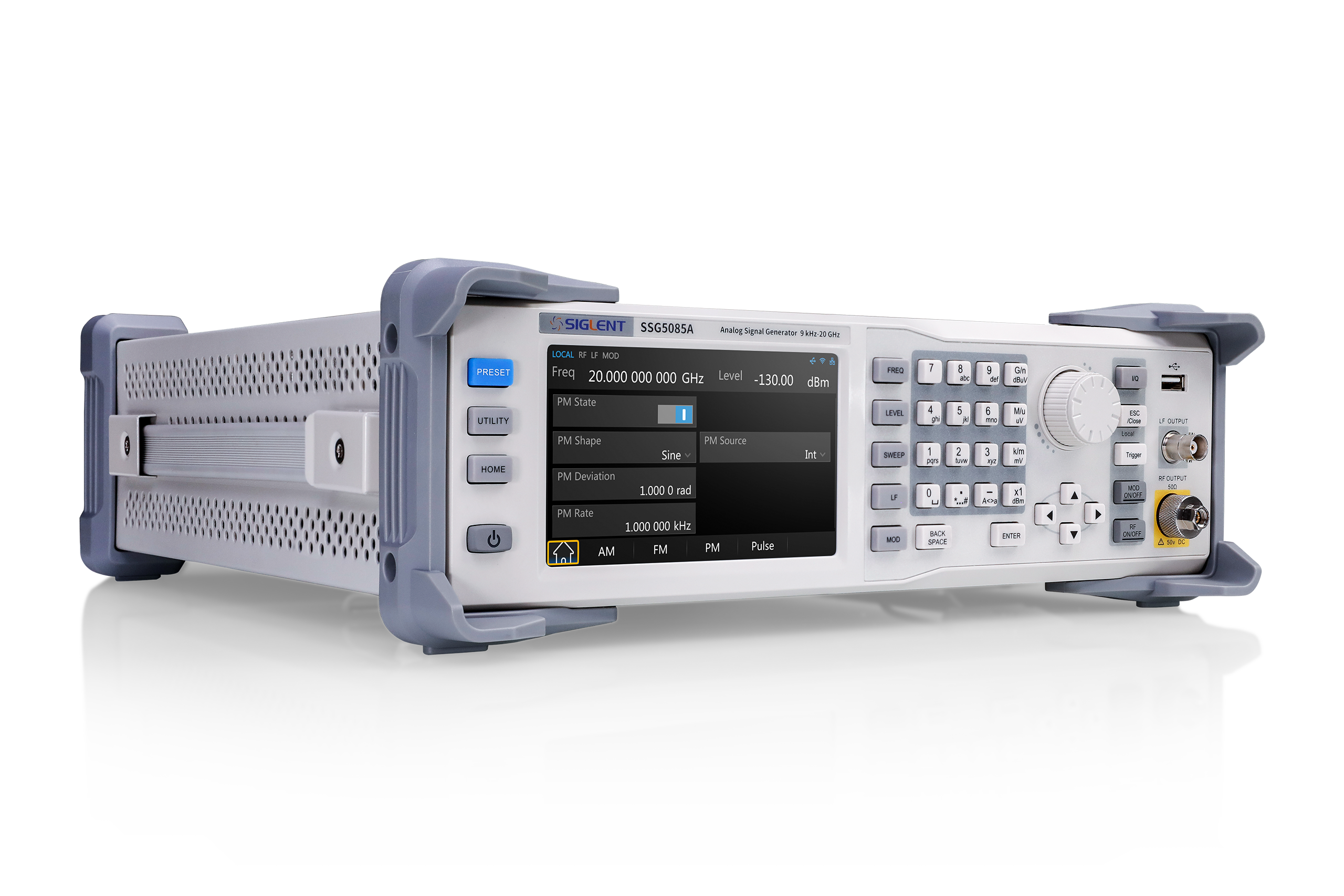

SSG5000A Series RF Signal Generator

  • Frequency up to 13.6 GHz / 20 GHz
  • 0.001 Hz frequency setting resolution
  • Level setting range: -130 dBm ~ 25 dBm
  • Phase Noise: -120 dBc / Hz @ 1 GHz, 20 kHz offset (typ.)
  • Level error ≤ 0.7 dB (typ.)
  • Standard AM & FM & PM & pulse modulation
  • Single pulse, double pulse and pulse train generator (option)

Product Overview

SSG5083A/SSG5085A microwave signal generator’s output frequency range from 9 kHz to 13.6/20 GHz, supports AM & FM & PM modulation, pulse modulation, pulse sequence generator, power meter control and other functions. With standard OCXO reference hardware module inside ensures high-precision and high stability signal output. It is designed for communication and other fields. And it is suitable for various application scenarios such as R&D and production.

Frequency Range Amplitude Resolution Phase Noise External I/Q Modulation Price
SSG5083A CW MODE 9 kHz-13.6 GHz 0.01 dB -120 dBc/Hz @1 GHz, offset 20 kHz (typ.) No €15,420 Buy Now
SSG5085A CW MODE 9 kHz-20 GHz 0.01 dB 120 dBc/Hz @1 GHz, offset 20 kHz (typ.) No €18,150 Buy Now

Key Features

  • Frequency up to 13.6 GHz / 20 GHz
  • 0.001 Hz frequency setting resolution
  • Level setting range: -130 dBm ~ 25 dBm (with Opt. SSG5080A-LP)
  • Phase Noise: -120 dBc / Hz @ 1 GHz,20 kHz offset (typ.)
  • Level error ≤ 0.7 dB (typ.)
  • Provides AM, FM, PM analog modulation with internal, external or Int+Ext source
  • Single pulse, double pulse and pulse train generator (option)
  • The power meter control kit can easily use the power meter to measure power, control power output and correct line loss
  • 5 inch TFT capacitive touch screen, mouse and keyboard supported
  • Web browser remote control on PC and mobile terminals
  • Standard interface includes USB Host, USB Device (USB TMC), LAN (VXI-11, Socket, Telnet). Optional interface: GPIB

Need more information? Call us now +49 821 666 0 111 0

Product Characteristics

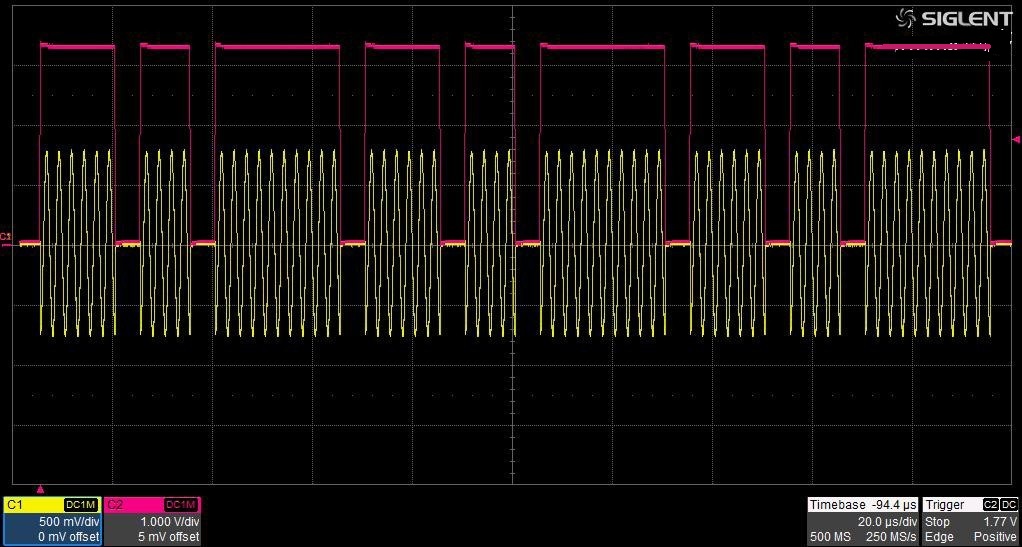

Pulse train generator View more

Pulse train generator

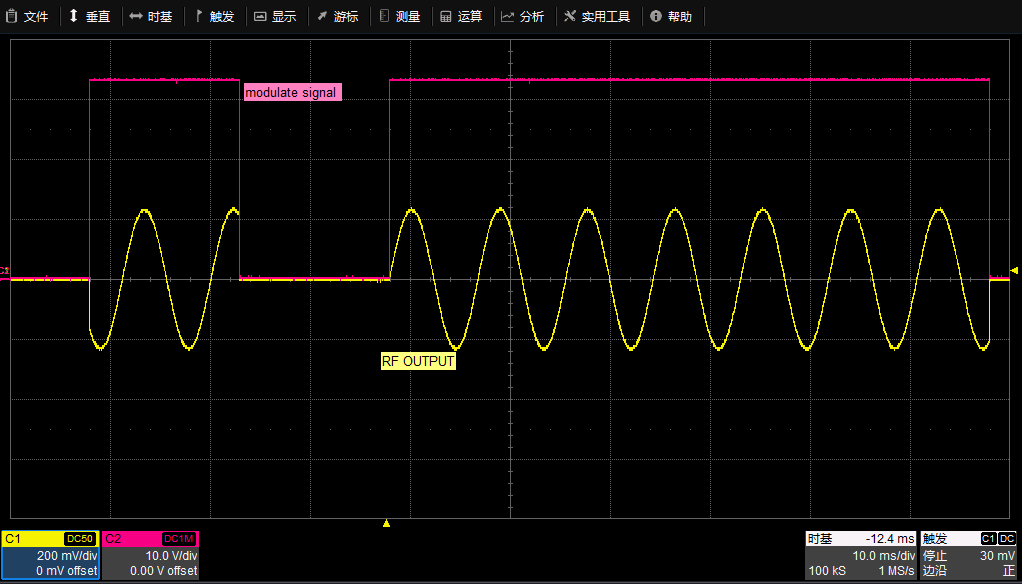

Double pulse modulation View more

Double pulse modulation

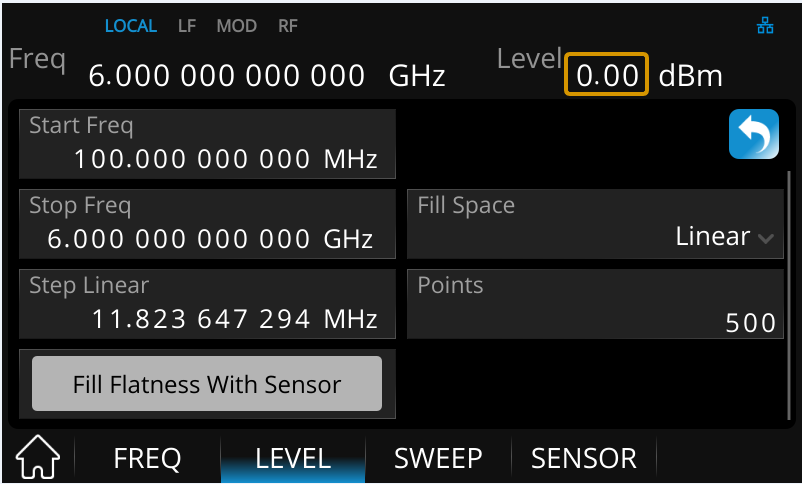

Use an external USB power sensor to compensate cable losses View more

Use an external USB power sensor to compensate cable losses
