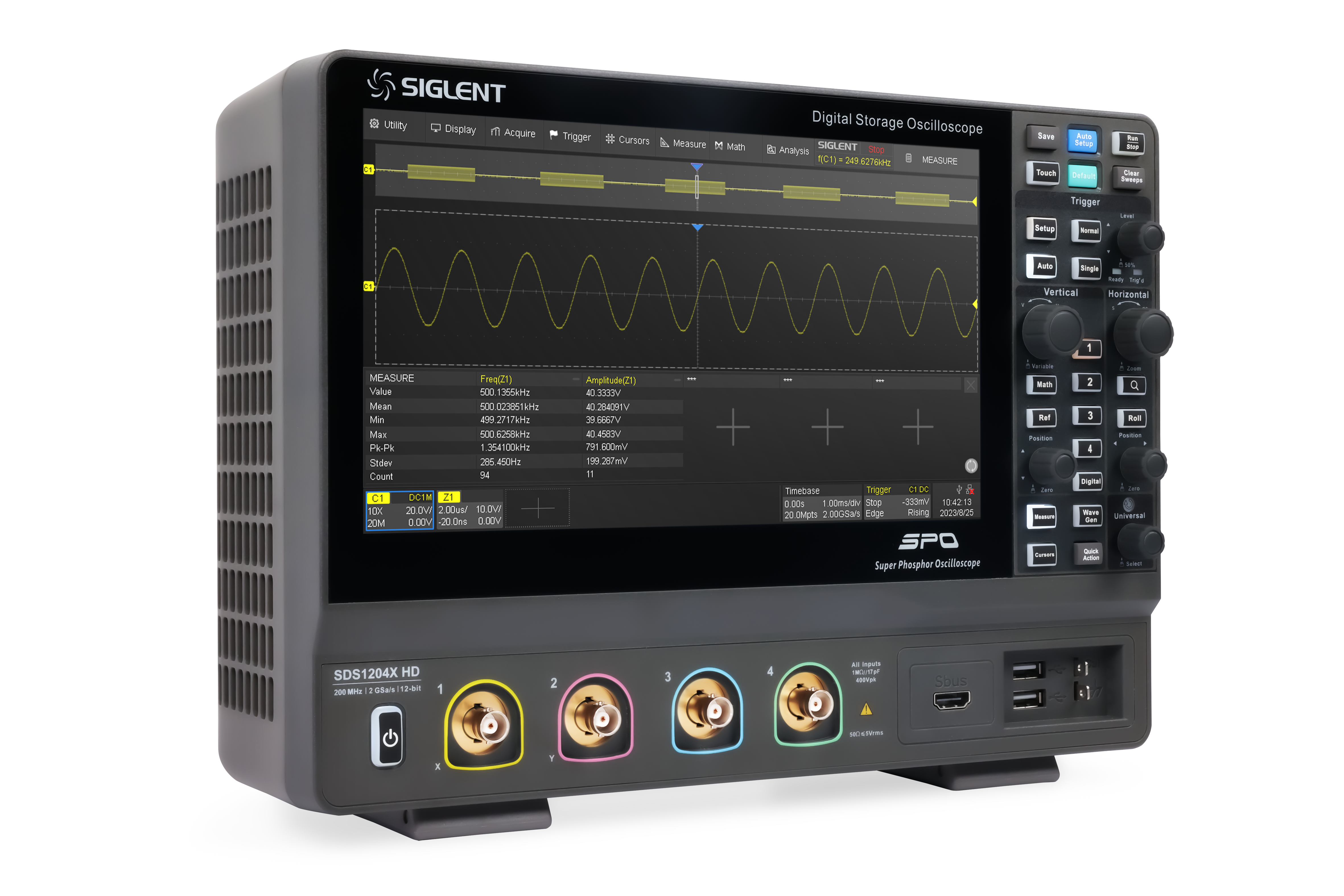

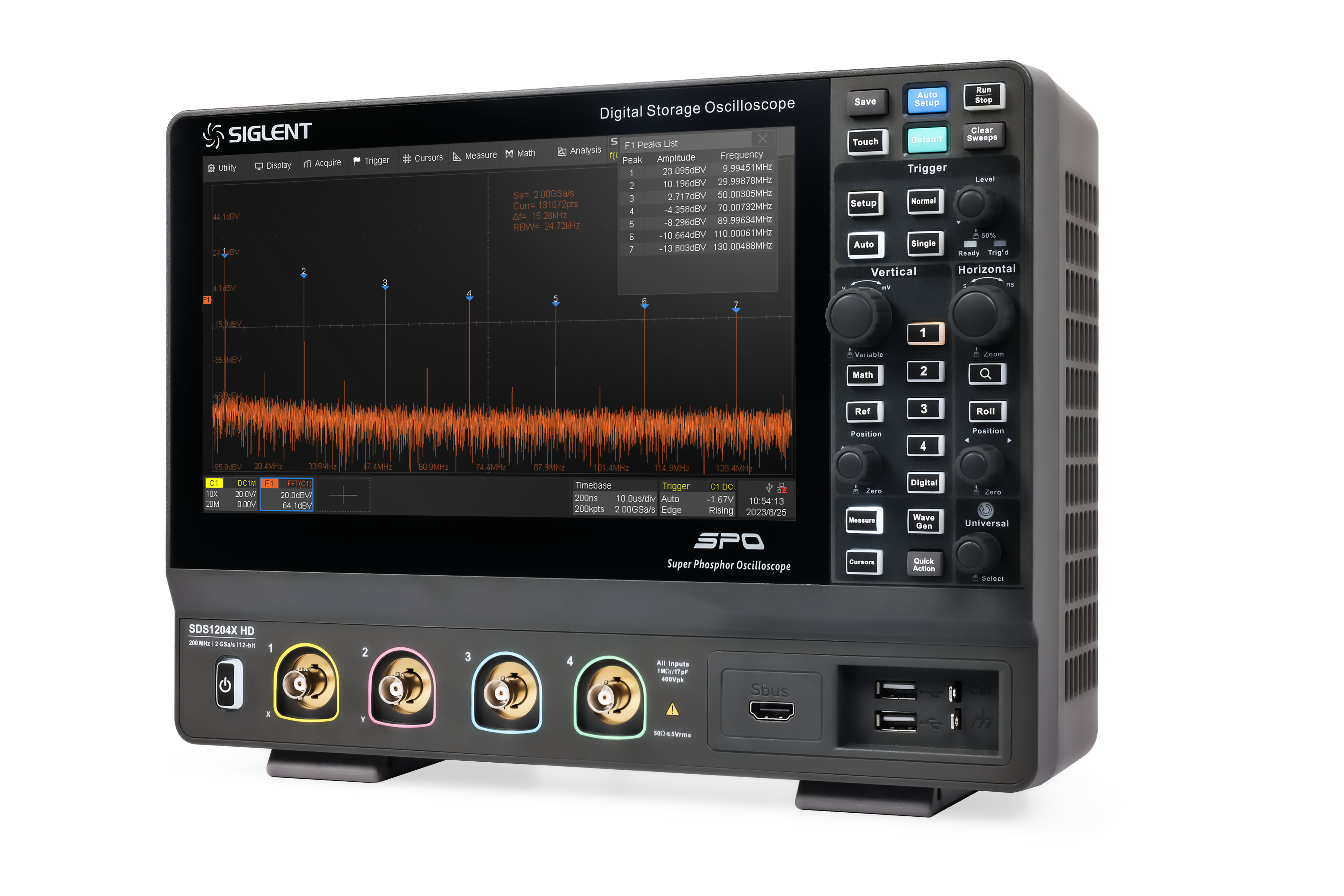

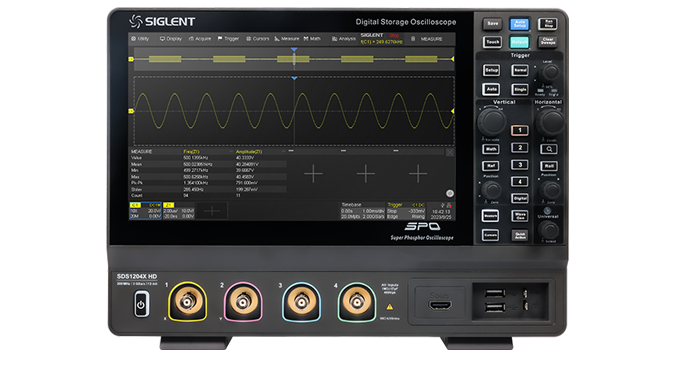

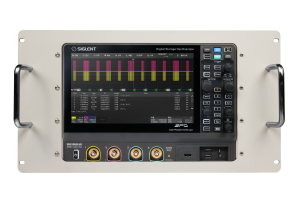

SDS1000X HD Digital Storage Oscilloscope

  • 100 MHz, 200 MHz models
  • 12-bit high resolution
  • Sampling rate up to 2 GSa/s
  • Memory depth up to 100 Mpts
  • Waveform capture rate up to 500,000 wfm/s (Sequence mode)
  • Noise floor as low as 70 μVrms at 200 MHz full bandwidth

Product Overview

SIGLENT’s SDS1000X HD series high resolution digital storage oscilloscopes are based on 2 GSa/s, 12-bit Analog-Digital Converters and front ends with excellent noise floor performance. They are available in bandwidths of 200 MHz and 100 MHz, have maximum record length of 100 Mpts, and display 2/4 analog channels + 16 digital channels mixed signal analysis ability.

The SDS1000X HD series employs Siglent’s SPO technology with a maximum waveform capture rate of up to 120,000 wfm/ s (normal mode, up to 500,000 wfm/s in Sequence mode), 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, Power Analysis and allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, options for a 25 MHz arbitrary waveform generator, as well as serial decoding are also features of the SDS1000X HD.

The large 10.1’’ display capacitive touch screen supports multi-touch gestures, with the addition of user-friendly UI design, can greatly improve the operation efficiency. It also supports mouse control, and remote web control over LAN.

Bandwidth Channels Real time
sampling rate
Capture rate Memory depth Price
SDS1102X HD 100 MHz 2 + EXT 2 GSa/s 500,000 wfm/s 100 Mpts/ch €959 Buy Now
SDS1104X HD 100 MHz 4 + EXT 2 GSa/s 500,000 wfm/s 100 Mpts/ch €1,099 Buy Now
SDS1202X HD 200 MHz 2 + EXT 2 GSa/s 500,000 wfm/s 100 Mpts/ch €1,099 Buy Now
SDS1204X HD 200 MHz 4 + EXT 2 GSa/s 500,000 wfm/s 100 Mpts/ch €1,299 Buy Now

Key Features

  • 12-bit High Resolution
    • 12-bit Analog-Digital Convertors with sample rate up to 2 GSa/s
    • Front ends with 70 μVrms noise floor @ 200 MHz bandwidth
  • 2/4 analog channels, up to 200 MHz bandwidth
  • SPO technology
    • Waveform capture rate up to 120,000 wfm/s (normal mode), and 500,000 wfm/s (sequence mode)
    • Supports 256-level intensity grading and color temperature display modes
    • Up to 100 Mpts record length
    • Digital trigger system
  • Intelligent trigger: Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video (HDTV supported) , Qualified, Nth edge, Delay, Setup/Hold time.
  • Serial bus triggering and decoder, supports protocols I2C, SPI, UART, CAN, LIN, CAN FD(decode only), FlexRay(decode only)
  • Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
  • History waveform record (History) function, the maximum recorded waveform length is 80,000 frames
  • Automatic measurements on 50+ parameters, supports statistics with  histogram, track, trend, Gating measurement, and measurements on Math, History and Ref
  • 4 Math traces (2 Mpts FFT, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor
  • Abundant data analysis functions such as Search, Navigate, Counter, Bode plot and Power Analysis
  • High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks
  • 16 digital channels (optional)
  • 25 MHz waveform generator(optional)
  • Large 10.1” TFT-LCD display with 1024 * 600 resolution; Capacitive touch screen supports multi-touch gestures

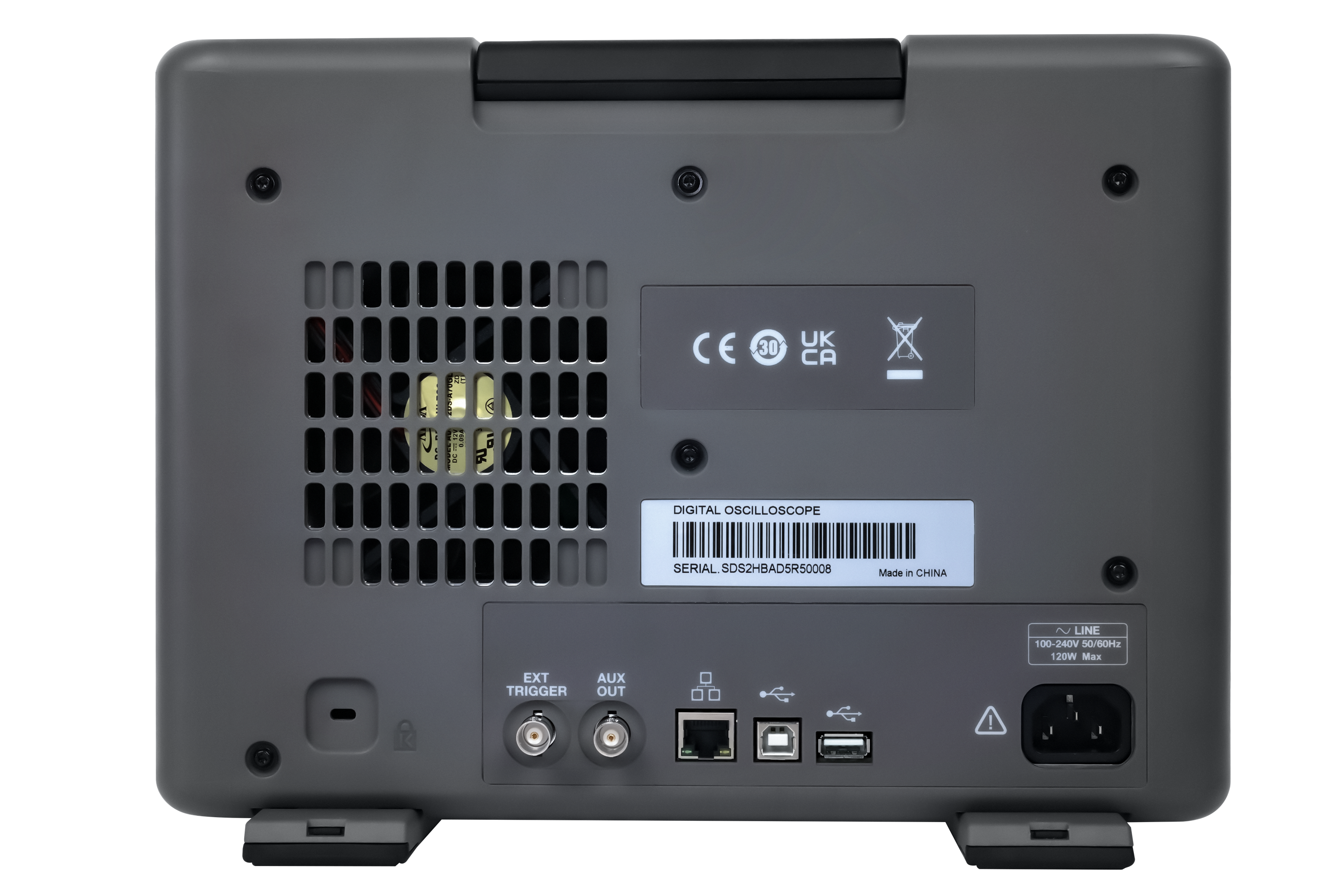

  • Interfaces include: USB Hosts, USB Device (USBTMC), LAN (VXI-11/Telnet/Socket), Pass/Fail, Trigger Out
  • Built-in web server supports remote control over the LAN port using a web browser. Supports SCPI remote control commands. Supports external mouse and keyboard.

Need more information? Call us now +49 821 666 0 111 0

Product Characteristics

12-bit high resolution: perfectly restore waveform details View more

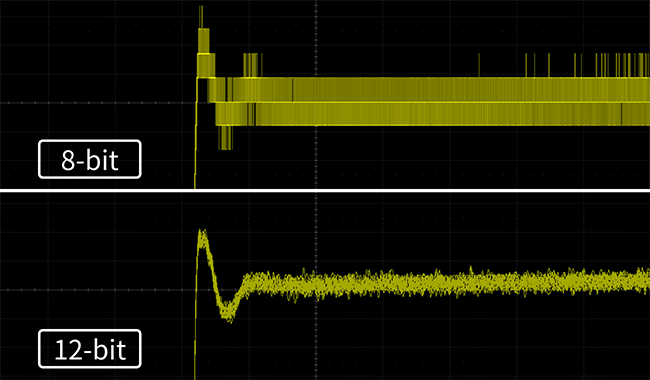

12-bit high resolution: perfectly restore waveform details

SDS1000X HD adopts a 12-bit analog-to-digital converter, which can achieve 4096 quantization levels, which is 16 times the signal resolution of traditional 8-bit oscilloscopes. Combined with the excellent noise floor, it can make the captured waveforms appear more clearly on the screen, which is conducive to the user’s observation as well as accurate measurement.

Standard 7 kinds of decoding: suitable for multiple scenarios View more

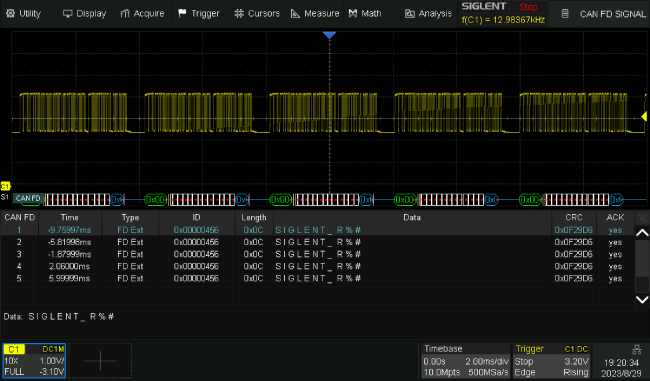

Standard 7 kinds of decoding: suitable for multiple scenarios

SDS1000X HD comes standard with I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, and the decoding results can be displayed in hexadecimal, decimal, binary, or ASCII format, and two parallel buses can be decoded at the same time, each of which is displayed as a graphic icon on the left side of the screen. In addition, the settings for the signals and the bus configurations can be synchronized to the triggers through the “Copy to trigger” function.

FFT: perfect combination of time and frequency domain View more

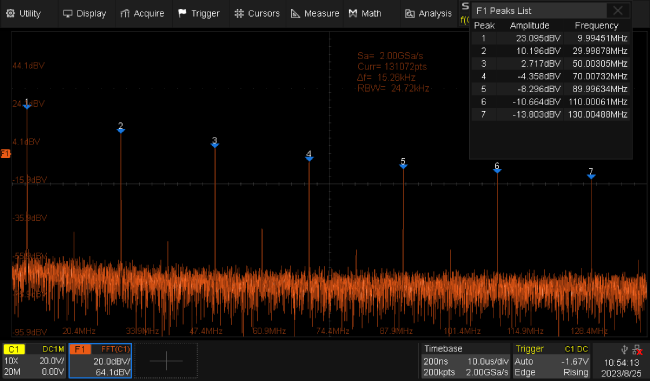

FFT: perfect combination of time and frequency domain

With hardware accelerated FFT function, the maximum number of operation points is 2Mpts, which provides superior spectral resolution while still maintaining a high spectral refresh rate. FFT supports multiple window functions, three modes of normal, average and maximum hold, and can automatically mark the peak points and form a list.

Power Analysis: beneficial to power supply design View more

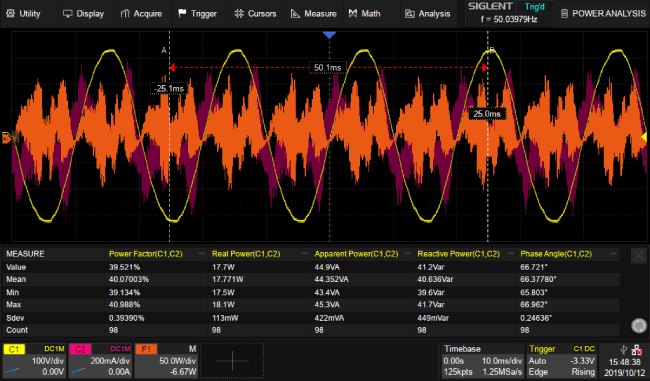

Power Analysis: beneficial to power supply design

Power Analysis can help users to quickly measure and analyze a variety of items in the power electronics field, such as power quality, harmonics, inrush current, switching loss, etc. Power Analysis can also be used to analyze the power loop response in combination with Bode Plot. When you turn on the power analysis function, you can use the voltage and current probes correctly according to the “Connection Guide”.

16 digital channels: realizing mixed signal acquisition and analysis View more

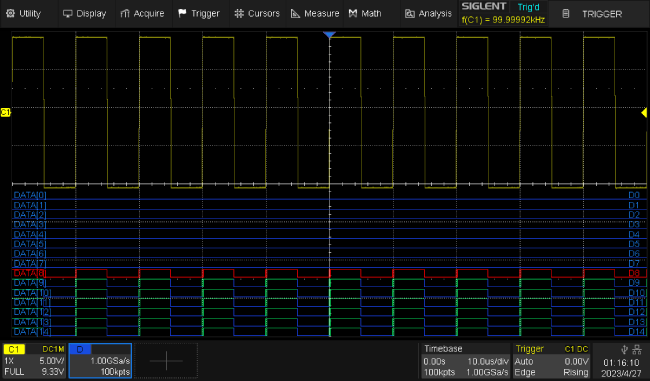

16 digital channels: realizing mixed signal acquisition and analysis

16 Channels Logic Analyzer can add 16 digital channels to the instrument without affecting other test functions, which can quickly solve the problems of analog-digital mixed-signal design and analysis.
