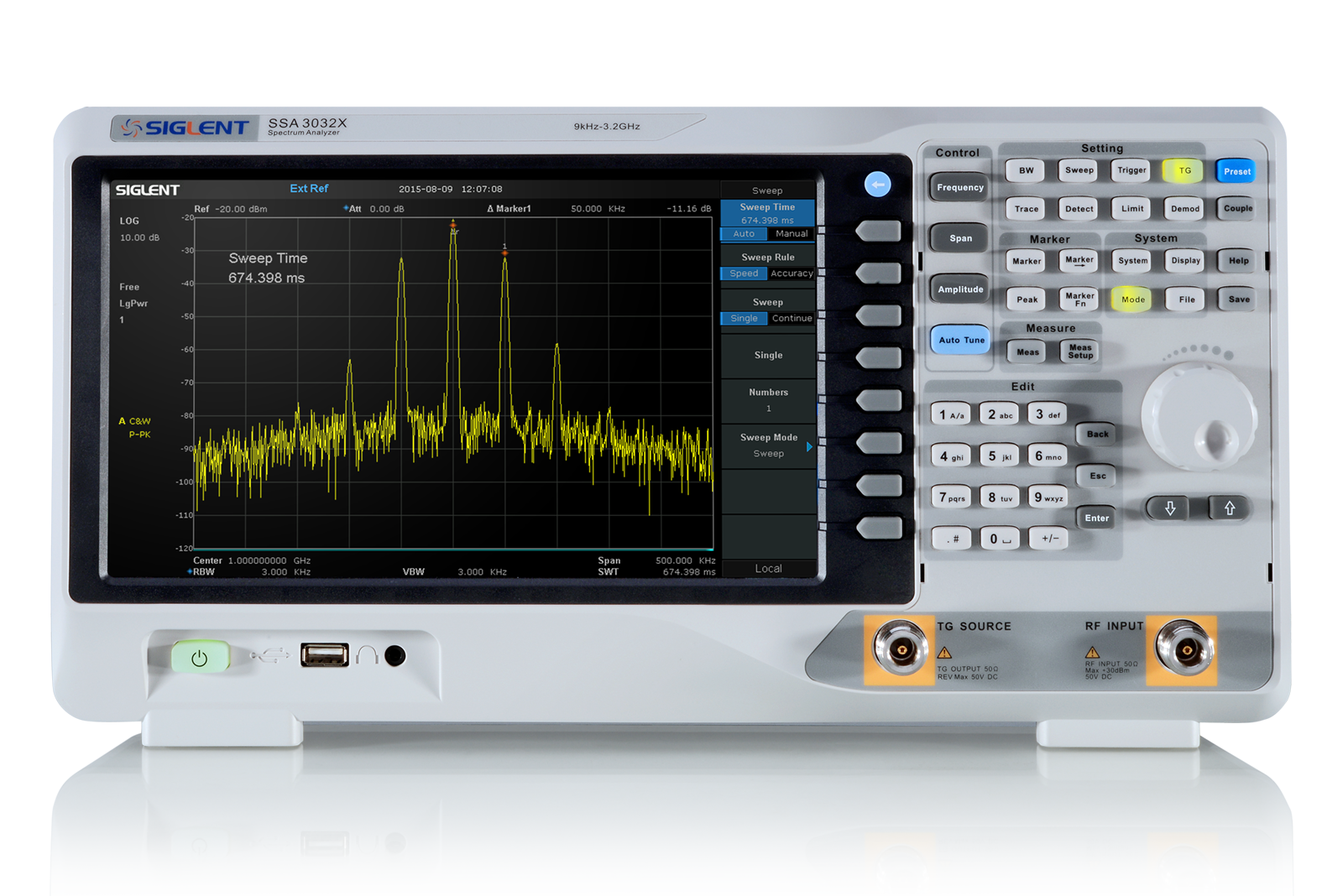

SSA3000X Series Spectrum Analyzers

  • All-Digital IF Technology
  • Frequency Range from 9 kHz to 2.1/3.2 GHz
  • -161 dBm/Hz Displayed Average Noise Level (Typ.)
  • -98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
  • Total Amplitude Accuracy < 0.7 dB
  • 1 Hz Minimum Resolution Bandwidth (RBW)
  • Tracking generator (TG) is currently included at no charge

Product Overview

Siglent’s SSA3000X family of spectrum analyzers offer a frequency range of 9 KHz to 2.1/3.2 GHz. With their light weight, small size, and friendly user interface, the SSA3000s present a large, bright easy to read display, powerful and reliable automatic measurements, and plenty of impressive features. Applications include research and development, education, production, maintenance, and pre-compliance testing.

Having trouble choosing? Click on Analyzer Features and Options to learn more.

Frequency Range Resolution Bandwidth (RBW) Phase Noise Total Amplitude Accuracy Display Average Noise Level (DANL) Price
SSA3021X 9 kHz to 2.1 GHz 1 Hz to 1 MHz, in 1-3-10 sequence < -98 dBc/Hz @ 1 GHz, 10 kHz offset ± 0.7 dB -161 dBm/Hz, Normalized to 1 Hz (typ.) €1,299 Buy Now
SSA3032X 9 kHz to 3.2 GHz 1 Hz to 1 MHz, in 1-3-10 sequence < -98 dBc/Hz @ 1 GHz, 10 kHz offset ± 0.7 dB -161 dBm/Hz, Normalized to 1 Hz (typ.) €2,259 Buy Now
Limited Time Offer



Purchase a new SIGLENT spectrum analyzer and SRF5030T near-field probe kit

to receive a free EMI option activation license



Key Features

  • Standard Preamplifier

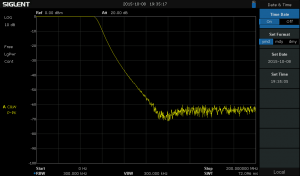

  • Standard Tracking Generator Kit
  • Reflection/VSWR Measurement Kit (Opt.)
  • Advanced Measurement Kit (Opt.)
  • EMI Pre-compliance Measurements Kit (Opt.)
  • 10.1 lnch WVGA (1024 x 600) Display

Need more information? Call us now +49 821 666 0 111 0

Product Characteristics

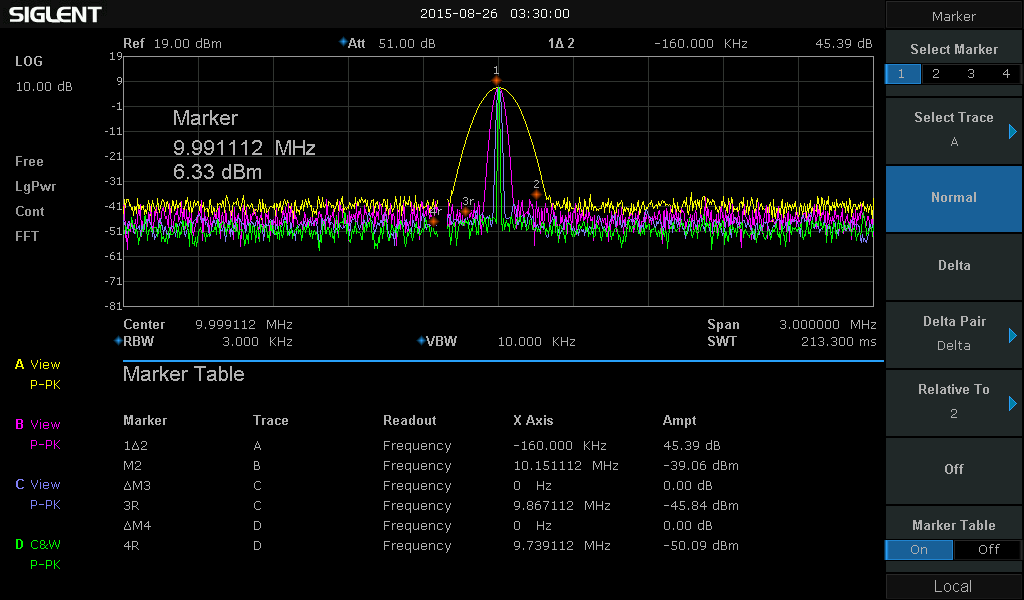

Easy to operate, Support four independent traces and cursors View more

Easy to operate, Support four independent traces and cursors

Four selectable color-coded traces can be used for different functions (ie. Max Hold, Min Hold, Clear-Write, Math, Average, etc)

Four movable markers.

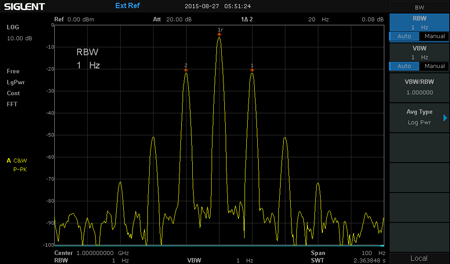

1 Hz Minimum Resolution Bandwidth (RBW) View more

1 Hz Minimum Resolution Bandwidth (RBW)

RBW: 1 Hz – 1 MHz in 1-3-10 sequence.
(Minimum RBW depends on Frequency Span)

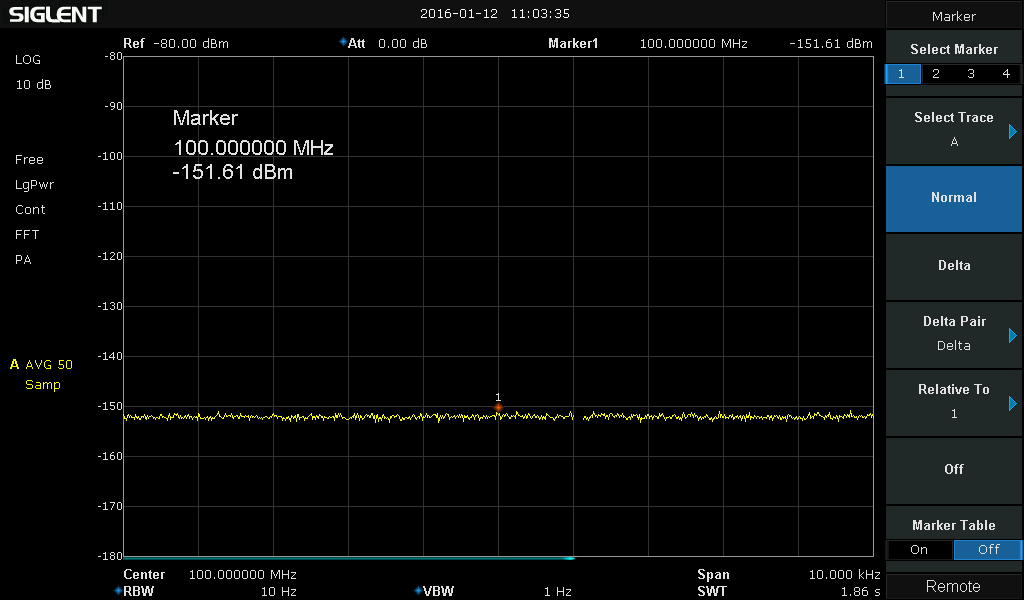

-151 dBm Displayed Average Noise Level (RBW=10 Hz) View more

-151 dBm Displayed Average Noise Level (RBW=10 Hz)

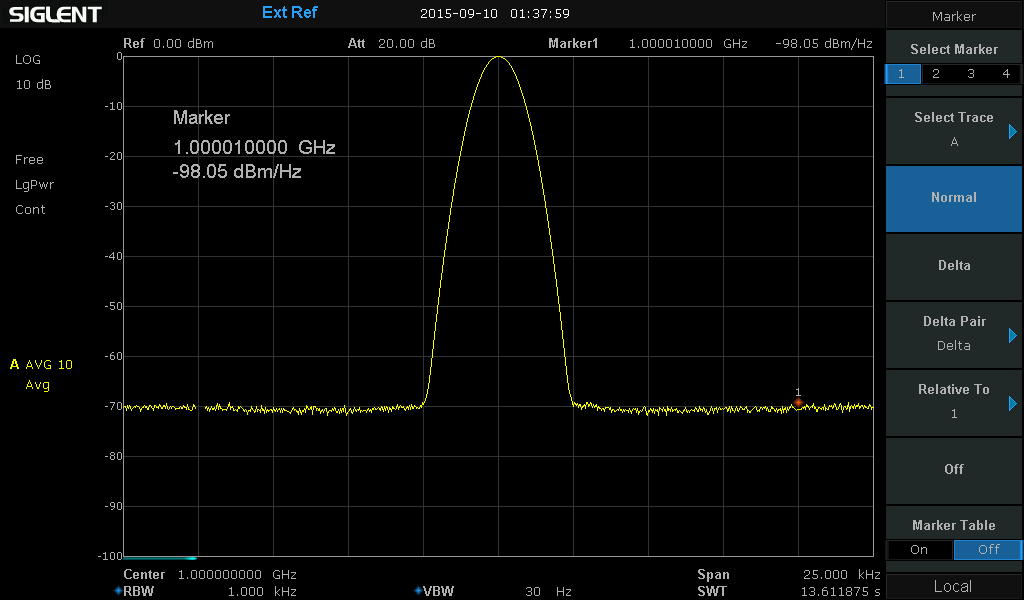

Phase noise -98 dBc/Hz @ 1 GHz @ 10 kHz offset View more

Phase noise -98 dBc/Hz @ 1 GHz @ 10 kHz offset

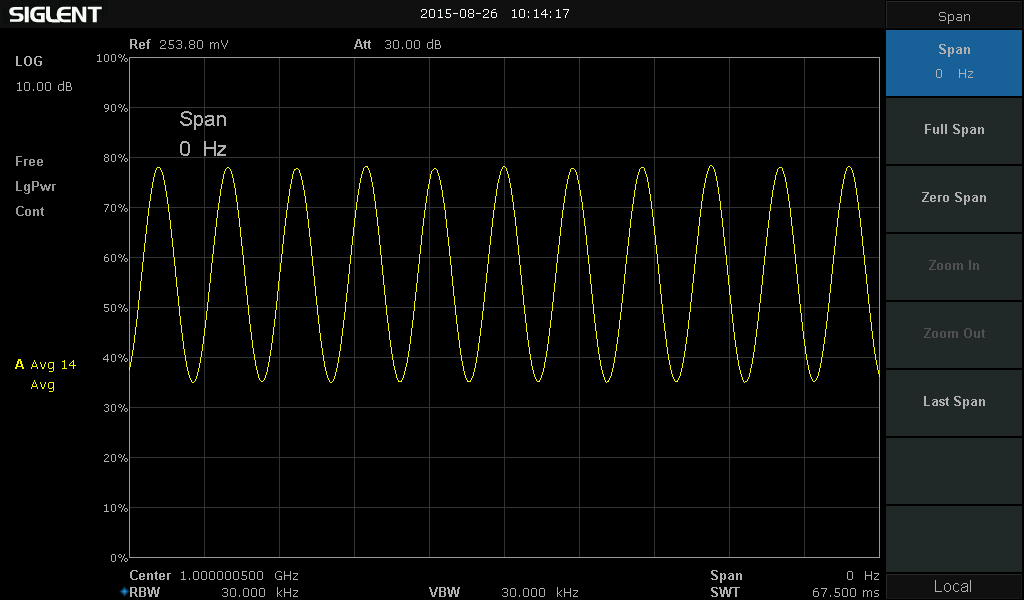

Zero span and demodulation capabilities View more

Zero span and demodulation capabilities

AM / FM demodulation with audio output jack.

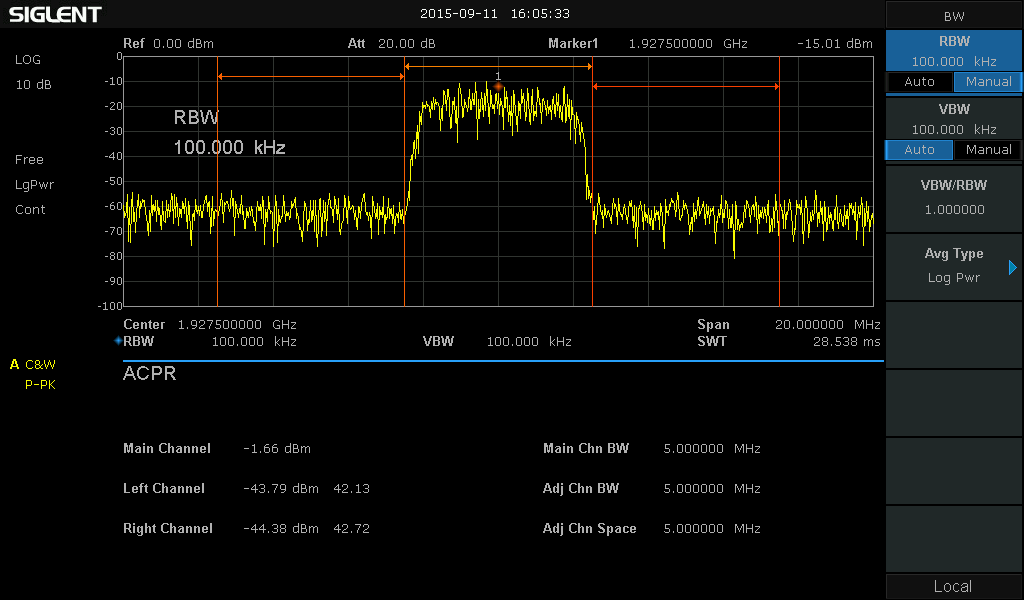

Advanced measurement kit (AMK-SSA3000X) includes on-screen ACPR measurements View more

Advanced measurement kit (AMK-SSA3000X) includes on-screen ACPR measurements

Channel power, Adjacent channel power ratio, TIme domain power, Occupied BW, Third-order intercept, Spectrum monitor (waterfall)

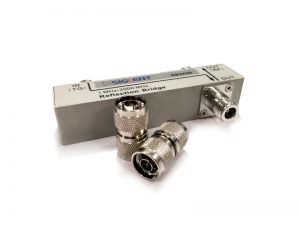

On-screen VSWR/Return Loss measurements with the reflection measurement option (REFL-SSA3000X) View more

On-screen VSWR/Return Loss measurements with the reflection measurement option (REFL-SSA3000X)

Available with or without directional coupler

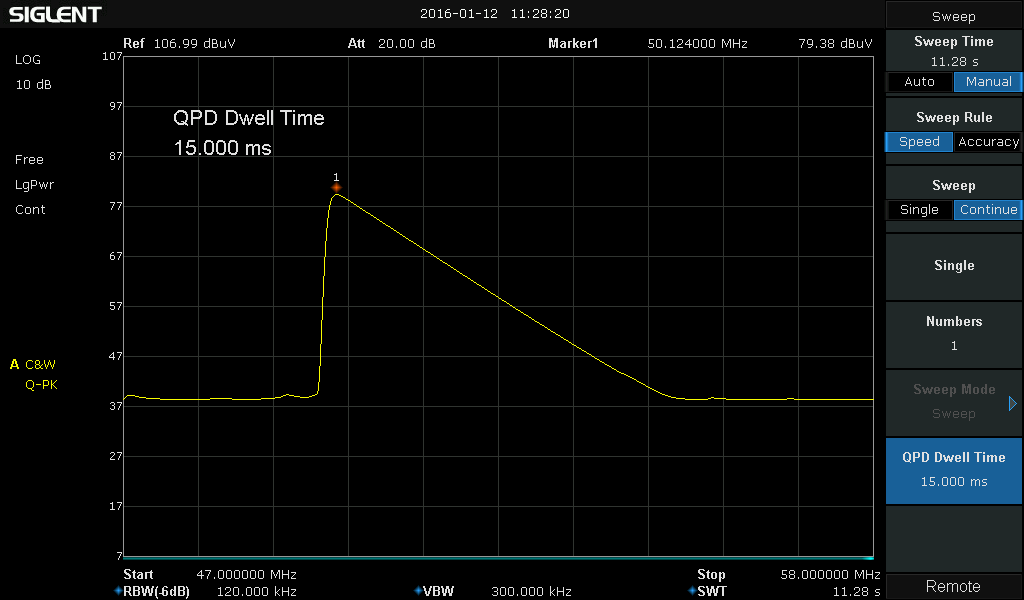

EMI filters and Quasi-Peak detector following CISPR 16 (EMI-SSA3000X) View more

EMI filters and Quasi-Peak detector following CISPR 16 (EMI-SSA3000X)

Comes with EMI report software. Speeds measurement time, generates test reports
