RF Switch Systems

Switch matrix can expand the number of test ports of network analyzer, signal source, spectrum analyzer and other equipment and easily meet the requirements of multi-port testing, which make the connection of multi-port testing simple. Compared with the traditional measurement method, the measurement speed is greatly improved by using the switch matrix. In addition to SIGLENT instruments, it also supports other mainstream instruments, which greatly adapts to the production line usage scenarios. The SSU5000A series mechanical switches with frequency ranges up to 50 GHz, support TTL control and be widely used in multi-port test.

Compare Models

RF Switch Systems!



Switch matrix can easily meet the requirements of multi-port device testing,

which can make the connection of multi-port device testing simple.

The number of test ports of network analyzer, signal source, spectrum analyzer and other equipment is expanded.

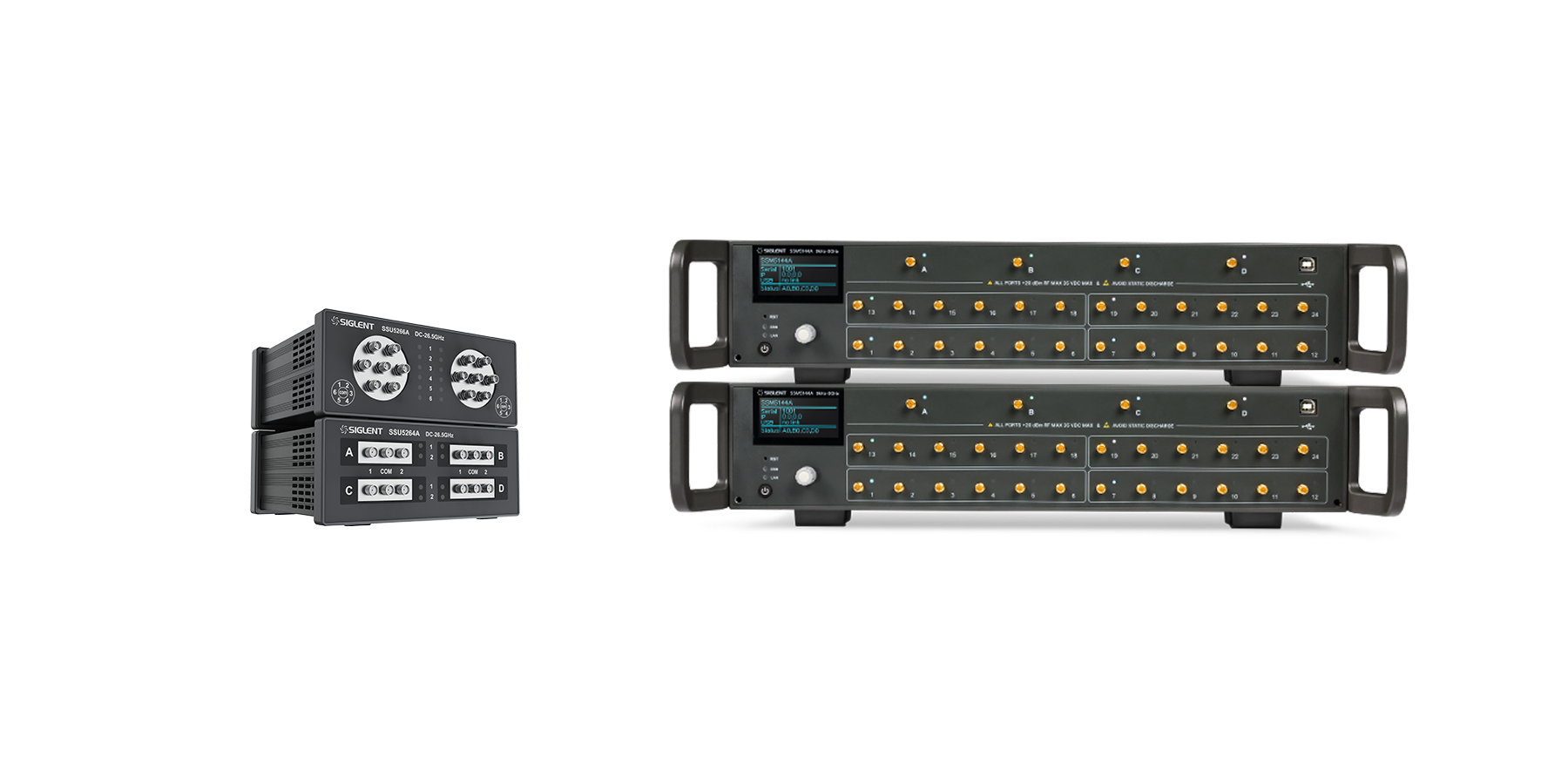

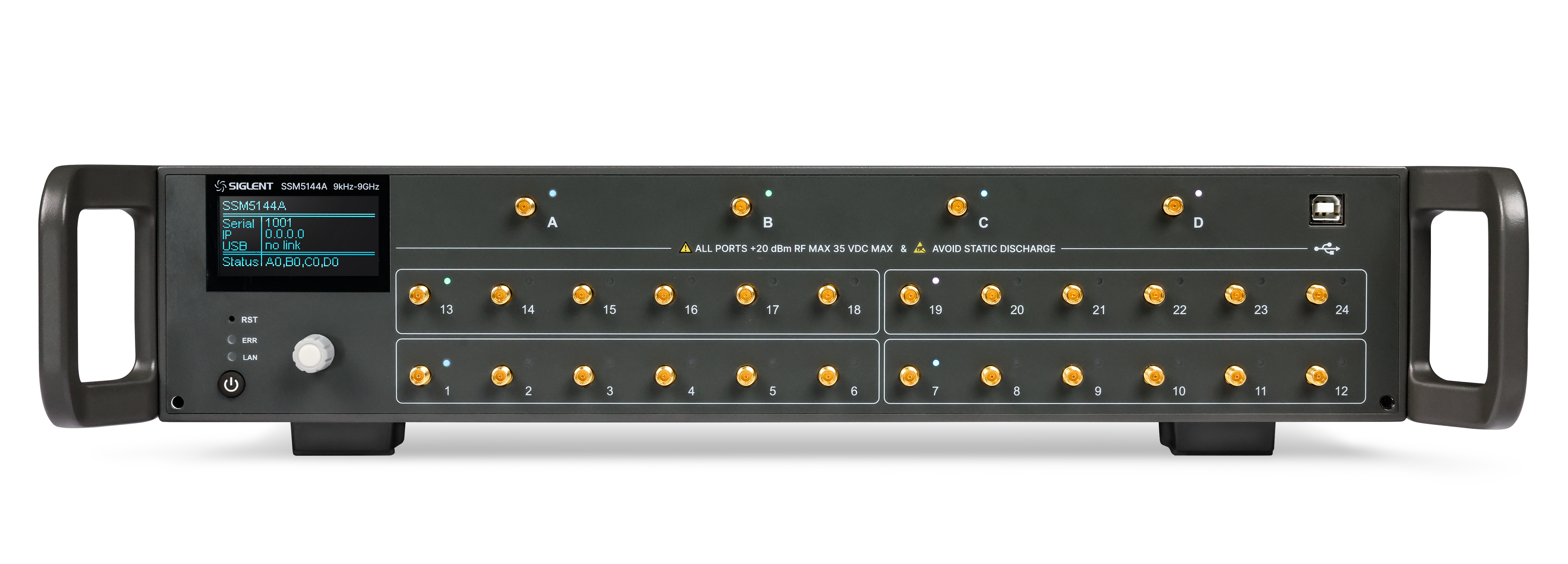

A single SSM5000A series RF switch matrix of Dingyang Technology can expand the output ports to 24,

and can continue to stack.

Compared with the traditional measurement method,

the measurement speed is greatly improved by using RF switch matrix,

which not only supports SIGLENT instruments, but also supports other mainstream instruments and meters products,

which greatly adapts to the use scene of production line.

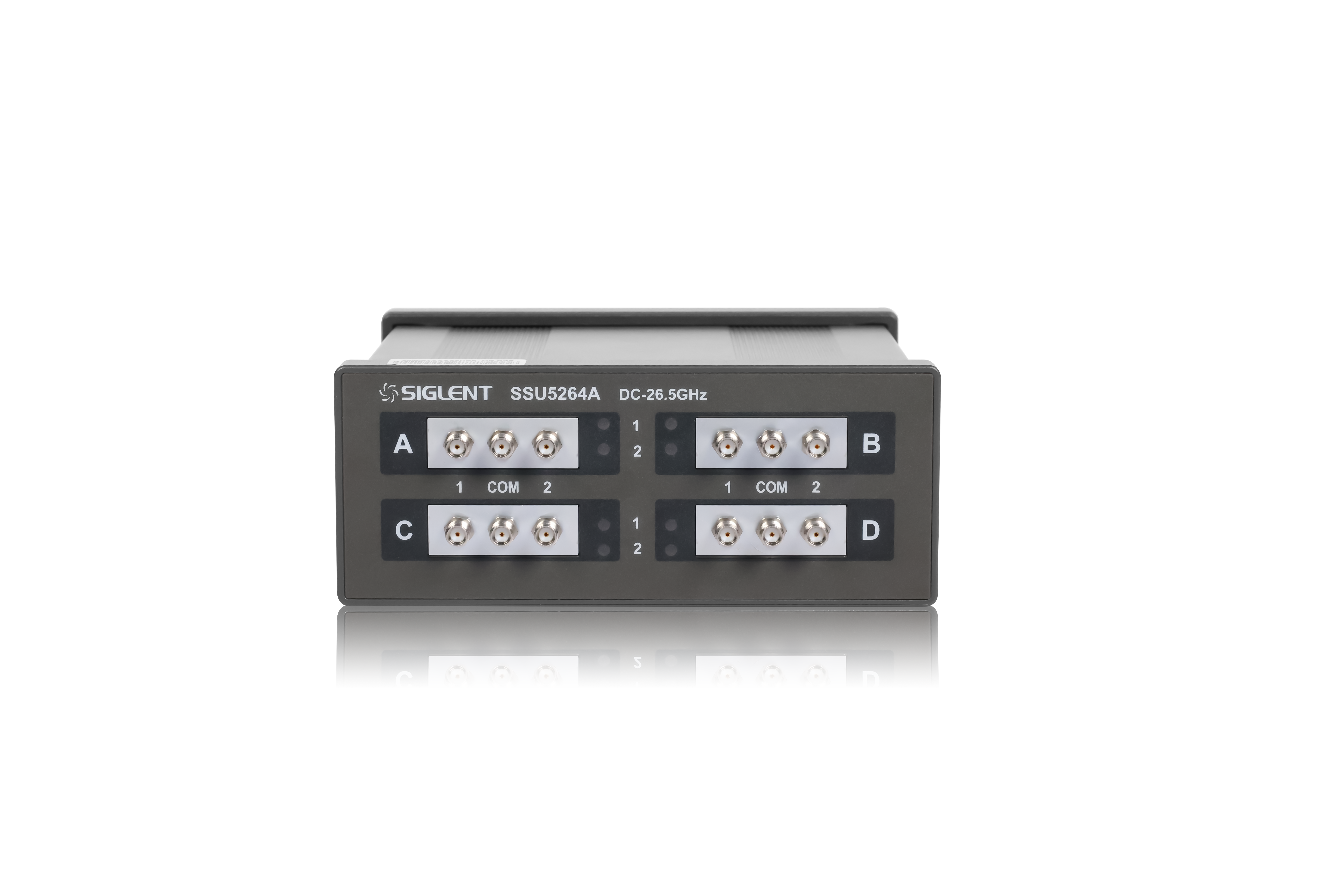

SSU5000A series mechanical switches, whose working frequency range covers DC-50 GHz,

can be widely used in multi-channel and multi-port test environment.

Series Frequency Range Inputs Outputs Maximum Input
DC Voltage
Maximum Input Power Price Discontinued
SSM5000A 9 kHz-9 GHz/ 100 kHz-26.5 GHz 2 / 4 6 / 12 / 24 35V 20dBm € 7,212~
Series Frequency Range Number of Switches Switch Type RF Connector Price Discontinued
SSU5000A DC - 18/ 26.5/ 50 GHz 1-4 SPDT/SP6T SMA female / 2.4mm female € 1,435
