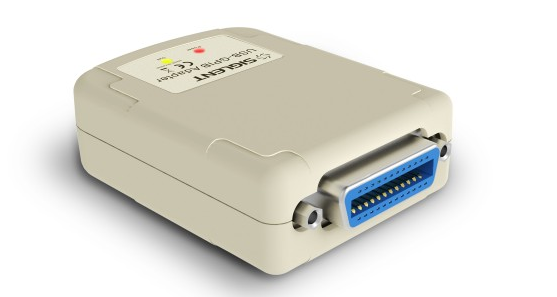

USB-GPIB adapter

November 28, 2017

Converts GPIB signals to USB

For use with some SIGLENT instruments that do not have a native GPIB bus.

Overview:
USB-GPIB adapter is for use with Siglent instruments which have a USB Host interface but do not have a GPIB interface  (eg SDS1000 series digital oscilloscope).

This GPIB connection follows the IEEE488.2 standard and the USB connection meets the USB 2.0 specification. For detailed commands, please consult the “Remote Command Control Manual.” for the instrument of interest.

Features and Benefits:
● Uses USB Host power supply. No external power supply needed.
● LED indication for state information
● GPIB interface only supports device model, does not support Controller mode
