SPD1000X Series Programmable DC Power Supply

  • Single path high-precision programmable voltage output:

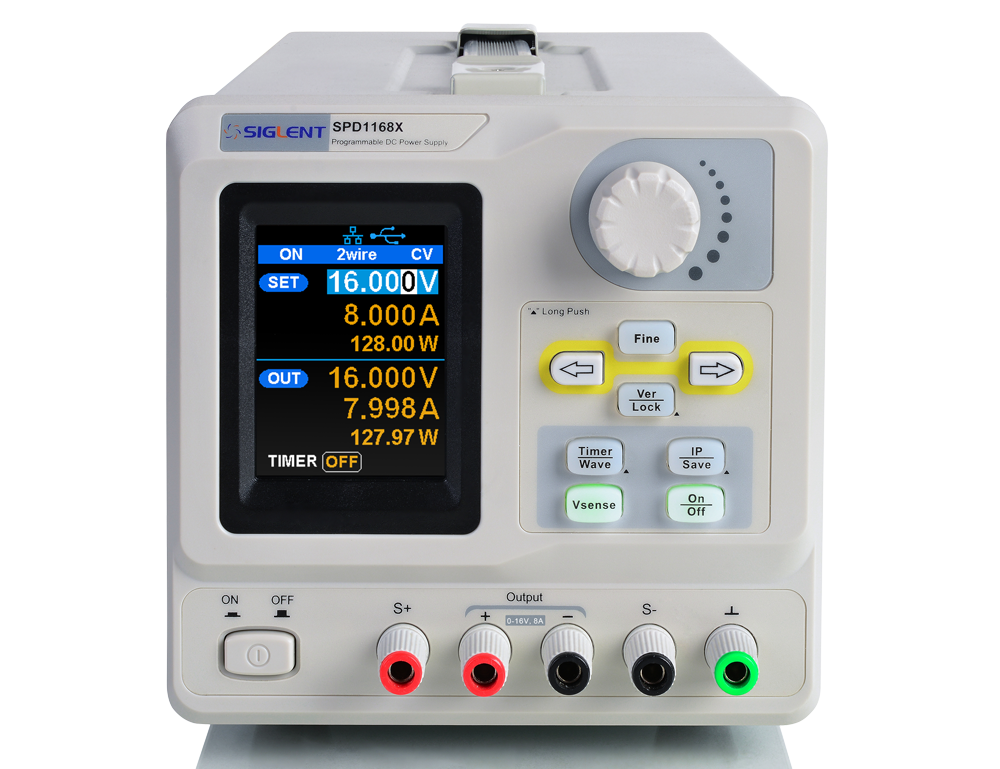

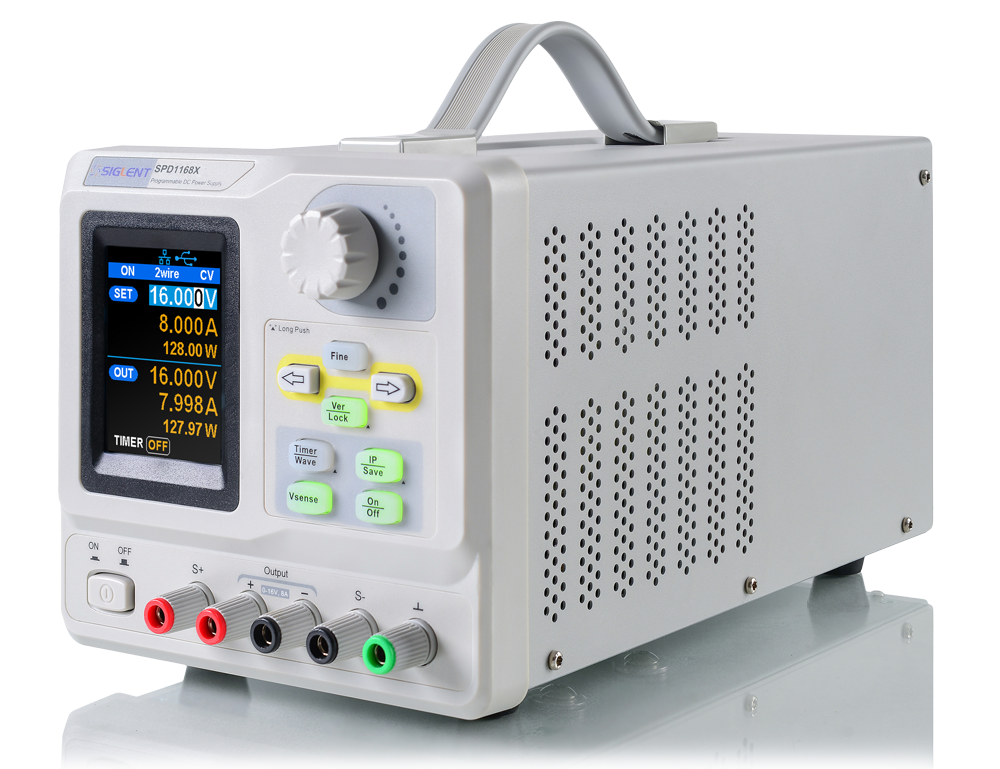

    • SPD1068X: 16 V / 8 A,total power up to 128 W

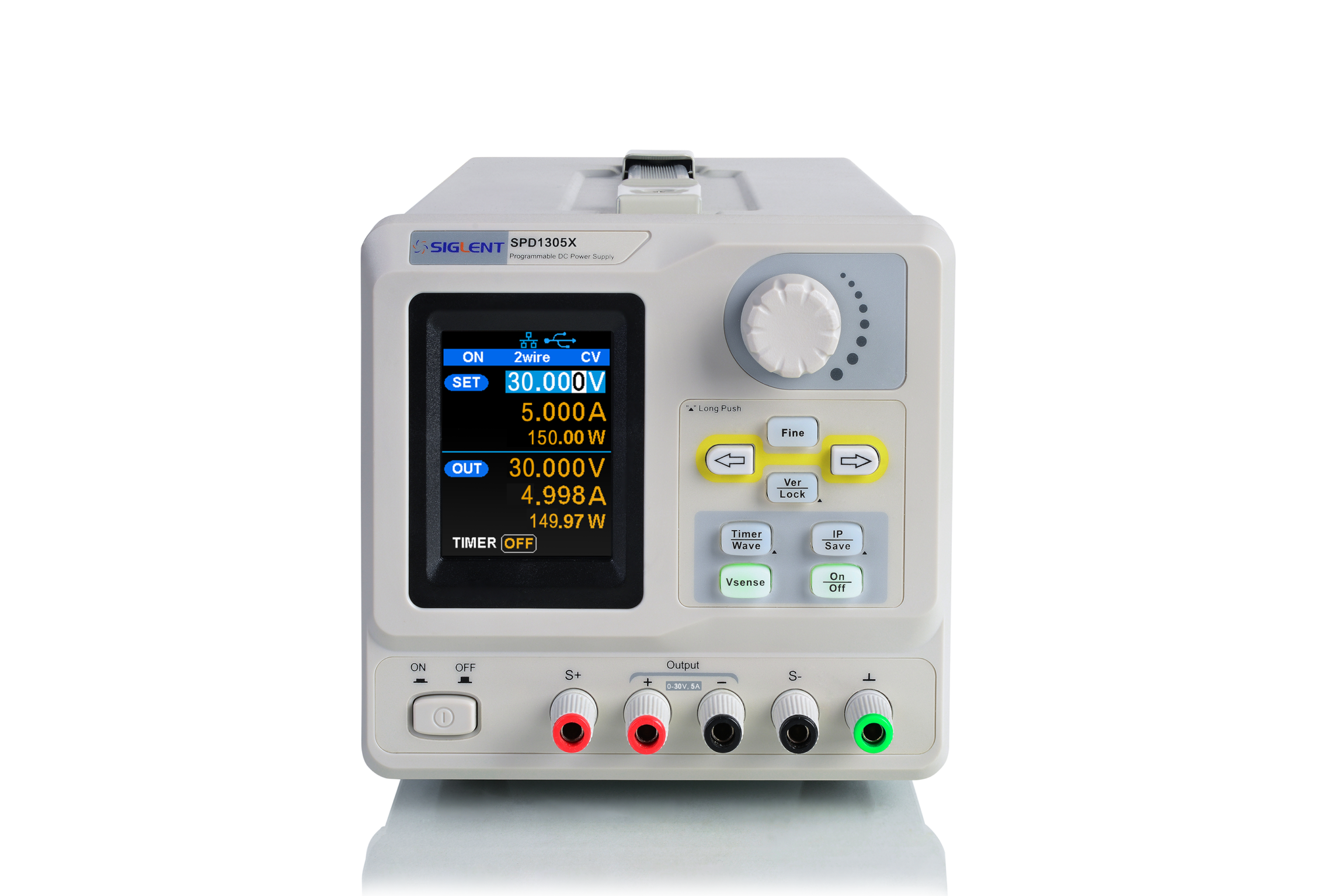

    • SPD1305X: 30 V / 5 A,total power up to 150 W
  • Stable, reliable, Low ripple and noise:≤ 350 uVrms/3
    mVpp; < 2 mArms
  • Fast transient response time: < 50 μs
  • 5 digit Voltage, 4 digit Current Display, Minimum
    Resolution: 1 mV/1 mA
  • 2 types of output modes:Two-wire output mode, 4-wire
    compensation output mode,Maximum compensation
    voltage 1 V

Product Overview

SPD1000X Programmable Linear DC Power Supply has a 2.8 inch TFT-LCD display, features remote computer control capability, and real-time wave display, to deliver high performance and ease-of-use. The SPD1168 features a high precision programmable output capable of delivering up to 16 V,the SPD1305X features a high precision programmable output capable of delivering up to 30 V and also includes a 4-wire sense function for more accurate voltage sourcing, especially for long leads or high resistance connections. There are additional output short and overload protect functions to assist in production and development applications.

Channel Output Display Resolution Setting Accuracy Readback Accuracy Price
SPD1168X Output Voltage: 0 to 16 V Output Current: 0 to 8 A 2.8 inch true color TFT-LCD 5 digit voltage/4 digit current 1 mV/1 mA Voltage: ±(0.03% of reading+10 mV) Current: ±(0. 3% of reading+10 mA) Voltage: ±(0.03% of reading+10 mV) Current: ±(0. 3% of reading+10 mA) € 229 Buy Now
SPD1305X Output Voltage: 0 to 30 V Output Current: 0 to 5 A 2.8 inch true color TFT-LCD 5 digit voltage/4 digit current 1 mV/1 mA Voltage: ±(0.03% of reading+10 mV) Current: ±(0. 3% of reading+10 mA) Voltage: ±(0.03% of reading+10 mV) Current: ±(0. 3% of reading+10 mA) € 249 Buy Now

Key Features

  • Supports front panel timing output functions
  • 100/120/220/230 V compatible design to meet the needs of different power grids
  • Intelligent temperature-controlled fanreduces noise
  • Clear graphical interface, with the waveform display function
  • Internal 5 groups of system parameter save/recall
  • Includes PC software: Easypower, supports SCPI, LabView driver
