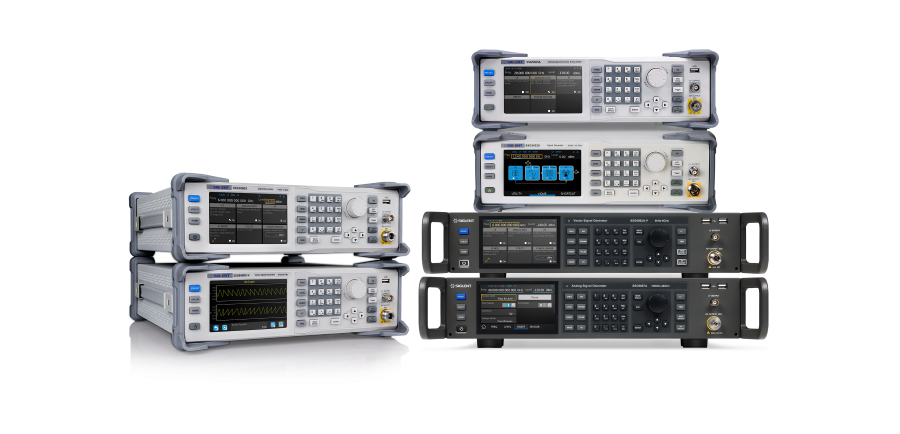

RF Generator

SIGLENT’S SSG3000X series of signal generators have a frequency range of 9 kHz to 2.1 GHz/3.2 GHz. They provide normal analog modulation such as AM, FM, and PM. They also provide pulse modulation and pulse train generator. In addition, when used with baseband generator such as SDG6000X, They can generate IQ modulated signals. With their high accuracy and pure outputs, the SSG3000X series is the right choice for R&D, education, and manufacturing.

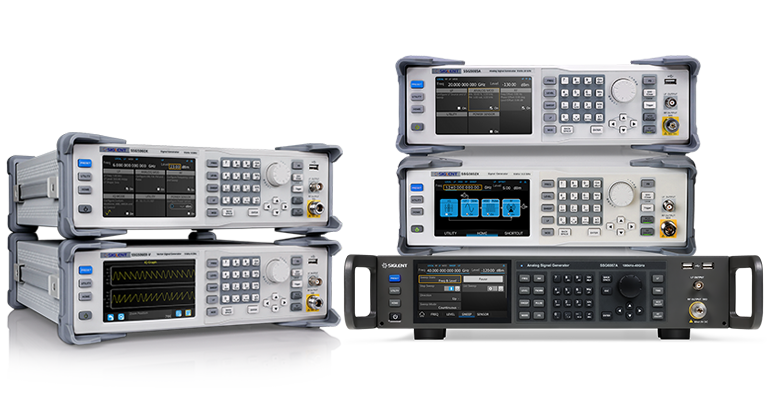

Compare Models

I/Q or no I/Q. Take your pick!

Series	Frequency Range	Frequency Resolution	Amplitude Resolution	Phase Noise	External I/Q Modulation	Display	Price

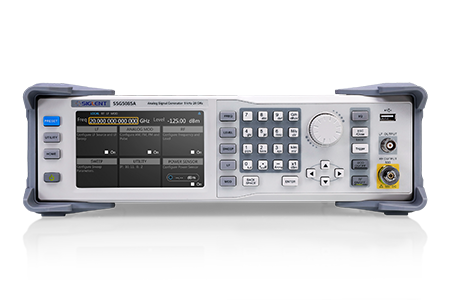

SSG5000A	9 kHz~13.6/20 GHz	0.001 Hz	0.01 dB	-120 dBc / Hz @ 1 GHz,20 kHz offset (typ.)	No	5-inch TFT capacitive touch screen	€16,990-€19,990
SSG5000X	9 kHz~6 GHz	0.001 Hz	0.01 dB	-120 dBc/Hz @1 GHz, offset 20 kHz (typ.)	YES / NO	5 inch capacitance touch screen, RGB (800*480)	€5,299-€10,999
SSG3000X	9 kHz~3.2 GHz	0.01 Hz	0.01 dB	-110 dBc/Hz @1 GHz ,offset 20 kHz (typ.)	YES / NO	5 inch capacitance touch screen, RGB (800*480)	€1,999 - €5,699
