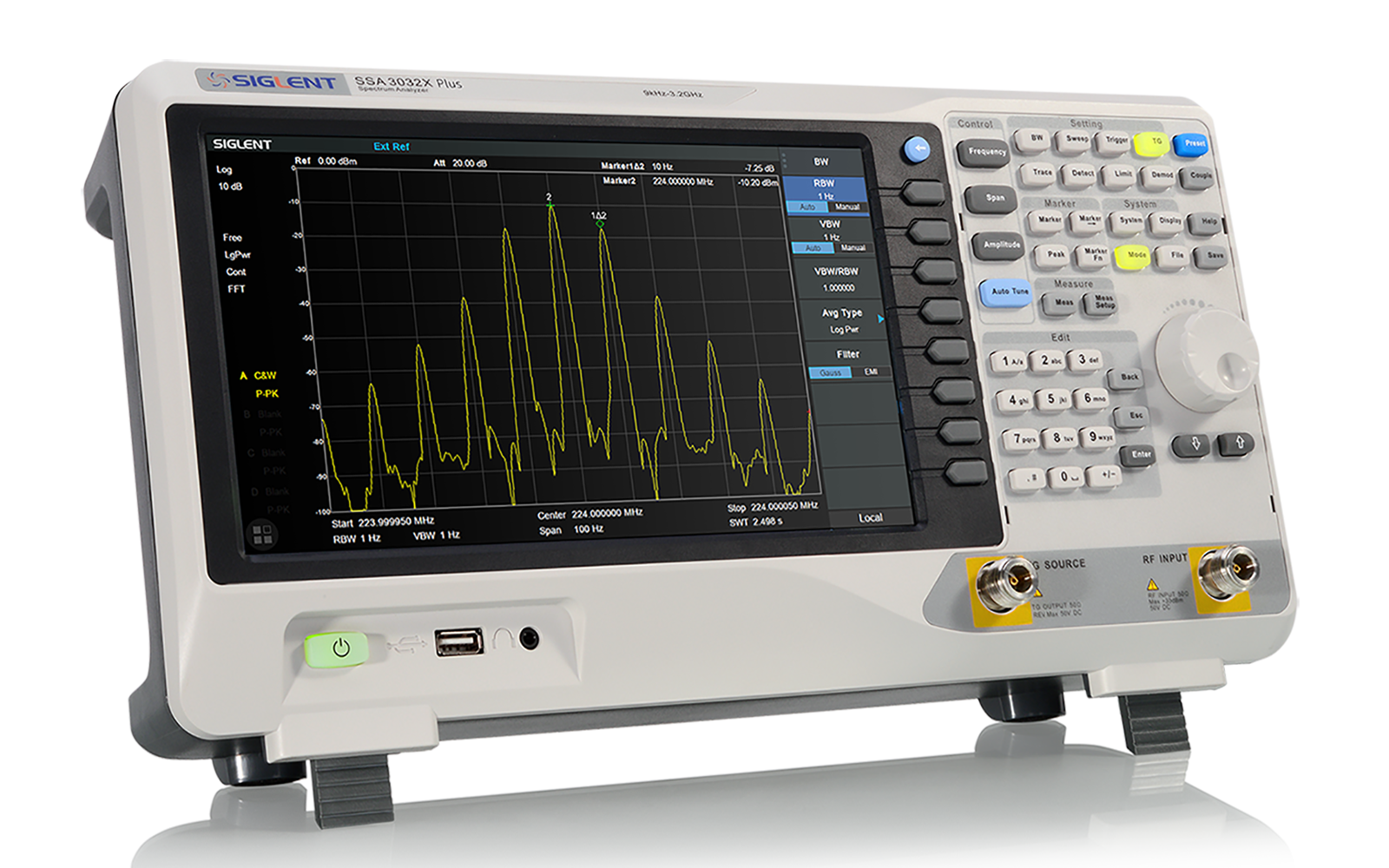

SSA3000X Plus Series Spectrum Analyzers

  • Frequency Range from 9 kHz up to 1.5 GHz / 2.1 GHz / 3.2 GHz / 7.5 GHz
  • -165 dBm/Hz Displayed Average Noise Level (Typ.)
  • -98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
  • Total Amplitude Accuracy < 0.7 dB
  • 10.1 lnch Multi-Touch Screen , Mouse and Keyboard supported
  • Web Browser Remote Control on PC and Mobile Terminals and File Operation

Product Overview

The SIGLENT SSA3000X Plus series spectrum analyzers are powerful and flexible tools for RF signal and network analysis. With a frequency range to 7.5 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation: spectrum analyzer the base, optional functions include RF power measurement, vector signal modulation analysis, reflection measurement, and EMI test. Applications include broadcast monitoring/evaluation, site surveying, S-parameter measurement, analog/digital modulation analysis, EMI pre-compliance test, research and development, education, production, and maintenance.



Having trouble choosing? Click on Analyzer Features and Options to learn more.

Frequency Range Resolution Bandwidth (RBW) Phase Noise Total Amplitude Accuracy Display Average Noise Level (DANL) Price
SSA3015X Plus 9 kHz ~ 1.5 GHz 1 Hz~1 MHz < -99 dBc/Hz < 1.2 dB -156 dBm/Hz €1,159 Buy Now
SSA3021X Plus 9 kHz ~ 2.1 GHz 1 Hz~1 MHz < -98 dBc/Hz < 0.7 dB -161 dBm/Hz €1,469 Buy Now
SSA3032X Plus 9 kHz ~ 3.2 GHz 1 Hz~1 MHz < -98 dBc/Hz < 0.7 dB -161 dBm/Hz €2,439 Buy Now
SSA3075X Plus 9 kHz ~ 7.5 GHz 1 Hz~3 MHz < -98 dBc/Hz < 0.7 dB -165 dBm/Hz €6,509 Buy Now
Limited Time Offer

Purchase a new SIGLENT spectrum analyzer and SRF5030T near-field probe kit

to receive a free EMI option activation license

Key Features

  • Spectrum Analyzer Frequency Range from 9 kHz up to 1.5 GHz / 2.1 GHz / 3.2 GHz /7.5 GHz
  • -165 dBm/Hz Displayed Average Noise Level (Typ.)
  • -98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.)
  • Level Measurement Uncertainty < 0.7 dB (Typ.)
  • 1 Hz Minimum Resolution Bandwidth (RBW)
  • Preamplifier (Std.)
  • Tracking Generator (incl. free of charge)
  • Analog and Digital Signal Modulation Analysis Mode (Opt.)
  • Reflection Measurement Kit (Opt.)
  • EMI Filter and Quasi-Peak Detector Kit(Opt.)
  • Advanced Measurement Kit (Opt.)
  • 10.1 lnch Multi-Touch Screen , Mouse and Keyboard supported
  • Web Browser Remote Control on PC and Mobile Terminals and File Operation

Need more information? Call us now +49 821 666 0 111 0

Product Characteristics

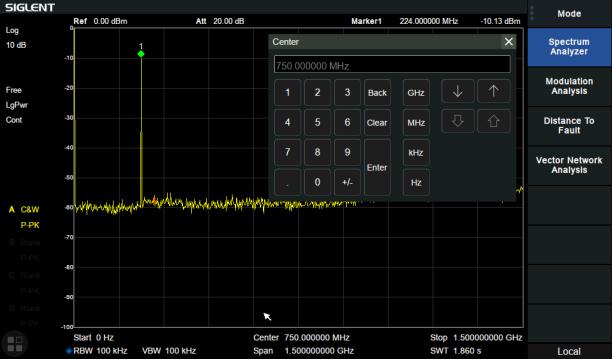

10.1 lnch Display with Multi-Touch Screen View more

10.1 lnch Display with Multi-Touch Screen

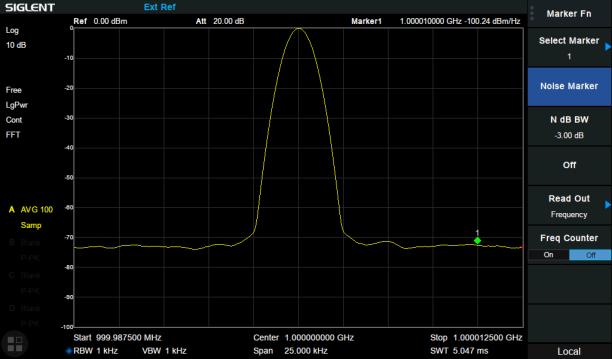

Phase noise <-98 dBc/Hz@1 GHz View more

Phase noise <-98 dBc/Hz@1 GHz

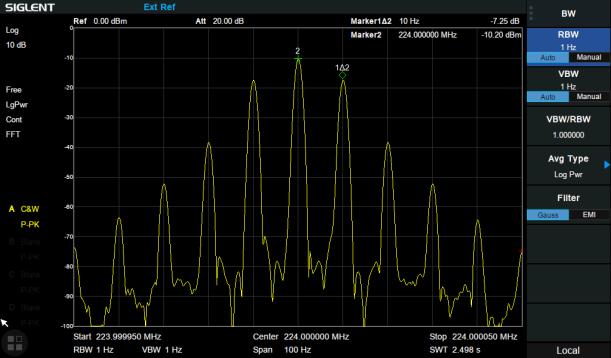

Minimum 1 Hz Resolution Bandwidth (RBW) View more

Minimum 1 Hz Resolution Bandwidth (RBW)

ACPR in Advanced Measurement Kit View more

ACPR in Advanced Measurement Kit

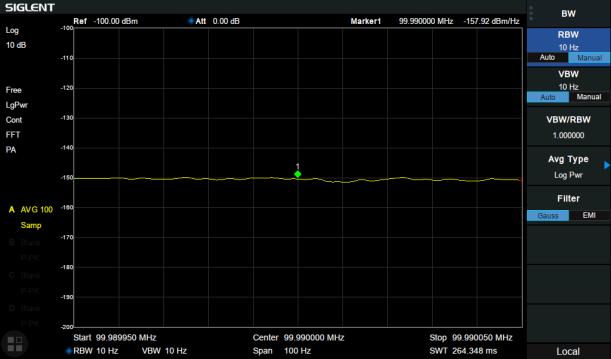

-165 dBm/Hz Displayed Average Noise Level View more

-165 dBm/Hz Displayed Average Noise Level

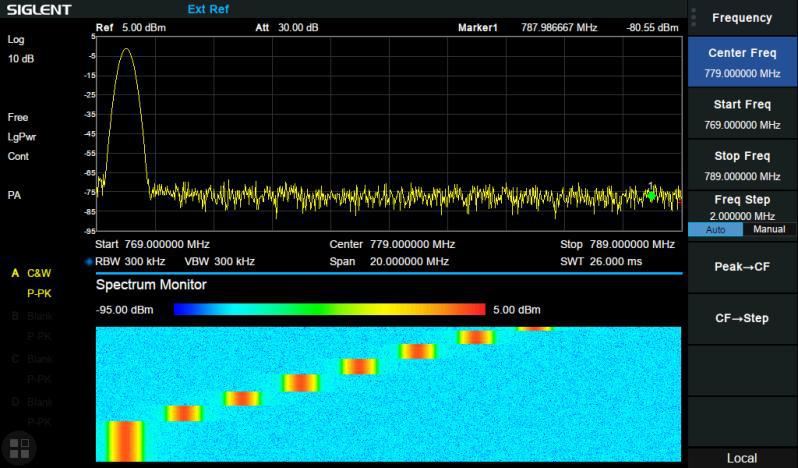

Monitor in Advanced Measurement Kit View more

Monitor in Advanced Measurement Kit

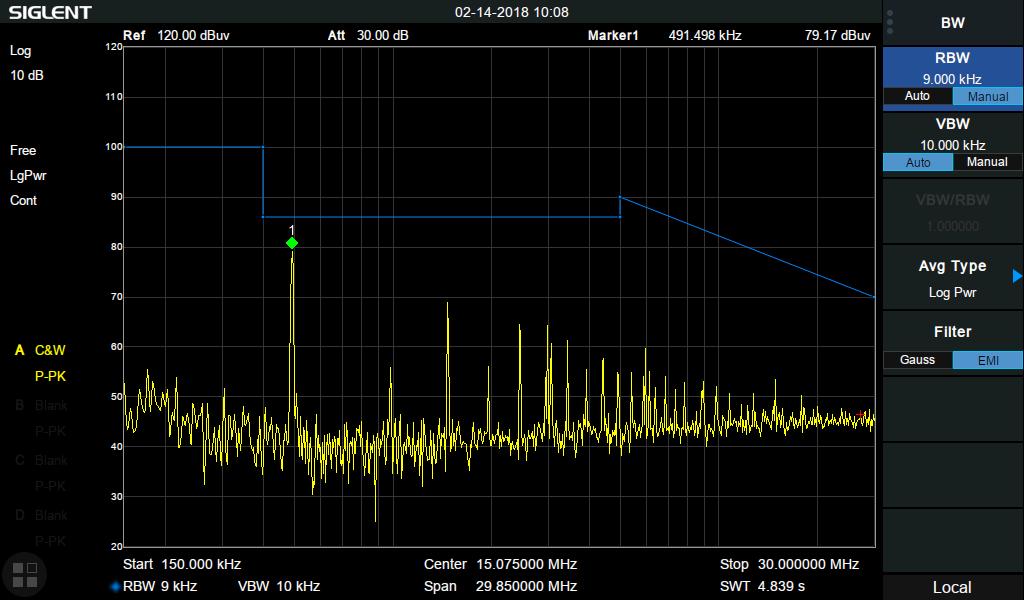

EMI Pre-Compliance Test View more

EMI Pre-Compliance Test

CISPR 16-1-1 EMI filter and Quasi-peak Detector , Log scale and Limit line

Modulation Analysis Mode View more

Modulation Analysis Mode

AM/FM,ASK/FSK/PSK/MSK/QAM Vector Signal Modulation Analysis, EVM evaluation

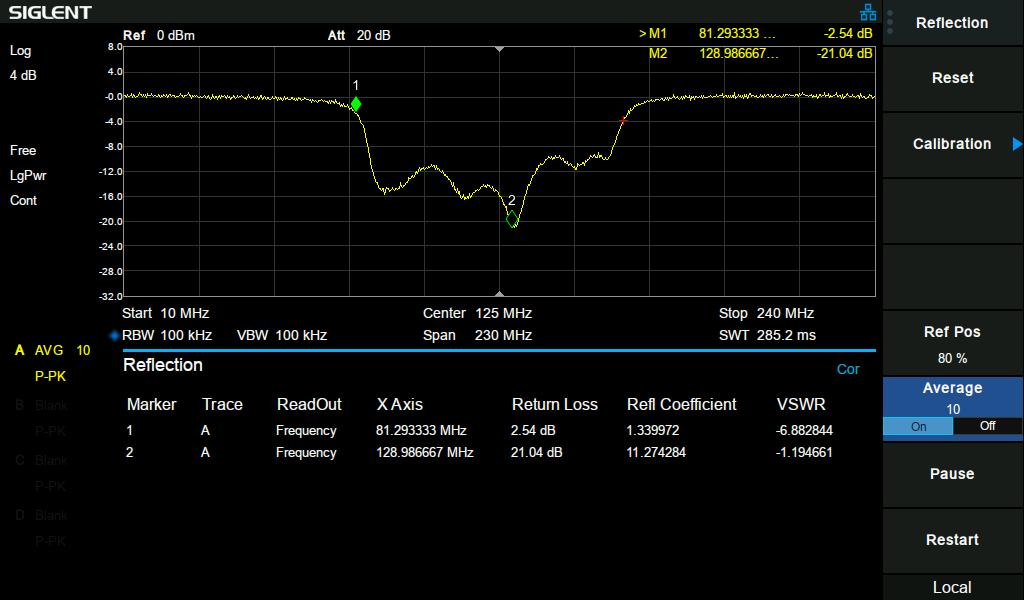

Reflection Measurement View more

Reflection Measurement

VSWR and Return Loss measurement using External Reflection Bridge
