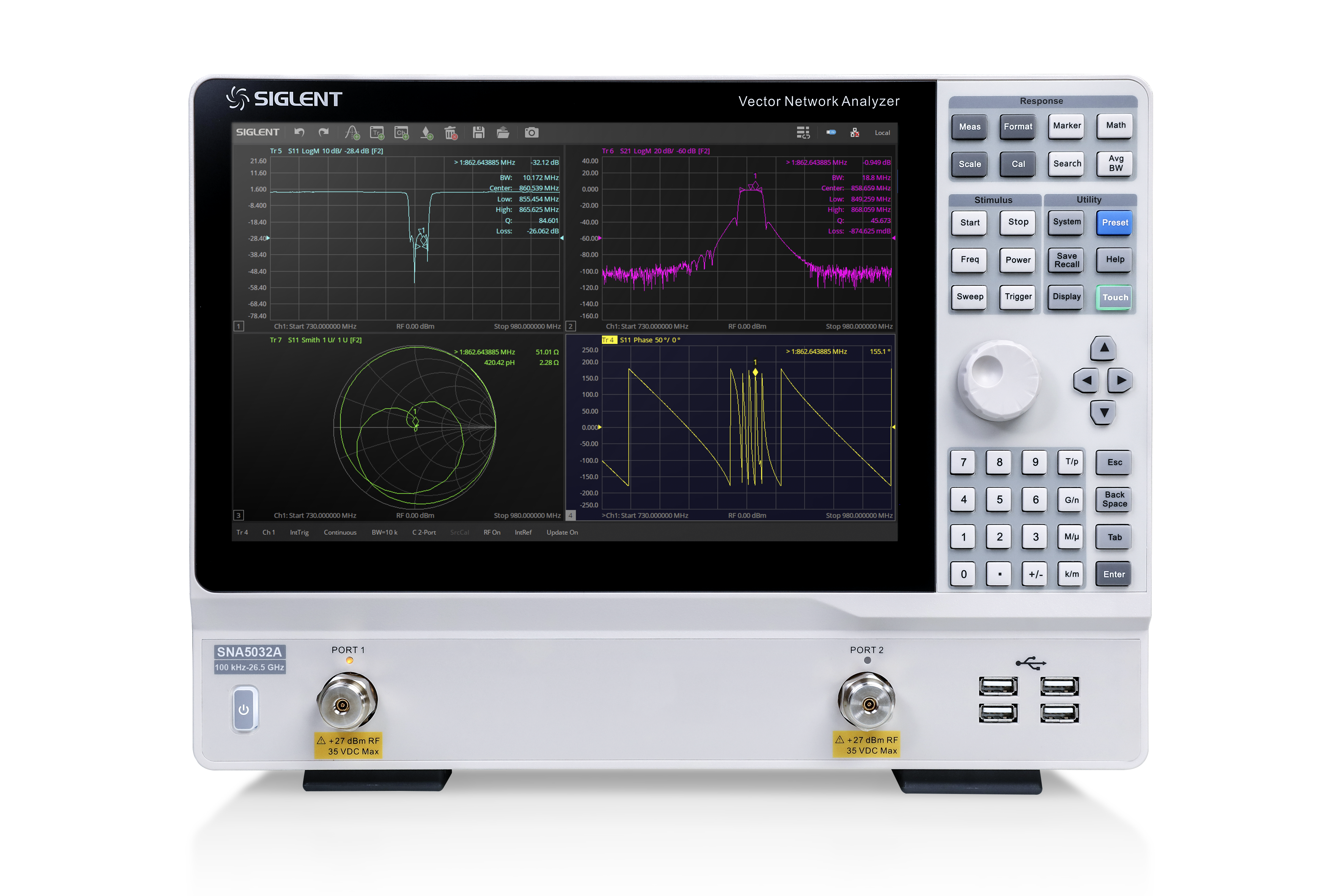

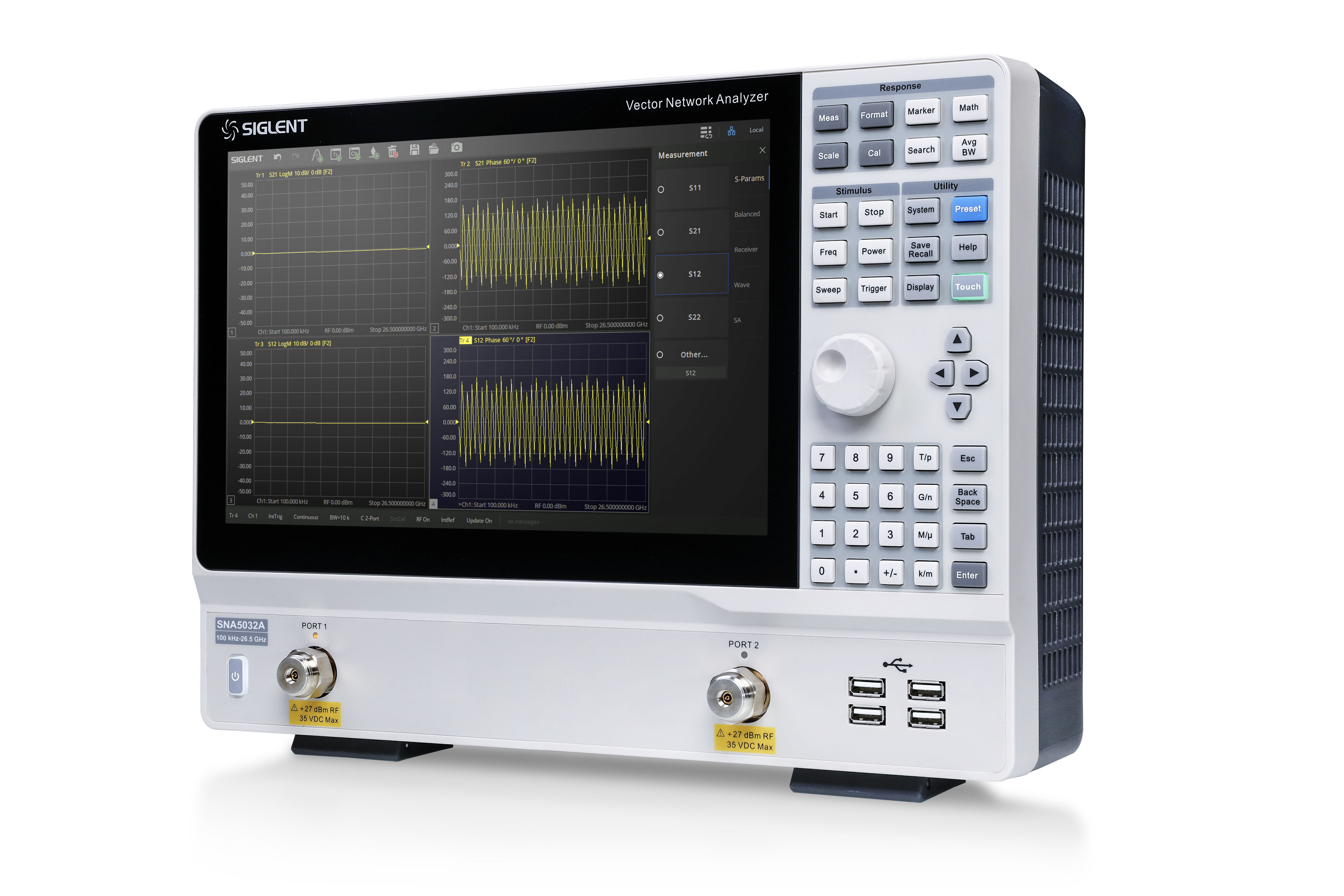

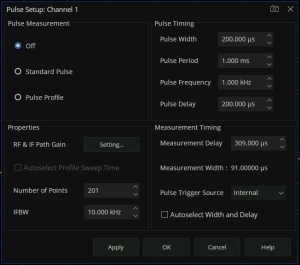

SNA5000A Series Vector Network Analyzer
- Frequency range: 9 kHz – 8.5 GHz and 100 kHz – 26.5 GHz
- Frequency resolution: 1 Hz
- Setting Range of Output Level: -55 ~ +10 dBm
- Dynamic Range: 125 dB
- 2/4-ports: S-parameters, Balance Measurements, Time Domain
- Measure: Q-factor, bandwidth and Insertion Loss
- Power source calibration compatible with R&S NRPxxA/AN and Keysight U2000A/B series USB power meters
- Compatible with several manufacturers ECal kits (contact us for more information)

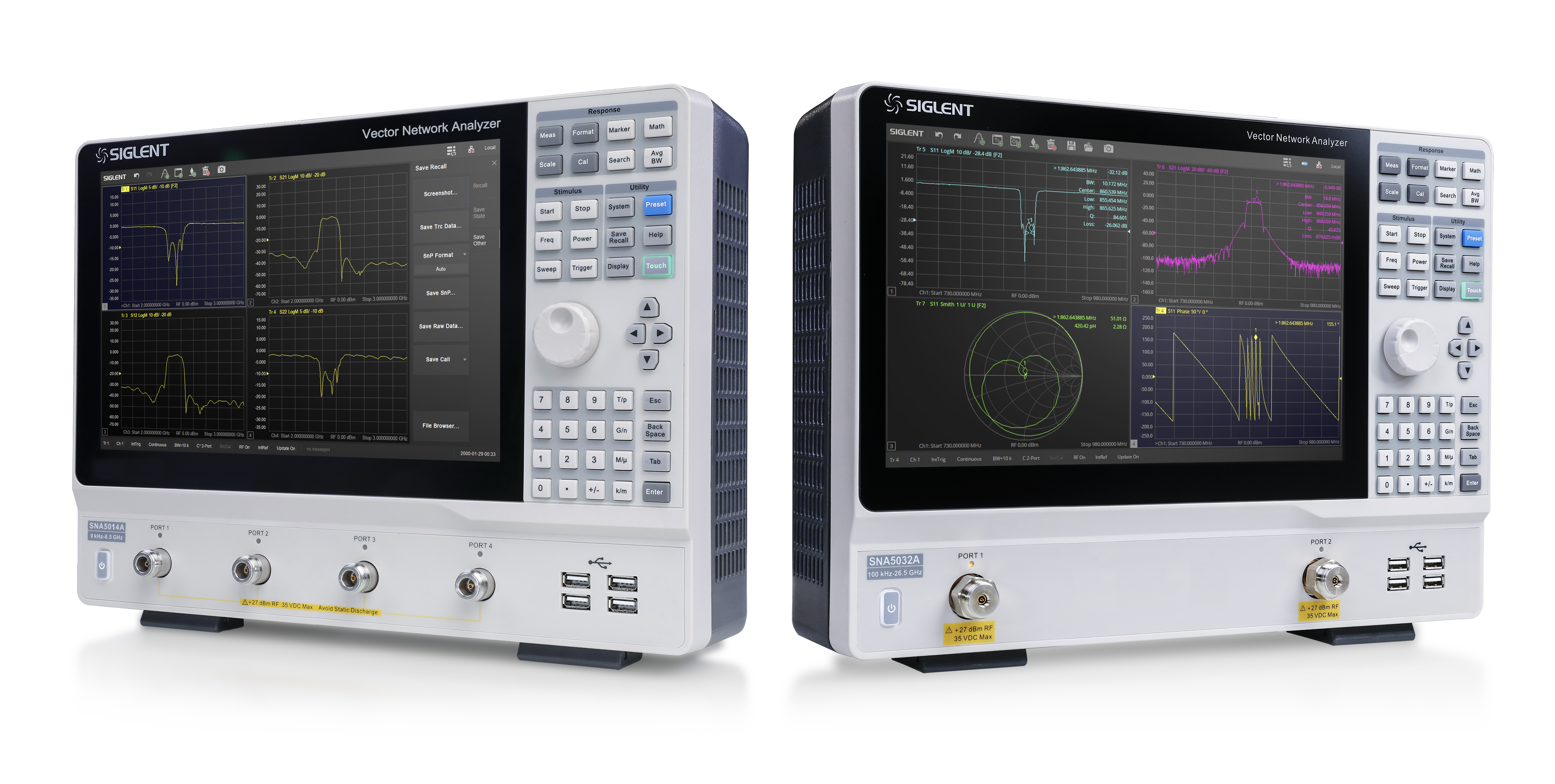

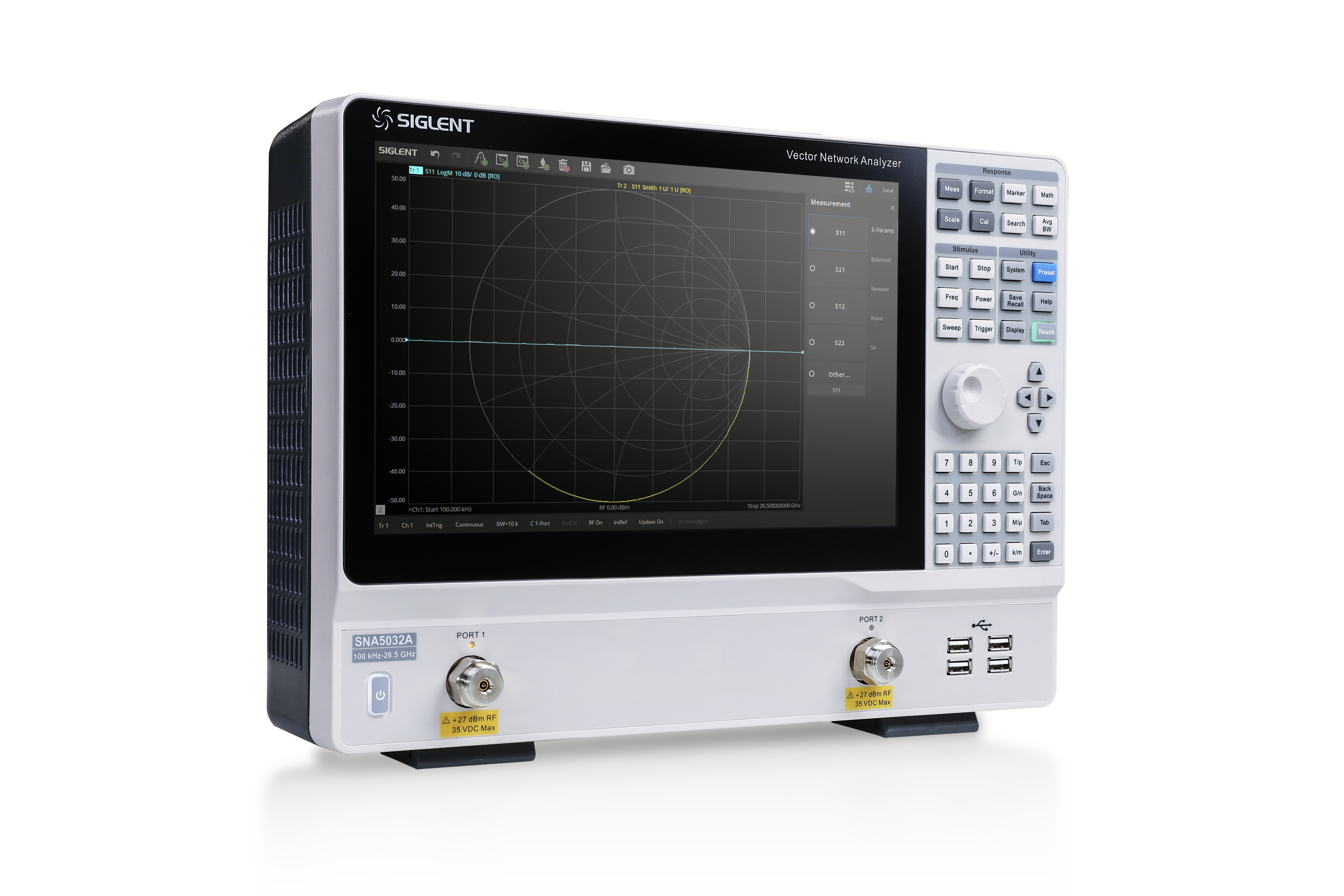

Product Overview
The SIGLENT SNA5000A series of Vector Network Analyzers have a frequency range of 9 kHz to 8.5 GHz and 100 kHz to 26.5 GHz, which support 2/4-port scattering parameter, differential-parameter, and time-domain parameter measurements. The SNA5000A series of VNAs are effective instrumentation for determining the Q-factor, bandwidth, and insertion loss of a filter, They feature impedance conversion, movement of measurement plane, limit testing, ripple test, fixture simulation, and adapter removal/insertion adjustments. The VNAs have five sweep types: Linear-Frequency mode, Log-Frequency mode, Power-Sweep mode, CW-Time mode, and Segment-Sweep mode. The SNA5000A series VNAs also support scattering-parameter correction of SOLT, SOLR, TRL, Response, and Enhanced Response for increased flexibility in R&D and manufacturing applications.
| Frequency Range | Ports | Dynamic Range | Trace Noise | Range of Output | Price | ||
|---|---|---|---|---|---|---|---|
| SNA5002A | 9 kHz~4.5 GHz | 2 | 125 dB | 0.003 dB rms,0.03° rms | -55 ~ +10 dBm | €6600 | Buy Now |
| SNA5004A | 9 kHz~4.5 GHz | 4 | 125 dB | 0.003 dB rms,0.03° rms | -55 ~ +10 dBm | €12700 | Buy Now |
| SNA5012A | 9 kHz~8.5 GHz | 2 | 125 dB | 0.003 dB rms,0.03° rms | -55 ~ +10 dBm | €14700 | Buy Now |
| SNA5014A | 9 kHz~8.5 GHz | 4 | 125 dB | 0.003 dB rms,0.03° rms | -55 ~ +10 dBm | €21700 | Buy Now |
| SNA5022A | 100 kHz~13.5 GHz | 2 | 125 dB | 0.003 dB rms,0.03° rms | -55 dBm ~ +10 dBm | €25070 | Buy Now |
| SNA5032A | 100 kHz~26.5 GHz | 2 | 125 dB | 0.003 dB rms,0.03° rms | -55 dBm ~ +10 dBm | €30080 | Buy Now |
Key Features
- Frequency range: 9 kHz – 8.5 GHz and 100 kHz – 26.5 GHz
- Frequency resolution: 1 Hz
- Level resolution: 0.05 dB
- Range of IFBW: 10 Hz~3 MHz
- Setting range of output level:
-55 dBm ~ +10 dBm - Dynamic range: 125 dB
- Types of calibration: Response calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, Full-three port calibration, Full-four port calibration, TRL calibration

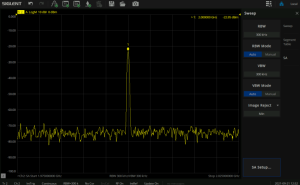

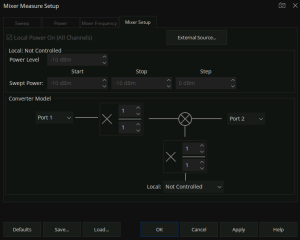

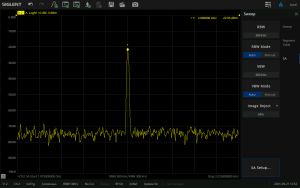

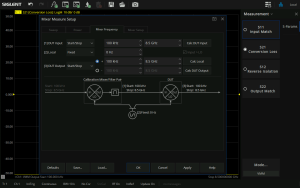

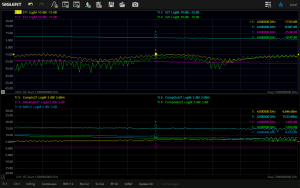

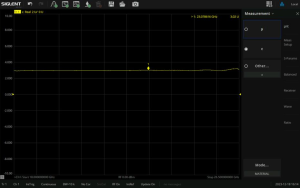

- Types of measurement: Scattering-parameter measurement, differential-parameter measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, impedance conversion, fixture simulation, adapter removal/insertion, spectrum analysis frequency offset, scalar mixer measurement
- Internal Bias-Tee connections
- Interface: LAN, USB Device, USB Host (USB-GPIB)
- Remote control: SCPI/ Labview/ IVI based on USB-TMC / VXI-11 / Socket /Telnet / WebServer
- 1-inch touch screen
- Video output: HDMI
Product Characteristics
Low noise floor for accurate measurements with a wide dynamic range View more

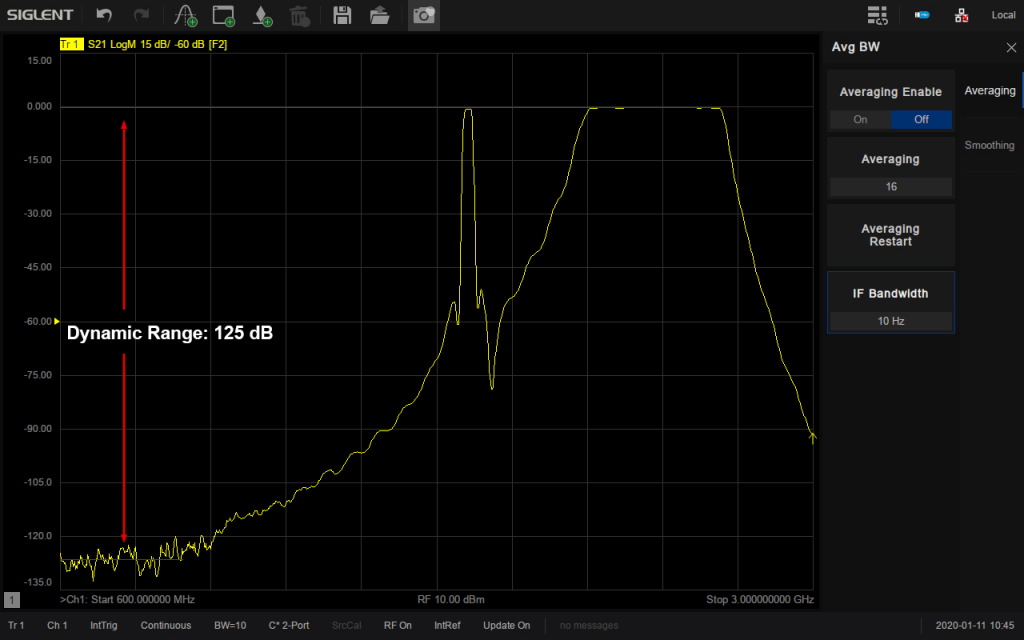

Low noise floor for accurate measurements with a wide dynamic range
System Dynamic range, the difference between the measurement power available at the test port and the noise floor of the receiver is critical parameters of a VNA. The SIGLENT SNA5000A series’ dynamic range can up to 125 dB@10 Hz, satisfies some specific RF test requirements like test in-band and out-of-band of filters simultaneously.
S-parameters and Balance Measurement View more
S-parameters and Balance Measurement

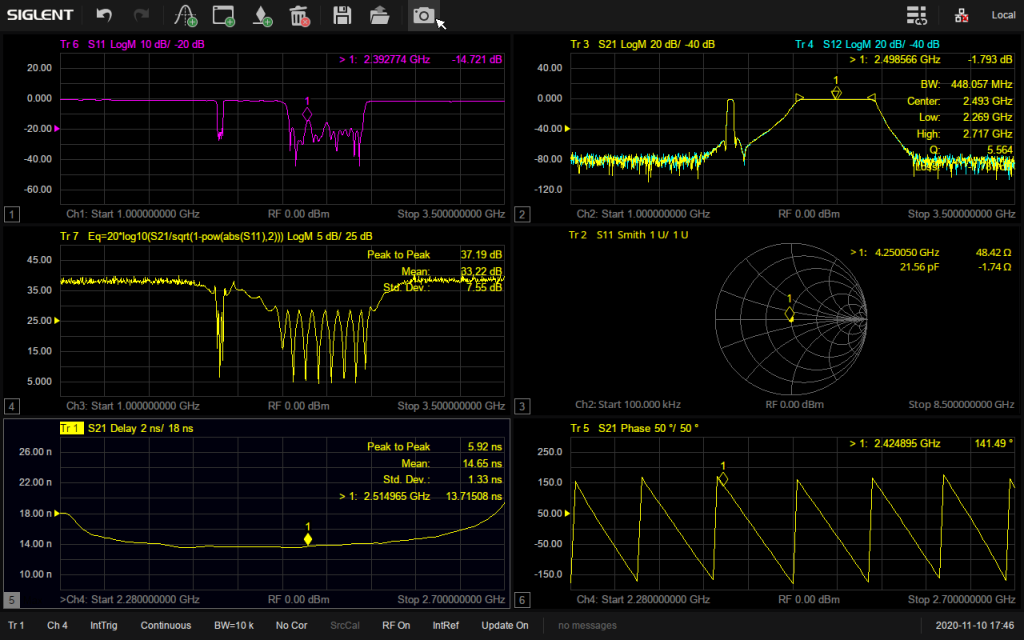

For the 4 ports S-parameters measurement of SNA5000A, multi traces in different windows can be added, with the formats of Log Mag, Lin Mag, Phase, Delay, Smith, SWR, Polar, etc. It is helpful for transmission/ reflection tracking, load match, and directivity analysis. These traces can be saved as references or adding limits for pass/fail tests to improve the efficiency during the antennas test and filter test.
Enhanced Time-Domain Analysis (TDR) View more

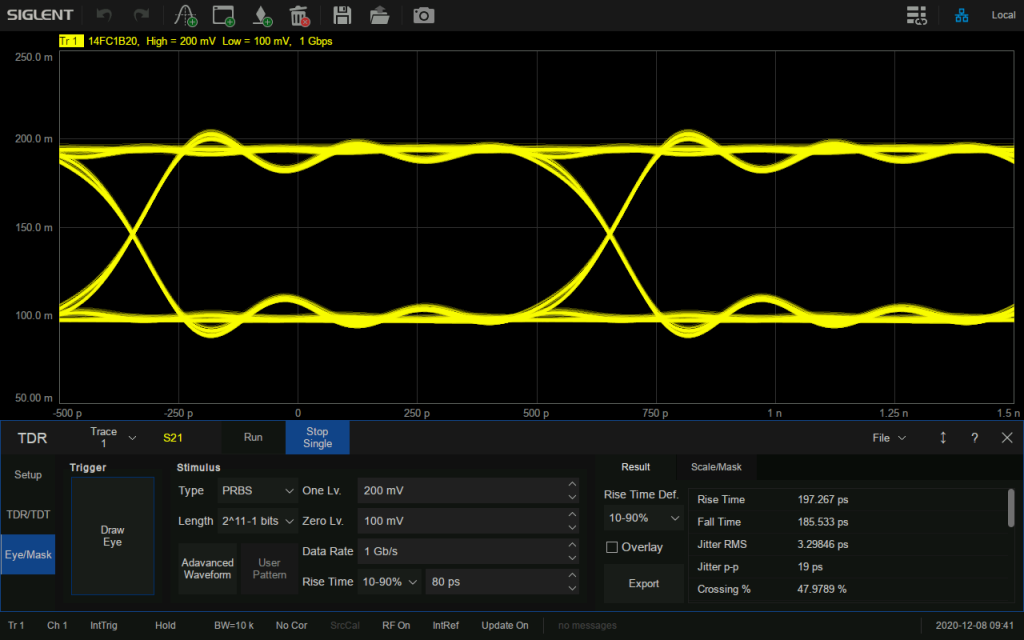

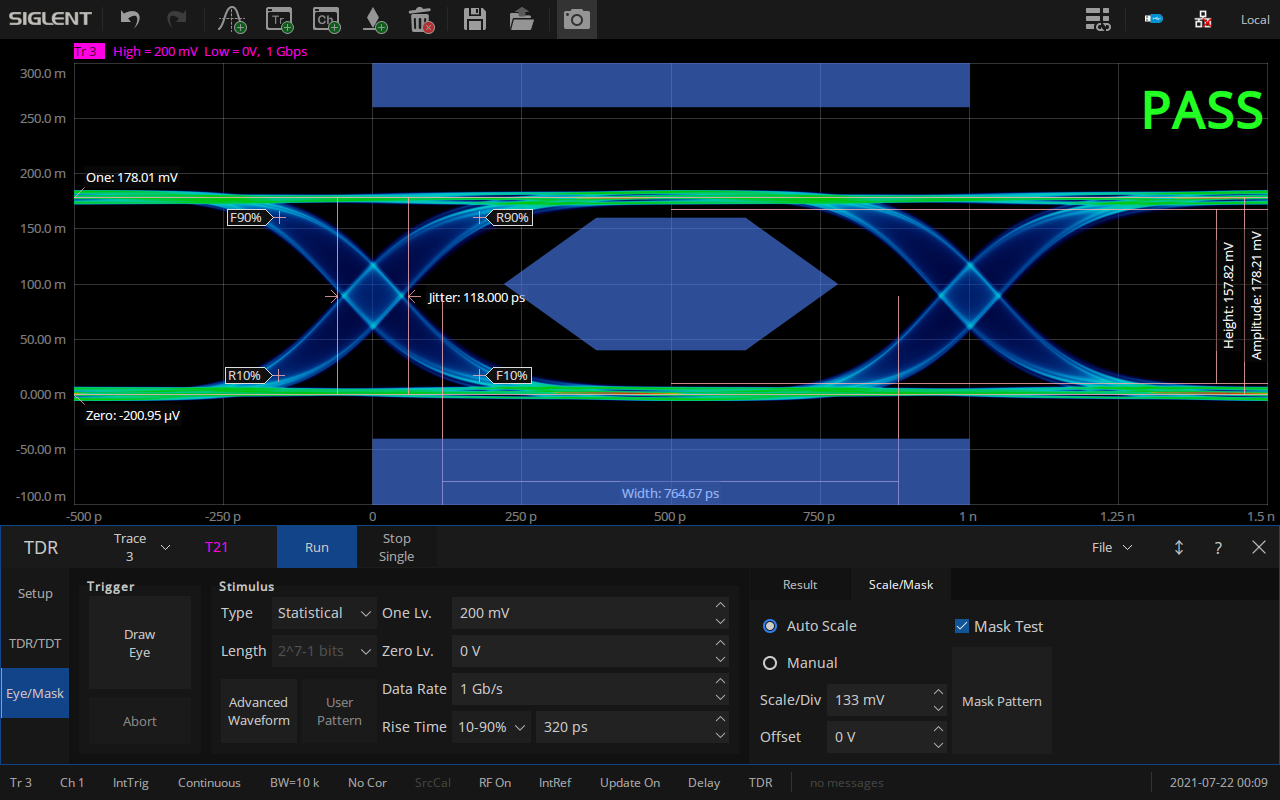

Enhanced Time-Domain Analysis (TDR)
SNA5000A supports Enhanced Time Domain Analysis to measure impedance versus distance, to distinguish between inductive and capacitive transitions. With time-domain gating, we can isolate various sections of the fixture and see the effects in the frequency domain. Another application for TDR is fault-location for coaxial cables in cellular and CATV installations.
Embedding and De-Embedding View more

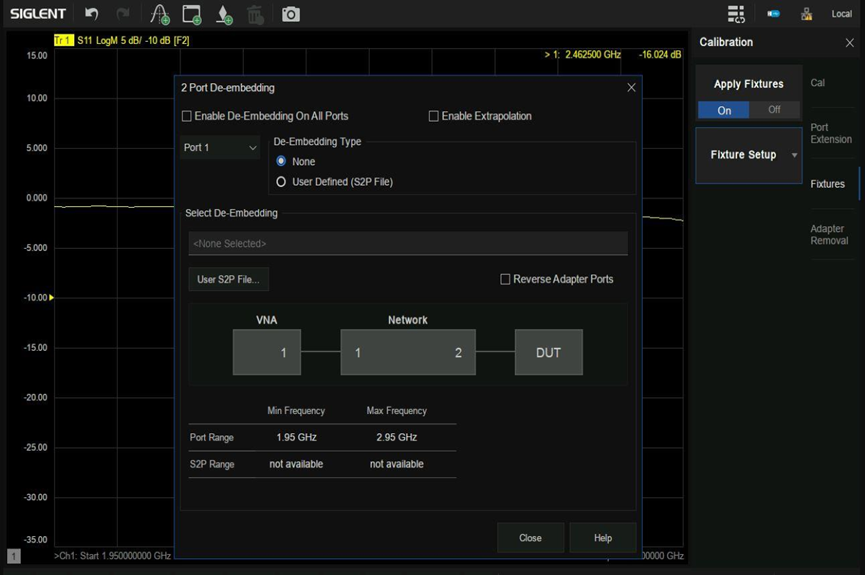

Embedding and De-Embedding
There is a great challenge in RF & Microwave area to eliminate the harmful fixture effects effectively. In most cases, the test result contains the features of effect, because the specific effect connected the test terminal of instrument and input terminal of the device during SMD testing. The SNA5000A applied kinds of methods to minimum the effect caused by fixture effect, includes port extension, port matching, port impedance conversion, de-embedding, adapter removal, etc.
Calibration Kit View more

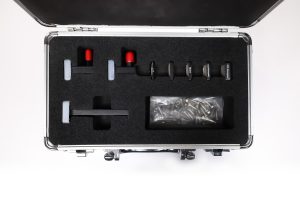

Calibration Kit
SIGLENT offers a variety of calibration kits with the frequency range from DC to 9 GHz for both general purpose and precision-level requirements. Each of the Cal kits from SIGELNT includes all of the necessary short circuits, open circuits, loads and thru (SOLT) components required for proper testing, with the connectors of SMA and N. Other electronics test equipment manufacturers Cal kits are available in SNA5000A series, and the importing of user-defined Cal kits are supported, saves the customers investment on calibration.
Large Display Small Footprint View more

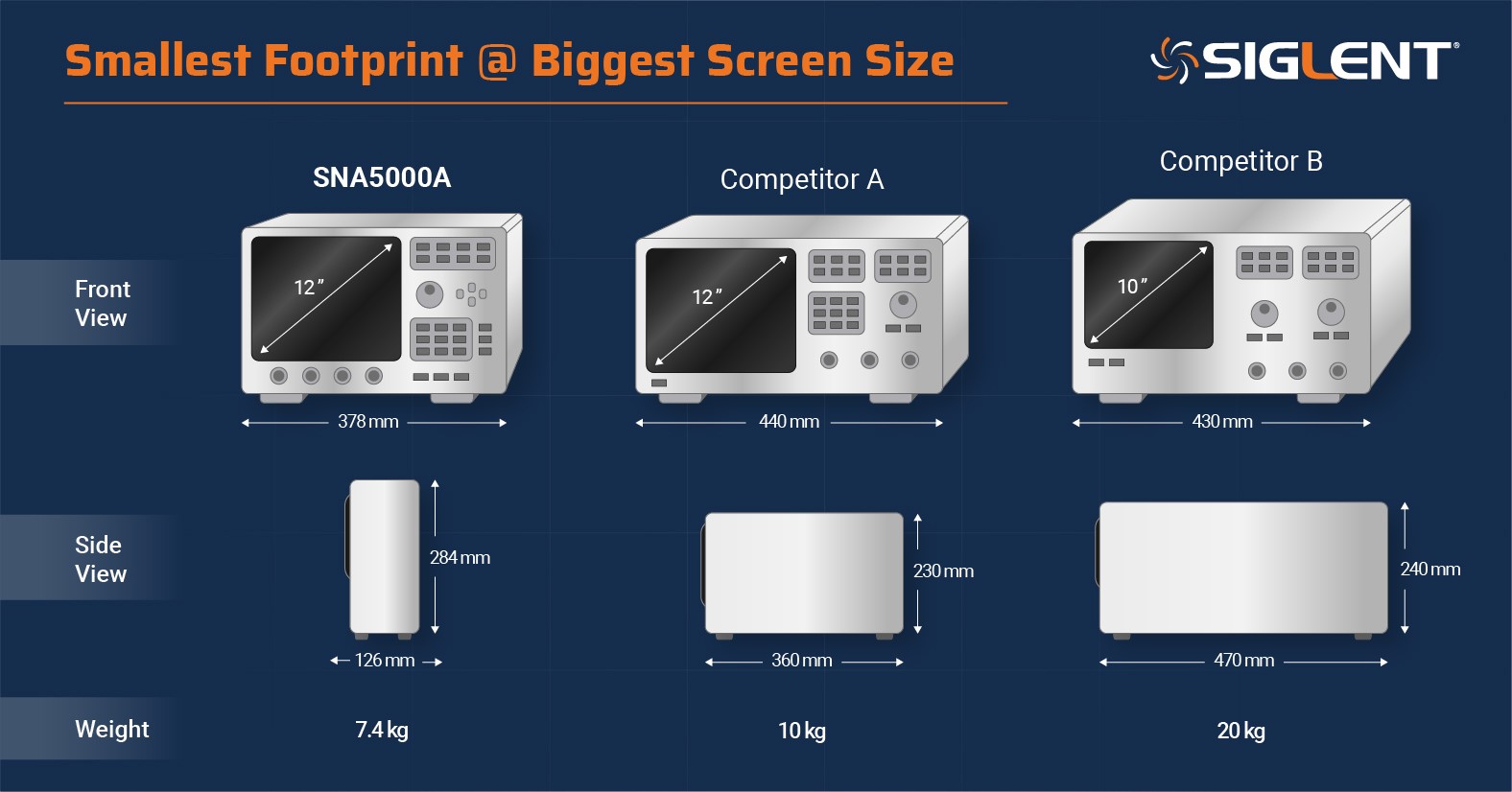

Large Display Small Footprint
The SNA5000A features a large touchscreen and user interface with a small footprint that makes it easy to use on the desktop and easier to move around the lab.
Electronic Calibrator-Make Calibration in One Step View more

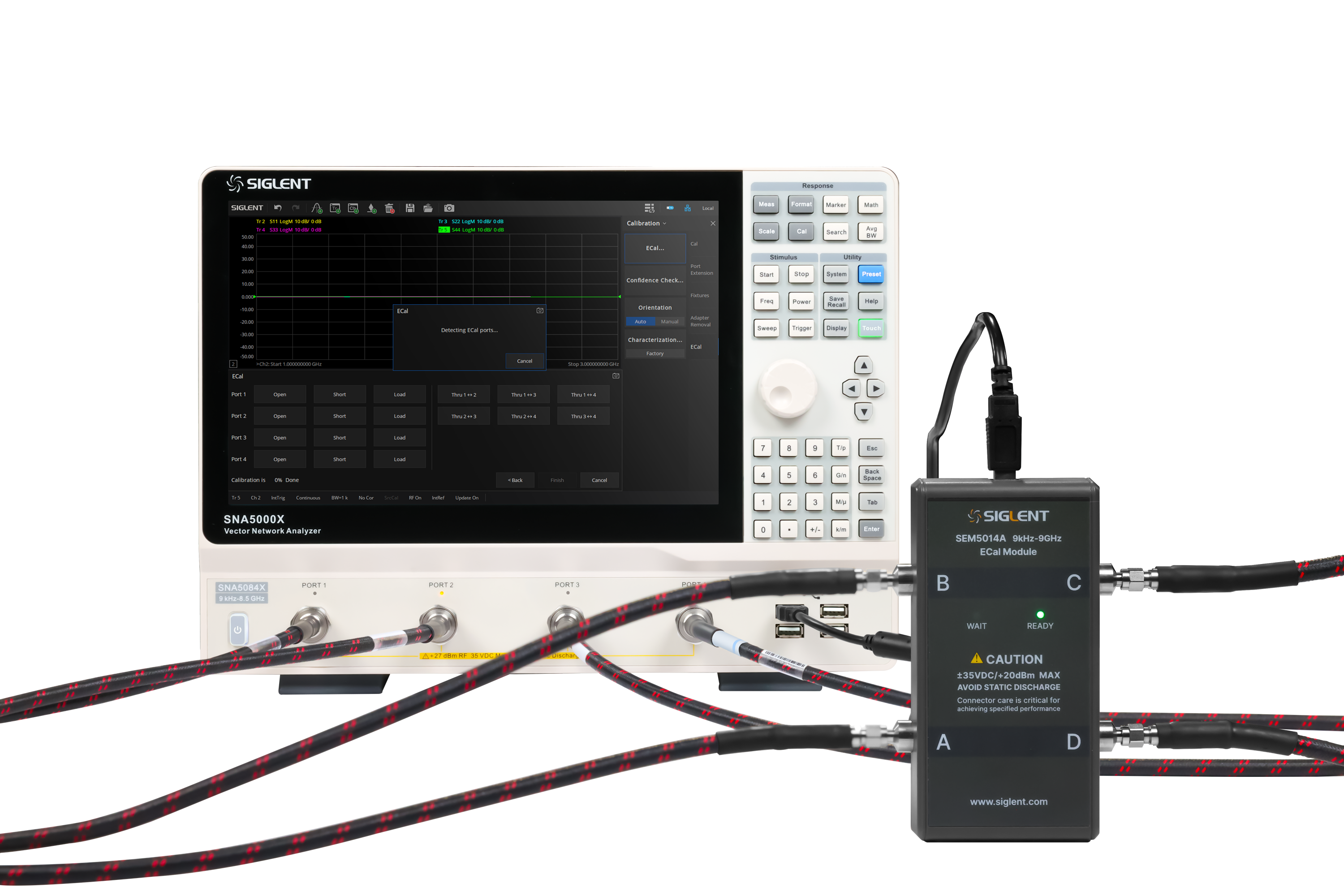

Electronic Calibrator-Make Calibration in One Step
First, the ECal module is connected to the vector network analyzer with the provided USB cable and then the analyzer controls and powers the module. The analyzer will automatically identify the calibration model, frequency range, and connector type. Connect RF cabling to the device ports using the included torque wrench to insure accuracy and protect your investment.
Switch matrix-easily meet the test requirements of multi-port devices View more

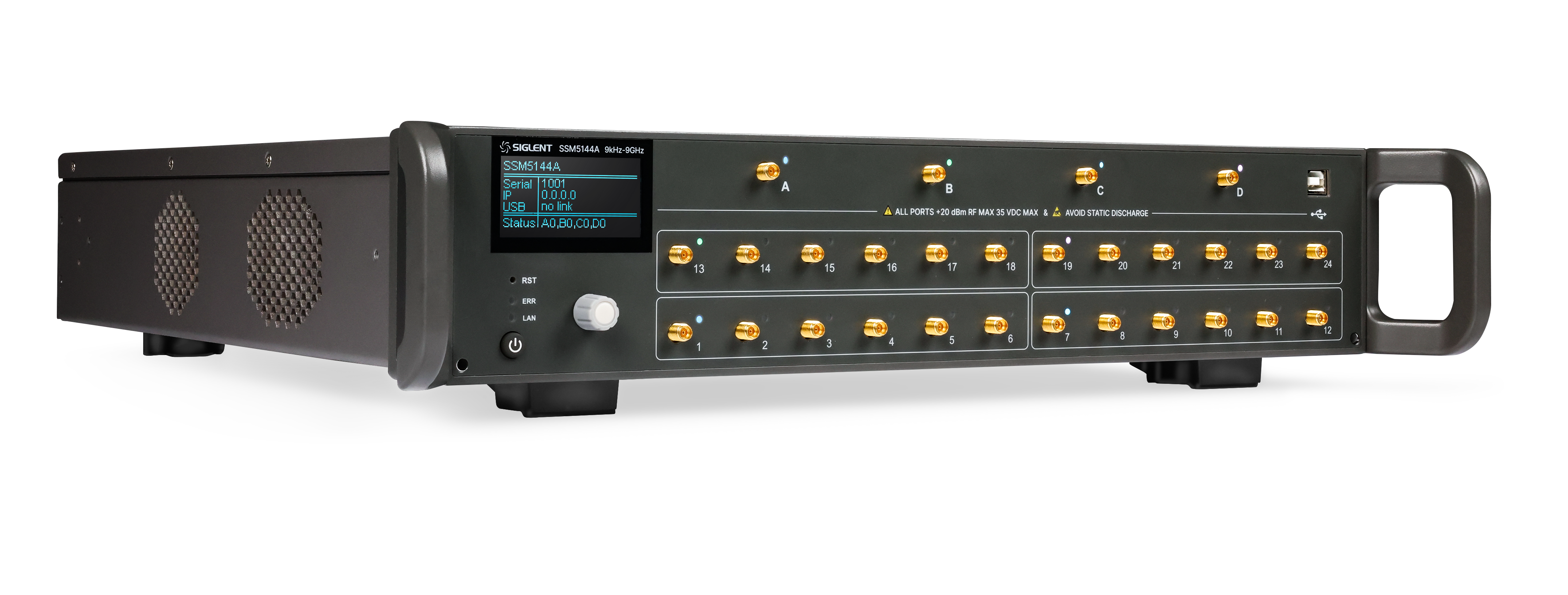

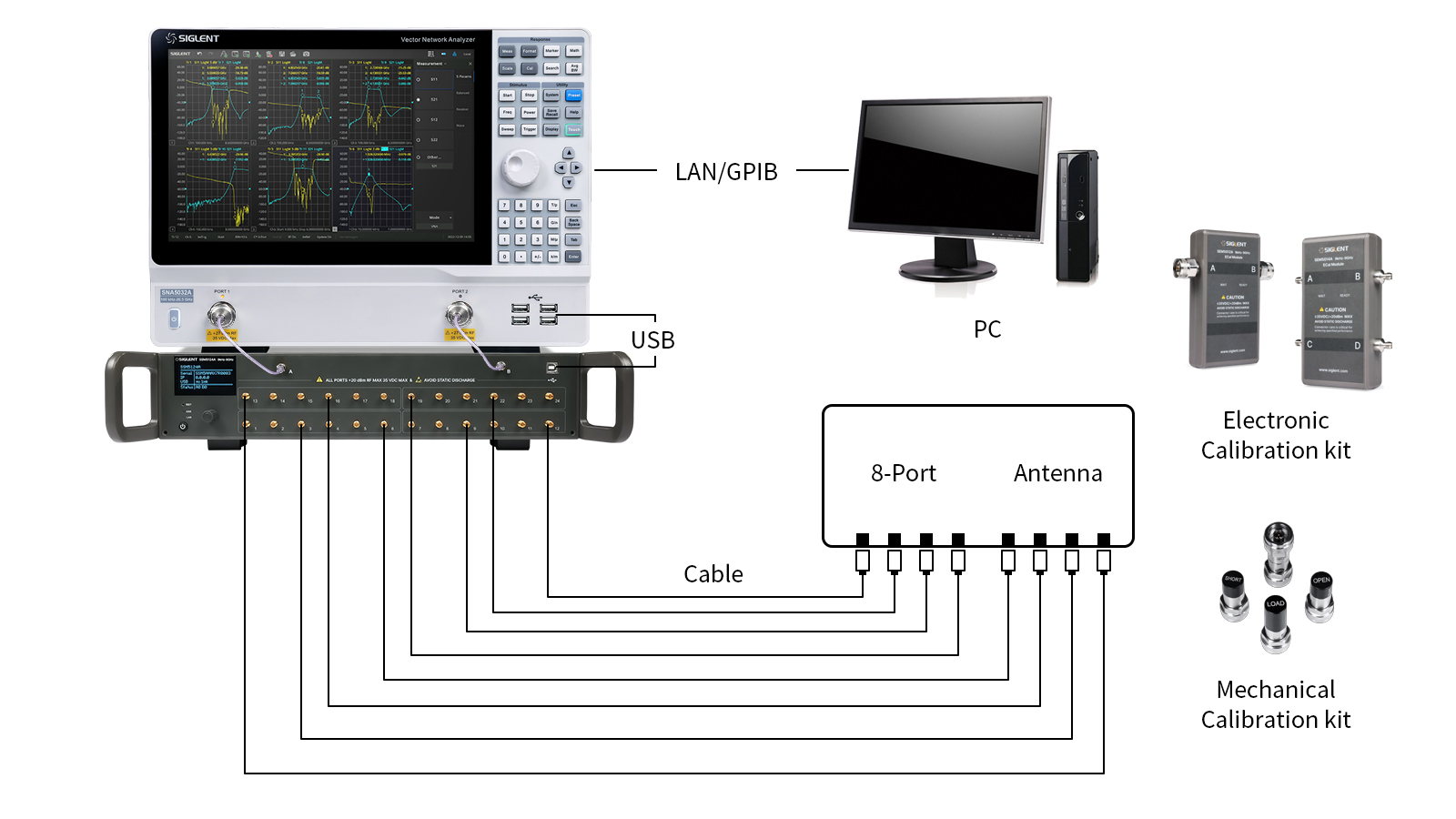

Switch matrix-easily meet the test requirements of multi-port devices
Use with a vector network analyzer such as the SNA5000A series to characterize large RF networks in a complete multiport test system. With 2 or 4 input ports to match the VNA, sequentially capture the S-parameters across up to 24 output ports by saving and restoring calibration setups. With a multitude of switch system configurations available quickly design a custom test system built for your devices at an incredible value versus competitive packaged solutions. The SSM5000A series switch matrix can be connected to the analyzer via USB, LAN or direct control interface. Once a matrix is connected, the analyzer automatically detects the matrix type and allocates the ports. Users can use it as a complete multiport vector network. The software is already in the vector network firmware.
Standard Accessories

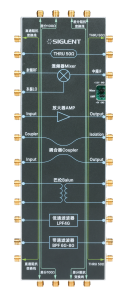

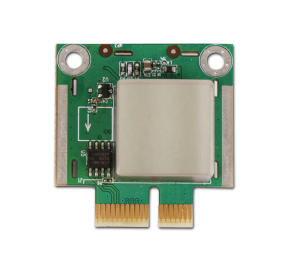

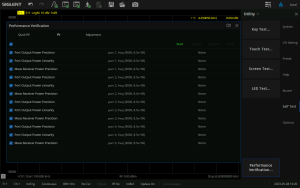

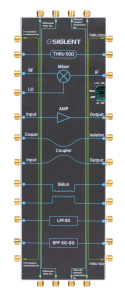

Optional Accessories
Enhanced Time-Domain analysis (SNA5000-TDR)
Enhanced Time Domain Reflectometer activation license for the SNA5000A series of VNAs
Learn more
Time-Domain analysis (SNA5000-TDA)
Basic Time Domain Reflectometer activation license for the SNA5000A series of VNAs
Learn more
F503FE
Mechanical Calibration Kit: N-type, Open (F), Short (F), Match (F,50), Through (F-F), 50 Ω, DC-4.5 GHz
Learn more
F503ME
Mechanical Calibration Kit: N-type, Open (M), Short (M), Match (M,50), Through (M-M), 50 Ω, DC-4.5 GHz
Learn more

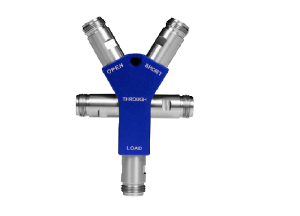

F504FS
Mechanical Calibration Kit: N-type, Open (F), Short (F), Match (F,50), Through (F-F), 50 Ω, DC-9 GHz
Learn more

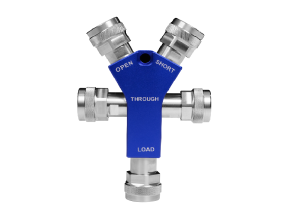

F504MS
Mechanical Calibration Kit: N-type, Open (M), Short (M), Match (M,50), Through (M-M), 50 Ω, DC-9 GHz
Learn more

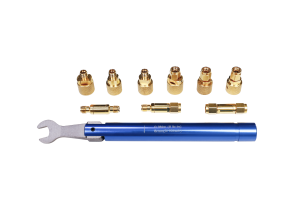

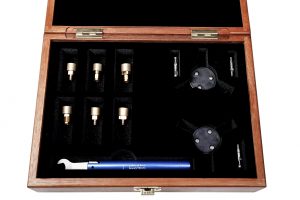

F504TS
Mechanical Calibration Kit: N-type, Male and Female, 50 Ω Calibration Kit, 0-9 GHz, Torque Wrench
Learn more
F603FE
Mechanical Calibration Kit 3.5 mm, Open (F), Short (F), Match (F,50), Through (F-F), DC-4.5 GHz
Learn more
F603ME
Mechanical Calibration Kit: 3.5 mm, Open (M), Short (M), Match (M,50), Through (M-M), 50 Ω, DC-4.5 GHz
Learn more
F604MS
Mechanical Calibration Kit: 3.5 mm, Open (M), Short (M), Match (M,50), Through (M-M), 50 Ω, DC-9 GHz
Learn more
F604FS
Mechanical Calibration Kit: 3.5 mm, Open (F), Short (F), Match (F,50), Through (F-F), 50 Ω, DC-9 GHz
Learn more
