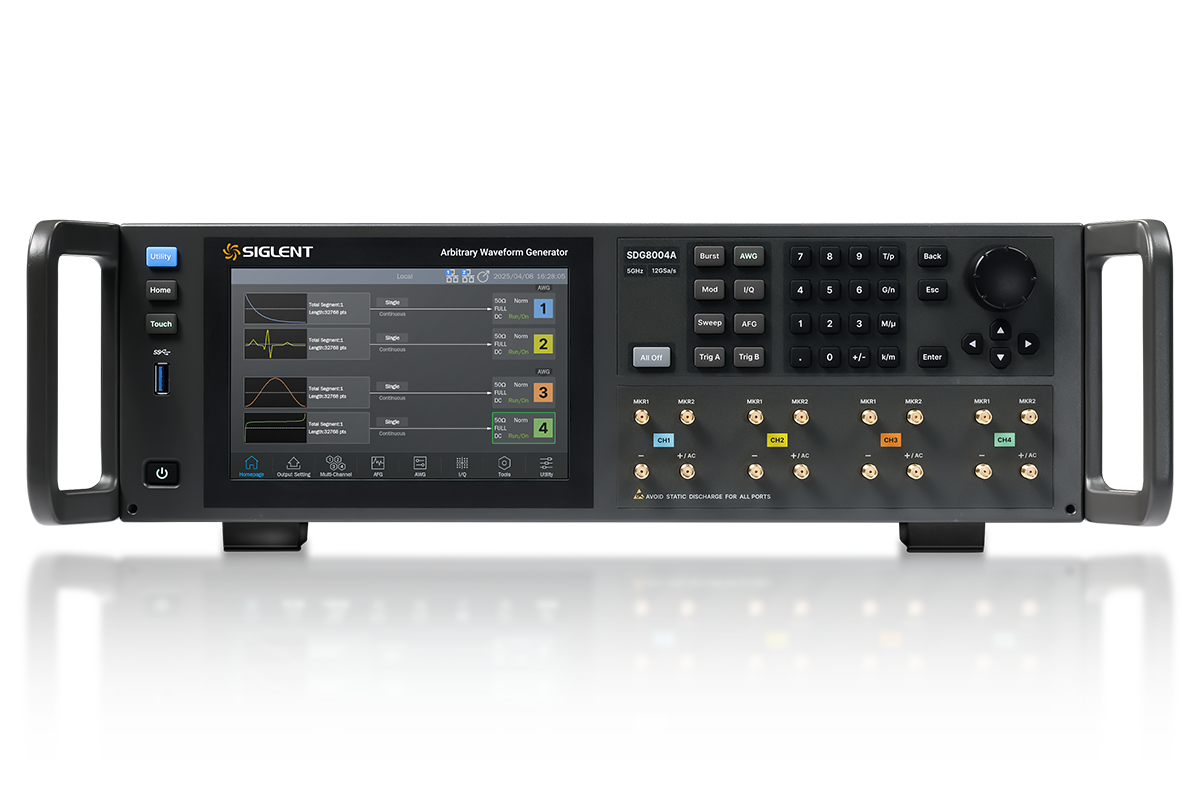

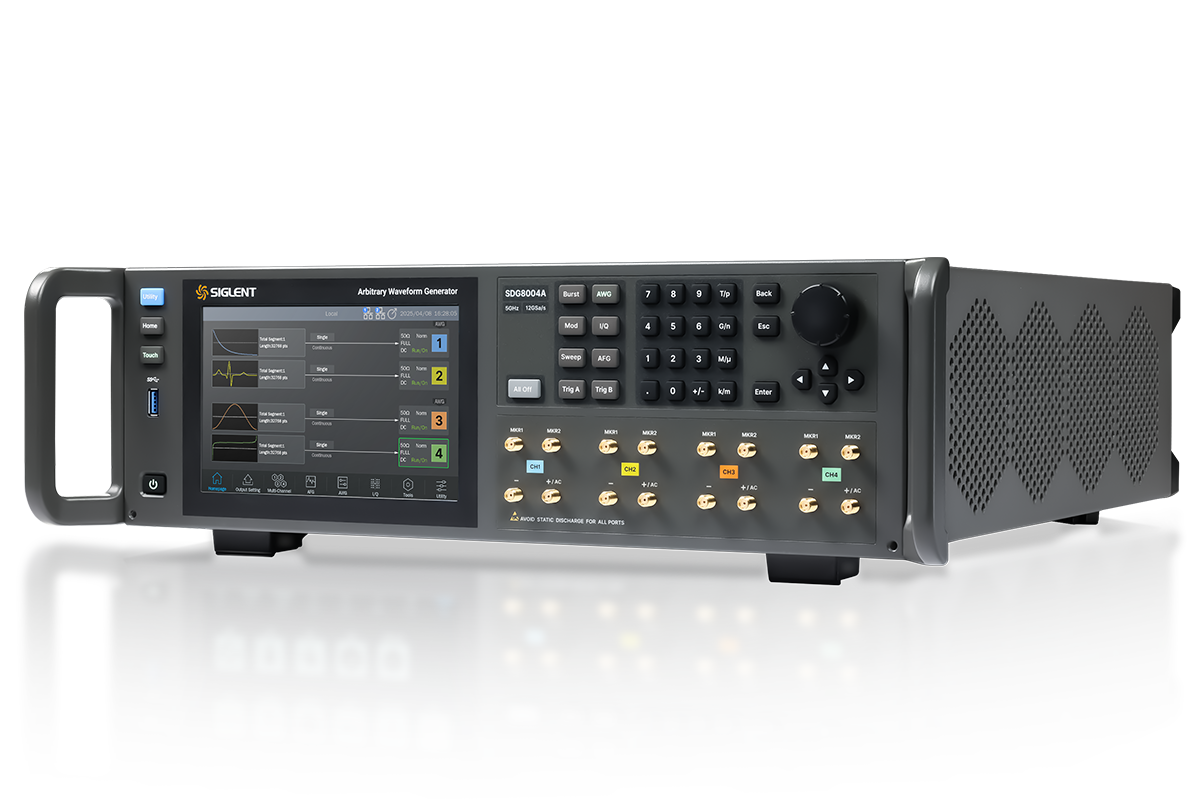

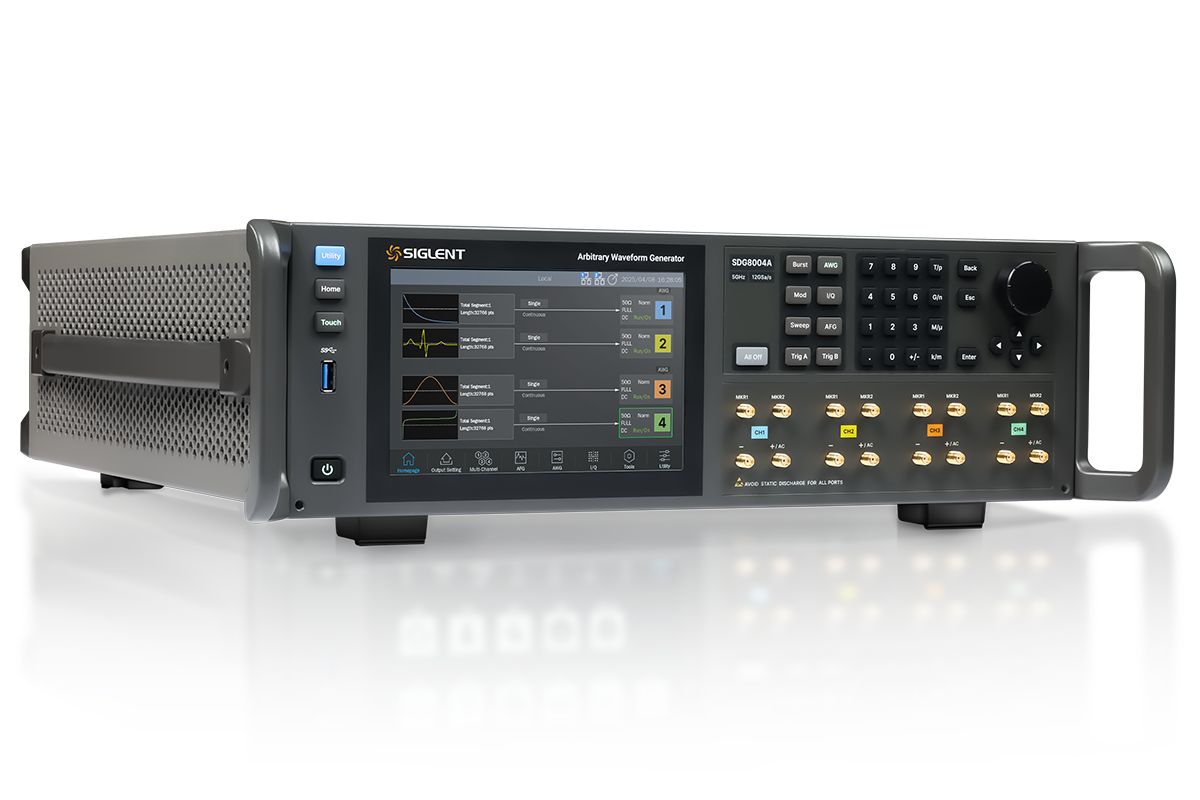

SDG8000A Series Arbitrary Waveform Generator

  • Up to 2 GHz AFG/AWG Output Frequency
  • Up to 5 GHz Direct RF Generation in IQ Mode
  • Up to 12 GSa/s Interpolated Sampling Rate in IQ Mode
  • 16-bit Resolution and up to 4 Gpts/Channel Waveform Memory
  • 2 or 4 Channels with Advanced Multi-Level Sequencing

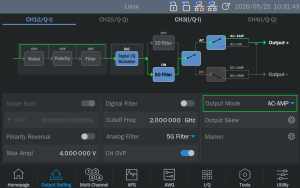

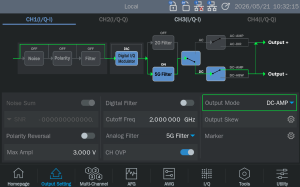

  • Four Output Paths – DC-HBW, DC-AMP, AC-DIR and AC-AMP

Product Overview

The SIGLENT SDG8000A Series combines high-performance function and arbitrary waveform generation with advanced RF signal generation capabilities in a versatile platform. Featuring two or four analog output channels, 16-bit vertical resolution, and output frequencies up to 2 GHz in AFG/AWG modes, the series delivers the flexibility and signal fidelity required for demanding test applications.

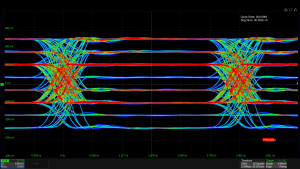

An integrated IQ modulation architecture extends the instrument’s capabilities to direct RF signal generation up to 5 GHz, with modulation bandwidths up to 2 GHz and interpolated sampling rates up to 12 GSa/s. Four application-specific output paths (DC-HBW, DC-AMP, AC-DIR, and AC-AMP) provide optimized performance for different bandwidth, amplitude, and RF power requirements. With up to 4 Gpts of waveform memory per channel, TrueArb technology, and advanced multi-level sequencing, the SDG8000A enables the generation and playback of long, complex waveforms without compromising signal bandwidth. Built-in multi-pulse, multi-tone, chirp, and high-speed serial data generation functions further extend its versatility. Combined with SIGLENT’s SigIQPro software, the series also supports the generation of digitally modulated signals for communication standards such as 5G NR, LTE, WLAN, and Bluetooth.

Bringing together precision waveform generation, wideband RF capabilities, and flexible signal configuration, the SDG8000A Series provides a powerful solution for applications in electronics development, power electronics, wireless communications, and scientific research.

Max Output Frequency Max Sampling Rate Vertical Resolution Waveform Length Channels Price
SDG8004A 4 GHz@10 GSa/s,5 GHz@12 GSa/s 10 GSa/s ,Optional 12 GSa/s 16-bit 2 Gpts, optional 4 Gpts 4 €56,800 Buy Now
SDG8002A 4 GHz@10 GSa/s,5 GHz@12 GSa/s 10 GSa/s ,Optional 12 GSa/s 16-bit 2 Gpts, optional 4 Gpts 2 € 45.800 Buy Now

Key Features

  • EasyPulse Technology: Low-jitter square and pulse waveform generation with precise control of pulse width, rise/fall times, and fine adjustment resolution.
  • Flexible Output Configuration: Supports both single-ended and differential output modes to accommodate different signal requirements.
  • Advanced Multi-Pulse Generation: Enables characterization of power semiconductor switching behavior and evaluation of dynamic switching parameters.
  • Multi-Tone and Chirp Generation: Built-in functions for frequency response analysis, RF testing, and complex signal simulation.
  • Extensive Waveform Library: 196 built-in arbitrary waveforms for a wide range of test and development applications.

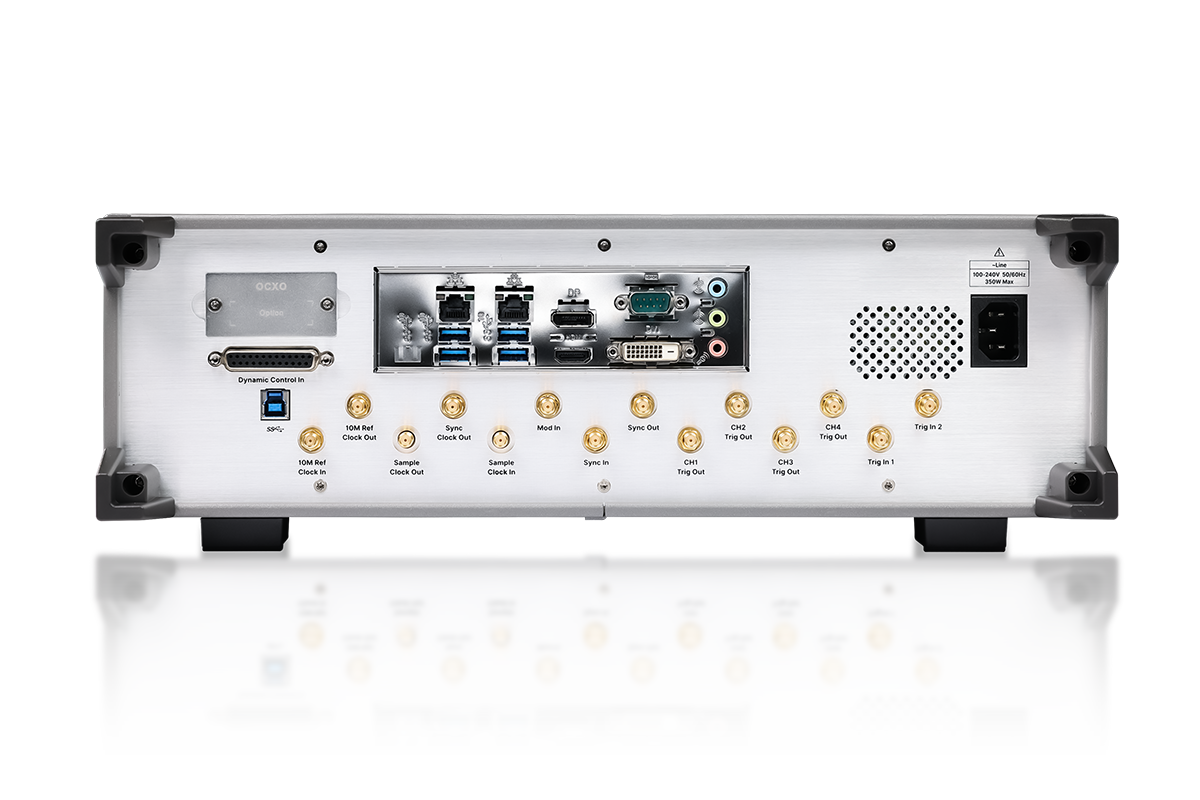

  • Comprehensive Connectivity: USB Host, USB Device (USBTMC), and LAN (VXI-11) interfaces as standard; optional GPIB.
  • Integrated Storage: Built-in 250 GB SSD for storing waveform data and instrument files.
  • Remote Instrument Control: Integrated web server enables convenient instrument operation through a standard web browser.

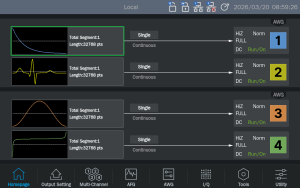

  • 7-inch display touch screen

Need more information? Call us now +49 821 666 0 111 0

Product Characteristics

Arbitrary Waveform Generation View more

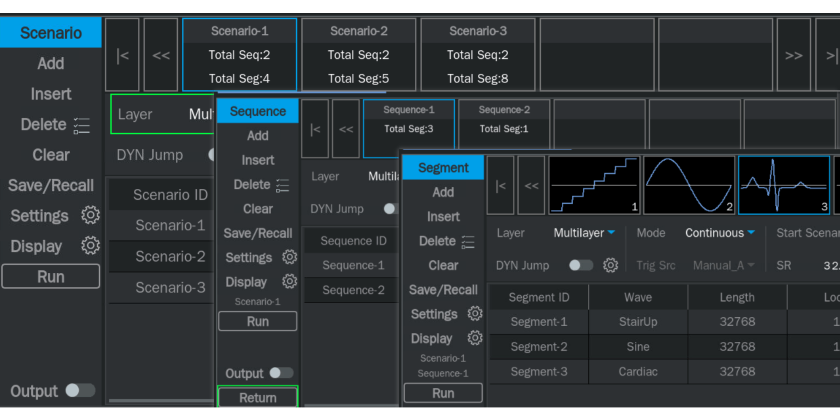

Arbitrary Waveform Generation

The SDG8000A series provides a maximum memory depth of 4 Gpts per channel, supporting waveform playback up to 800 ms even at the maximum sampling rate. It also integrates powerful multi-level waveform sequence playback functions, including Segment, Sequence and Scenario. The instrument comes with 196 built-in arbitrary waveforms covering mathematics, engineering, medical electronics and modulation applications. Users can call preset waveforms directly or customize and edit waveform files to adapt quickly to various test requirements.

Modulation and Vector Signal Generation View more

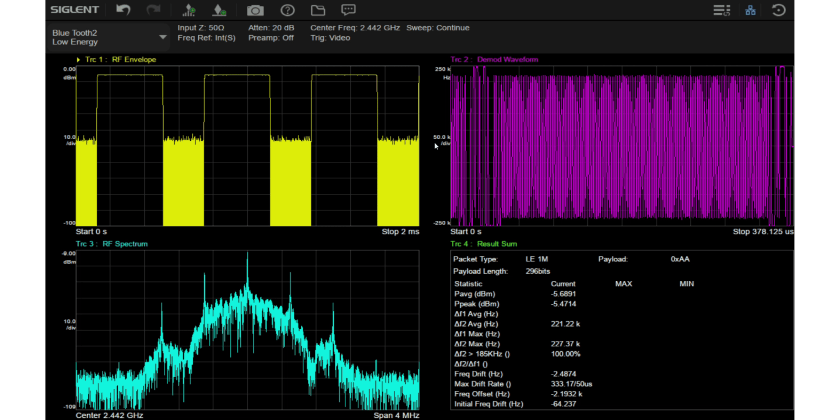

Modulation and Vector Signal Generation

The SDG8000A series supports a comprehensive range of analog and digital modulation functions, including AM, DSB-AM, FM, PM, FSK, ASK, PSK and PWM.

Its vector signal output delivers a modulation bandwidth of up to 2 GHz. When outputting baseband signals and using an external modulator, the signal bandwidth can be extended to 4 GHz, meeting the stringent requirements of wireless communications and RF testing applications.

When paired with the SigIQPro PC software, it further supports I/Q data generation for additional modulation types, including 2ASK, 4ASK, 8ASK, BPSK, QPSK, 8PSK, DBPSK, DQPSK, D8PSK, 8QAM, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM, 2FSK, 4FSK, 8FSK, 16FSK, MSK and MultiTone.

Noise and Special Signal Generation View more

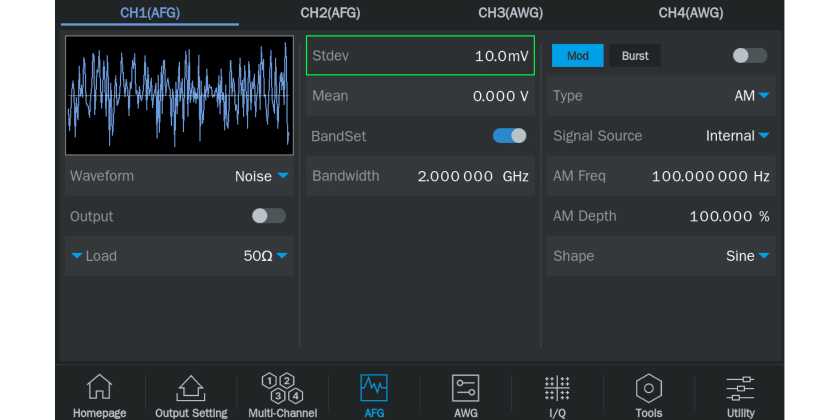

Noise and Special Signal Generation

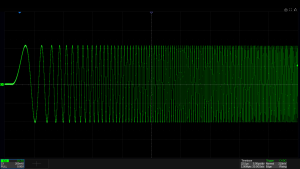

The SDG8000A not only accurately reproduces standard signals, but also flexibly emulates complex real-world test environments by generating a comprehensive suite of special signals, including noise, multi-pulse, multi-tone, frequency hopping and linear frequency modulation (LFM) signals.

Its high-bandwidth, high-resolution signal generation capability enables engineers to deploy highly realistic test signals as early as the design and verification phases, further enhancing product reliability and immunity to interference.
