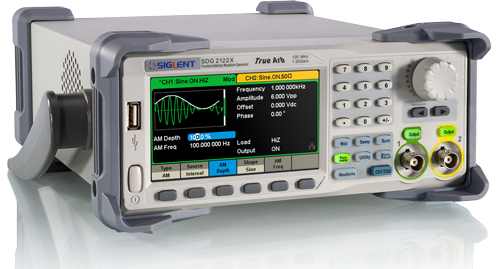

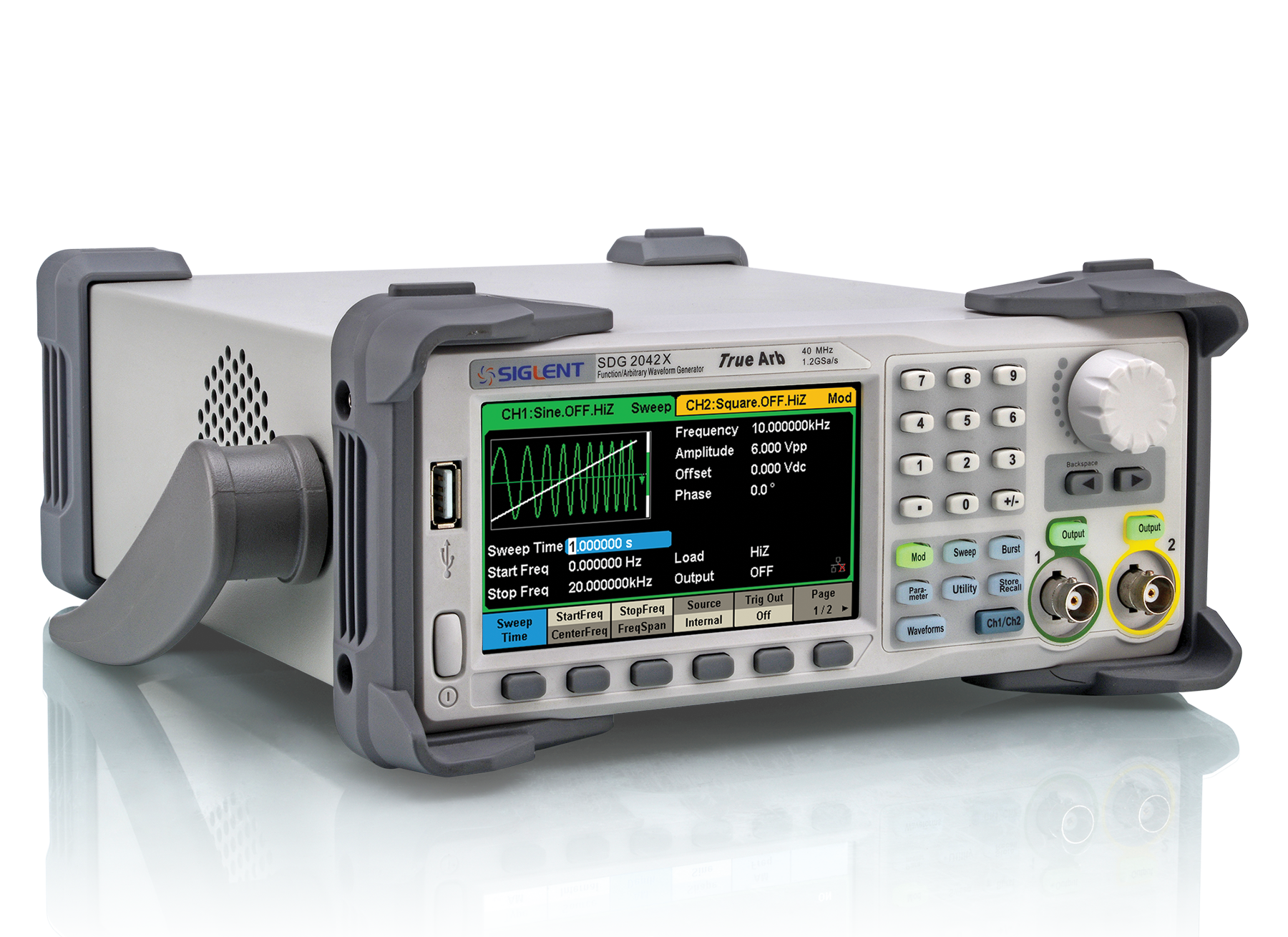

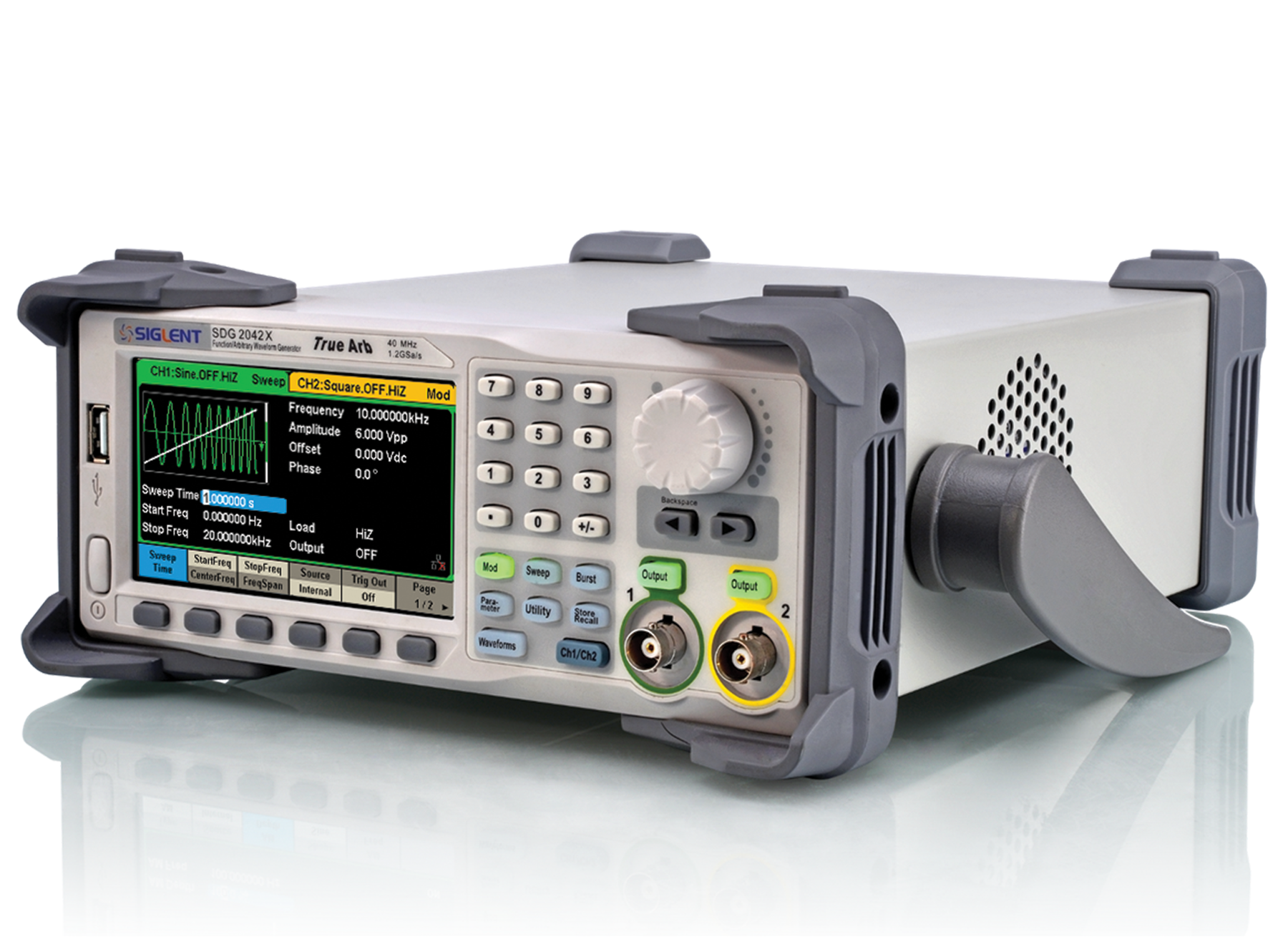

SDG2000X Series Function/Arbitrary Waveform Generators

  • Dual-channel, 120 MHz maximum bandwidth, 20 Vpp maximum output amplitude, high fidelity output with 80 dB dynamic range
  • High-performance sampling system with 1.2 GSa/s sampling rate and 16-bit vertical resolution. No detail in your waveforms will be lost
  • Innovative TrueArb technology supports user-defined waveforms from 8 to 8 Mpts and user-defined sample rate from 1 μSa/s to 75 MSa/s
  • Large Touch Screen Display
  • Easily combine waveforms through a single output, including noise and arbitrary waveforms

Product Overview

SIGLENT’s SDG2000X is a series of dual-channel function/arbitrary waveform generators with specifications of up to 120 MHz maximum bandwidth, 1.2 GSa/s sampling rate and 16-bit vertical resolution. The proprietary TrueArb & EasyPulse techniques help to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square and pulse waveforms. With advantages above, SDG2000X can provide users with a variety of high fidelity and low jitter signals, which can meet the growing requirements of complex and extensive applications.

Max Output Frequency Max Sampling Rate Vertical Resolution Waveform Length Channels Price
SDG2122X 120 MHz 1.2 GSa/s 16-bit 8 pts to 8 Mpts 2 €855 Buy Now
SDG2082X 80 MHz 1.2 GSa/s 16-bit 8 pts to 8 Mpts 2 €589 Buy Now
SDG2042X 40 MHz 1.2 GSa/s 16-bit 8 pts to 8 Mpts 2 €475 Buy Now

Key Features

  • Innovative EasyPulse technology, capable of generating lower jitter Square or Pulse waveforms, brings a wide range and extremely
    high precision in pulse width and rise/fall times adjustment
  • Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, PSK, FSK, ASK and PWM
  • Sweep and Burst function, Harmonics mode supported
  • High precision Frequency Counter

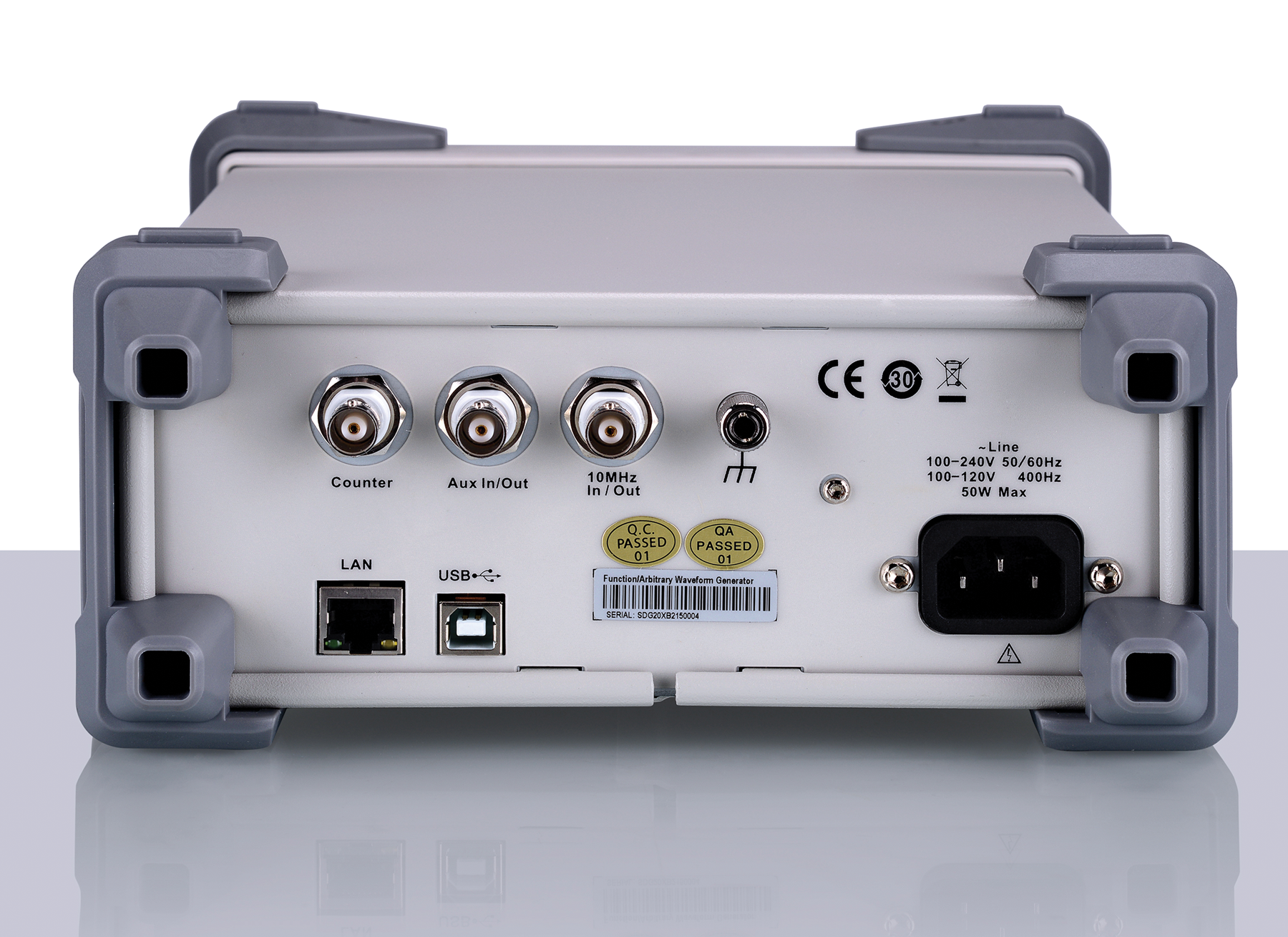

  • Standard interfaces: USB Device, USB Host, LAN (VXI-11), and GPIB (optional)
  • 4.3” touchscreen display for easier operation

We use function generators in the lab for precise testing and complex functions. The SDG performs exceptionally well at a fraction of the cost of the Agilent systems we also use. Any time we’ve had questions customer service has gone above and beyond to support our needs. Great product and fantastic service. We’ve outfitted multiple benches with the SDG and will be buying more.

Jacob C.
August, 2017



Need more information? Call us now +49 821 666 0 111 0

Product Characteristics

TrueArb Technology Architecture View more

TrueArb Technology Architecture

With SIGLENT’s TrueArb technology, the generator retains the advantages of DDS technology while overcoming the serious weaknesses of DDS jitter and distortion. Because TrueArb technology generates arbitrary waveform in a point-by-point fashion, every data point is used to generate the output signal which has been stored in memory. Date points will not missed or repeated and arbitrary waveforms possess very low jitter (< 150ps).

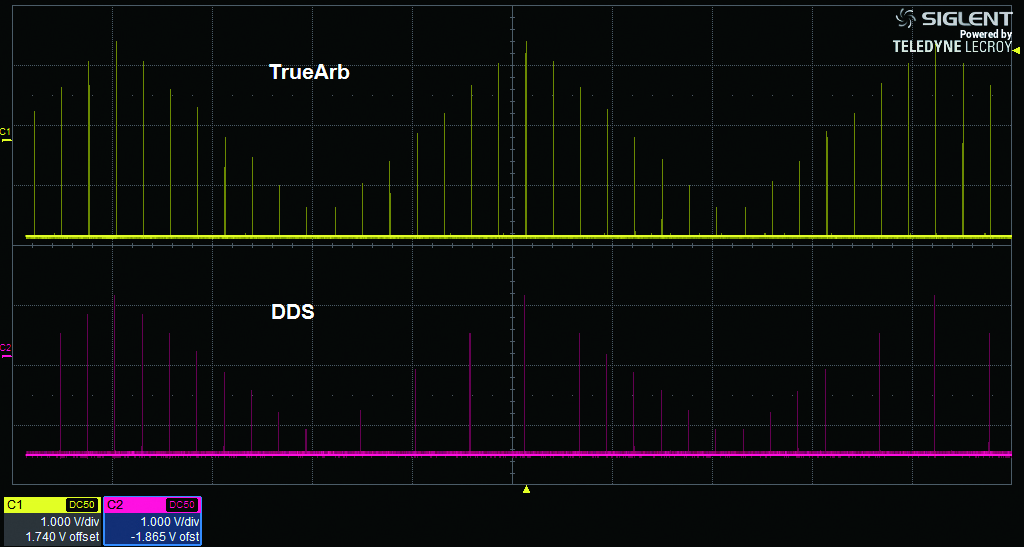

Low Jitter with TrueArb Technology View more

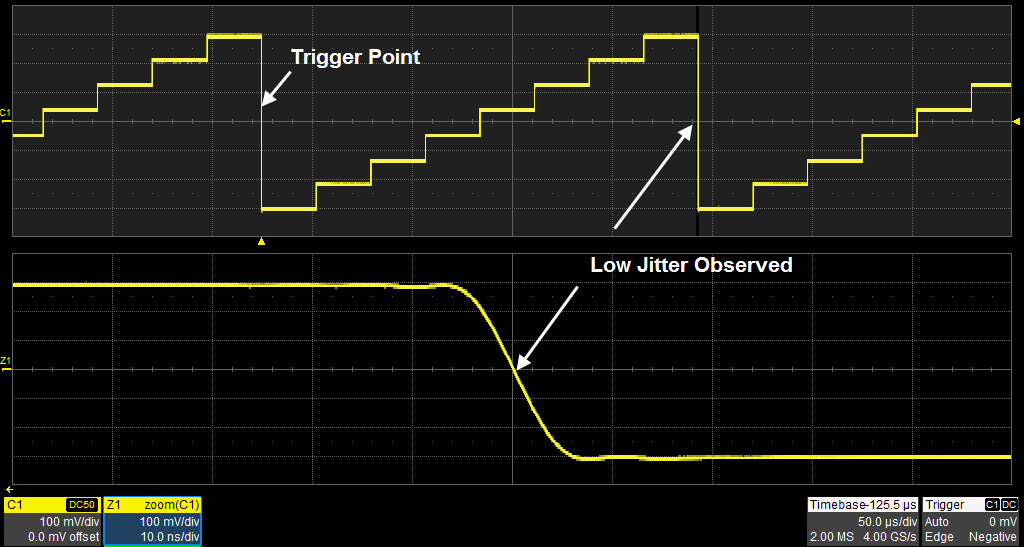

Low Jitter with TrueArb Technology

Like EasyPulse technology, TrueArb technology effectively overcomes the limitations of DDS to produce a sampling period with very low jitter

One Clock Jitter View more

One Clock Jitter

EasyPulse Technology View more

EasyPulse Technology

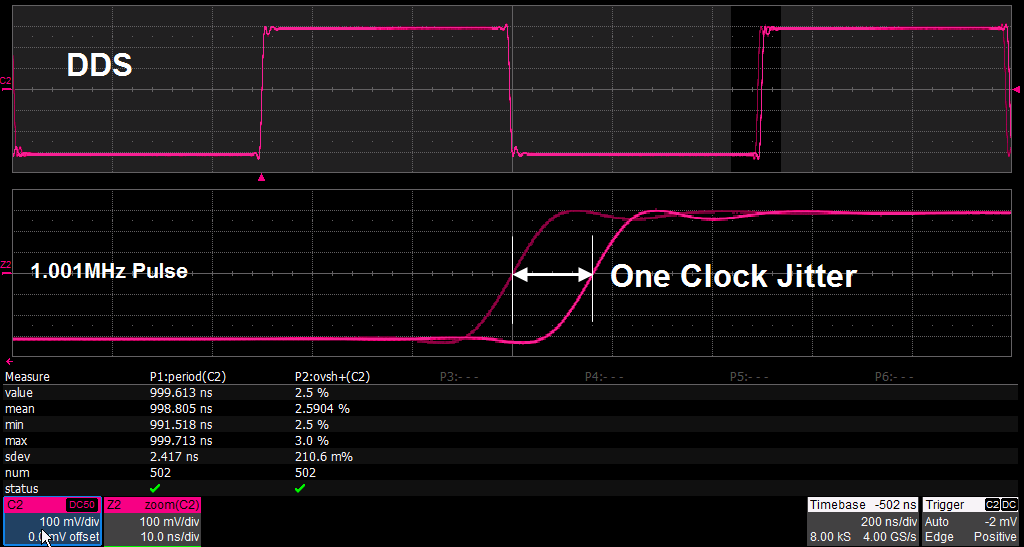

When a Square/Pulse waveform is generated by DDS, there will be a one-clock-jitter if the sampling rate is not an integer-related multiple of the output frequency. SDG2000X EasyPulse technology successfully overcomes this weakness in DDS designs and helps to produce low jitter Square/Pulse waveforms.

High-Performance Sampling System View more

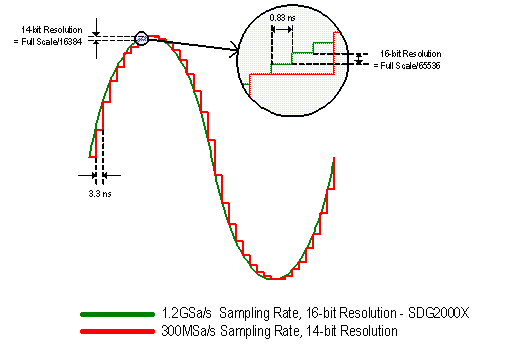

High-Performance Sampling System

Benefiting from a 1.2GSa/s and 16-bit sampling system, SDG2000X achieves extremely high accuracy performance in both time domain and amplitude, which results in more accurately reconstructed waveforms and lower distortion.

Excellent Analog Channel Performance View more

Excellent Analog Channel Performance

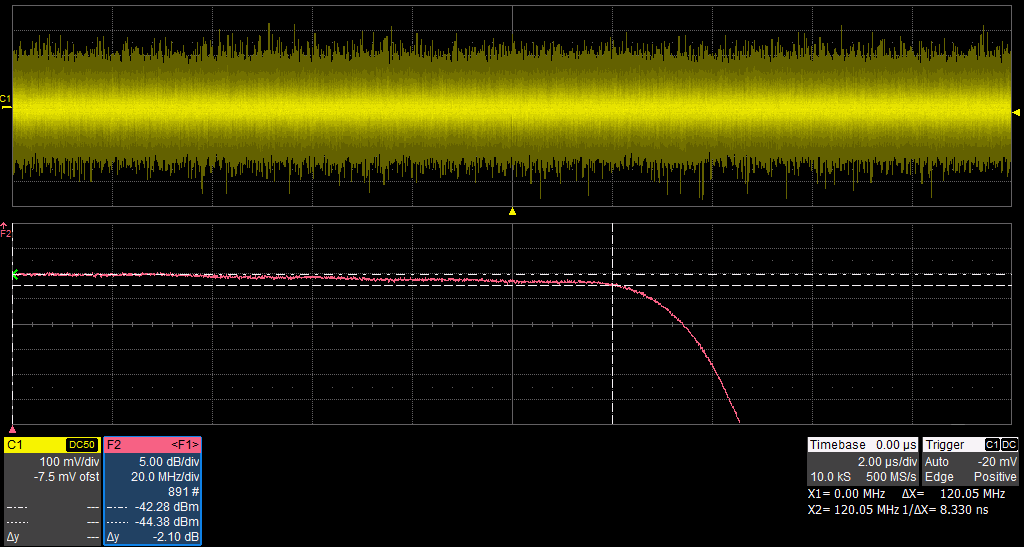

The bandwidth of analog channels proves to be greater than 120MHz, via doing a frequency response test with white noise.

High Fidelity Sine Output View more

High Fidelity Sine Output

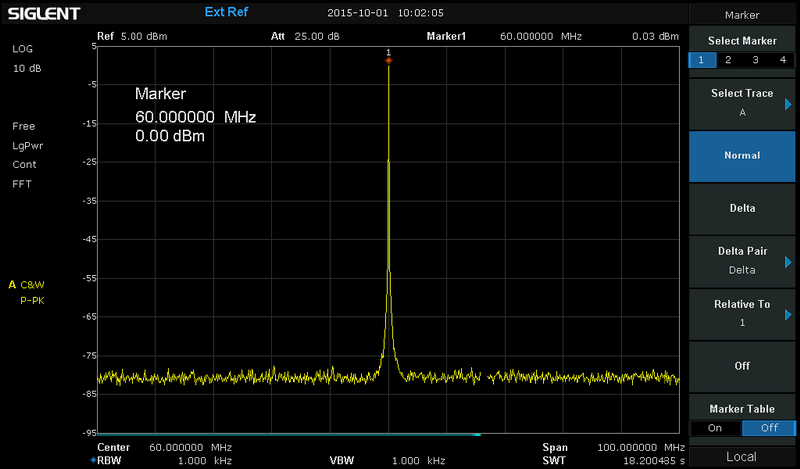

High fidelity sine output. Almost no spurious observed @60MHz, 0dBm.

Dual-channel, 20 Vpp Amplitude View more

Dual-channel, 20 Vpp Amplitude

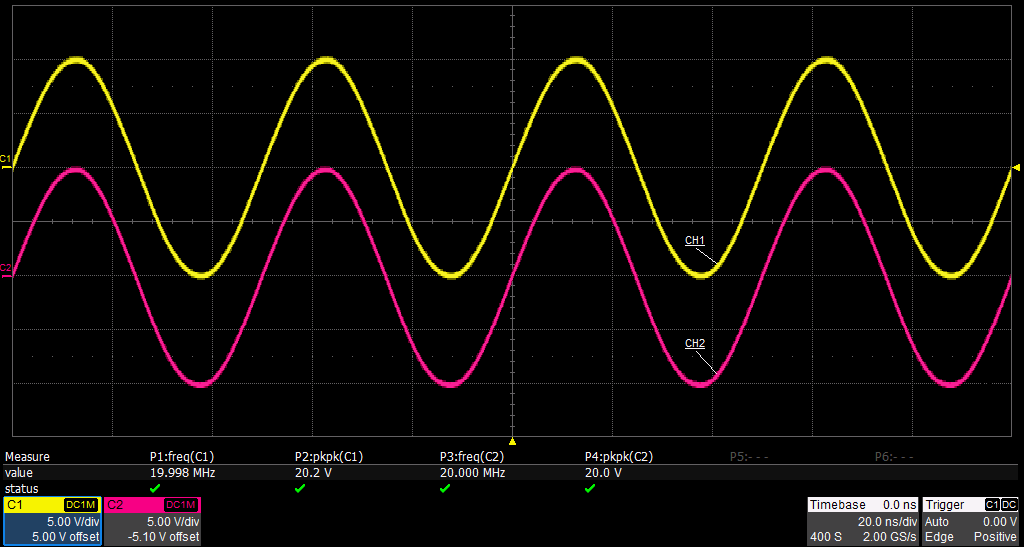

Capacity of outputting large signal at high frequency. Dual-channel, 20 Vpp amplitude can be guaranteed even @20 MHz.

Low Noise Floor View more

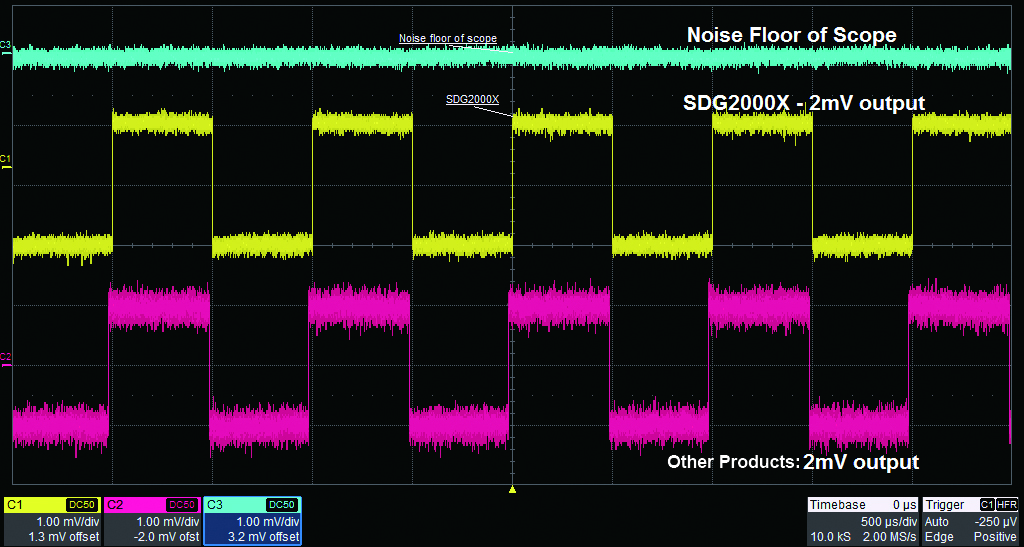

Low Noise Floor

Low noise floor, improves signal-noise ratio.

SDG2000X Pulse View more

SDG2000X Pulse

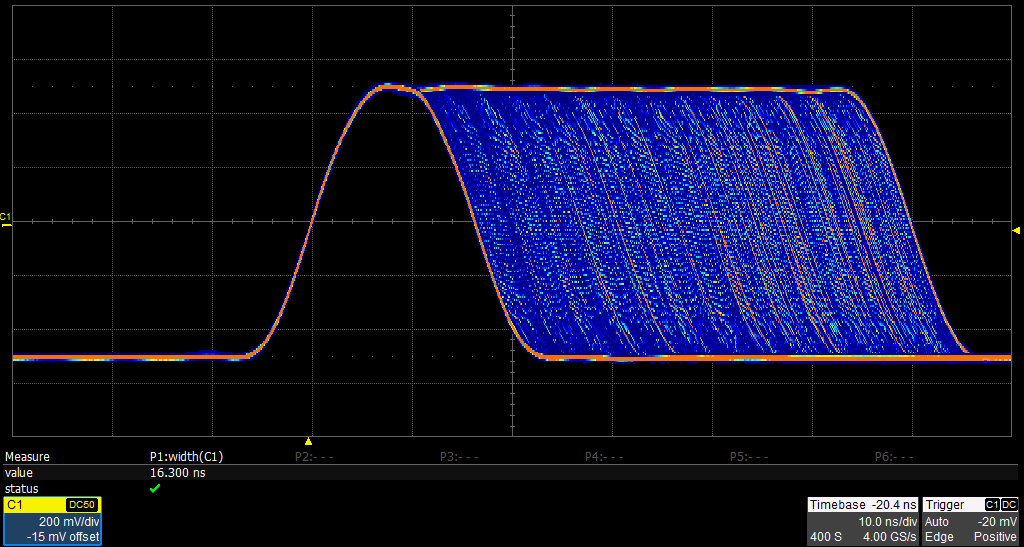

The Pulse width can be fine-tuned to the minimum of 16.3ns with the adjustment step as small as 100ps.

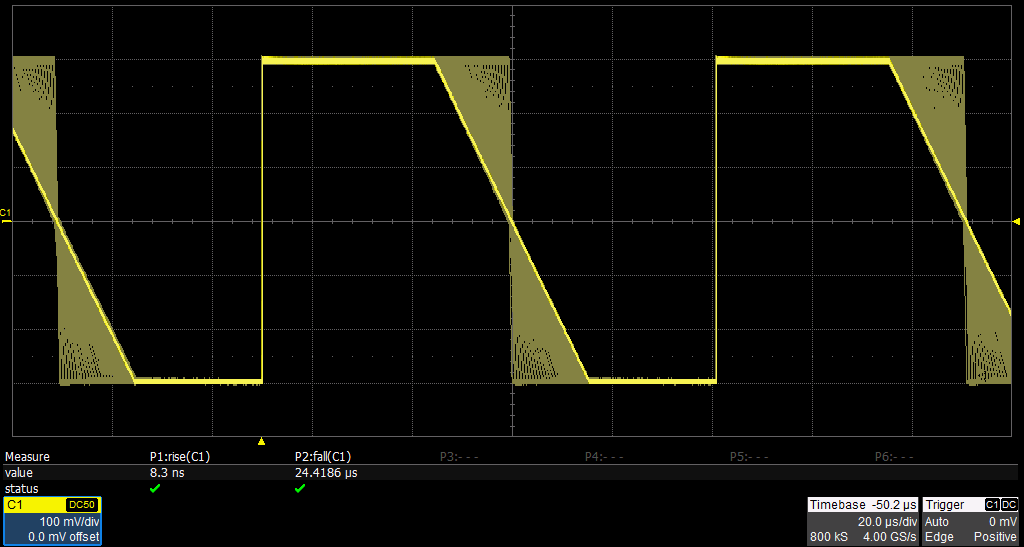

Rise/Fall Times View more

Rise/Fall Times

The rise/fall times can be set independently to the minimum of 8.4ns at any frequency and to the maximum of 22.4s. The adjustment step is as small as 100 ps.

Rich modulation features View more

Rich modulation features

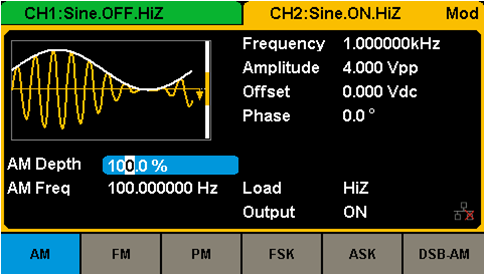

Support for AM, FM, PM, FSK, ASK, DSB – AM provide for a variety of analog and digital modulation mode, “internal” and “external” modulation.

Burst function View more

Burst function

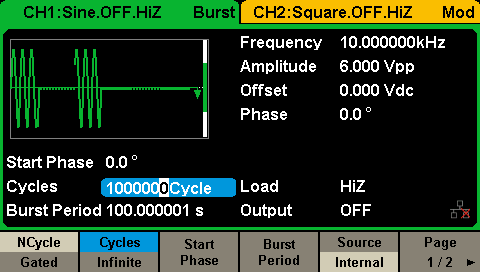

Two Burst mode: “N cycle” and “Gated” control. Internal and external modulation available.

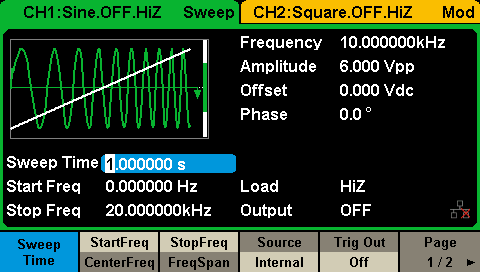

Sweep function View more

Sweep function

Support both log and linear sweep modes, “up” and “down” sweeping. Three kinds of triggering: Internal, External and Manual

Frequency counter function View more

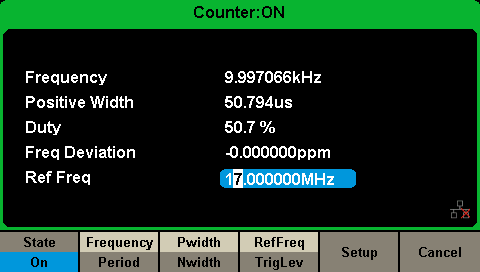

Frequency counter function

High precision Frequency Counter with an input frequency range of 0.1Hz~200MHz.

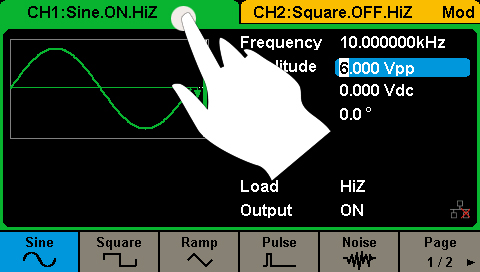

4.3 inch high definition touch screen View more

4.3 inch high definition touch screen

4.3” touch screen display, makes operation much more convenient.

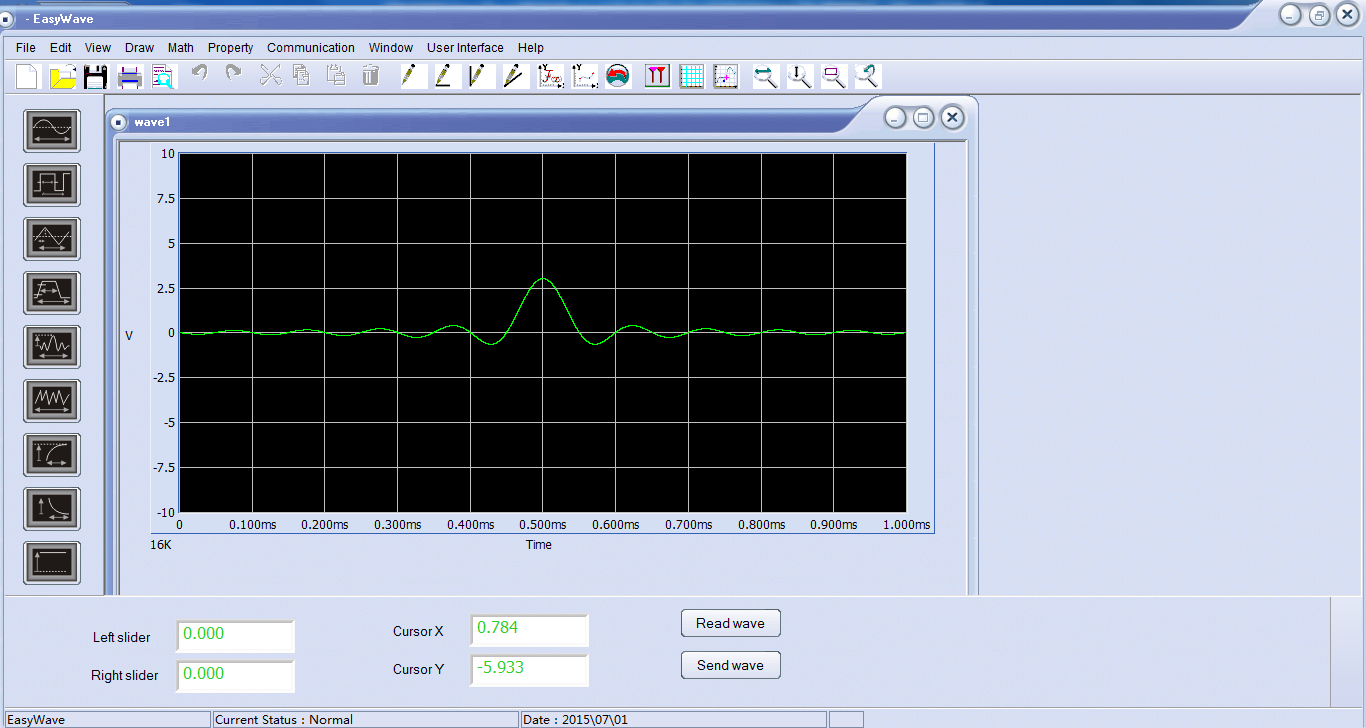

Arbitrary waveform EasyWave editing software View more

Arbitrary waveform EasyWave editing software

EasyWave is a powerful arbitrary waveform editing software that supports several ways to generate arbitrary waveform such as manual drawing, line-drawing, equation-drawing, coordinate-drawing, etc. It is quite convenient for users to edit their own arbitrary waveforms through EasyWave.
