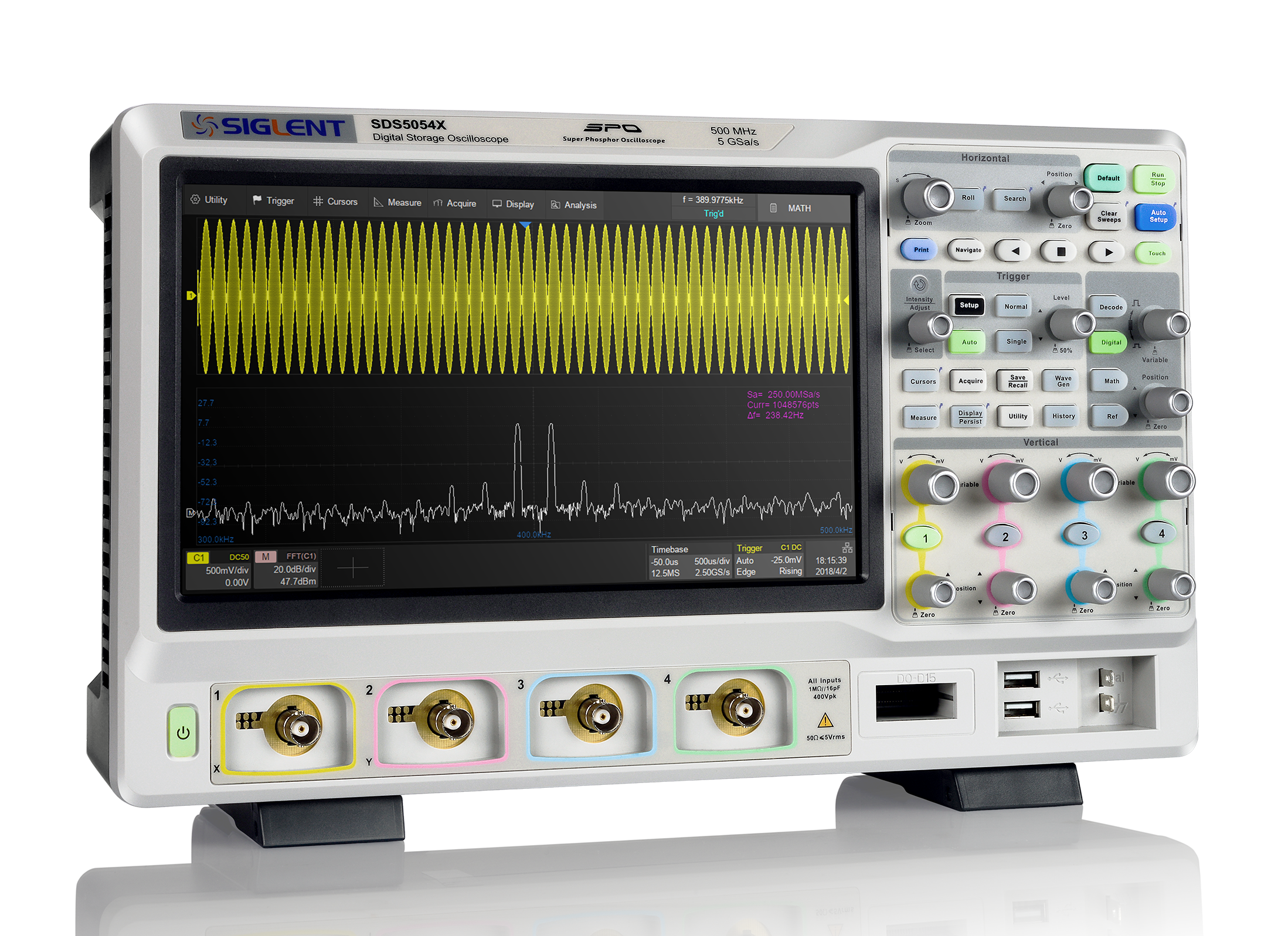

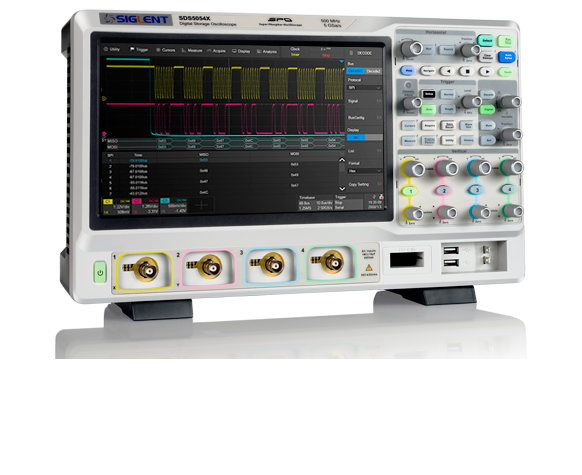

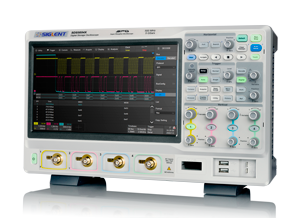

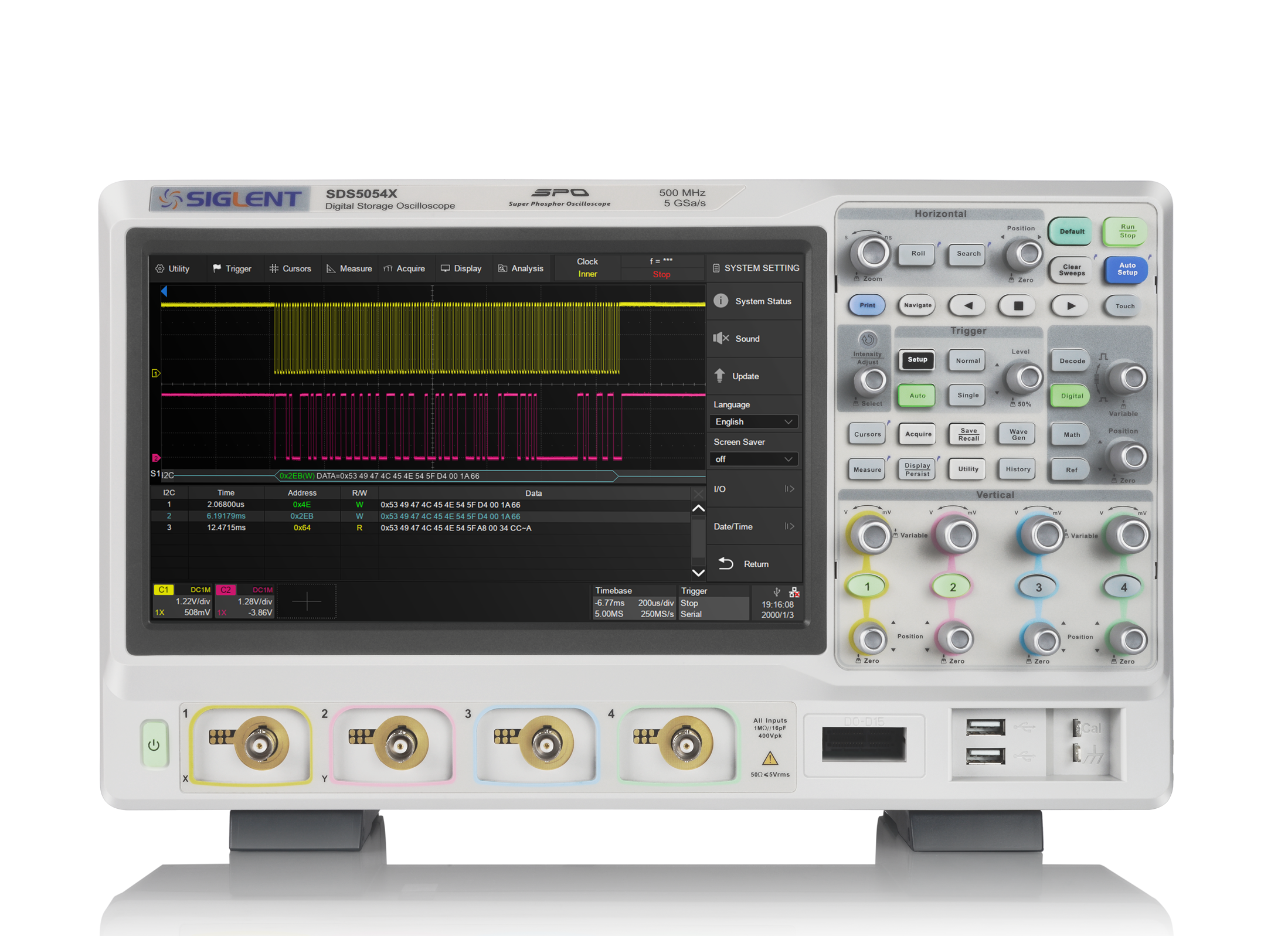

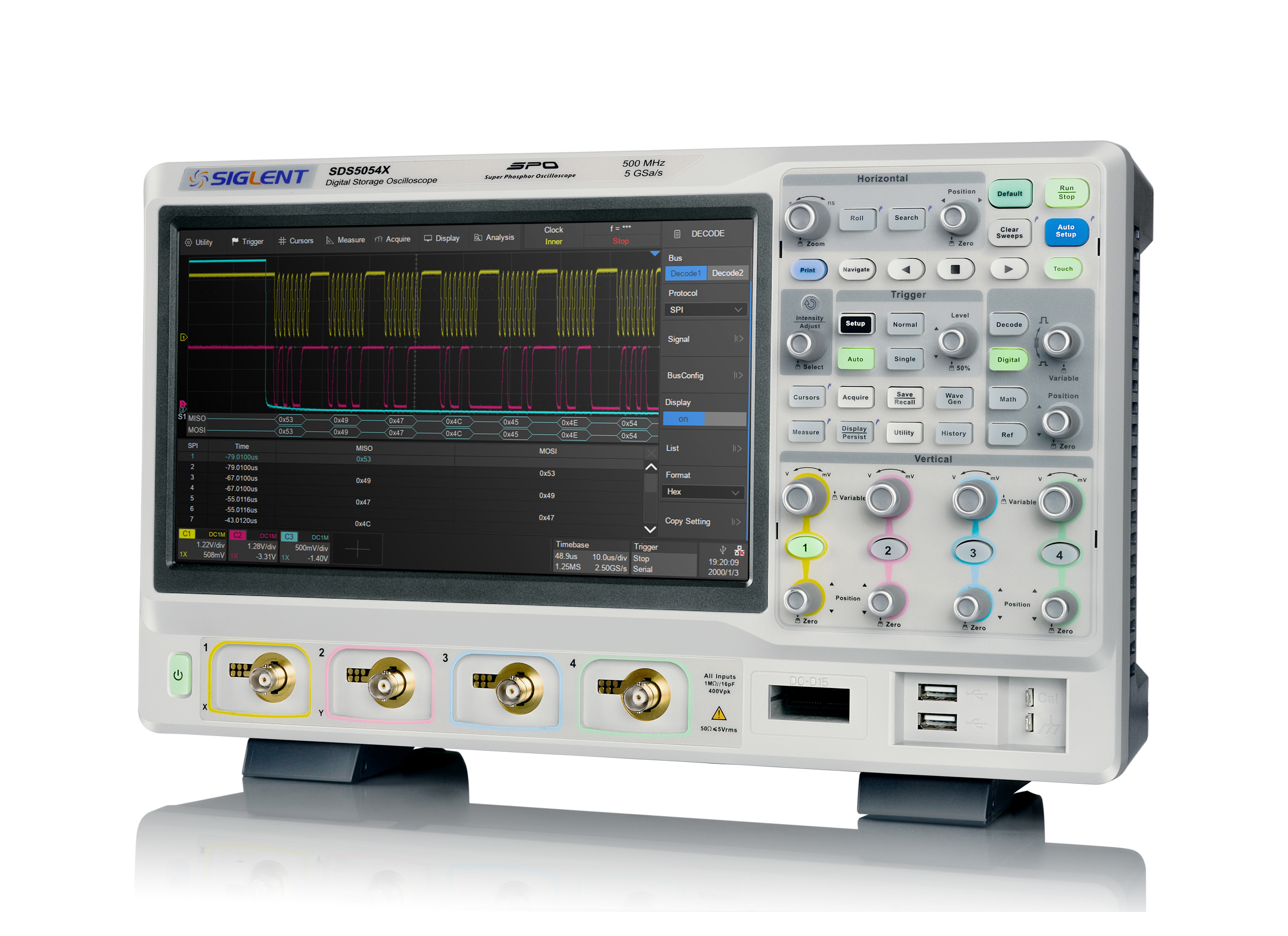

SDS5000X Series Super Phosphor Oscilloscopes

  • 1 GHz, 500 MHz, 350 MHz models
  • Real-time sampling rate up to 5 GSa/s
  • Record length up to 250 Mpts
  • Serial bus triggering and decoder, supports I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT and Manchester Code
  • Capacitive touch screen supports multi-touch gestures
  • €2,529

Product Overview

SIGLENT’s SDS5000X Series Digital Storage Oscilloscopes are available in bandwidths of 1 GHz, 500 MHz, and 350 MHz, have a maximum sample rate of 5 GSa/s, a maximum record length of 250 Mpts/ch, and display up to 4 analog channels + 16 digital channels mixed-signal analysis ability.

The SDS5000X series employs Siglent’s SPO technology with a maximum waveform capture rate of up to 110,000 wfm/s (normal mode, up to 500,000 wfm/s in Sequence mode), 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. History waveform recording, Sequence acquisition, Search and Navigate functions allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, options for a 25 MHz arbitrary waveform generator, as well as serial decoding are also features of the SDS5000X.

The large 10.1’’ display capacitive touch screen supports multi-touch gestures, with the addition of a user-friendly one-button design for most commonly used functions, can greatly improve the operation efficiency of the SDS5000X. It also supports mouse and external keyboard control.

Having trouble deciding which scope is right for you?

Click to view a comparison table of our most powerful scopes.

Bandwidth Channels Real time
sampling rate
Capture rate Memory depth Price
SDS5032X 350 MHz 2+EXT 5 GSa/s (single-channel) , 2.5 GSa/s (dual-channel) 110,000 wfm/s (normal mode), 500,000 wfm/s (sequence mode) 250 Mpts (single-channel), 125 Mpts (dual-channel) €2,529 Discontinued
SDS5034X 350 MHz 4+EXT 5 GSa/s (single-channel) , 2.5 GSa/s (dual-channel) 110,000 wfm/s (normal mode), 500,000 wfm/s (sequence mode) 250 Mpts (single-channel), 125 Mpts (dual-channel) €2,869 Buy Now
SDS5052X 500 MHz 2+EXT 5 GSa/s (single-channel) , 2.5 GSa/s (dual-channel) 110,000 wfm/s (normal mode), 500,000 wfm/s (sequence mode) 250 Mpts (single-channel), 125 Mpts (dual-channel) €4,609 Discontinued
SDS5054X 500 MHz 4+EXT 5 GSa/s (single-channel) , 2.5 GSa/s (dual-channel) 110,000 wfm/s (normal mode), 500,000 wfm/s (sequence mode) 250 Mpts (single-channel), 125 Mpts (dual-channel) €4,959 Buy Now
SDS5102X 1 GHz 2+EXT 5 GSa/s (single-channel) , 2.5 GSa/s (dual-channel) 110,000 wfm/s (normal mode), 500,000 wfm/s (sequence mode) 250 Mpts (single-channel), 125 Mpts (dual-channel) €5,229 Discontinued
SDS5104X 1 GHz 4+EXT 5 GSa/s (single-channel) , 2.5 GSa/s (dual-channel) 110,000 wfm/s (normal mode), 500,000 wfm/s (sequence mode) 250 Mpts (single-channel), 125 Mpts (dual-channel) €6,359 Buy Now
Limited Time Offer



With the purchase of a new SIGLENT Performance Oscilloscope, purchase an Analysis Bundle at a special price



Key Features

• 1 GHz, 500 MHz, 350 MHz models with real-time sample rate up to 5 GSa/s

• SPO technology

· Waveform capture rates up to 110,000 wfm/s (normal mode), and 500,000 wfm/s (sequence mode)

· Supports 256-level intensity grading and color temperature display modes

· Record length up to 250 Mpts

· Digital trigger system

• Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified and Video (HDTV supported). Trigger zone helps to simplify advanced triggering

• Serial bus triggering and decoder, supports protocols I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT and Manchester Code

• Low background noise, supports 0.5 mV/div to 10 V/div voltage scales

• Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 100,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event

• History waveform record (History) function, the maximum recorded waveform length is 100,000 frames

• Automatic measurement function on 50+ parameters, supports statistics with histogram,trend, Gating measurement, Math measurement, History measurement and Ref measurement

• Math function (2 Mpts FFT, addition, subtraction, multiplication, division, integration, differential, square root), supports formula editor

• Abundant data analysis functions such as Search, Navigate, Digital Voltmeter, Counter, Waveform Histogram, Bode plot and Power Analysis

• High Speed hardware-based Average, ERES (Enhanced Resolution)

• High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defned masks

• 16 digital channels (optional) with sample rate up to 1.25 GSa/s, record length up to 62.5 Mpts

• 25 MHz function / arbitrary waveform generator, built-in multiple predefned waveforms

• Large 10.1” TFT-LCD display with 1024 * 600 resolution; Capacitive touch screen supports multi-touch gestures

• Supports external mouse and keyboard

• 10 types of one-button shortcuts

• Multiple interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11, telnet, socket, web), Pass/Fail, Trigger Out, 10 MHz In, 10 MHz Out, VGA output

• Built-in web server supports remote control by the LAN port using a web browser

• Supports SCPI remote control commands

Need more information? Call us now +49 821 666 0 111 0

10.1” display with 1024*600 resolution. Capacitive touch screen, supporting multi-touch gestures, can move or scale the waveform traces quickly by finger-touch movements, which greatly improves the operation efficiency.

Product Characteristics

Up to 110,000 wfm/s waveform update rate View more

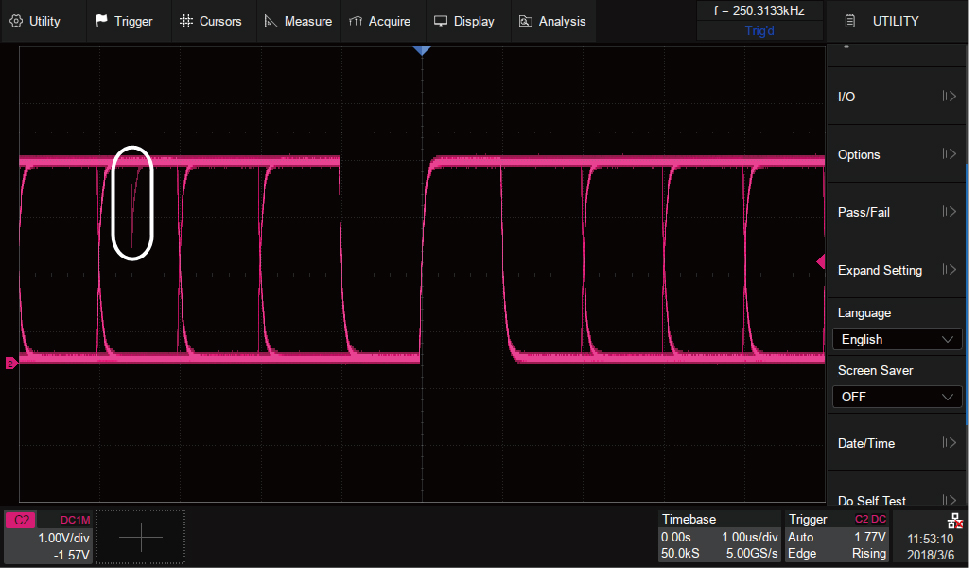

Up to 110,000 wfm/s waveform update rate

With a waveform update rate of up to 110,000 wfm/s, the oscilloscope can easily capture unusual or low-probability events. In Sequence mode the waveform capture rate can reach 500,000 wfm/s

Record Length of up to 250 Mpts/ch View more

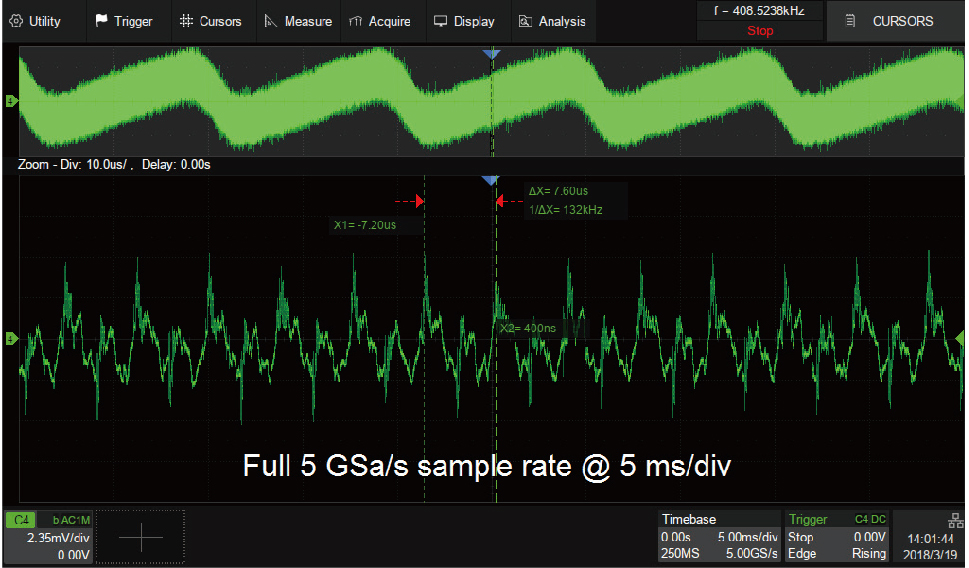

Record Length of up to 250 Mpts/ch

Using hardware-based Zoom technique and record length of up to 250 Mpts, users can select a slower timebase without compromising the sample rate, and then quickly zoom in to focus on the area of interest

Multiple Trigger Functions View more

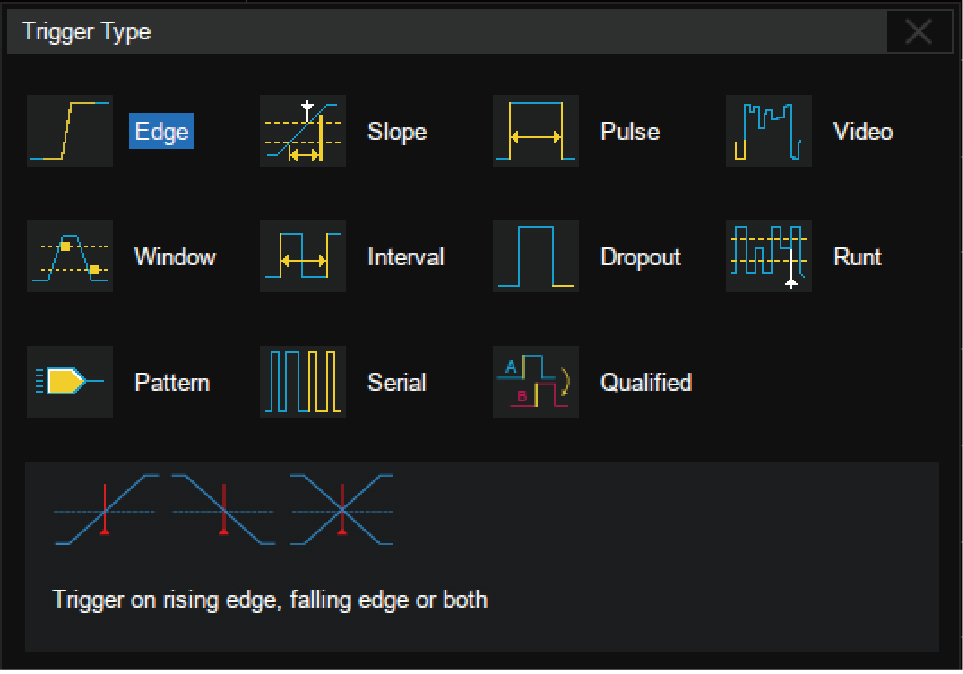

Multiple Trigger Functions

Edge, Slope, Pulse, Video, Windows, Runt, Interval, Dropout, Pattern, Qualifed and serial trigger

256-level Intensity Grading and Color Temperature Display Modes View more

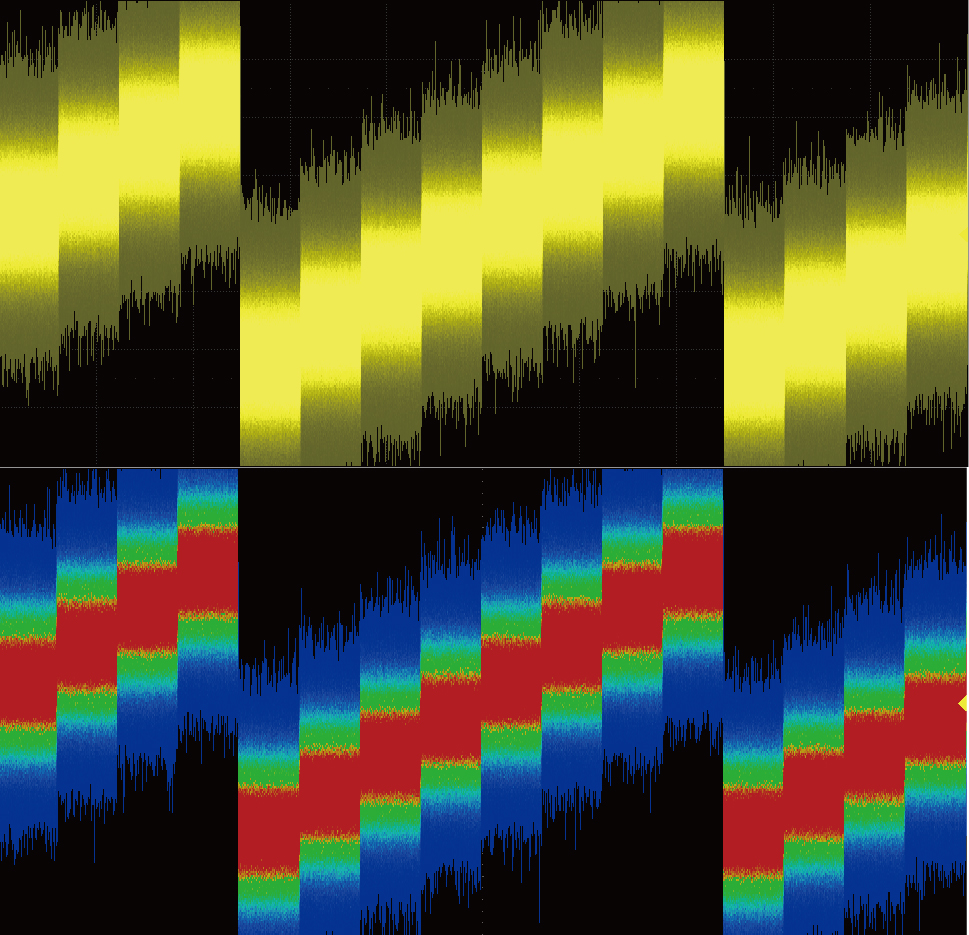

256-level Intensity Grading and Color Temperature Display Modes

Trigger Zone View more

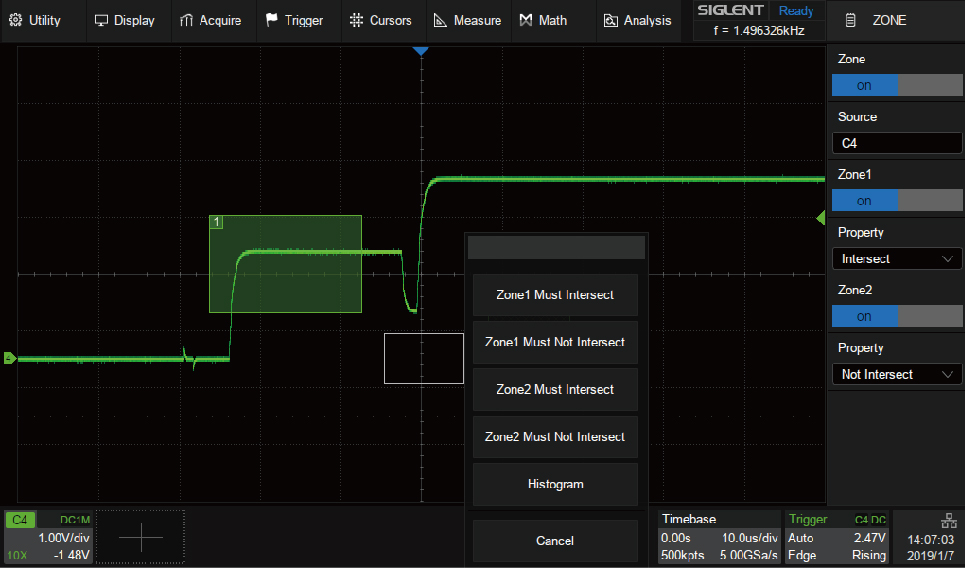

Trigger Zone

Trigger Zone is available for advanced triggering

Measurements of a Variety of Parameters View more

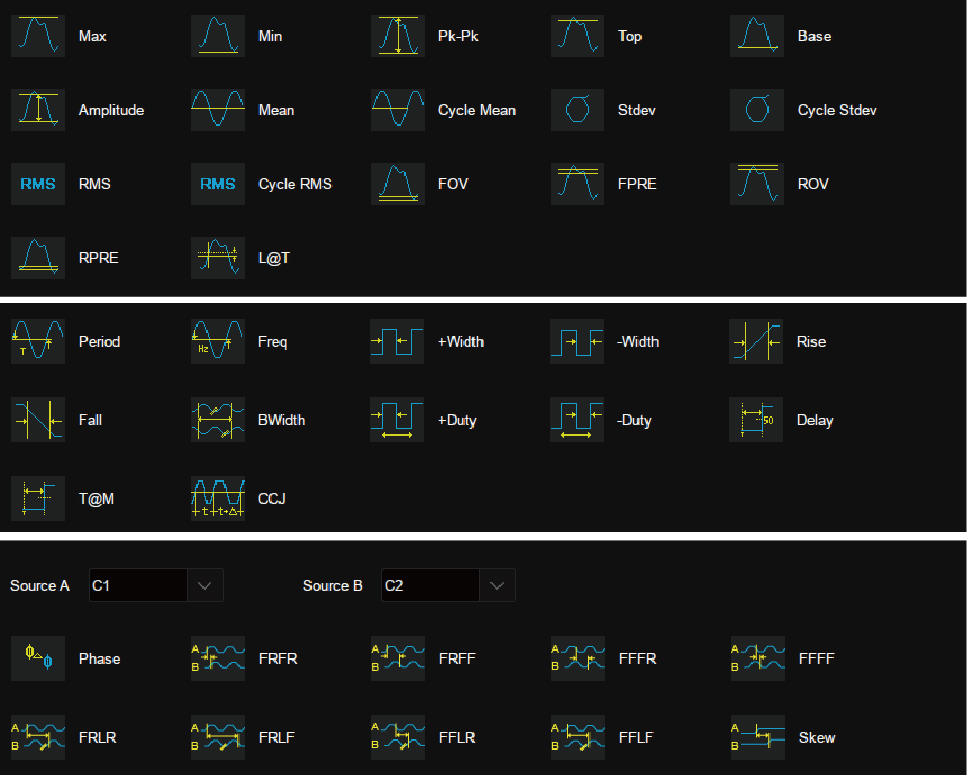

Measurements of a Variety of Parameters

Parameter measurements includes 4 categories: horizontal, vertical, miscellaneous and CH delay providing a total of 50+ different types of measurements. Measurements can be performed within a specified gate period. Measurements on Math, Reference and History frames are supported

Parameter statistics function View more

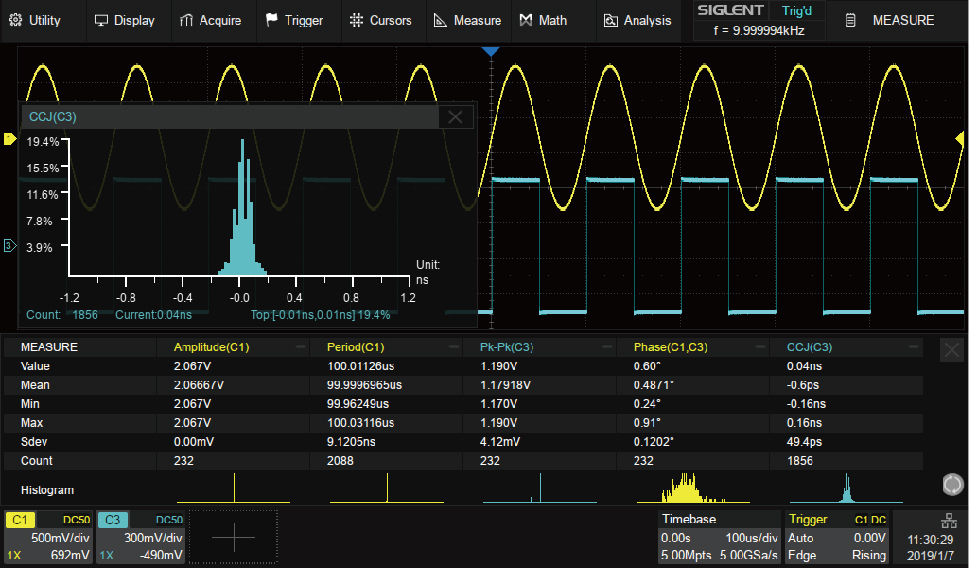

Parameter statistics function

Statistics shows the current value, maximum value, minimum value, standard deviation and mean value of up to 5 parameters simultaneously. Histogram is available to show the probability distribution of a parameter.Trend is available to show the parameter value vs. time.

Advanced Math Function View more

Advanced Math Function

In addition to the traditional (+, -, X, /) operations, FFT, integration, differential and square root operations are supported. Formula Editor is available for more complex operations, 2 math traces are available.

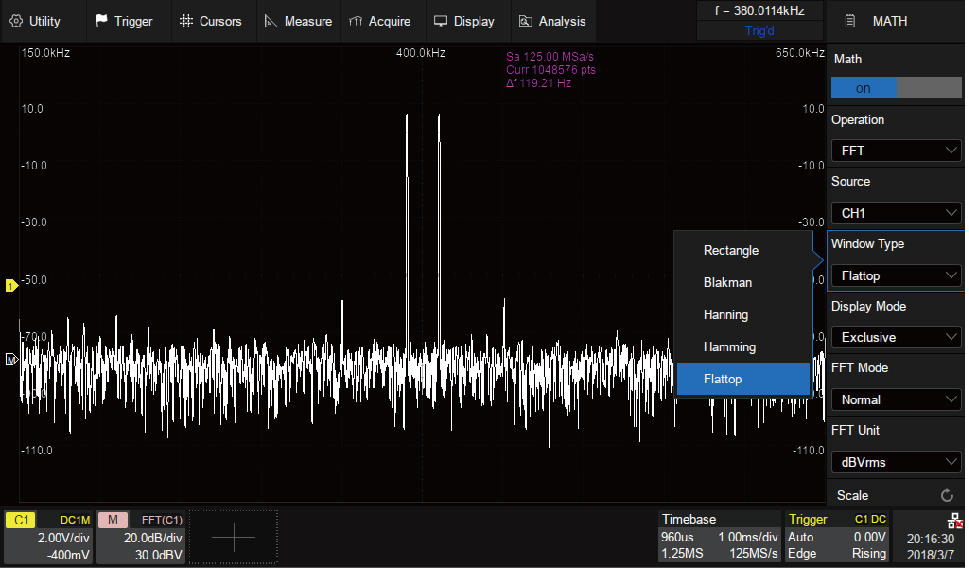

Hardware accelerated FFT supports up to 2 Mpts operation. This provides high frequency resolution with a fast refresh rate. The FFT function also supports a variety of window functions so that it can adapt to different spectrum measurement needs. Three modes (Normal, Average and Max hold) can satisfy different requirements for observing the power spectrum. Auto peak detection and markers are supported.

History Mode View more

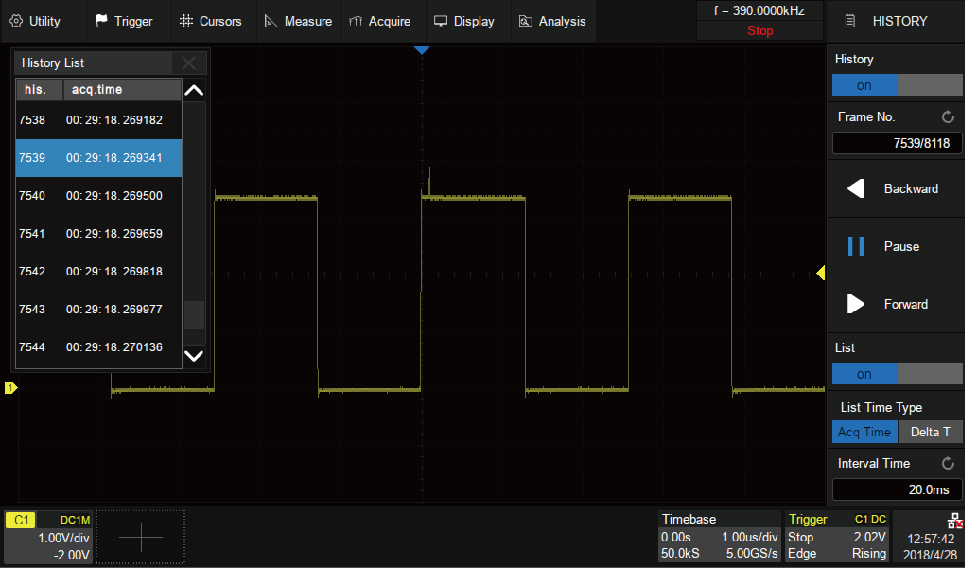

History Mode

History function can record up to 100,000 frames of waveforms. The recording is executed automatically, so that the customer can play back the history waveforms at any time in order to observe unusual events and quickly locate the area of interest using the cursors or measurements

Sequence Mode View more

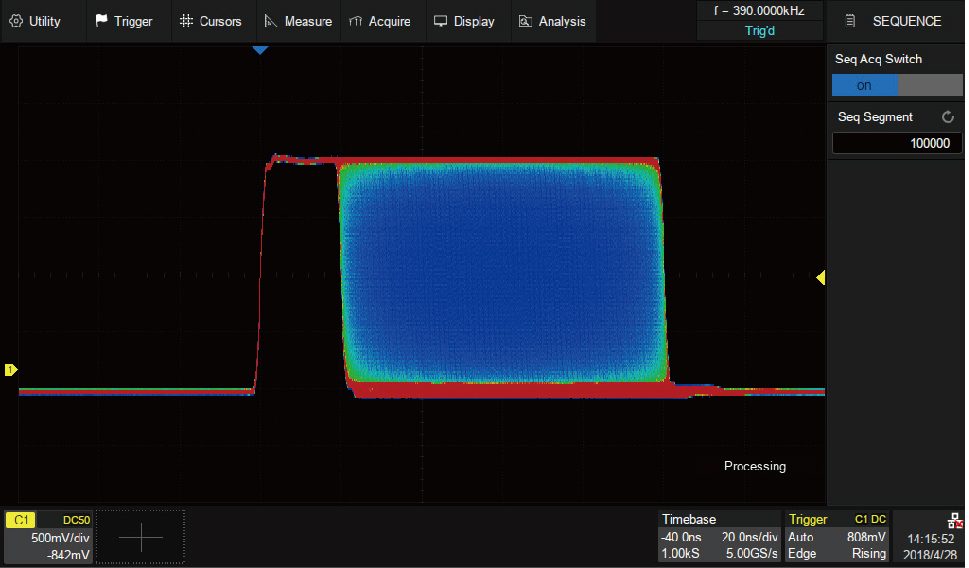

Sequence Mode

Segmented memory collection will store the waveform into multiple memory segments (up to 100,000) and each segment will store a triggered waveform as well the dead time information. The interval between segments can be as small as 2 μs. All of the segments can be played back using the History function

Search and Navigate View more

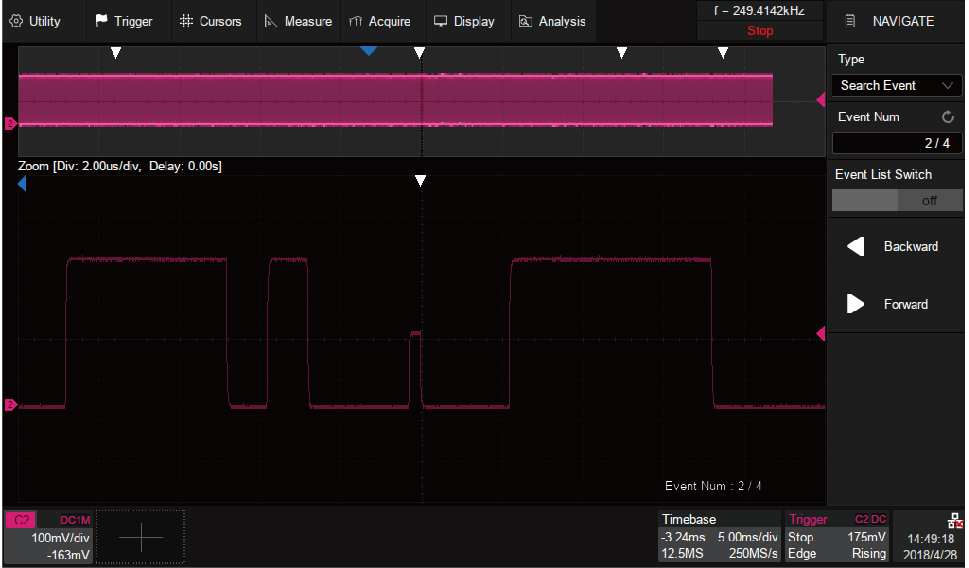

Search and Navigate

The SDS5000X can search events specifed by the user in a frame. Events flagged by the Search can be recalled automatically using Navigate. It can also navigate by time (delay position) and history frames

Hardware-based Average and Eres Acquisition View more

Hardware-based Average and Eres Acquisition

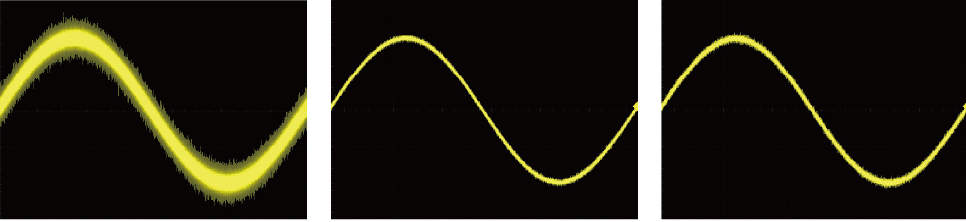

Average and ERES (Enhanced Resolution) acquisition modes are hardware-based, allowing the waveforms to be captured at a faster rate

Hardware-based High Speed Mask Test Function View more

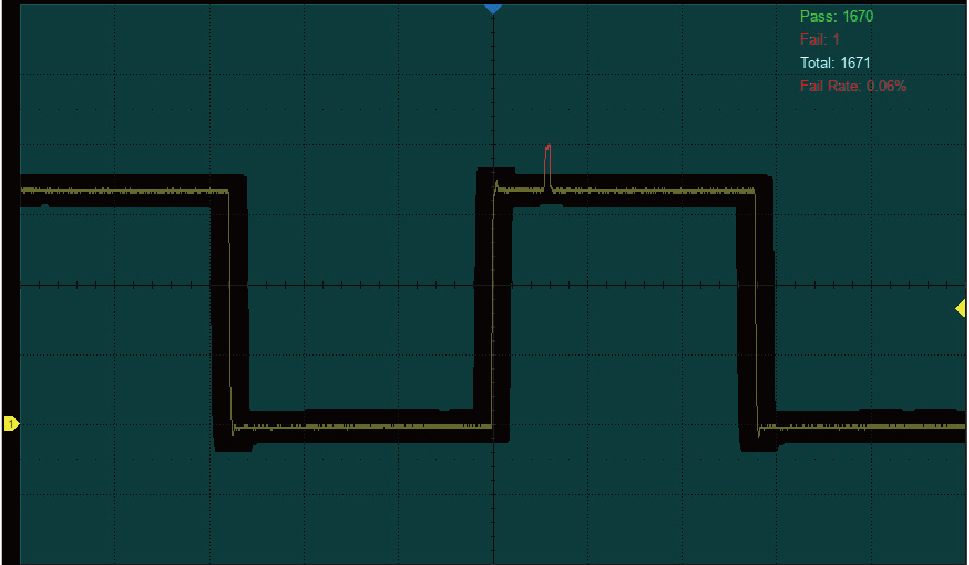

Hardware-based High Speed Mask Test Function

The SDS5000X utilizes a hardware-based Mask Test function, performing up to 110,000 Pass / Fail decisions each second. It is easy to generate user-defned test templates in order to provide trace mask comparisons, making it suitable for long-term signal monitoring or automated production line testing

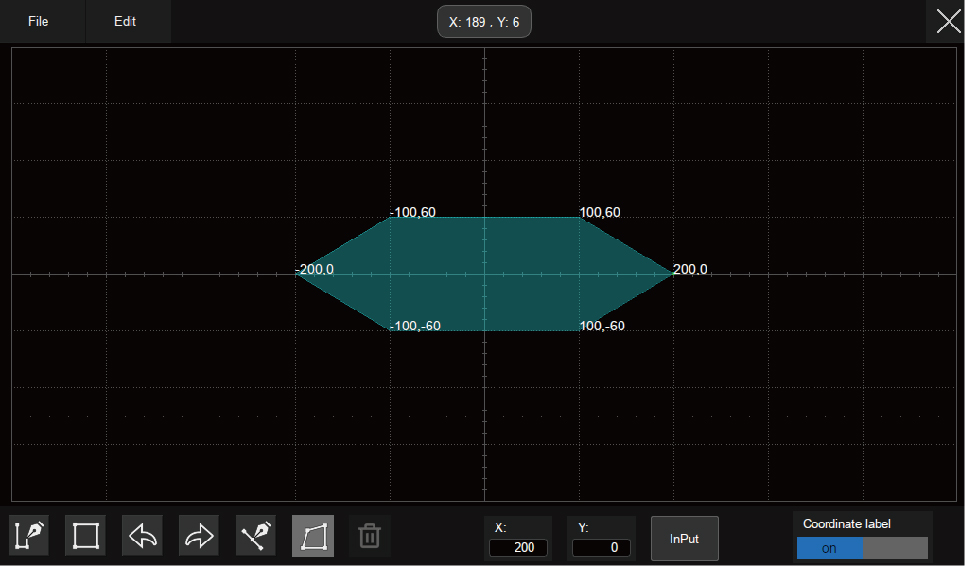

Built-in Mask Editor application helps to create custom masks

Serial Bus Decode View more

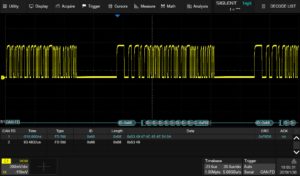

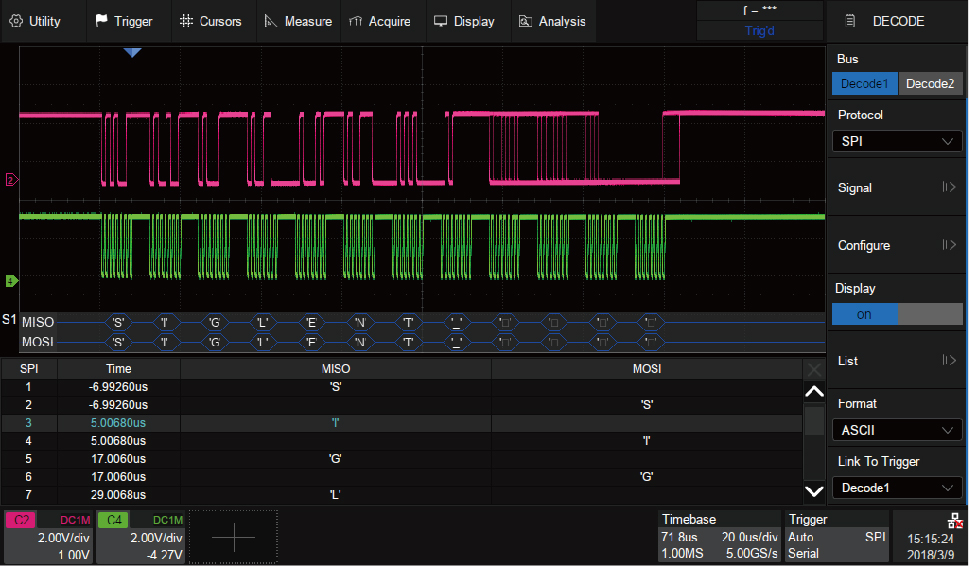

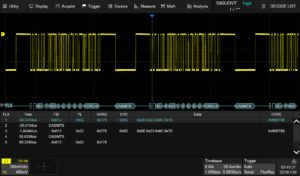

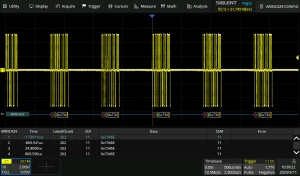

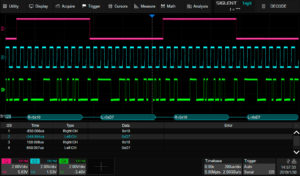

Serial Bus Decode

Display the decoded characters through the events list. Bus protocol information can be quickly and intuitively displayed in tabular form. I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S and MIL-STD-1553B are supported

Waveform Histogram View more

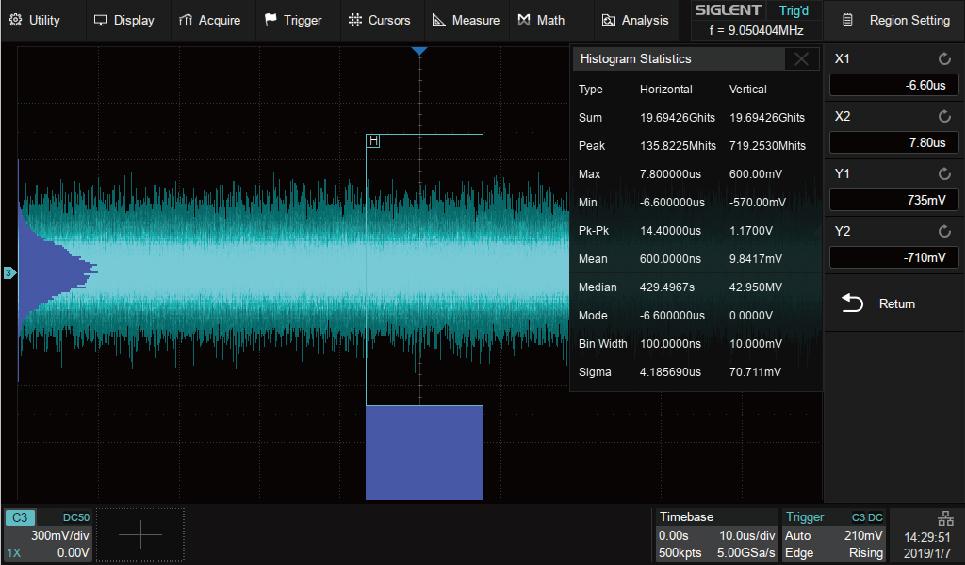

Waveform Histogram

The Waveform Histogram feature provides a statistics view of the waveform in horizontal and vertical directions

Bode Plot View more

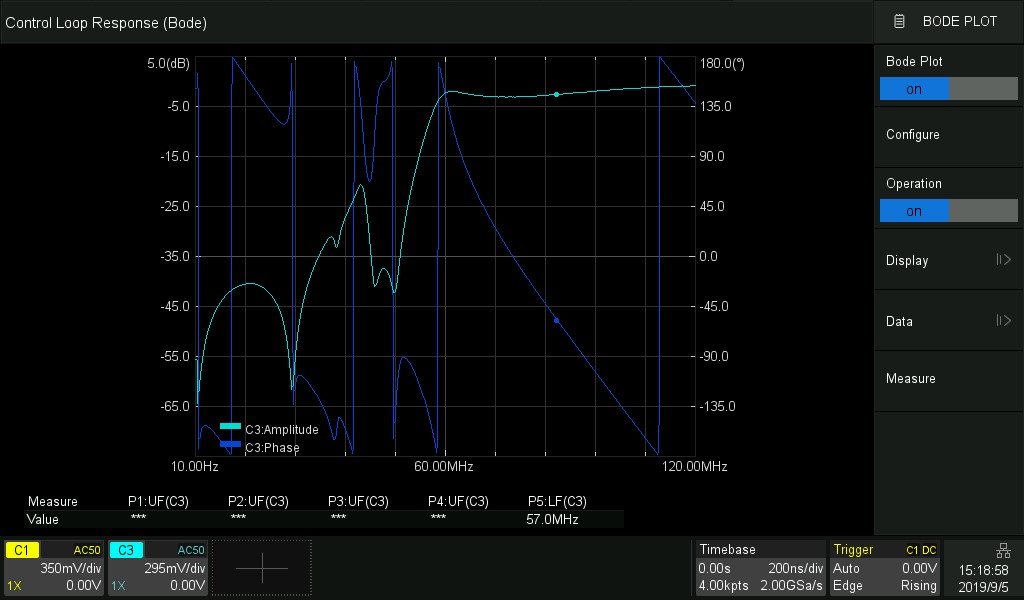

Bode Plot

The SDS5000X can control the USB AWG module or a stand-alone SIGLENT SDG generator, to scan the amplitude and phase frequency response of the DUT, and display the data as a Bode Plot. This makes it possible to replace expensive network analyzer in some applications.

Power Analysis (Optional) View more

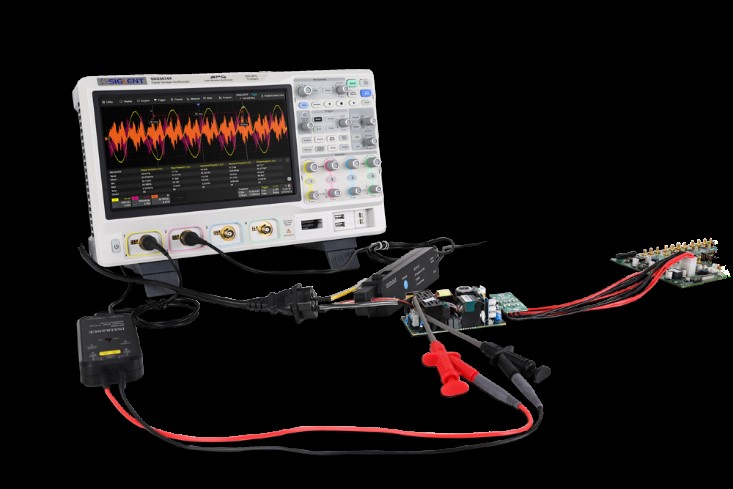

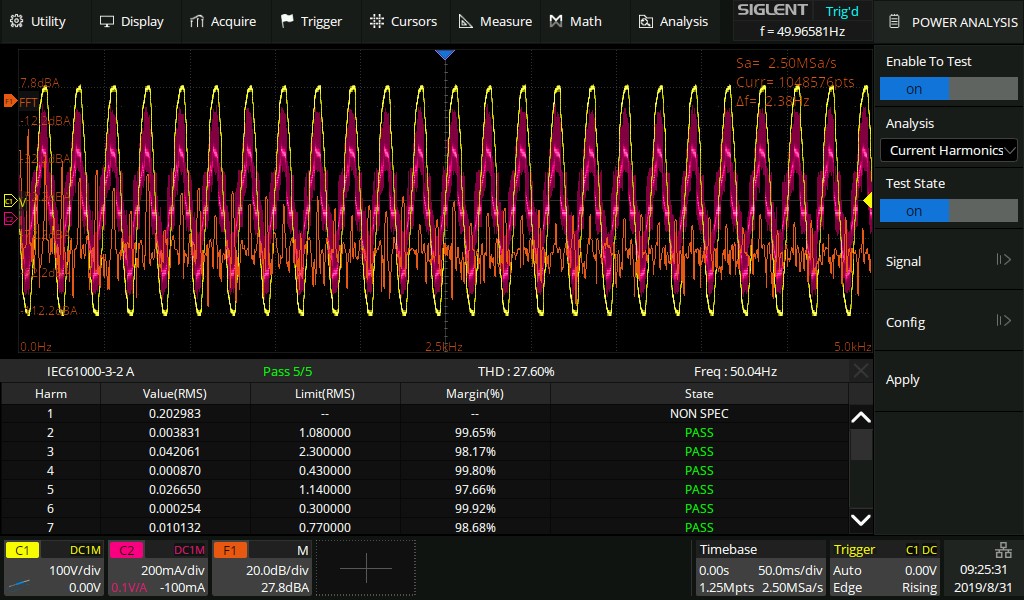

Power Analysis (Optional)

The Power Analysis option provides a full suite of power measurements and analysis, which greatly improve the measurement efficiency in switching power supplies and power devices design.

Digital Voltmeter Function View more

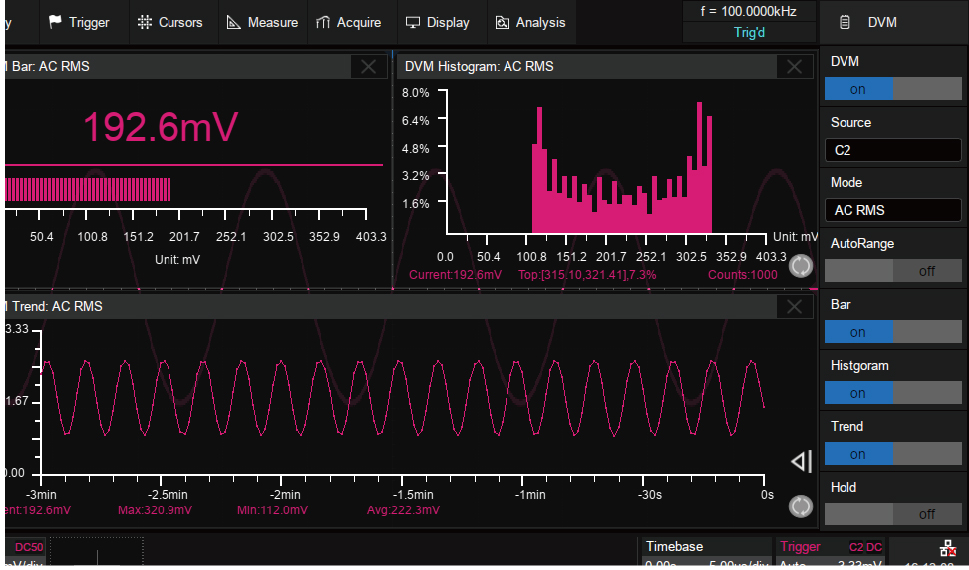

Digital Voltmeter Function

4-digit voltmeter and 7-digit frequency counter. Any analog channel can be selected as a source. Bar, Histogram and Trend diagrams are supported.

Web control View more

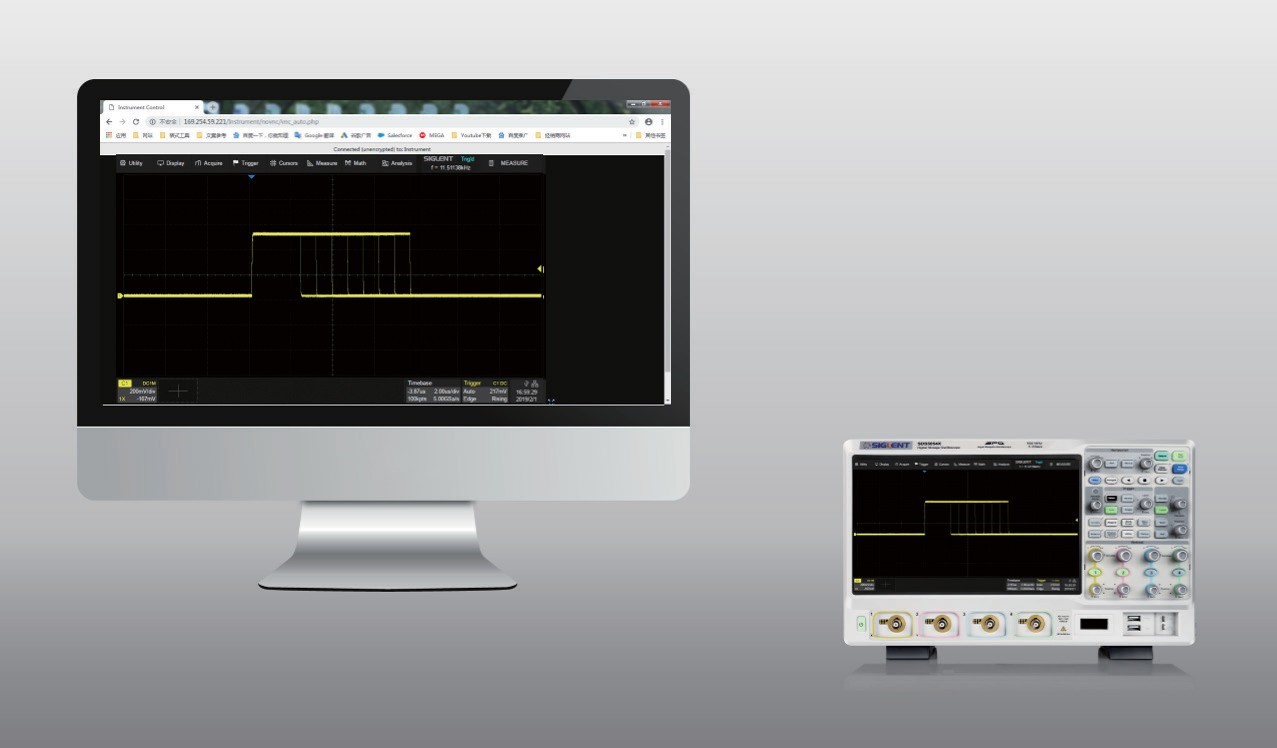

Web control

With the new embedded web server, users can control the oscilloscope from a simple web page. This provides wonderful remote troubleshooting and monitoring capabilities.

Digital Channels / MSO (Optional) View more

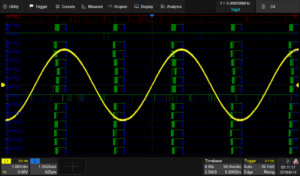

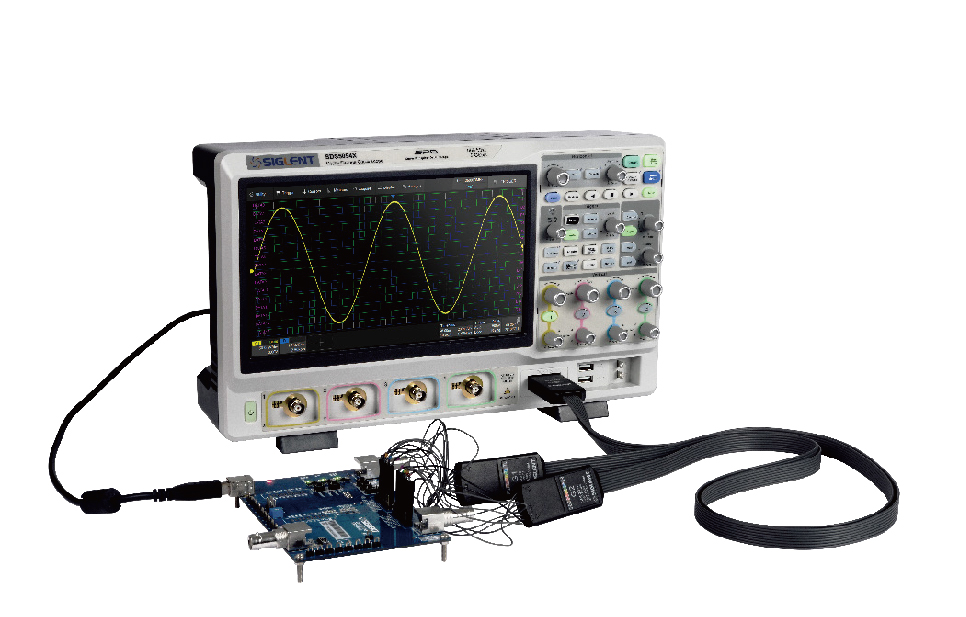

Digital Channels / MSO (Optional)

Four analog channels plus 16 digital channels enable users to acquire and trigger on the waveforms then analyze the pattern, simultaneously with one instrument

Built -in 25 MHz Function/Arbitrary Waveform Generator (Optional) View more

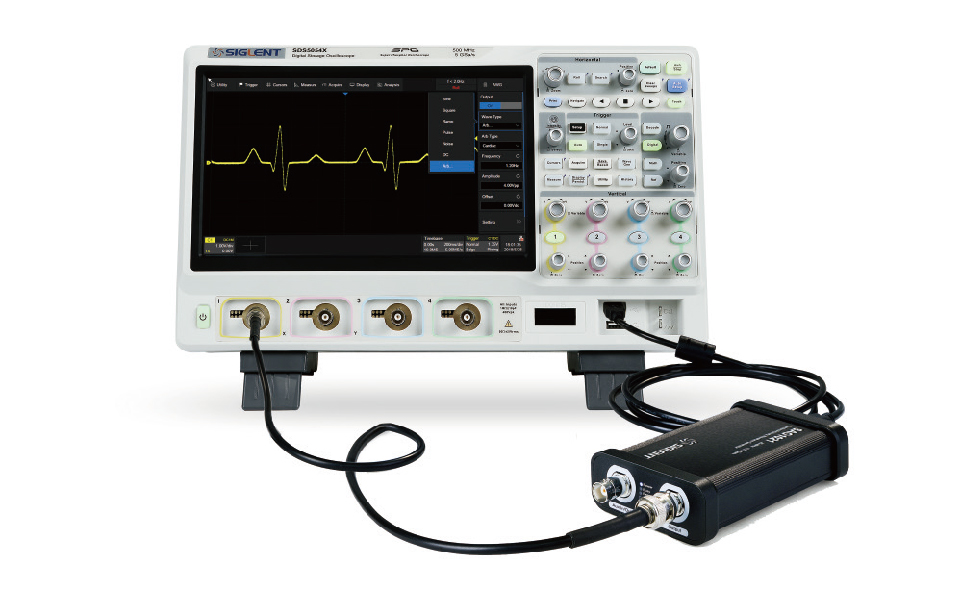

Built -in 25 MHz Function/Arbitrary Waveform Generator (Optional)

the SDS5000X can control the SAG1021I USB Function/Arbitrary waveform generator to output waveform with up to 25 MHz frequency and ±3 V amplitude. Six basic waveforms plus multiple types of arbitrary waveforms are built-in

Complete Connectivity View more

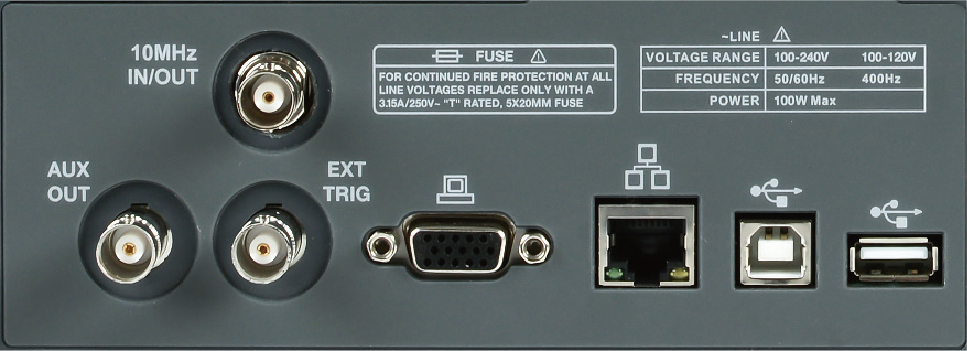

Complete Connectivity

USB Host, USB Device (USBTMC), LAN (VXI-11, telnet, socket, web), Pass/Fail, Trigger Out, 10 MHz In/Out and VGA output

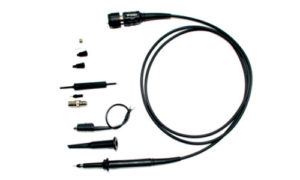

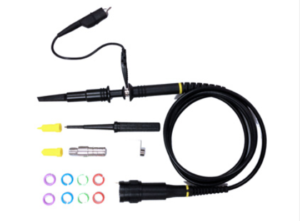

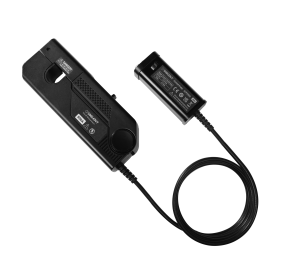

Optional Accessories
