SDG5000 Series Function/Arbitrary Waveform Generators

  • Up to 160 MHz Output Frequency
  • 500 MSa/S Sampling Rate
  • 14-bit Vertical Resolution
  • Modulation functions include: AM, DS-AM, FM, FSK, ASK, PWM, linear/log sweeping, and burst
  • 2 Isolated/Floating Outputs
  • Hardware frequency counter

Product Overview

SIGLENT’s SDG5000 is a series of dual-channel Pulse/ Arbitrary Waveform Generators that feature up to 160 MHz bandwidth, a maximum sample rate of 500 MSa/s and 14-bit vertical resolution. They also include proprietary EasyPulse technology for improved pulsed waveforms. In addition, the SDG5000 also has independently isolated outputs that can be floated up to 42 Vpk from chassis ground. These features enable the SDG5000 to provide a variety of high fidelity and low jitter signals, meeting the growing requirements of complex and intensive applications.

Max Output Frequency Max Sampling Rate Vertical Resolution Waveform Length Channels Price
SDG5162 160 MHz 500 MSa/s 14-bit CH1: 16 kpts, CH2: 512 kpts 2 €999 Discontinued

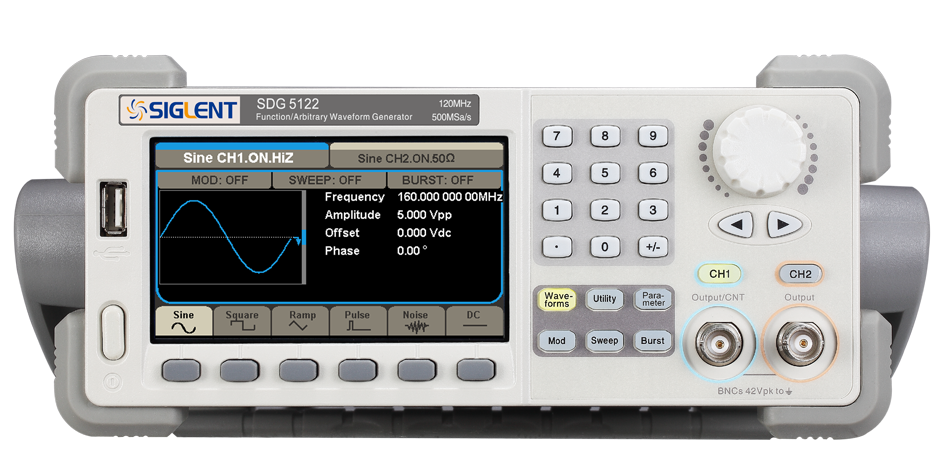

SDG5122 120 MHz 500 MSa/s 14-bit CH1: 16 kpts, CH2: 512 kpts 2 €819 Discontinued
SDG5082 80 MHz 500 MSa/s 14-bit CH1: 16 kpts, CH2: 512 kpts 2 €559 Discontinued

Key Features

  • Memory depths of 512 kpts for CH2 and 16 kpts for CH1
  • Dual Isolated/Floating Output Channels (+/- 42 Vpk from chassis ground)
  • EasyPulse Technology
  • 2 ppm frequency stability
  • -116 dBc/Hz phase noise
  • Adjustable rising/falling edges and pulse control
  • Standard interface includes USB
  • Free EasyWave arbitrary waveform editing software
  • 4.3″ LCD (480*272 pixels)

Need more information? Call us now +49 821 666 0 111 0

Product Characteristics

EasyPulse Technology View more

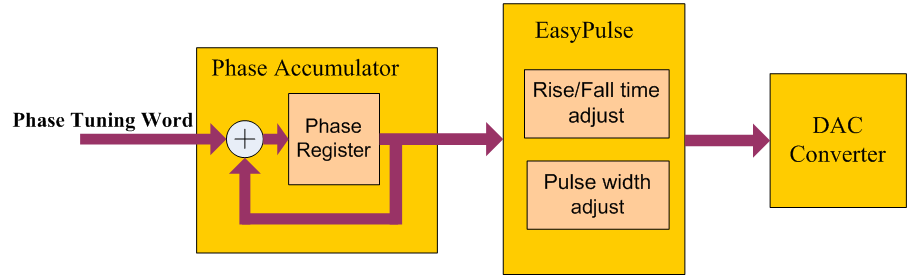

EasyPulse Technology

Edge and pulse widths adjustable over a wide range.

Low jitter View more

Low jitter

EasyPulse shows no one-reference-period-jitter, compared to DDS. Less than 100ps cycle-cycle RMS jitter

Fast rise times even at low frequencies View more

Fast rise times even at low frequencies

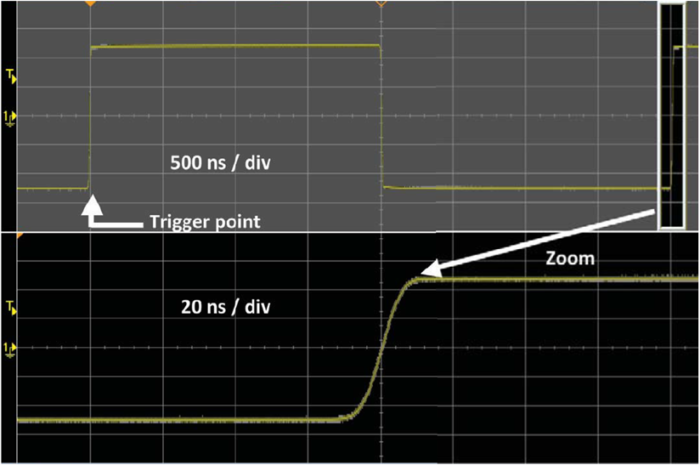

At very low frequencies (< 1Hz) the SDG5000 can still output pulses with rapid rising/falling edge (6 ns)
At low frequencies, pulse width can also be kept to a minimum 12 ns, duty cycle can be as small as 0.0001%

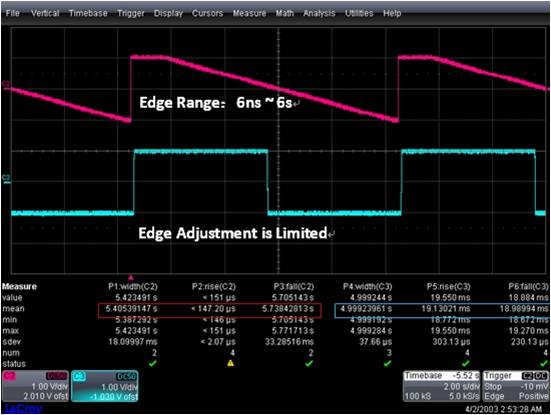

At 0.1Hz pulse, Easypulse edge can be a wide range of adjustment, the minimum edge is 6ns the maximum edge can be adjusted to 6s; but the ordinary DDS pulse edge adjustment is more restricted.

High frequency output View more

High frequency output

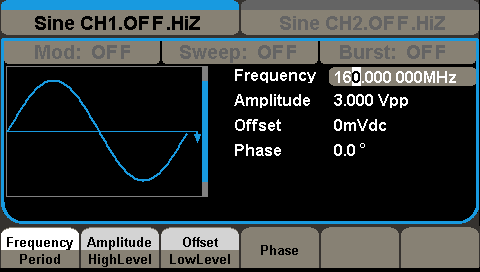

Output frequency up to 160MHz

Industry standard modulation choices View more

Industry standard modulation choices

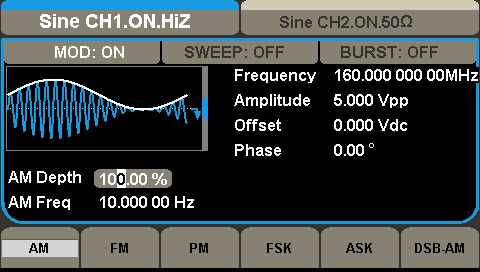

Abundant modulation functions, sweep-frequency output, burst output with internal, gated, an external control.

Save setups and more to internal memory View more

Save setups and more to internal memory

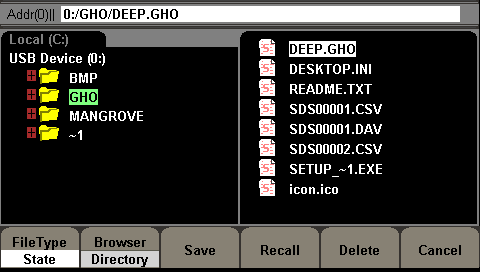

Read arbitrary waveform files, read oscilloscope storage files (.CSV)
