Adjusting measurement font size with the SDS2000X series

December 22, 2017

You can increase the font size used for the measurement functions of the SDS2000X series.

To activate this function:

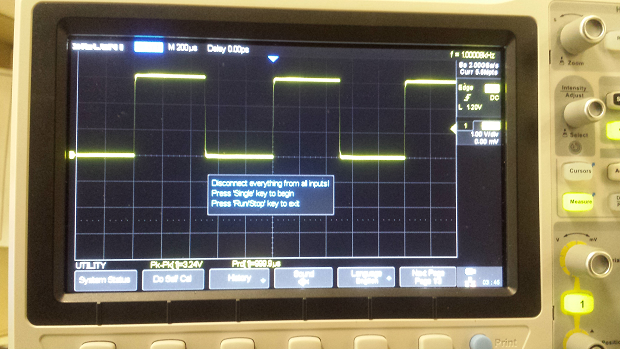

– Press Utility > Do Self Cal (Page 1/3). This will bring up the Self Cal warning:

– From the warning page, press Cursors 1 time > Measure 1 time > Display/Persist two times > MeasureĀ 1 time > Cursors 1 time

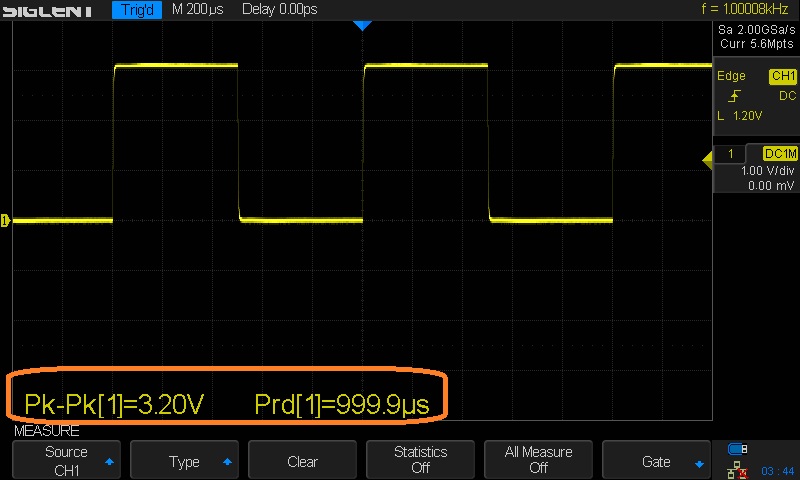

This will increase the font size, as shown:

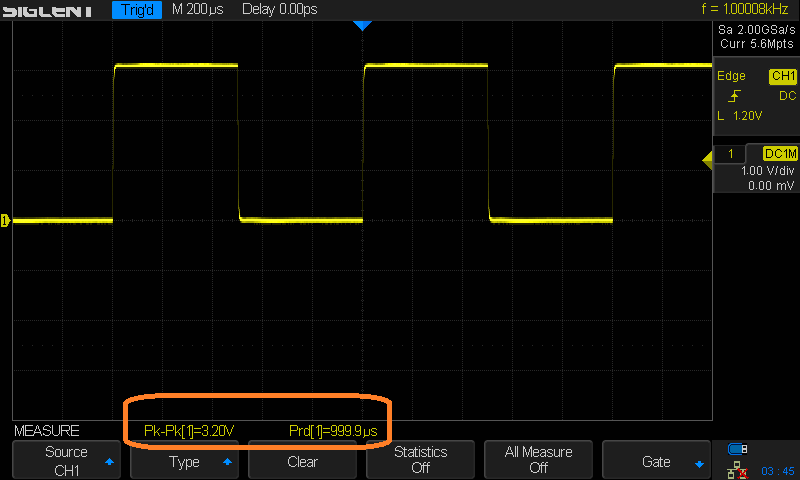

To go back to defaults:

– Press Utility > Do Self Cal (Page 1/3). This will bring of the Self Cal warning.

– From the warning page, press Display/Persist 1 time > Measure 1 time > Cursors two times > Measure 1 time > Display/Persist 1 time
