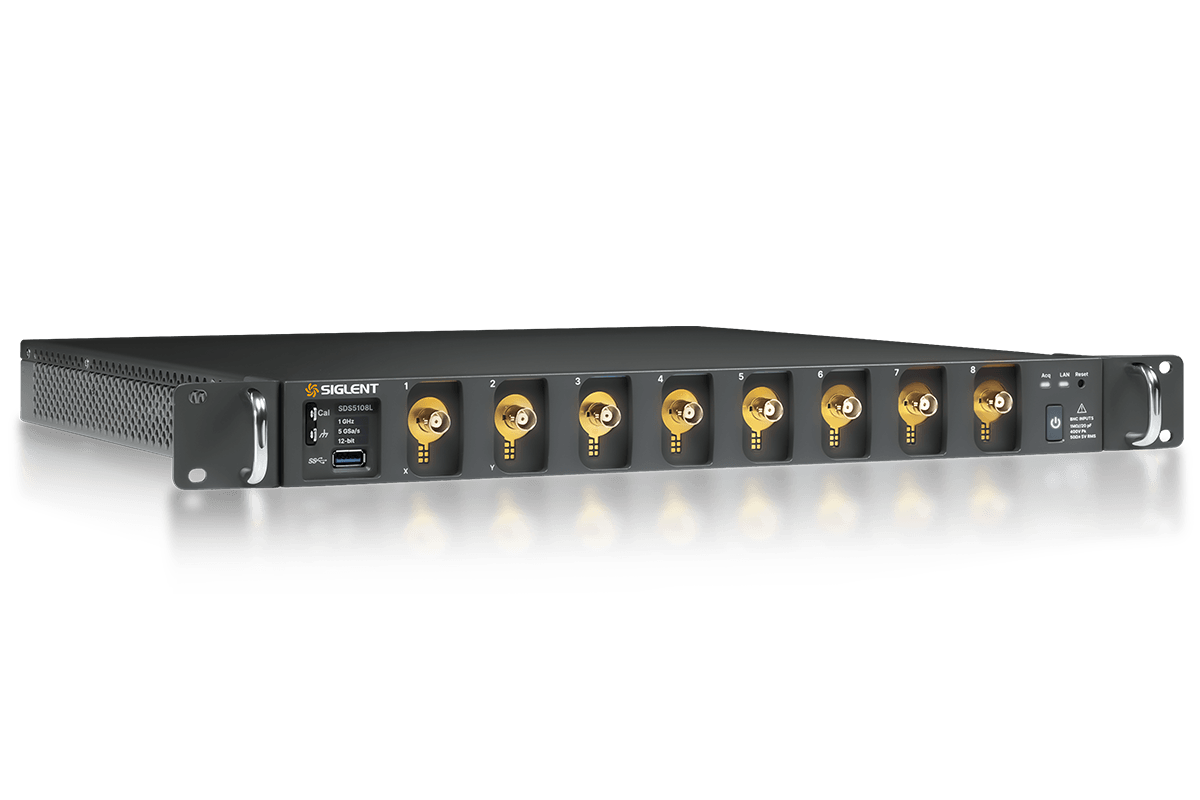

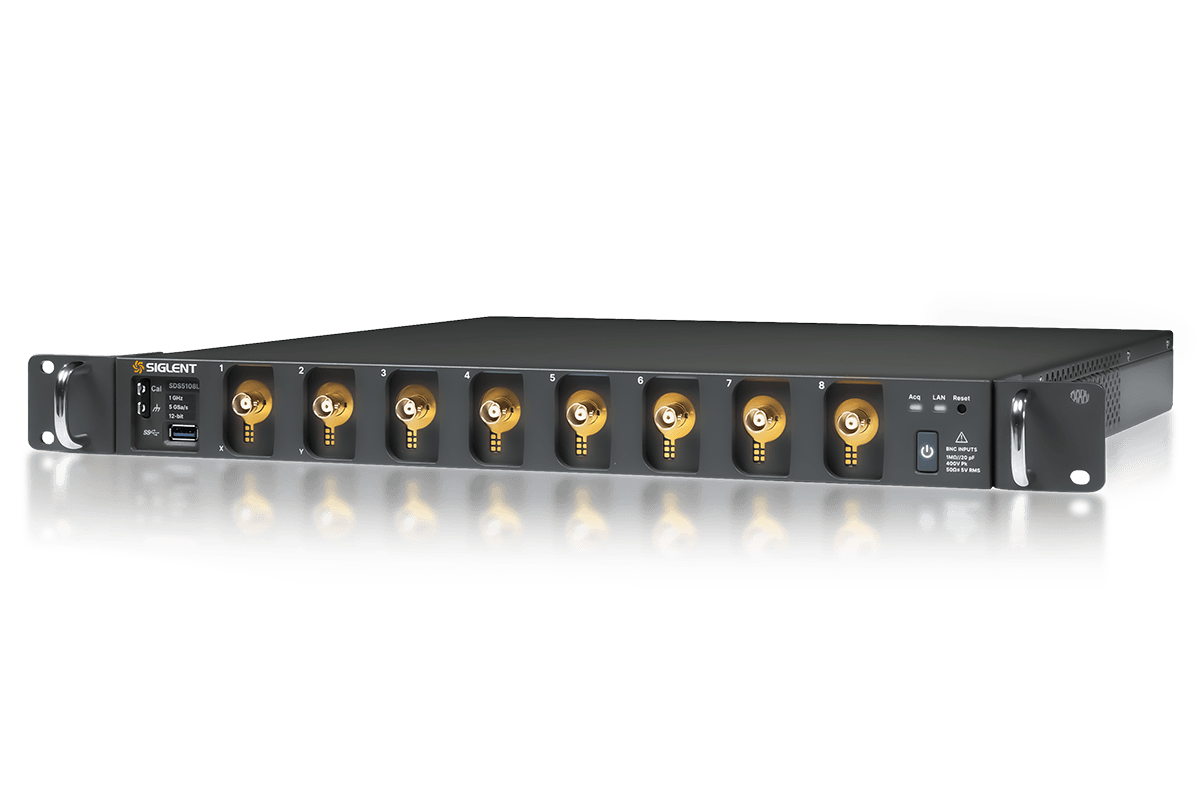

SDS5000L Low Profile Digital Storage Oscilloscope
- 350 MHz, 500 MHz, 1GHz models
- 8 analog channels + 1 external trigger
- Sampling rate up to 5 GSa/s
- Up to 2.5 Gpts waveform length
- SYNC-64 to Synchronize 64 x SDS5000L
- Waveform capture rate up to 650,000 wfm/s (Sequence mode)
Product Overview
SDS5000L are available in 8 channels, bandwidths of 350 MHz, 500 MHz and 1 GHz, have 12-bit ADCs with sample rate up to 5 GSa/s, maximum record length of 2.5 Gpts/ch. SDS5000L series employs Siglent’s SPO technology with a maximum waveform capture rate of up to 160,000 wfm/s, 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, Power Analysis allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, as well as serial decoding are also features of them.
The SDS5000L is a low-profile module without an integrated display or digital input channels (MSO capability). Multiple SDS5000L modules can be synchronized using a 64-channel distributor (SYN64) to form a high-channel-count acquisition system scalable up to 512 channels. Alternatively, an individual SDS5000L module can function as a standalone oscilloscope when connected to an external display and mouse. Remote control is supported via LAN, including web browser access. A comprehensive SCPI command set over the integrated 1000 Mbps Ethernet interface facilitates rapid data acquisition for automated test applications.
Key Features
- 8 channels for SDS5000L
- Up to 1 GHz bandwidth with up to 5 GSa/s sample rate
- 12-bit ADC
- Low noise floor: 140 μVrms @ 1 GHz bandwidth (typical)
- SPO technology
Waveform capture rates up to 160,000 wfm/s in normal mode and 650,000 wfm/s in sequence mode
Supports 256-level intensity grading and color temperature display modes
Up to 2.5 Gpts/ch waveform length
Digital trigger system - Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay and Video (HDTV supported). Zone Trigger simplifies advanced triggering
- Serial bus triggering and decoder, supports protocols including I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester and ARINC429
- Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 170,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
- History waveform record (History) function, the maximum recorded waveform length is 170,000 frames
- Automatic measurements on 60+ parameters, supports statistics with histogram, track, trend, gating measurement, and measurements on Math, History and Memory traces
- 8 Math traces (8 Mpts FFT, Filter, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor
- Abundant data analysis functions such as Search, Navigate, Digital Voltmeter, Counter, Waveform Histogram, Bode plot, Power Analysis and Double Pulse Test
- High Speed hardware-based Average, Hi-Res; High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks
- External 50 MHz waveform generator supported

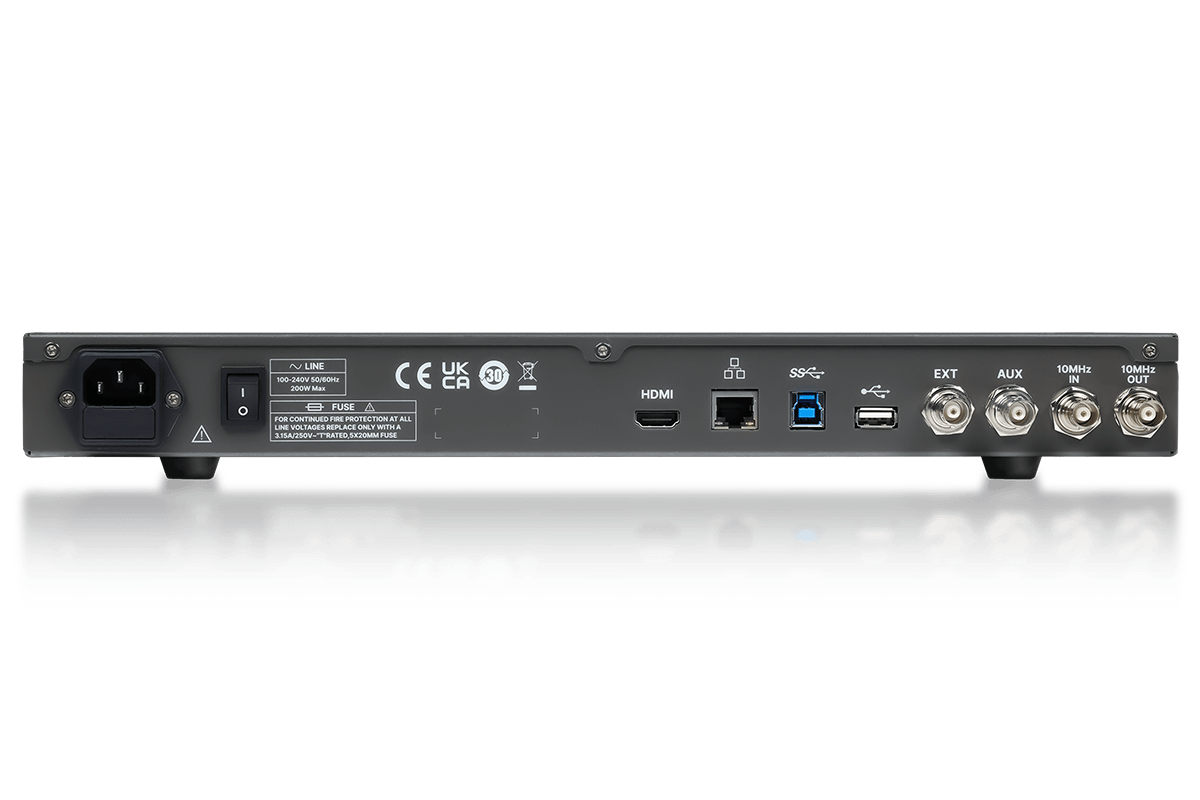

- Interfaces include: 1 x USB Host 3.0 , USB 2.0 Host, USB 3.0 Device (USBTMC), 1000M LAN, HDMI, External Triger In, Aux Out (Pass/Fail, Trigger Out), 10 MHz In, 10 MHz Out
- Built-in web server supports remote control over the LAN port using a web browser. Support SCPI remote control commands. Support external mouse and keyboard
Product Characteristics
Power-Up Sequence Analysis View more
Power-Up Sequence Analysis

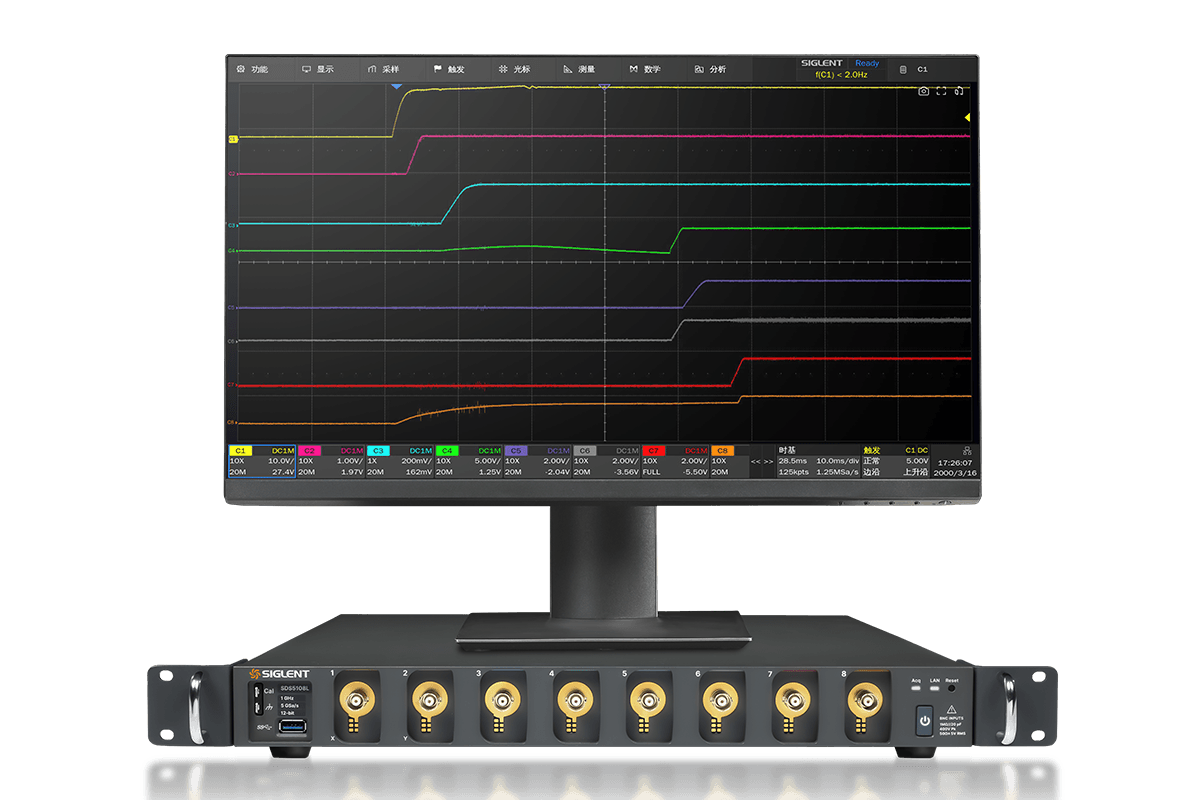

Modern electronic systems incorporate various chips and modules whose initialization and operation may interfere with each other. Power-up sequence testing ensures that signals from different circuit modules follow the correct timing to avoid conflicts and guarantee system stability. For example, improper power-up sequences in communication systems can lead to data transmission errors. As circuit complexity increases, so do the challenges of power-up testing. The SDS5000L captures the entire power-up process of all relevant signals in a single acquisition, reducing measurement time, improving efficiency, and minimizing errors caused by repeated tests. For complex circuits with 8 power rails, this capability enables one-shot measurements.
Three-Phase Power Analysis View more
Three-Phase Power Analysis
Using an 8-channel oscilloscope for three-phase power analysis allows simultaneous connection to all phases. It synchronously measures three-phase voltage and current signals, accurately capturing waveforms and parameters in real time. Users can directly observe and compare phase relationships to ensure balance. With the Fast Fourier Transform (FFT) function, multi-channel oscilloscopes perform harmonic analysis on three-phase signals. Optional three-phase analysis software supports vector diagram testing for motors, power quality assessment, ripple analysis, and efficiency evaluation.
Complete Wide Bandgap Semiconductor Testing Solution View more
Complete Wide Bandgap Semiconductor Testing Solution
The launch of Siglent latest 8-channel oscilloscopes and optically isolated probes completes the final piece of the wide bandgap semiconductor testing puzzle. The SDS5000L achieves a rise time at the picosecond (ps) level, capturing fast-switching waveforms of silicon carbide (SiC) and gallium nitride (GaN) devices. It analyzes transient voltage and current changes during switching, as well as characteristics like overshoot and ringing, to optimize circuit design and signal integrity.
Flexible Multi-channel High-speed Acquisition System with the SDS5000L View more
Flexible Multi-channel High-speed Acquisition System with the SDS5000L

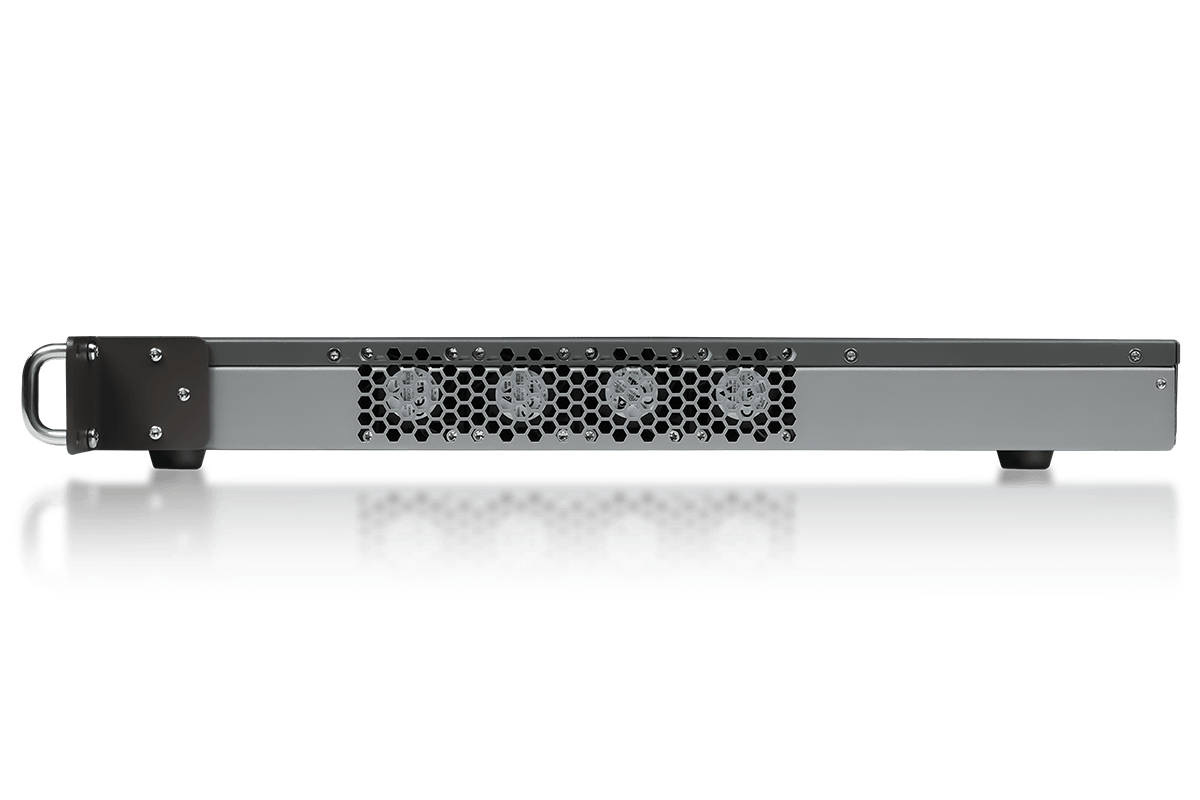

The SDS5000L features a compact form factor with a mere 1U height, enabling the construction of flexible multi-channel acquisition systems. Multiple units are combined to create a high-speed acquisition system with up to 512 channels by being triggered with low-skew synchronization signals from the 64-channel synchronization distributor SYN64 The host can access each unit over 1000M LAN. A complete SCPI command set as well as LabVIEW and IVI drivers are provided for easy data acquisition. The LAN port is LXI compliant. Sample clocks are synchronized between all units in the test system by cascading the 10 MHz In and 10 MHz Out clocks in a daisy chain.
Standard Accessories
Optional Accessories
SAG1021I
External Arbitrary Waveform Generator，the frequency depends on the frequency defined by the oscilloscope FG option.
Learn more
SP6150A 1.5 GHz Oscilloscope probe
Bandwidth: 1.5 GHz (X10) Input Resistance (Probe + Scope) 500Ω±10Ω Input Capacitance 1.8pF Scope Input Coupling 50Ω Operating Temperature: 0-50℃ For more information, view the SP6150A Datasheet
Learn more
Power Rail Probe SAP4000P
4 GHz power rail probe for use with all Siglent SAPBus enabled oscilloscopes. To learn more, click on the SAP4000P User Manual Bandwidth 4 GHz Low frequency resistance 20 kΩ High frequency resistance 50 Ω Offset voltage range ±24 V Attenuation ratio 1.1:1 Dynamic range ±600 mV
Learn more

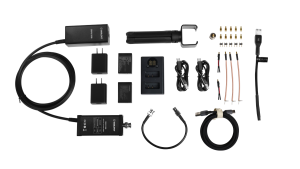

ODP6000B Optical isolated probe
500 MHz(ODP6050B)、1 GHz(ODP6100B), 50X, Max. Differential Test Voltage (DC + Peak AC) +/-25 V, Isolated Voltage +/-60 kV, DC 5 V adapter or 7.4 V battery Power supply
