SHS Probe Compensation Adapter
October 25, 2017
The SIGLENT SHS series of handheld scopes feature a small probe compensation adapter that is used to deliver a known signal (3 Vp-p 1 KHz square wave) that can be used to compensate the probes.

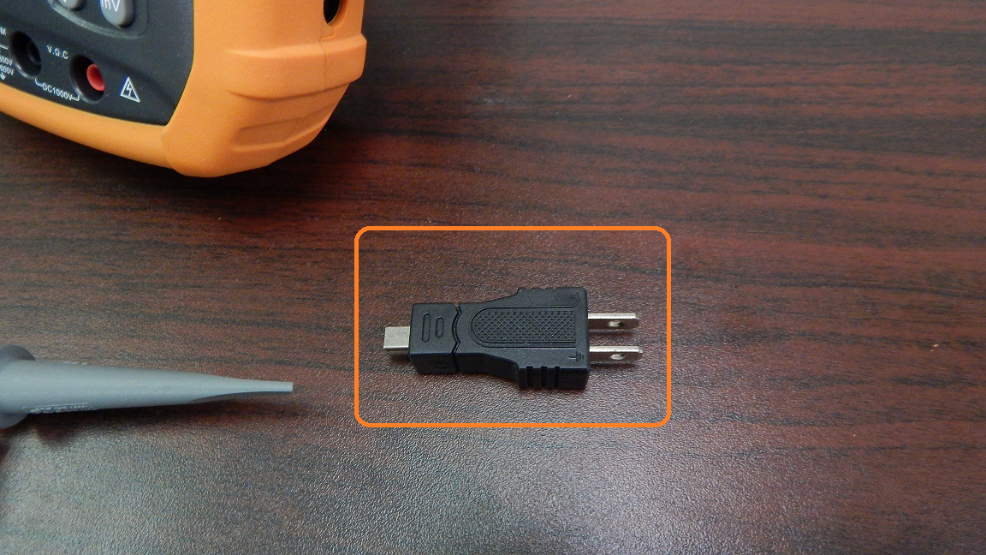

The probe compensation adapter is shown here:

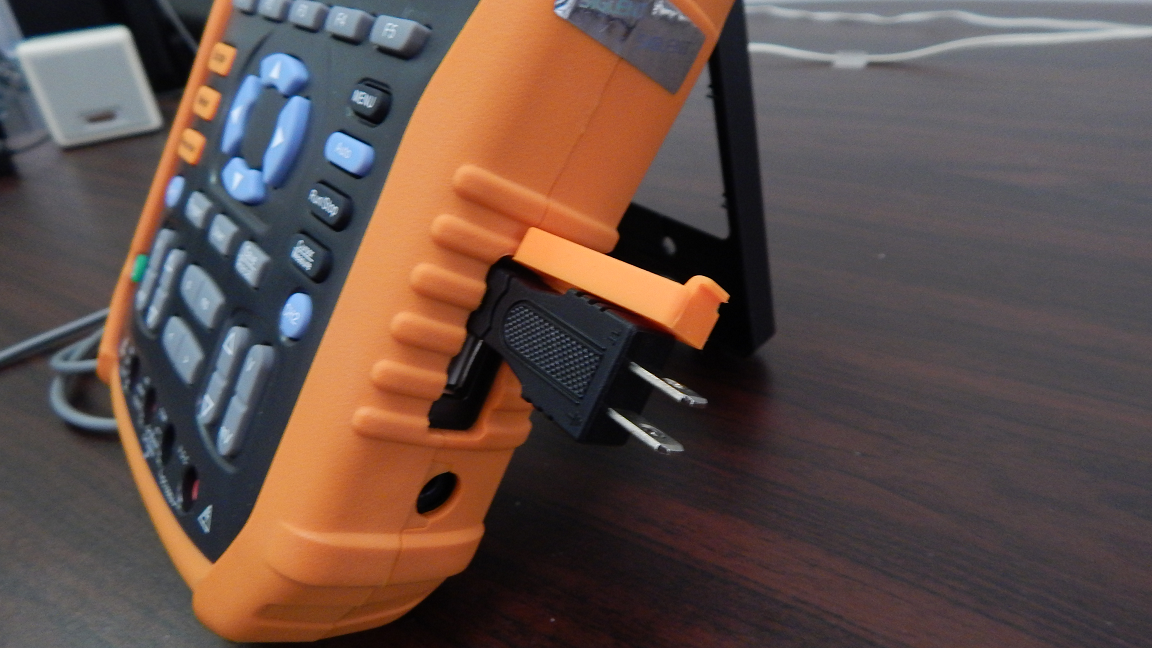

Open the side port on the SHS and insert the probe compensation adapter as shown:

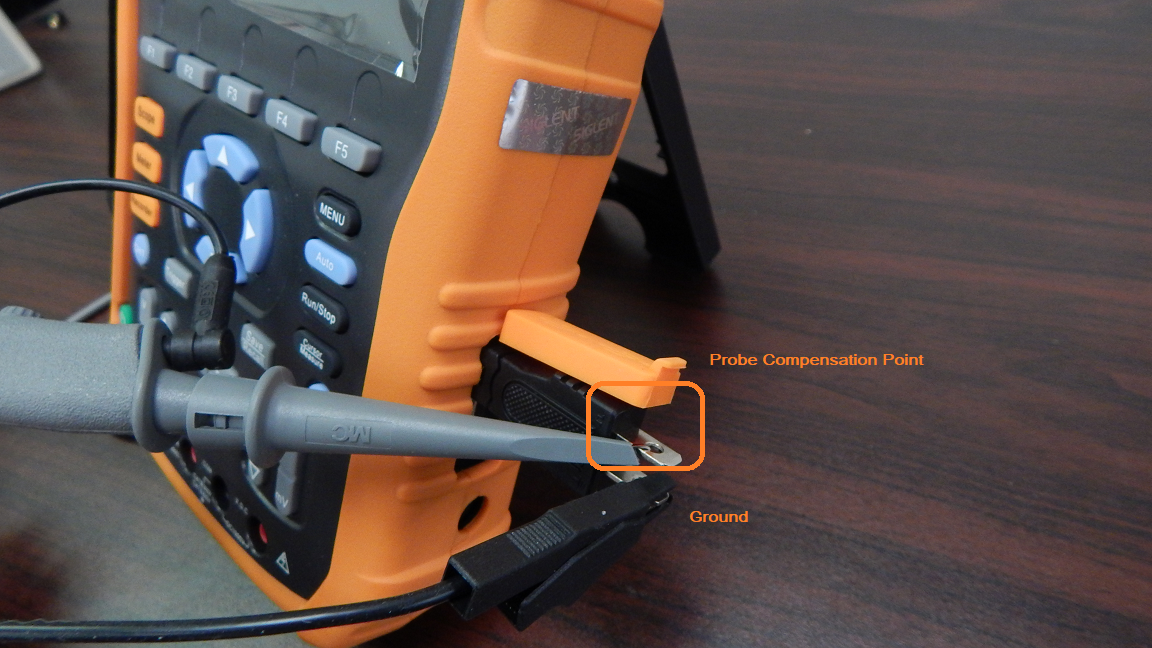

Connect the probe tip to the “Square” signal blade and the probe ground clip to the “Ground” signal blade as shown:
