How do I check the options on an SSA3000X Series Spectrum Analyzer?

October 24, 2017

The SIGLENT SSA3000X series of spectrum analyzers are available with a number of options that can assist in performing certain measurement and test functions.

To check the current status of an option:

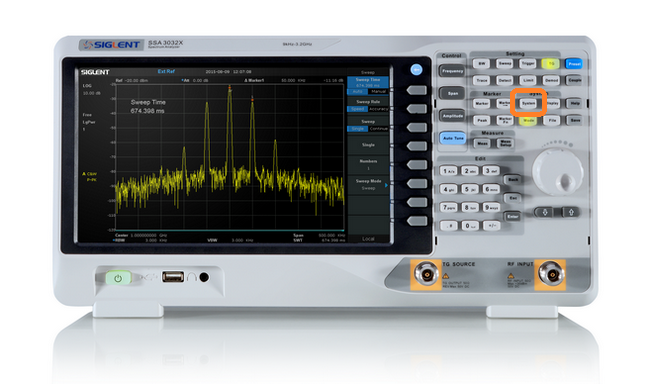

1. Press SYSTEM on the front panel

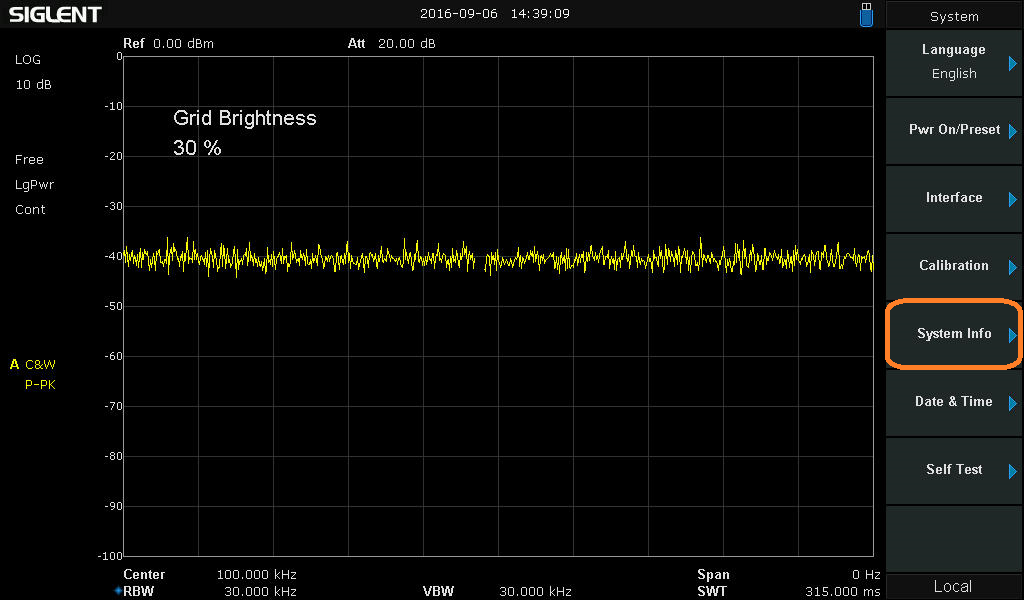

2. Press the System Info softkey

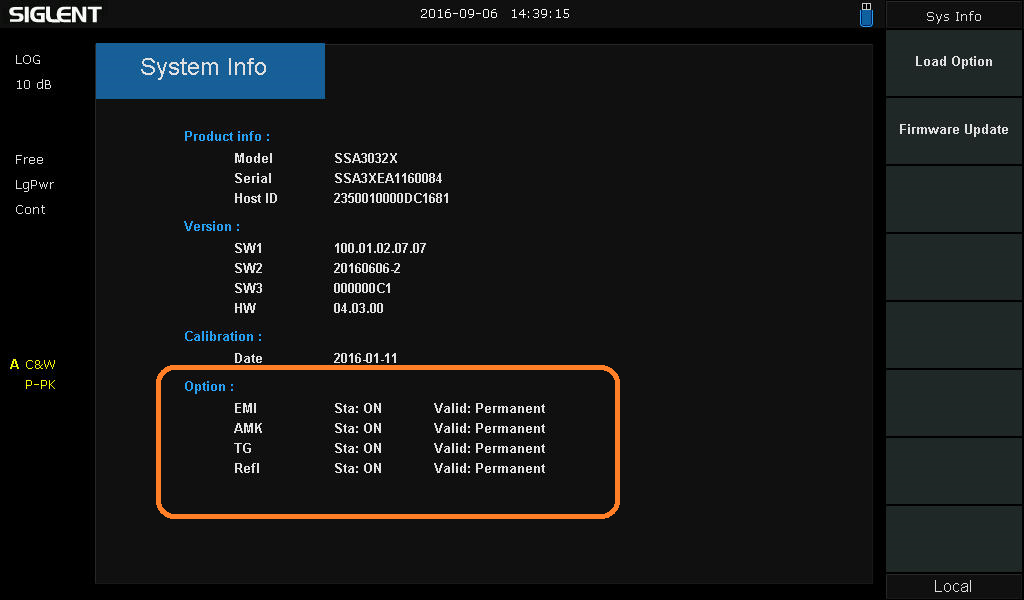

3. The options and current status’ are similar to those shown in the example below:
