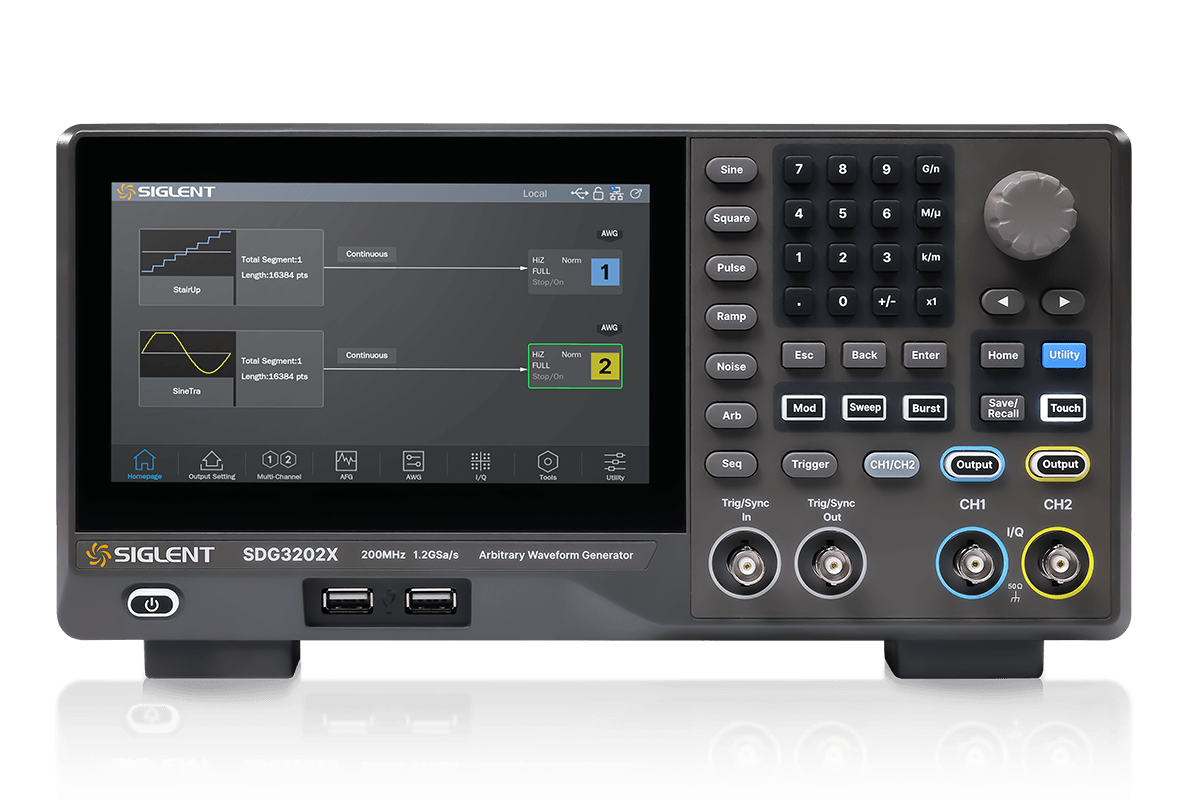

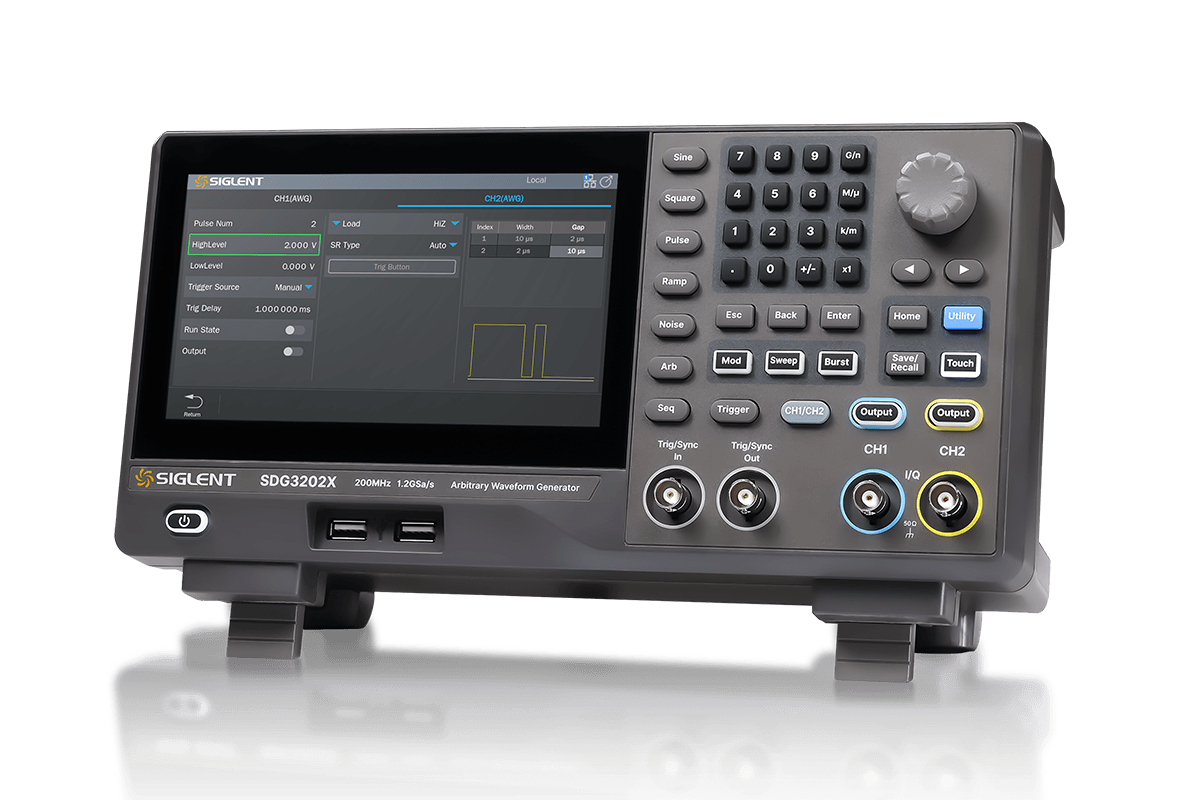

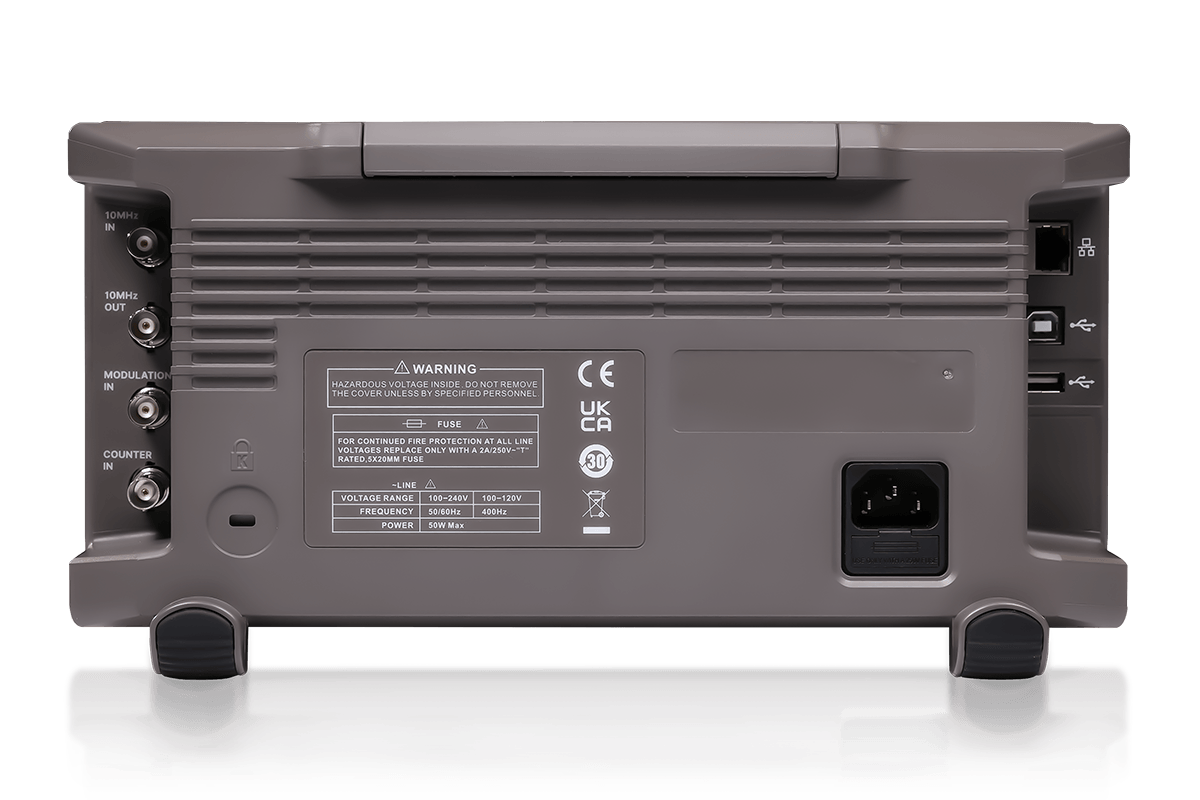

SDG3000X Series Function/Arbitrary Waveform Generators
- Output frequency: 80/160/200MHz
- Sampling rate: 1.2 GSa/s
- Vertical resolution: 16-bit

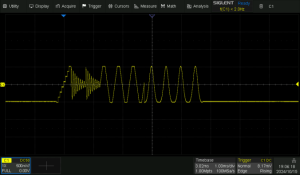

- Arbitrary waveform length: 40 Mpts/ch
- Supports dual pulse output function
Product Overview
The SDG3000X series dual-channel function/arbitrary waveform generator has a maximum bandwidth of 200MHz, an excellent sampling system specifications of 1.2 GSa/s sampling rate and 16-bit vertical resolution. Based on the traditional DDS technology, it adopts the innovative TrueArb and EasyPulse technologies, which overcome the inherent defects of DDS technology in outputting arbitrary waves and square waves/pulses, and can provide users with high-fidelity, low-jitter signals. In addition, the SDG3000X also provides PRBS pattern generation, sequence, dual pulse, and vector signal output functions to meet a wider range of application needs.
Key Features
- Maximum output amplitude 20 Vpp
- Rich analog and digital modulation functions: AM, DSB-SC, FM, PM, FSK, ASK, PSK and PWM
- Sweep and Burst functions
- Harmonic function

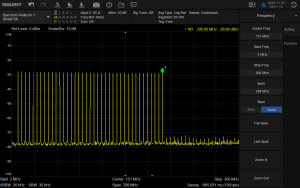

- Waveform Combining function
- 196 built-in arbitrary waveforms
- Built-in WebServer supports instrument control via web browser
- 7-inch display touch screen
Product Characteristics

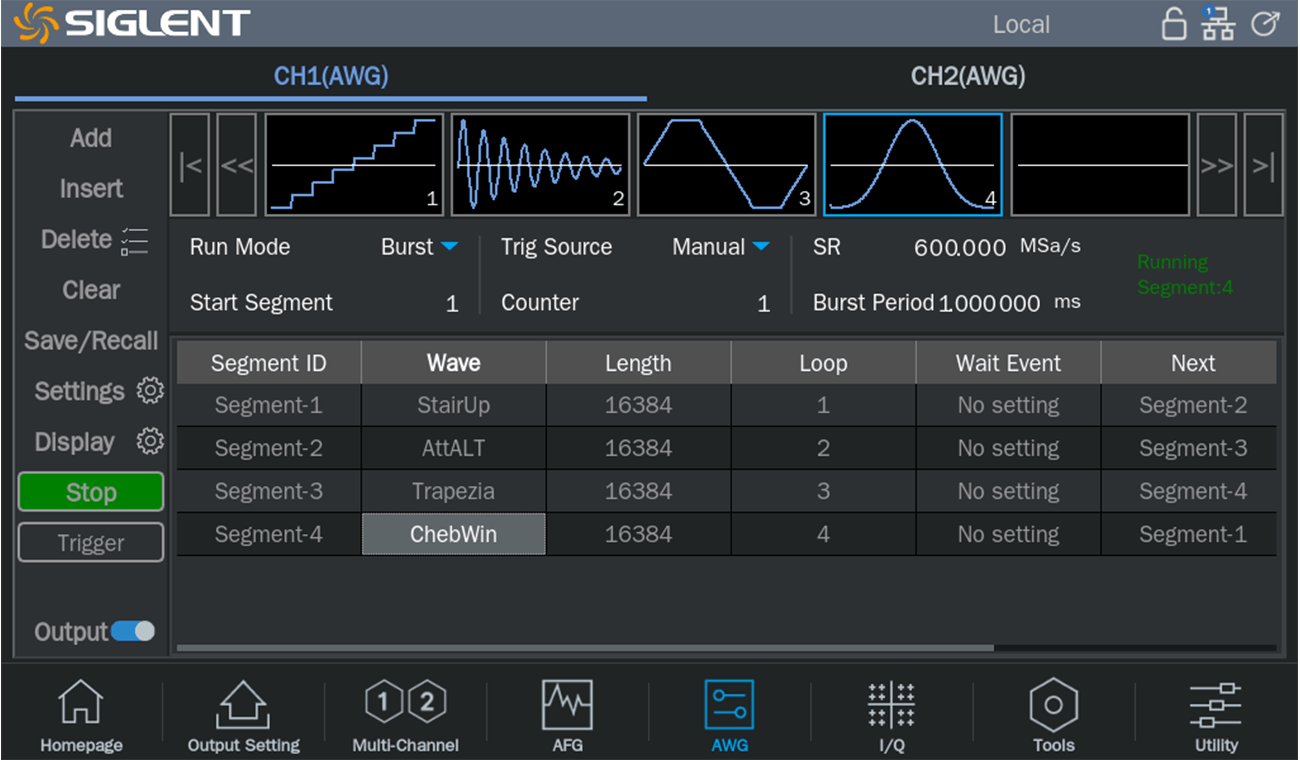

Powerful sequence playback function View more
Powerful sequence playback function
Easily set the number of cycle times for each waveform and the order of waveform playback.
It supports up to 1024 segments. During playback, it can also indicate the segment currently being played, allowing you to control the test.
Five operating modes: continuous, triggered, burst, single, and advanced. The advanced operating mode allows you to set the trigger mode for each segment.
Four trigger sources are available: “Auto”, “External”, “Manual” and “Timer”.
Built-in multi-pulse function View more
Built-in multi-pulse function

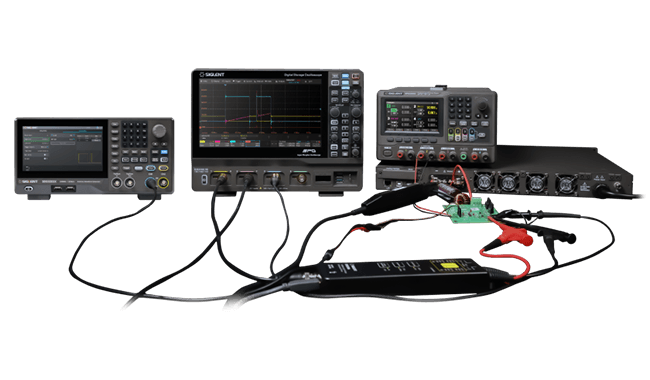

Built-in dual pulse output function, combined with siglent’s oscilloscope, can quickly measure the switching parameters and dynamic characteristics of power devices without the need for host computer software.
Supports up to 30 pulses, and can set each pulse width and pulse interval.
Customizable polynomial PRBS pattern output View more
Customizable polynomial PRBS pattern output

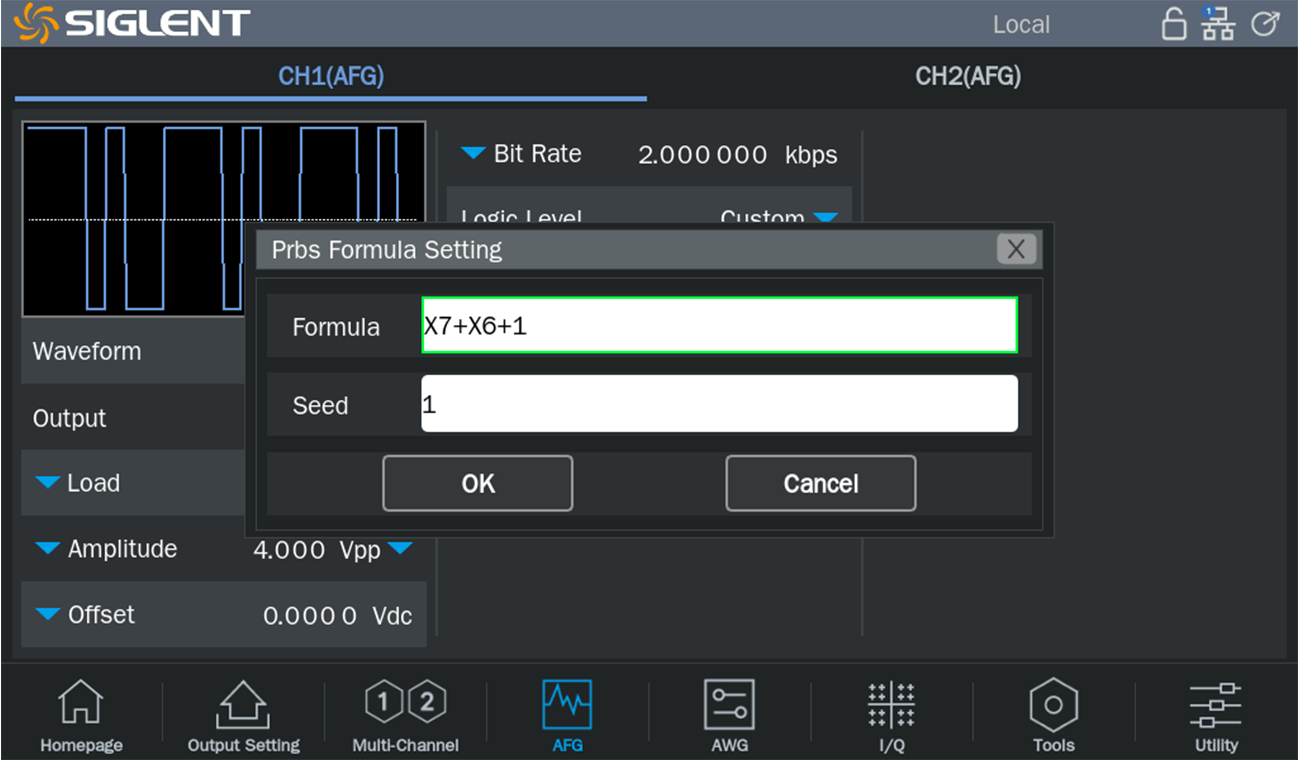

Provides PRBS3 ~ PRBS32 multiple pattern outputs, with a maximum bit rate of up to 120 Mbps. In addition to outputting single-ended signals, the two channels can also be set to differential output.
In addition to using the built-in PRBS generator polynomial, you can also customize the PRBS generator polynomial to make the test more flexible.

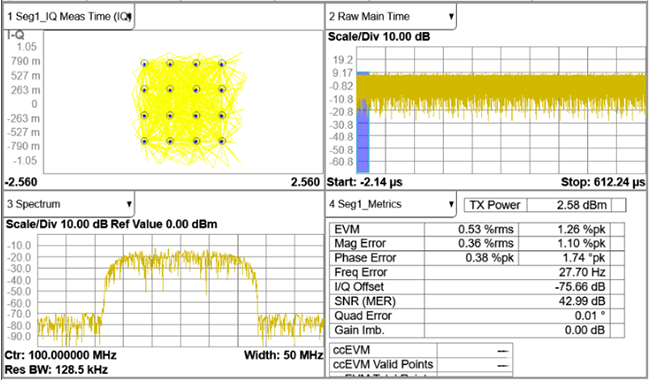

Vector signal output View more
Vector signal output

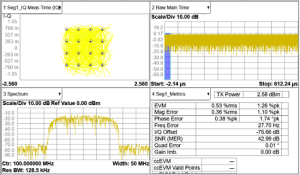

SDG3000X supports baseband or IF signals and can generate IQ signals of commonly used modulation types such as ASK, FSK, PSK, QAM, etc. SDG3000X can achieve excellent EVM performance at any symbol rate in the range of 250 Symb/s ~ 50 MSymb/s. The built-in digital orthogonal modulator can modulate the IQ signal to any frequency in the range of 200 MHz.

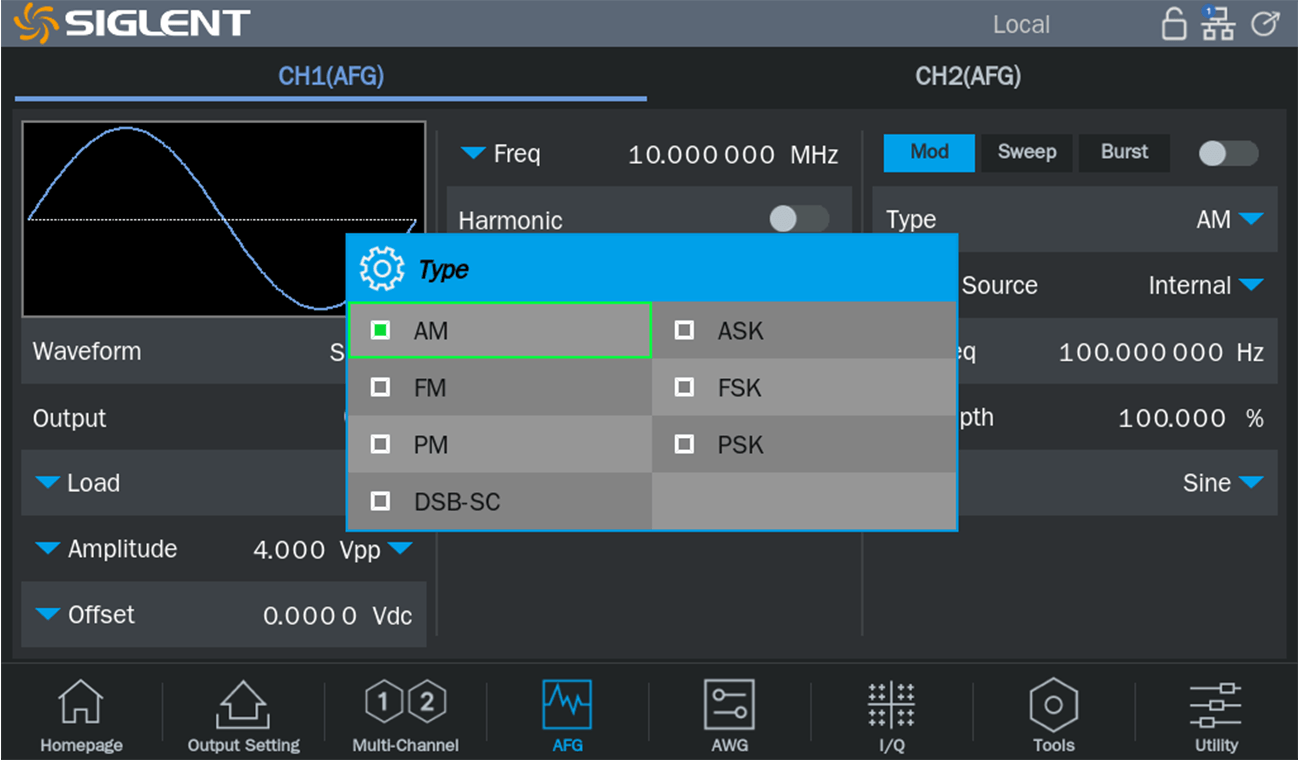

Modulation View more
Modulation
Rich modulation functions, supporting commonly used AM/DSB-SC/ FM/ PM/ ASK/ FSK/ PSK/ PWM modulation methods.
Two modulation sources are available: internal and external.

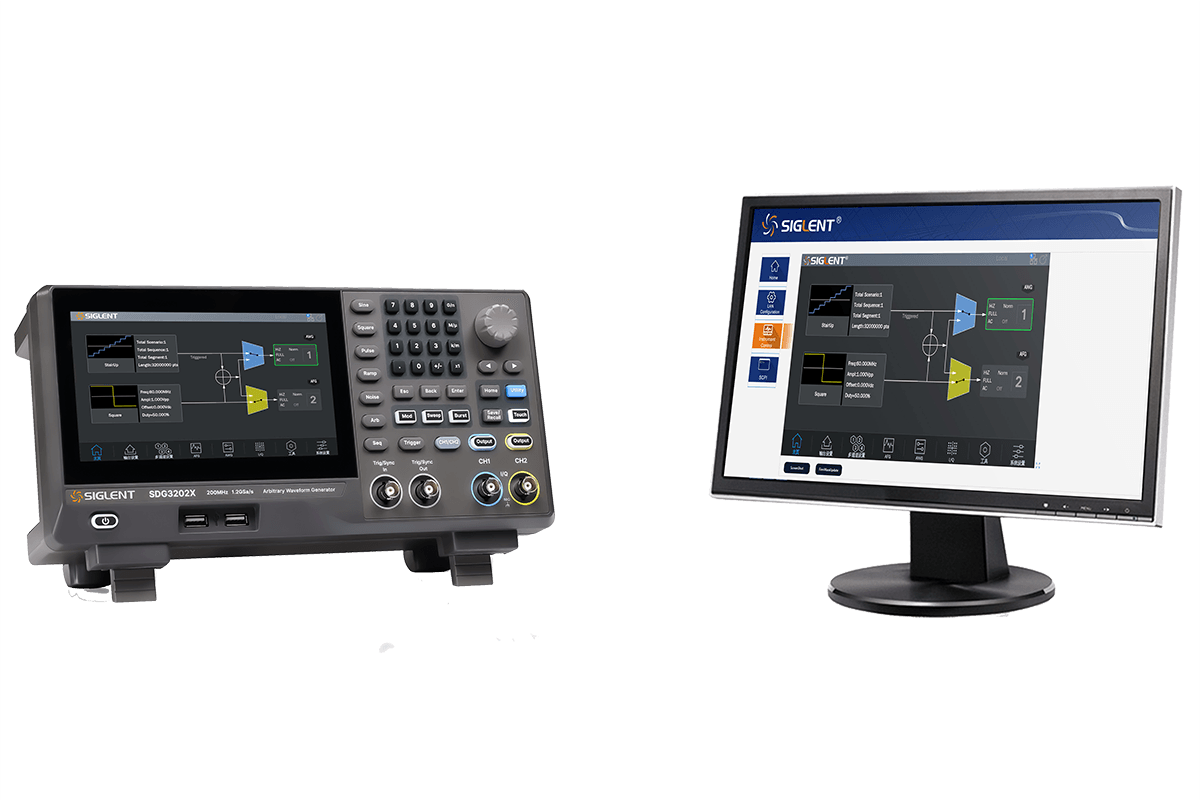

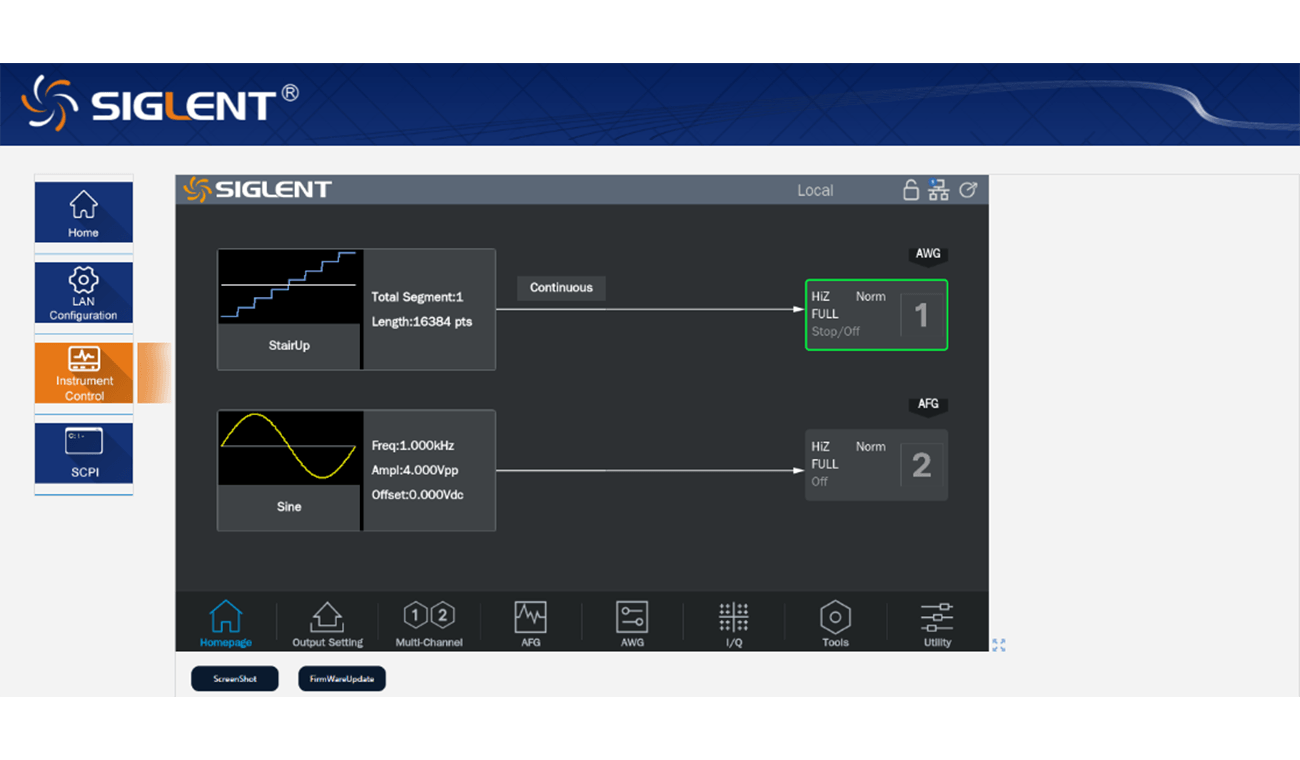

Built-in WebServer View more
Built-in WebServer
Supports instrument control through a web browser, allowing testing tasks to be completed remotely.
