How do I save inverted (white background) images?

October 24, 2017

To save on printer ink, you can invert the image on your SDS2000X oscilloscope.

  • Insert a USB memory device into the front panel USB port
  • Press Save/Recall on the front panel

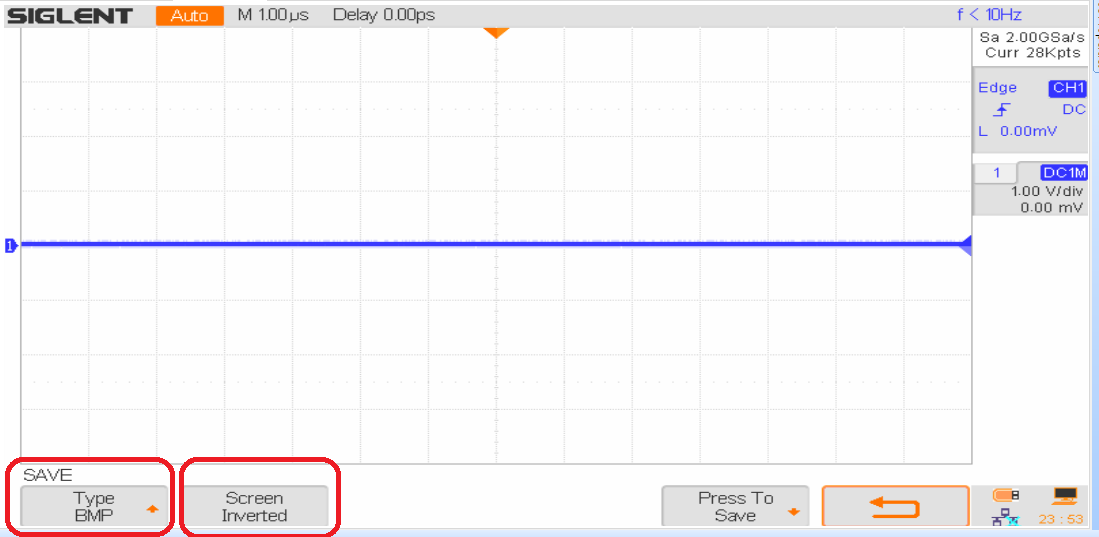

  • Set Type to BMP
  • Set Screen to Inverted
  • Select Press To Save, name the file, and Press to Save to save the file to the USB memory device
