SIGLENT SPA1010 Amplifier output control

February 15, 2019

The SIGLENT SPA1010 Amplifier can be a useful accessory for applications requiring higher voltage and/or current from a signal source like a SIGLENT SDG arbitrary waveform generator.

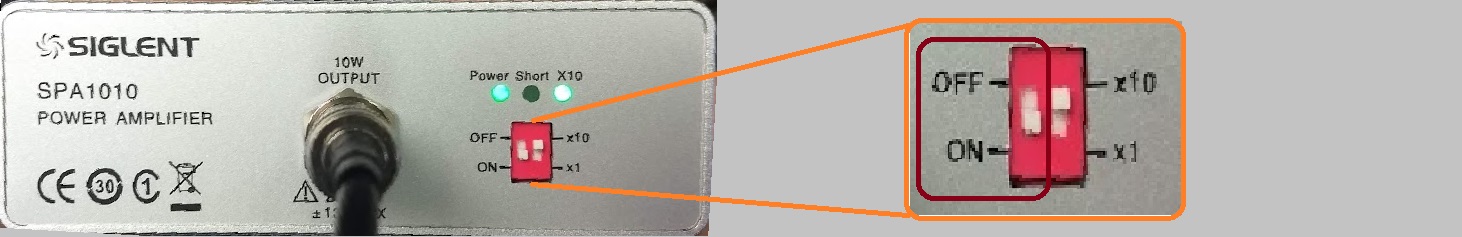

The SPA features a power-on indicator LED, Short LED, a X10 indicator LED, and a set of switches on the front panel.

To use:

  1. Connect the output of your source to the SPA input.

2. Connect the SPA output to your DUT.

3. Select x1 (unity voltage) or x10 (10 x source voltage)

4. Select ON when you wish to source an output signal from the SPA



NOTE: If the power switch is left in the OFF position, the output will be held at 0 V.
