SDG6000X Series Pulse/Arbitrary Waveform Generator

  • Dual-Channel, 500 MHz maximum bandwidth, 20 Vpp maximum output amplitude, high fidelity output with 80 dB dynamic range
  • High-performance sampling system with 2.4 GSa/s sampling rate and 16-bit vertical resolution
  • EasyPulse circuit lowers jitter and increases pulsed performance
  • Create baseband and IF IQ modulated waveforms (optional)

Product Overview

SIGLENT’s SDG6000X is a series of dual-channel Pulse/ Arbitrary Waveform Generators that feature up to 500 MHz bandwidth, a maximum sample rate of 2.4 GSa/s and 16-bit vertical resolution. They also include proprietary TrueArb & EasyPulse technology that help to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square and pulse waveforms. In addition, the SDG6000X is a multi-function device which can generate Noise, IQ signals and PRBS patterns. These features enable the SDG6000X to provide a variety of high fidelity and low jitter signals, meeting the growing requirements of complex and intensive applications.

Max Output Frequency Max Sampling Rate Vertical Resolution Waveform Length Channels Price
SDG6022X 200 MHz 2.4 GSa/s 16-bit 20 Mpts 2 €1,309 Buy Now
SDG6032X 350 MHz 2.4 GSa/s 16-bit 20 Mpts 2 €2,959 Buy Now
SDG6052X 500 MHz 2.4 GSa/s 16-bit 20 Mpts 2 €4,619 Buy Now

Key Features

  • Sweep and Burst function
  • Harmonics function
  • Waveform Combining function
  • Channel Coupling, Copy and Tracking function
  • 196 built-in arbitrary waveforms
  • High precision Frequency Counter
  • Base Band and IF IQ signals supporting
    basic modulation and an arbitrary symbol
    rate between 250 Symb/s to 37.5 MSymb/s (optional)
  • Standard interfaces include: USB Host, USB Device (USBTMC), LAN (VXI-11, Socket, Telnet). GPIB Optional (Part number USB-GPIB)
  • 4.3” touchscreen display for easier operation

I gotta tell you, I really like the SDG6022x.

Nice instrument. Very decent performance, snappy and the UI is great. Its a winner and at the current price point, especially for the SDG6022X it beats my other arbs in every respect (Tek AFG, Agilent/HP and Rigol DG4x) hands down…

Bob G.
Portland, Oregon

Need more information? Call us now +49 821 666 0 111 0

Product Characteristics

Up-to 500 MHz Sine Wave View more

Up-to 500 MHz Sine Wave

Our highest frequency generator. Novel design delivers higher voltages over a  broad range of frequencies.

Adjustable Pulse Width View more

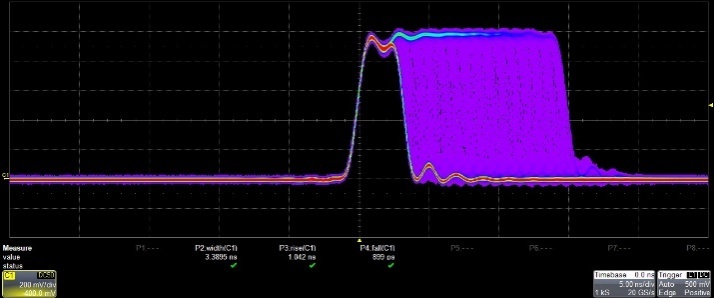

Adjustable Pulse Width

The pulse width can be fine-tuned to the minimum of 3.3 ns with an adjustment step as small as 100 ps, at any frequency.

Adjustable Pulse Edges View more

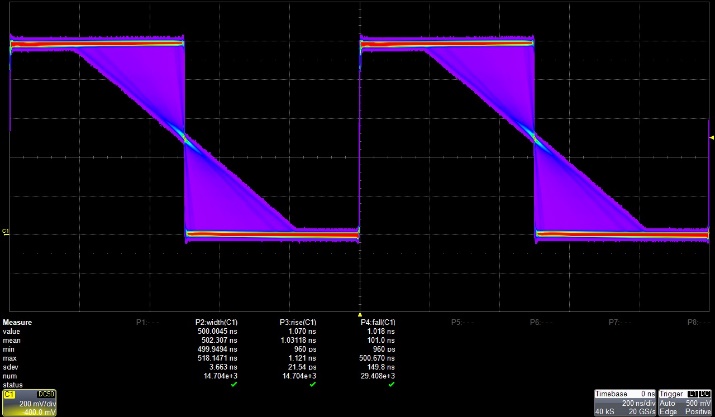

Adjustable Pulse Edges

The rise/fall times can be set independently to the minimum of 1 ns at any frequency with a minimum adjustment step as small as 100 ps

Low Jitter View more

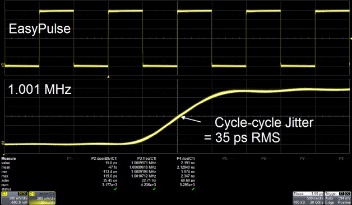

Low Jitter

When a Square/Pulse waveform is generated by traditional DDS, there can be additional jitter if the sampling rate is not an integerrelated multiple of the output frequency. EasyPulse technology successfully overcomes this weakness in DDS designs and helps to produce low jitter Square/Pulse waveforms.

Point-by-Point Output View more

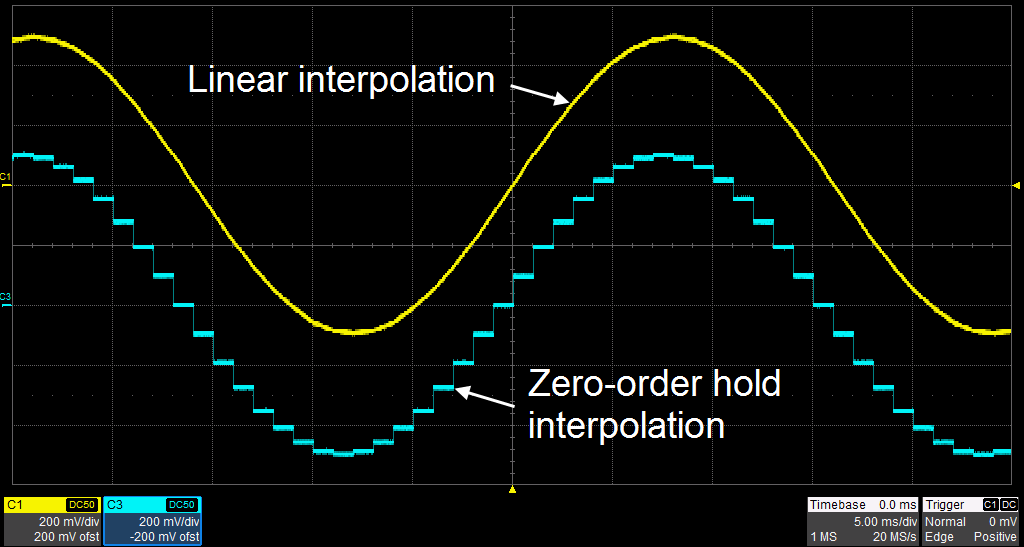

Point-by-Point Output

TrueArb generates arbitrary waveforms point-by-point. It never skips any point so that it can reconstruct all the details of the waveform, as defined. Two interpolation modes are available: linear and zero-order hold.

Create Waveforms Using EasyWave Software View more

Create Waveforms Using EasyWave Software

EasyWave is an arbitrary waveform software platform that supports waveform creation and editing. It features manual drawing, as-wellas line, equation, and coordinate editing modes. It is also a convenient way for users to edit their own arbitrary waveforms.

Easily Add Noise View more

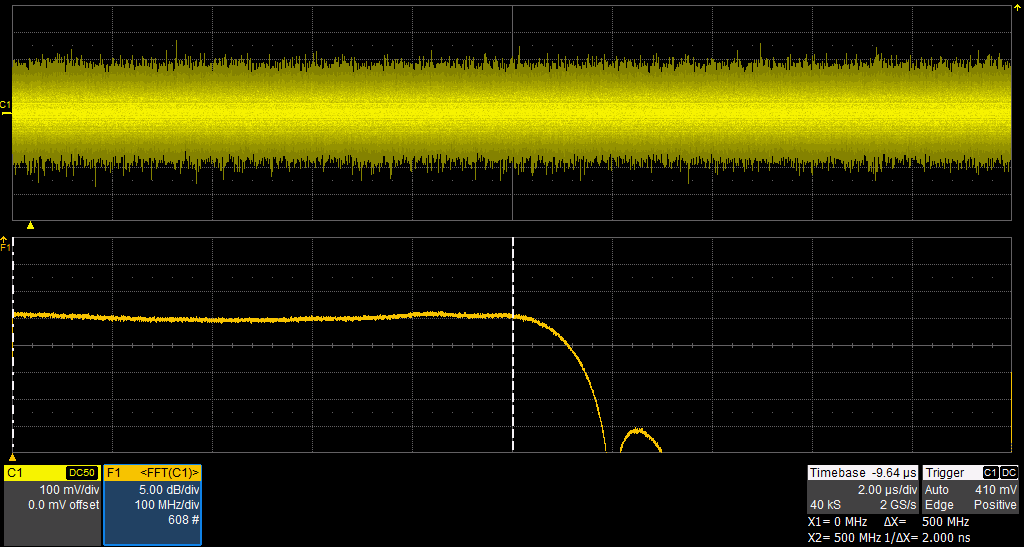

Easily Add Noise

Gaussian noise with bandwidth up to 500 MHz. The repetition period is more than 100 years, and the bandwidth is adjustable. Wideband Gaussian noise can be easily added to other waveforms to simulate real-world scenarios in which the signal contains a large degree of noise.

IQ Modulation (optional) View more

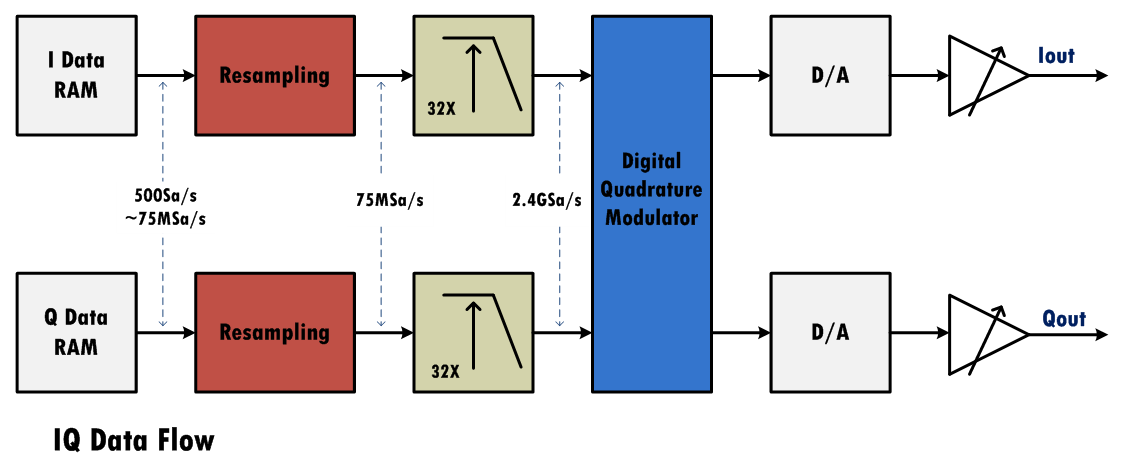

IQ Modulation (optional)

The SDG6000X supports popular modulation types such as ASK, FSK, PSK, and QAM. Proprietary resampling technology provides excellent EVM performance at arbitrary symbol rates between 250 Symb/s – 37.5 MSymb/s. Built-in digital quadrature modulator provides the possibility to generate IQ signals from baseband to 500 MHz intermediate frequency.

Generate Modulation Waveforms with Easy IQ software (optional) View more

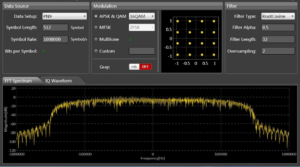

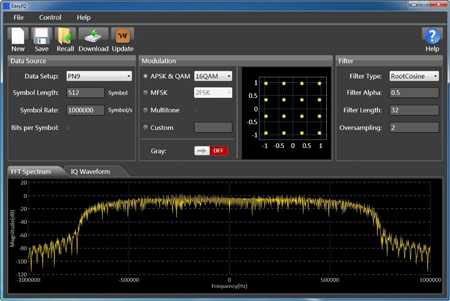

Generate Modulation Waveforms with Easy IQ software (optional)

IQ waveforms can be generated by EasyIQ software.

Generate PRBS signals View more

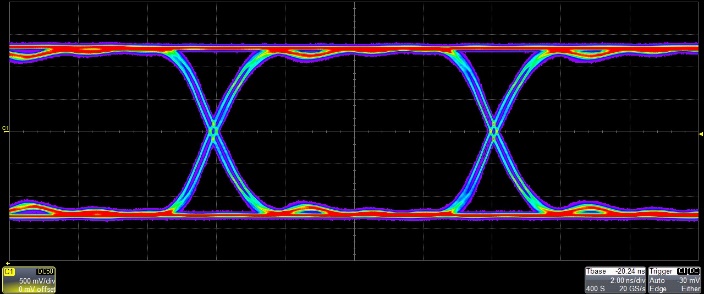

Generate PRBS signals

PRBS3 – PRBS32 with finely adjustable 10-6 bps – 300 Mbps bit rate and 1 ns – 1us edge.

PRBS View more

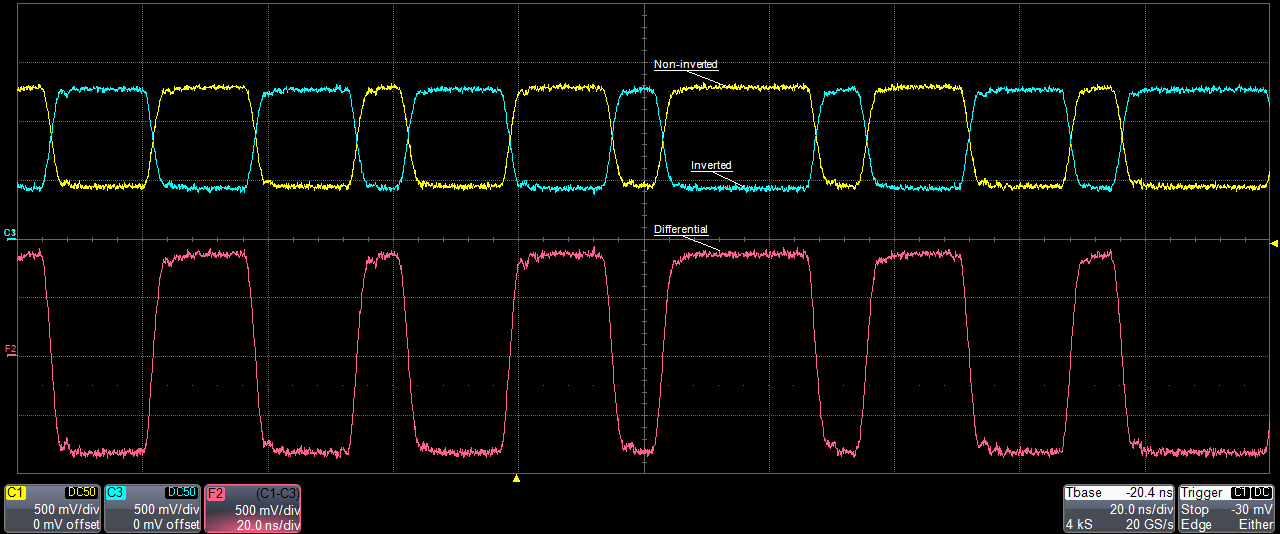

PRBS

Preset common logic levels such as TTL, LVCMOS, LVPECL and LVDS. An added differential mode provides an easy way to generate differential signals using the both channels.

Large Signals at High Frequencies View more

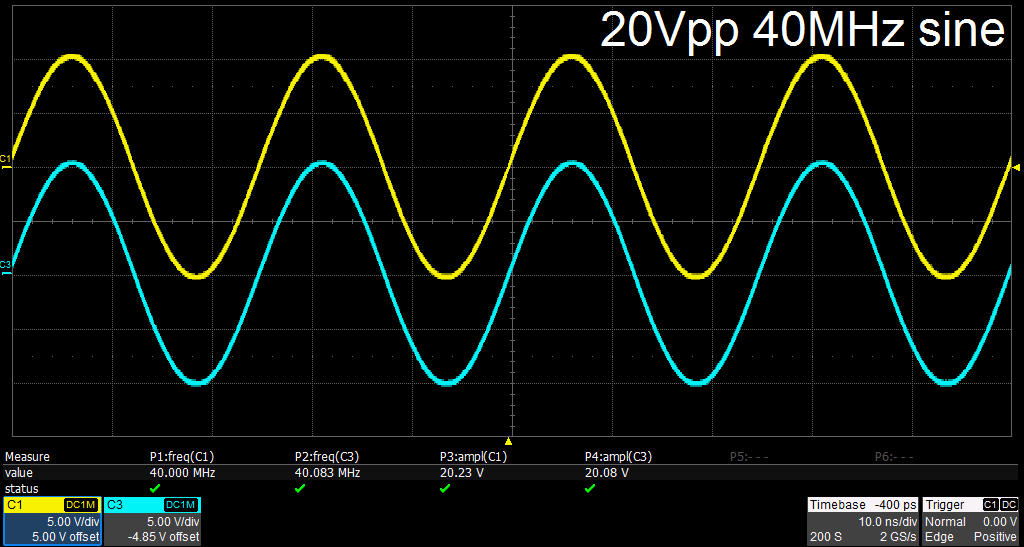

Large Signals at High Frequencies

Dual-channel, 20 Vpp amplitude sine wave guaranteed at up to 40 MHz.

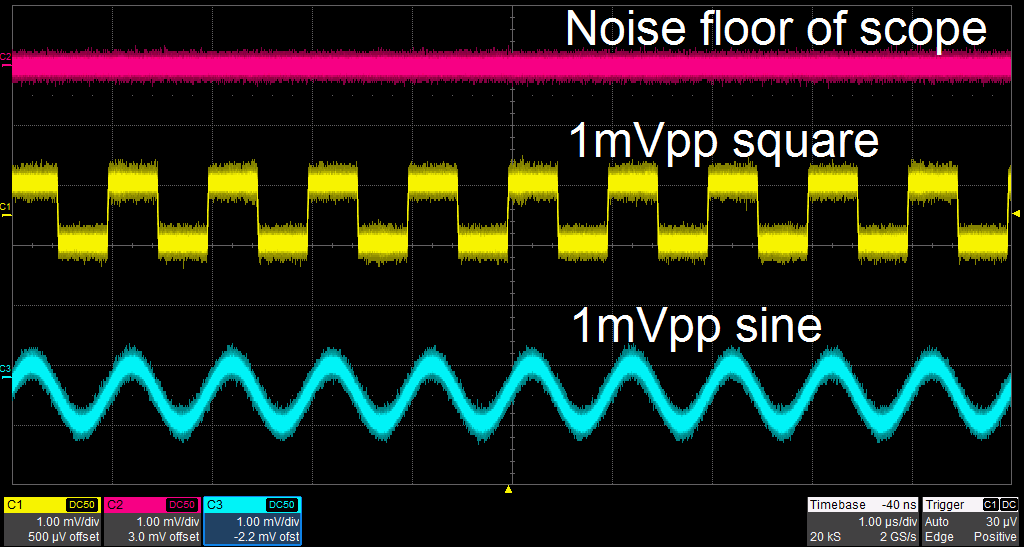

Generate low amplitude signals View more

Generate low amplitude signals

Low noise floor, improves signal-to-noise ratio.

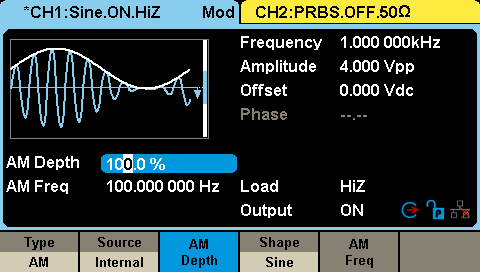

Exetensive Modulation selection View more

Exetensive Modulation selection

Standard modulation types include AM, FM, PM, FSK, ASK, PSK, DSBAM, and PWM are supported. IQ modulation is optional. The modulation source can also be configured as “Internal” or “External”.

Sweep and Burst View more

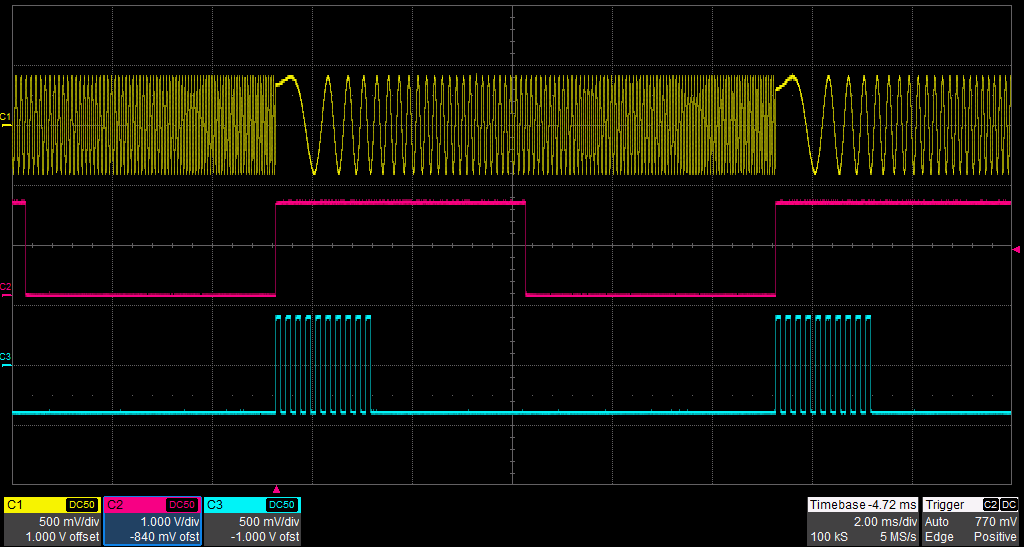

Sweep and Burst

Sweep modes include “Linear” and “Log”. Burst modes includes “N cycle” and “Gated”. Both Sweep and Burst can be triggered by “Internal” , “External” or “Manual” source.

Waveform Combining View more

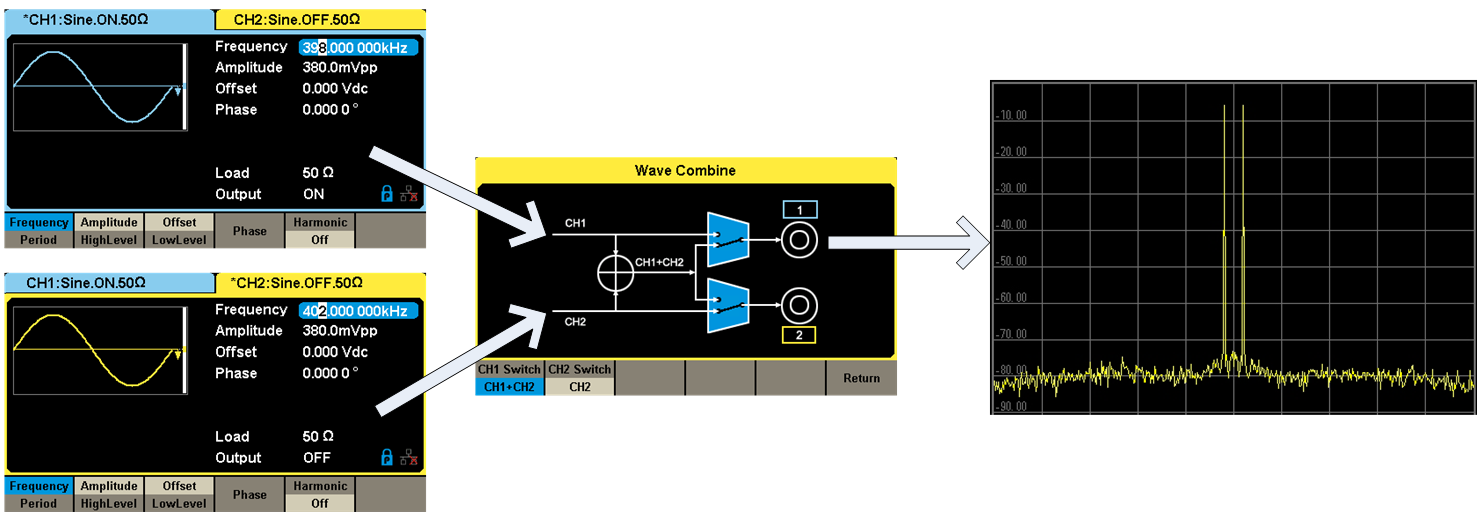

Waveform Combining

The waveform combining function superimposes CH1 and CH2 waveforms internally and provides the combined waveform to a user-selected output. Easily combine basic waveforms, random noise, modulation signals, sweep signals, burst signals, EasyPulse waveforms and TrueArb waveforms

Harmonics Function View more

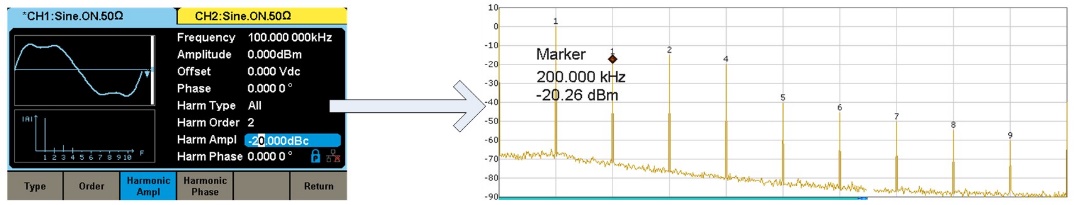

Harmonics Function

Harmonics function gives you the ability to add higher-order elements to your signal.

Two Dual-channel Operation Modes View more

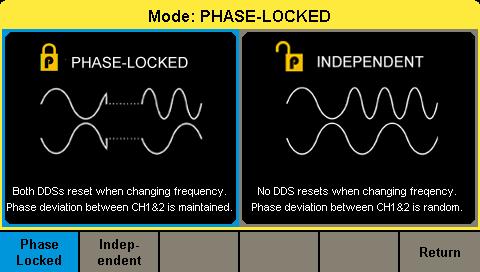

Two Dual-channel Operation Modes

“Phase-Locked” mode automatically aligns the phases of each output.

While “Independent” mode permit the two channels to be used as two independent generators. Independent mode also smoothes parameter (frequency, amplitude) changes made to an active channel.

Frequency Counter View more

Frequency Counter

8-digit hardware frequency counter with statistics function and input range of 0.1 Hz – 400 MHz.
